Concealed Fastener Wall Panels

What are Concealed Fastener Wall Panels?

Concealed fastener wall panels are attached to the substructure without visible fasteners. Instead, concealed fastener panels are installed with clips and/or screws hidden behind the face of the panel.

Due to narrower cover widths and increased installation costs, concealed fastener systems are more costly than exposed fastener panels. However, this product category still offers a very economical architectural solution when compared to other systems such as IMP's and composite panels.

McElroy's concealed fastener wall panels offer unique aesthetic and architectural interest leading to a combination of great curb appeal, economies and long service-life.

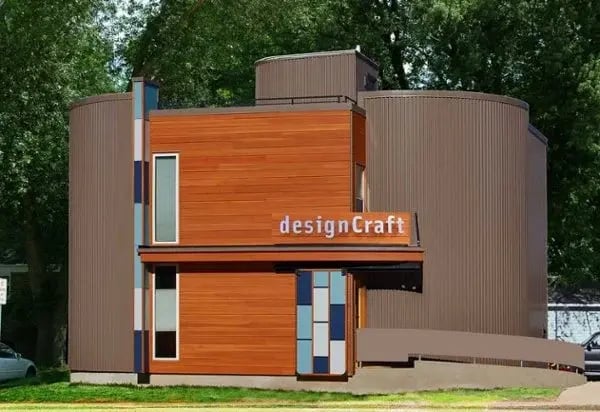

blog.mcelroymetal.comhs-fshubfsPhoto GalleryArchitectural Wall ApplicationsdesignCraft Advertising Madison, WI Thumbnail

Advantages of Concealed Fastener Panels

Clean Visual Appearance

For projects where aesthetics are important, it's hard to beat the clean uninterrupted lines offered by concealed fastener wall panels.

Reduced Leak Exposure

Concealed fastener panels have a lower likelihood of leaking since the fasteners and/or clips are located behind the panel and protected from weather.

Design Flexibility

Concealed fastener panels can typically be installed vertically or horizontally and options like embossing and varying pan widths allow for virtually unlimited design flexibility.

Concealed Fastener Wall Panel Products

Explore our available Concealed Fastener Wall Panel Products.

Concealed Fastener Wall Panel Products

Explore our available Concealed Fastener Wall Panel Products.

MSR Panel

MSR combines strength and aesthetics in one profile to add curb appeal to most any project while providing engineering and weathertightness characteristics demanded by architects and owners. MSR is also commonly referred to as a “Shadow Rib” panel.

Learn More

Wave Panel

Wave panel is an attractive wall panel that offers excellent design flexibility. To meet architectural preferences, Wave can be installed both vertically and horizontally over a solid substrate or sub-framing. Wave can also be designed as a floating system for lengths over 40’.

Learn More

FW Panel

FW Panel is a 1 1/2" deep flush metal panel designed for use in vertical and horizontal applications. FW panels also have an option to create custom reveals from 1 to 3 inches.

Learn More

Visionline F-Series

Visionline F-Series if a flat plate system that is ideal for facades and rain screens. Visionline is available in McElroy's standard architectural colors with a 22 gauge steel substrate.

Learn More

Meridian

Meridian has it all! An aesthetically pleasing, snap-together, standing seam roof panel that is economical and easy to install. With no need for clips, Meridian panels are simply attached to the roof deck with pancake head fasteners. Equally well-suited for commercial and residential applications, Meridian is always an excellent choice!

McElroy Metal provides factory eave notching on Meridian standing seam panels.

Learn More

Medallion-Lok

Medallion-Lok effectively captures the beauty and elegance of a standing seam roof. Adding curb appeal to any project, the narrow 1.75" tall standing seam creates crisp, clean visual lines. Medallion-Lok features hidden clips and a snap-together seam which eliminates the need for jobsite seaming. While primarily a commercial panel, Medallion-Lok is also an excellent choice for larger, custom homes.

McElroy Metal provides factory eave notching on Medallion-Lok standing seam panels.

Learn More

Instaloc

Instaloc is a snap-together standing seam system that features a 1” seam and is installed with concealed clips. Instaloc is designed to be used with solid decking and the low profile seam makes the panel an excellent option for light commercial and residential applications.

Learn More

Medallion I

Medallion I is an architectural standing seam system that utilizes separate narrow batten caps that are installed over adjoining roofing panels. Medallion systems are installed over solid decking. Medallion I can also be curved to meet radius panel specifications.

Learn More

Medallion II

Medallion II is an architectural standing seam system that utilizes separate wide batten caps that are installed over adjoining roofing panels. Medallion systems are installed over solid decking.

Learn More

138T

138T panels feature technological advances in roofing that set a new standard for standing seam performance. The 138T system is classified as a symmetrical standing seam system that features mechanically seamed caps. This product offers many advantages including patented recover solutions featuring the industry's best method to recover existing metal or shingle roofs. The most important advantage of the 138T system is that it is easy to repair or alter after installation. Unlike asymmetrical standing seam systems, individual 138T panels can be removed and replaced.

Learn More

238T

While standing seam roofing systems have been used for generations, 238T panels feature technological advances in roofing that set a new standard for standing seam performance. The 238T system is classified as a symmetrical standing seam system that features mechanically seamed caps. This product family offers many advantages including patented recover solutions featuring the industry's best method to recover existing metal or shingle roofs. The most important advantage of the 238T system is that it is easy to repair or alter after installation.

Learn More
