Curved Metal Roofing
Curves are in! Whether simply used as a design accent or for an entire roof, radius roofing is gaining in popularity. McElroy Metal offers five distinct standing seam systems that can be curved right on the job site which both lowers transportation cost and helps ensure a proper fit. Our curved standing seam system options include Maxima 1.5, Maxima ADV, 138T, 238T, and Medallion I.

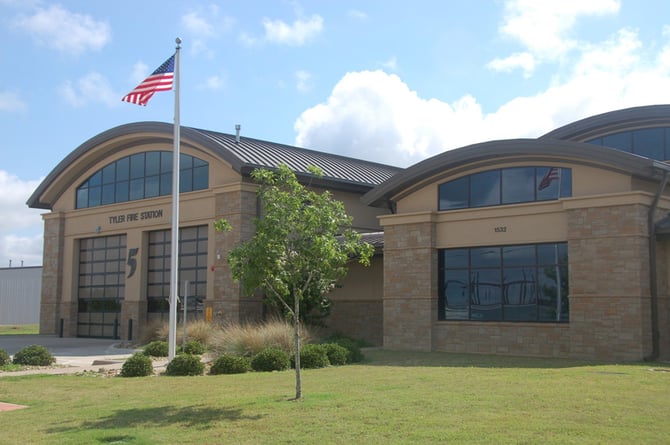

Standing Seam Curved Metal Roofing
Great for:
Walls
Roofs
Residential
Commercial
Curves are in! Whether simply used as a design accent or for an entire roof, radius roofing is gaining in popularity. McElroy Metal offers five distinct standing seam systems that can be curved right on the job site which both lowers transportation cost and helps ensure a proper fit. Our curved standing seam system options include Maxima 1.5, Maxima ADV, 138T, 238T,
Maxima 1.5, Maxima ADV, 138T,
Contact us to discuss your project specifics.
Metal Curved Roofing Options
Metal Curved Roofing Options

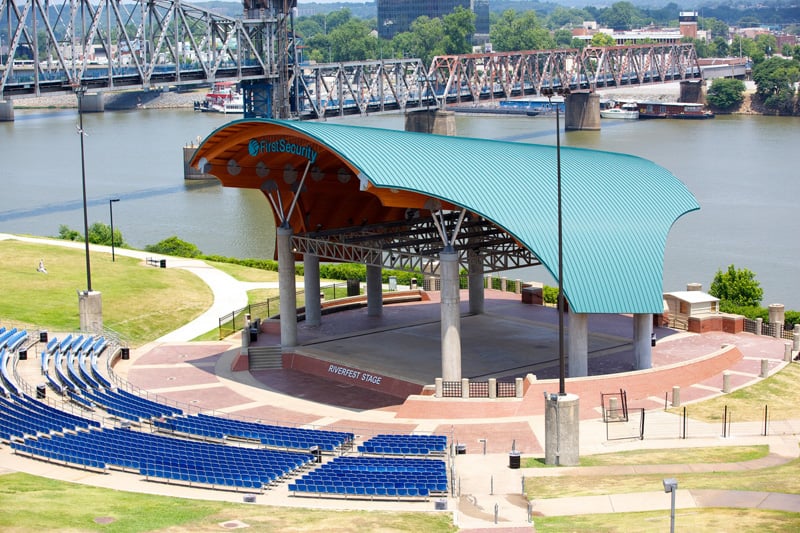

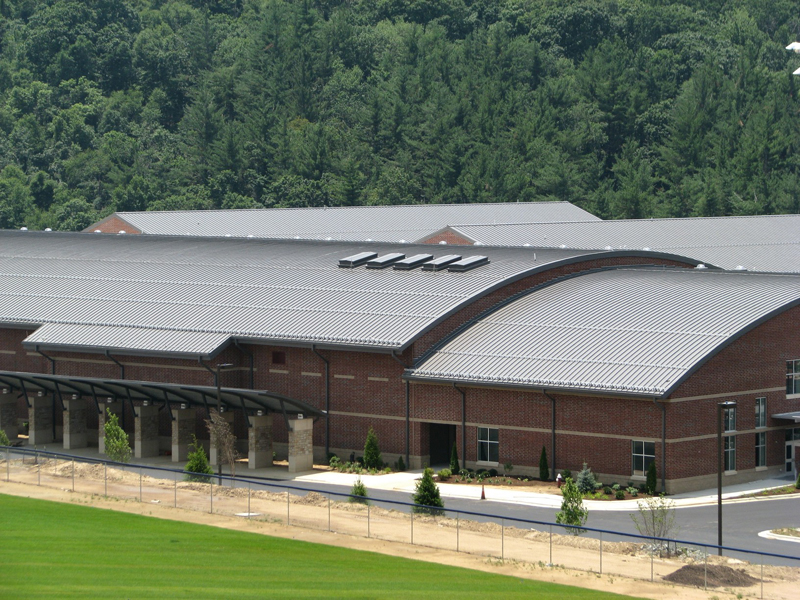

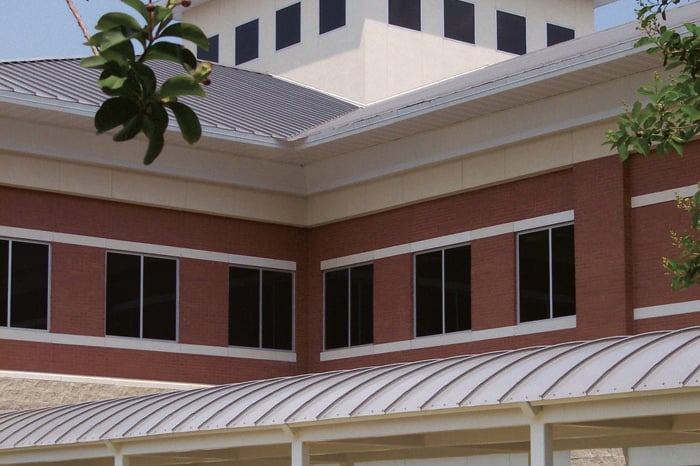

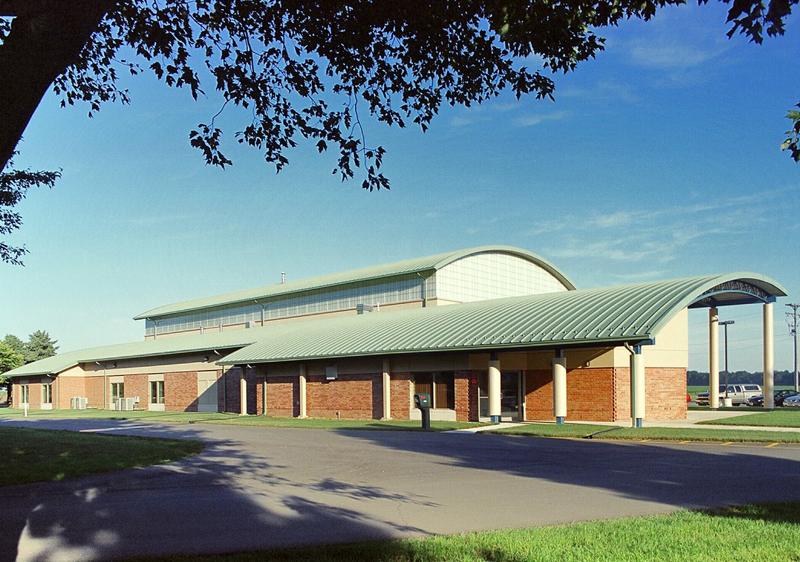

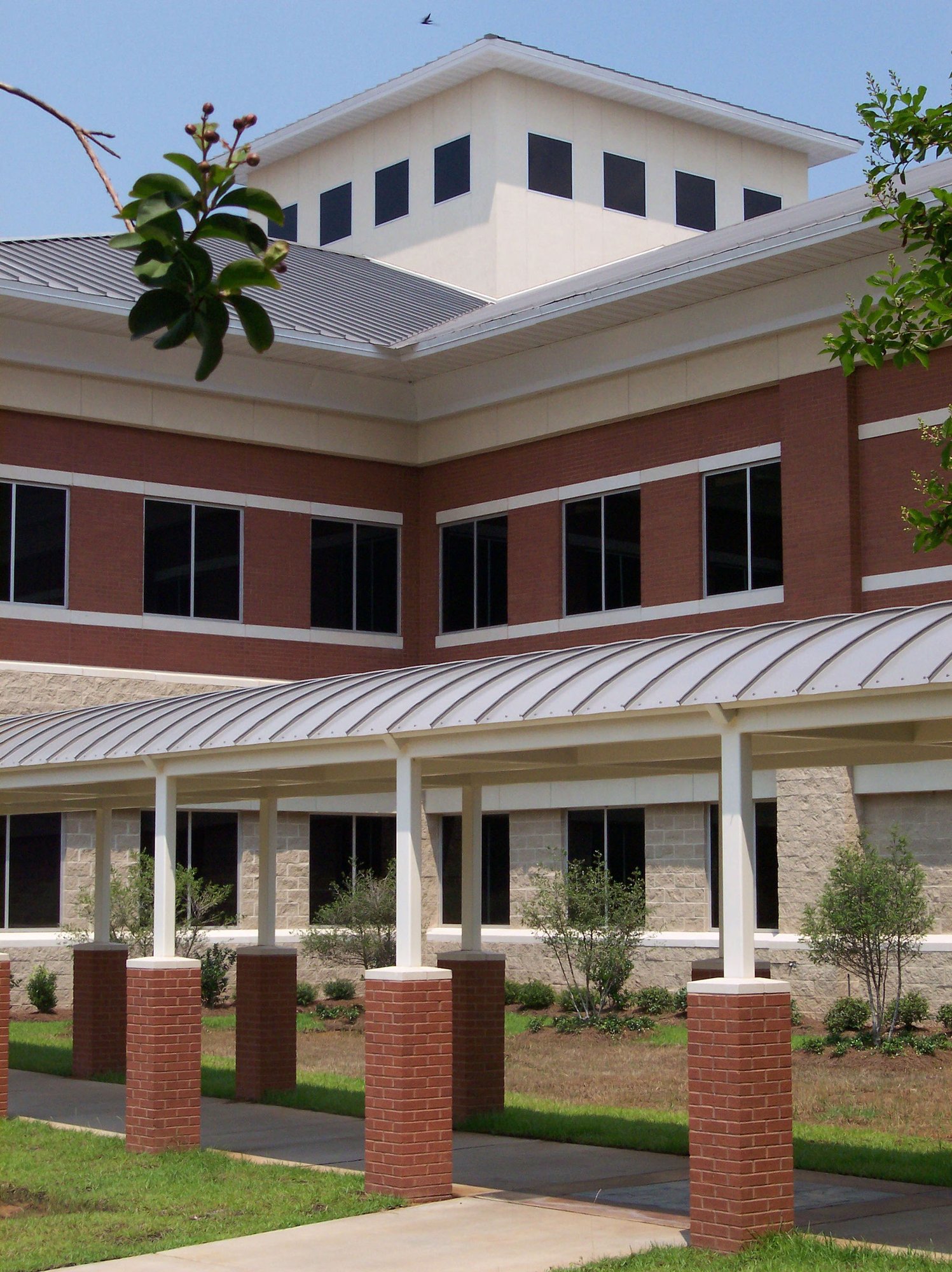

McElroy’s Maxima ADV non-symmetrical, vertical leg, mechanically seamed, standing seam system features a 2" tall seam.
Maxima ADV panels are fabricated/curved onsite by a McElroy Metal Roll Forming Technician.
After the completion of the seaming machine operation, the panels present a double lock (180 degree) profile.

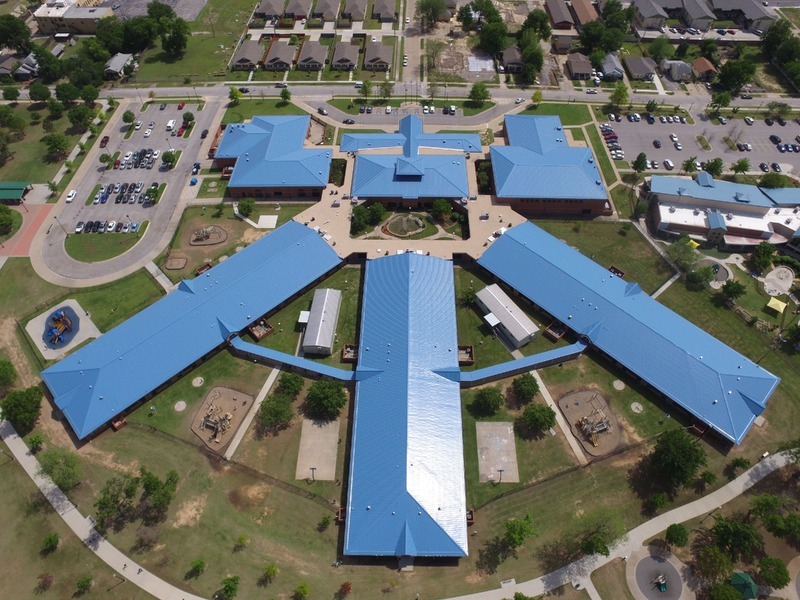

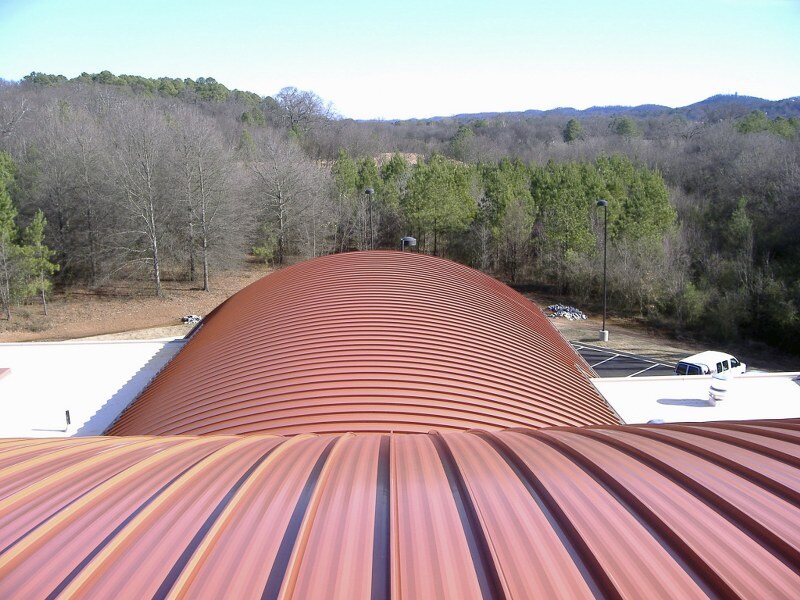

Ease of installation and ability to accept tighter radius are just two benefits of our symmetrical, mechanically seamed, vertical leg 138T panel.
McElroy’s 138T system features a 1 3/8" tall seam and separate batten cap and is manufactured onsite by a McElroy Metal roll forming technician.
After completion of the seaming operation, the panel and batten resemble a "T" shape.

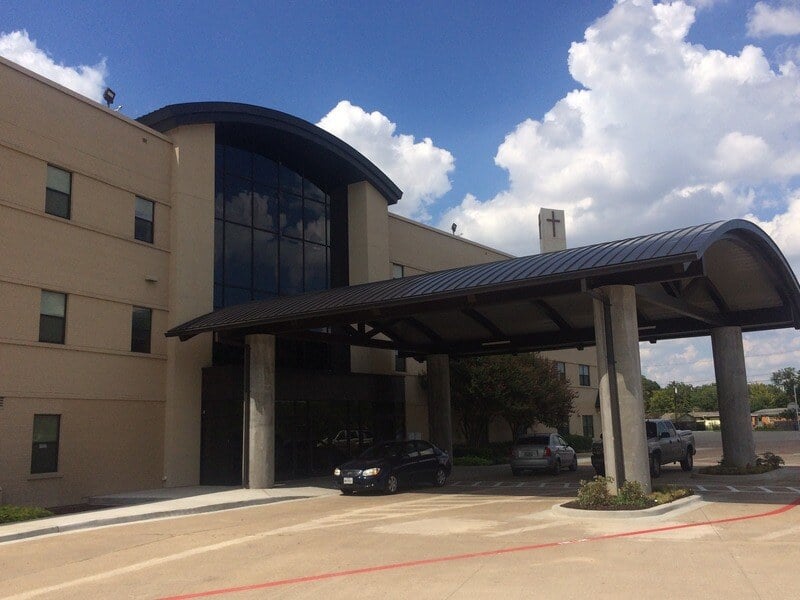

McElroy’s Medallion I standing seam system is comprised of a panel and separate batten cap. There are two main differences between this system and our other curved roofing systems:
1. The roofing contractor (as opposed to McElroy) completes the curving process onsite with equipment they are responsible for renting from Developmental Industries.
2. Medallion I is our only curved product that offers a snap on batten instead of a mechanically seamed batten.
McElroy’s Maxima 1.5 non-symmetrical, vertical leg, mechanically seamed, standing seam system features a 1.5" tall seam.
Maxima 1.5 panels are fabricated/curved onsite by a McElroy Metal Roll Forming Technician.
After the completion of the seaming machine operation, the panels present a double lock (180 degree) profile.
Ease of installation and ability to accept tighter radius are just two benefits of our symmetrical, mechanically seamed, vertical leg 238T panel.
McElroy’s 238T features a 2 3/8" tall seam and separate batten cap and is manufactured onsite by a McElroy Metal roll forming technician.
After completion of the seaming operation, the panel and batten resemble a "T" shape.
McElroy’s Maxima ADV non-symmetrical, vertical leg, mechanically seamed, standing seam system features a 2" tall seam.
Maxima ADV panels are fabricated/curved onsite by a McElroy Metal Roll Forming Technician.
After the completion of the seaming machine operation, the panels present a double lock (180 degree) profile.
Ease of installation and ability to accept tighter radius are just two benefits of our symmetrical, mechanically seamed, vertical leg 138T panel.
McElroy’s 138T system features a 1 3/8" tall seam and separate batten cap and is manufactured onsite by a McElroy Metal roll forming technician.
After completion of the seaming operation, the panel and batten resemble a "T" shape.
McElroy’s Medallion I standing seam system is comprised of a panel and separate batten cap. There are two main differences between this system and our other curved roofing systems:
1. The roofing contractor (as opposed to McElroy) completes the curving process onsite with equipment they are responsible for renting from Developmental Industries.
2. Medallion I is our only curved product that offers a snap on batten instead of a mechanically seamed batten.
McElroy’s Maxima 1.5 non-symmetrical, vertical leg, mechanically seamed, standing seam system features a 1.5" tall seam.
Maxima 1.5 panels are fabricated/curved onsite by a McElroy Metal Roll Forming Technician.
After the completion of the seaming machine operation, the panels present a double lock (180 degree) profile.
Ease of installation and ability to accept tighter radius are just two benefits of our symmetrical, mechanically seamed, vertical leg 238T panel.
McElroy’s 238T features a 2 3/8" tall seam and separate batten cap and is manufactured onsite by a McElroy Metal roll forming technician.
After completion of the seaming operation, the panel and batten resemble a "T" shape.
Details and Components Gallery

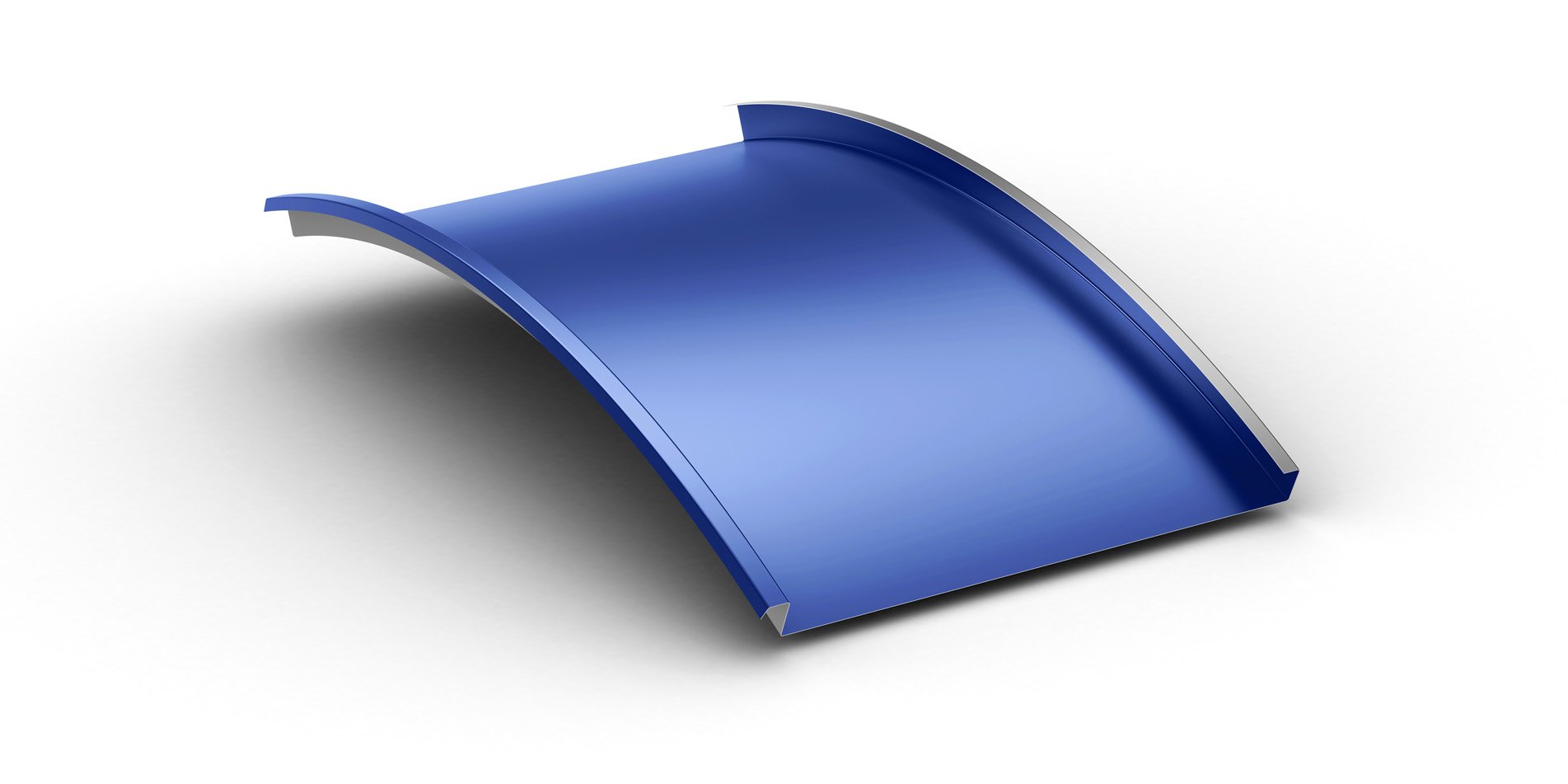

Maxima 1.5 Flat

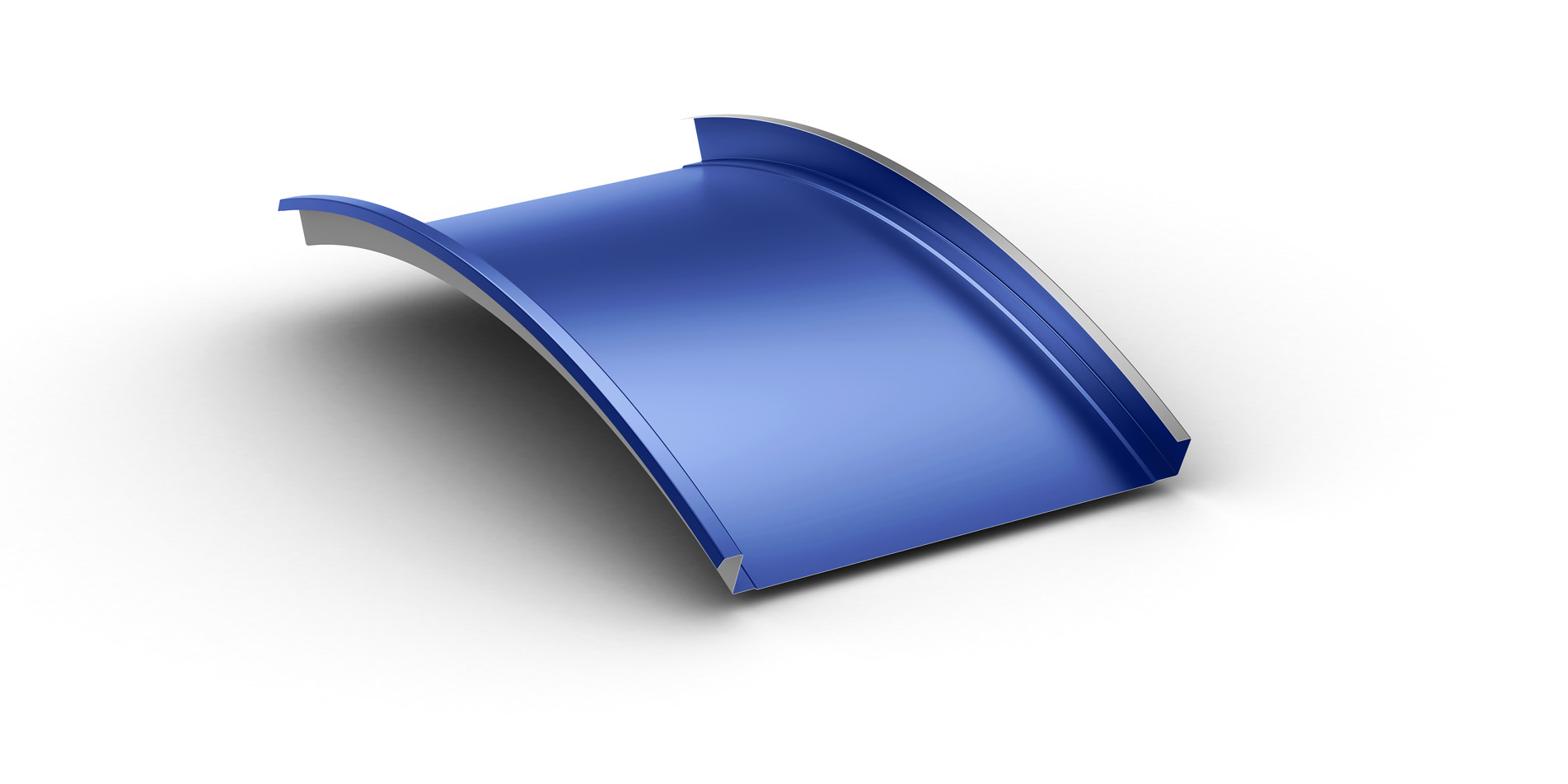

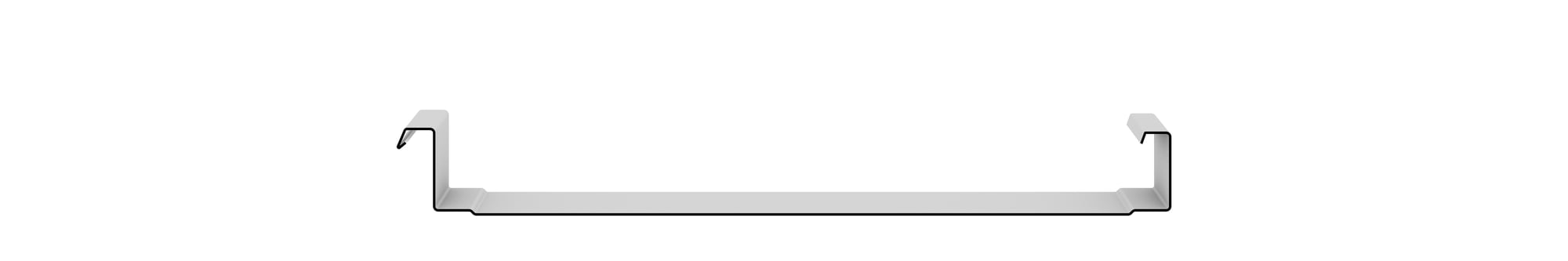

Maxima ADV Flat

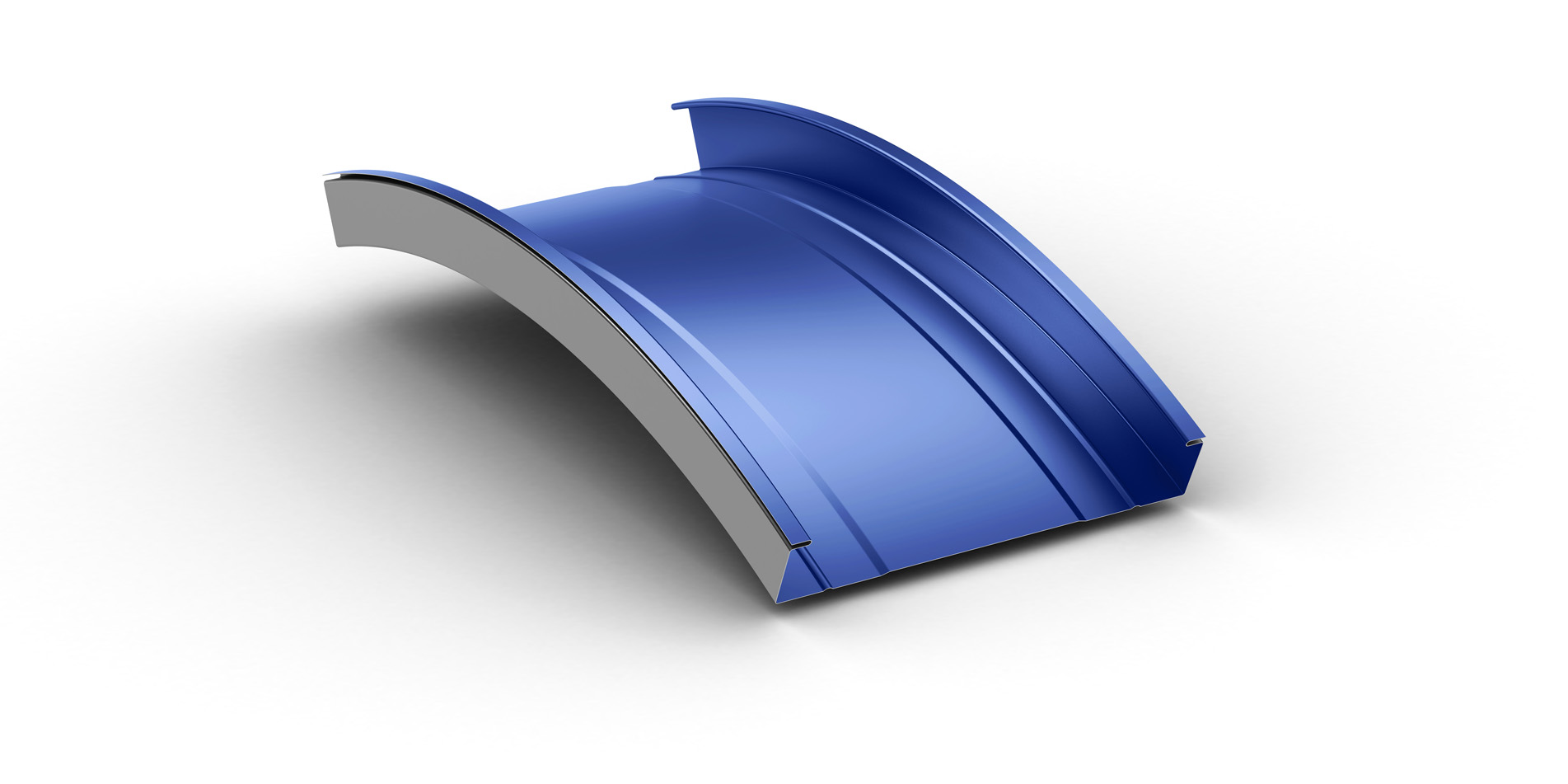

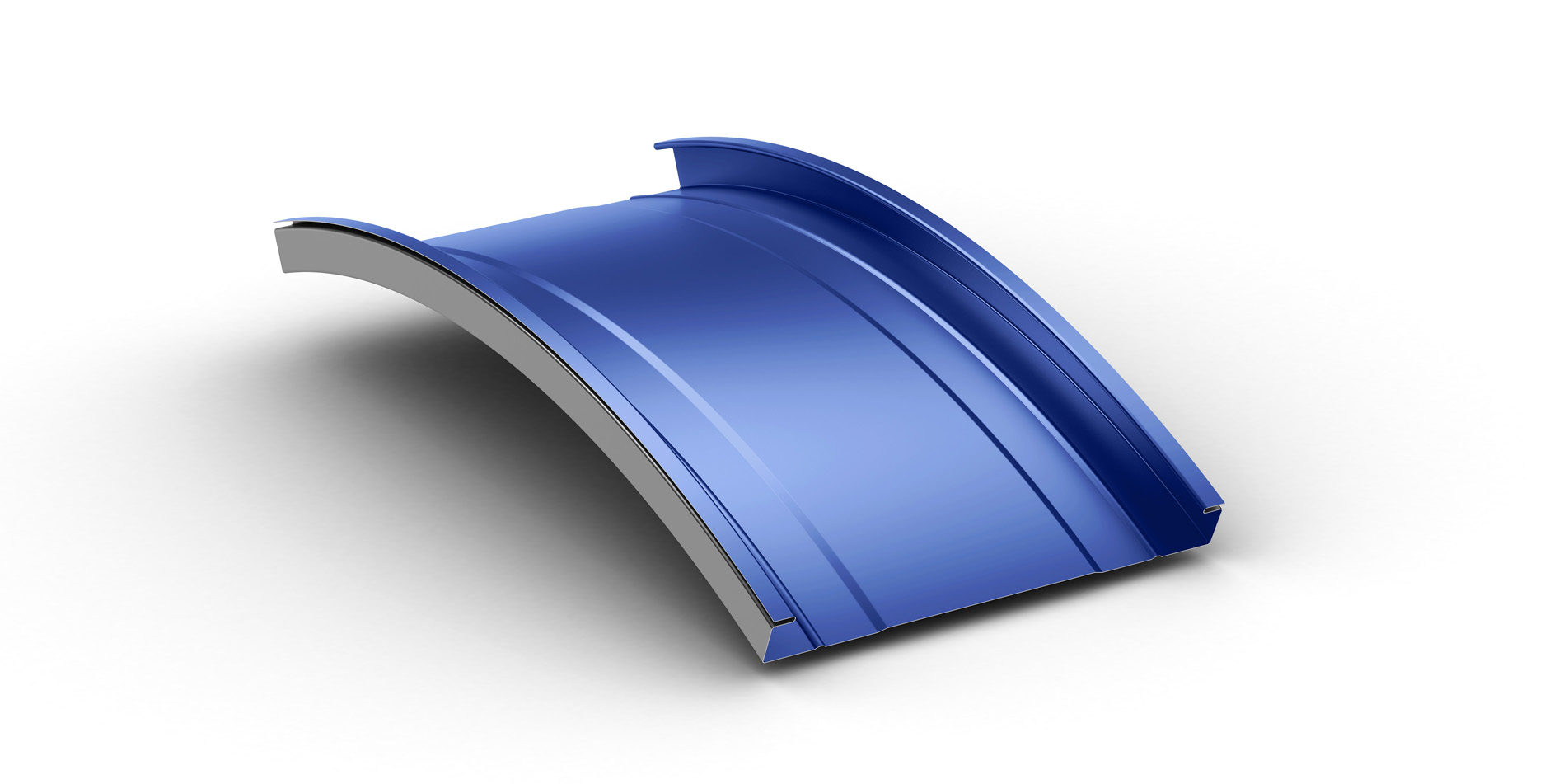

138T Plank & Pencil Rib
238T Plank & Pencil Rib
curve_medallion_BLUE_HR
Maxima 1.5 Flat
Maxima ADV Flat

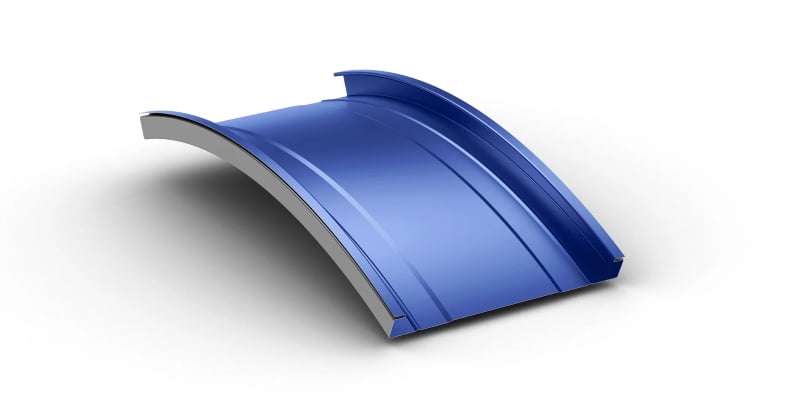

138T Plank & Pencil Rib
238T Plank & Pencil Rib

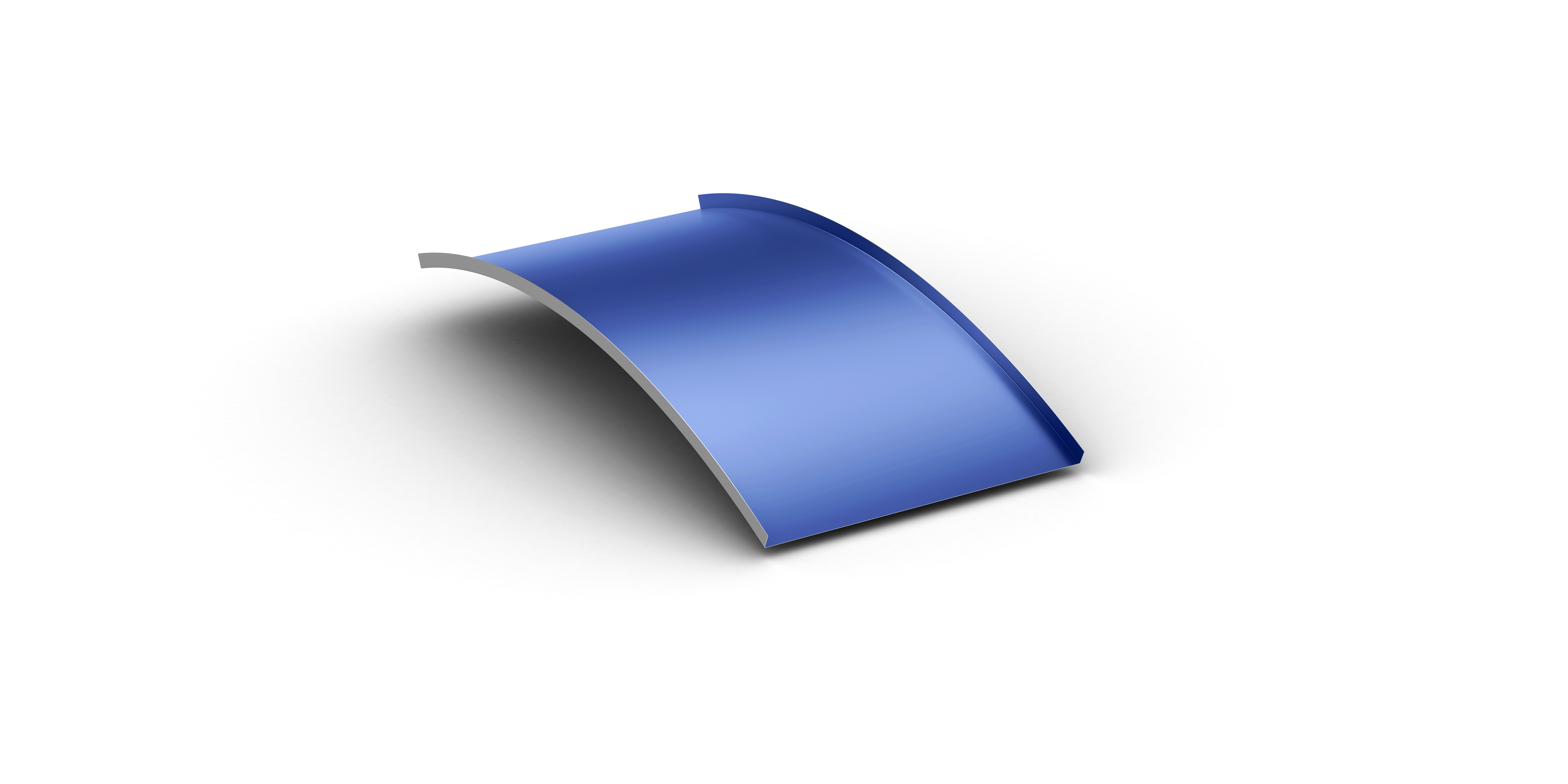

curve_medallion_BLUE_HR
Specifications & Details
Details
Maxima 1.5" & Maxima ADV
- Panel Width: 12”, 16” and 18”
- Panel Seam: 180 Degree Fold
- Minimum Radius ADV: Steel – 25’, Aluminum – 20’
- Minimum Radius 1.5: Steel – 12’, Aluminum – 10’
138T & 238T
- Panel Width: 16” and 18”
- Panel Seam: Symmetrical T-Seam
- Minimum Radius 138T: Steel – 9', Aluminum – 9’
- Minimum Radius 238T: Steel – 24’, Aluminum – 14’
Medallion I
- Panel Width: 12” and 16”
- Panel Seam: Batten Cap System
- Minimum Radius: Steel – 30”
Note
Oil Canning is a natural occurrence in metal panels and is not a cause for panel rejection
Testing
Testing Data
For available Test Data, Section Properties or Load Tables, please visit our downloads section.
Panel Options
Maxima 1.5"; Maxima ADV; 138T & 238T
Coating:
- Kynar 500® (PVDF)
Substrate:
- Standard 24 GA Galvalume®
- Optional .032 Aluminum (Sunnyvale facility only)
Medallion I
Coating:
- Kynar 500® (PVDF)
Substrate:
- Standard 24 GA Galvalume®
module.product Curved Roofing Systems
