Concealed Fastener Wall PanelVisionline F-Series

Visionline F-Series Wall System

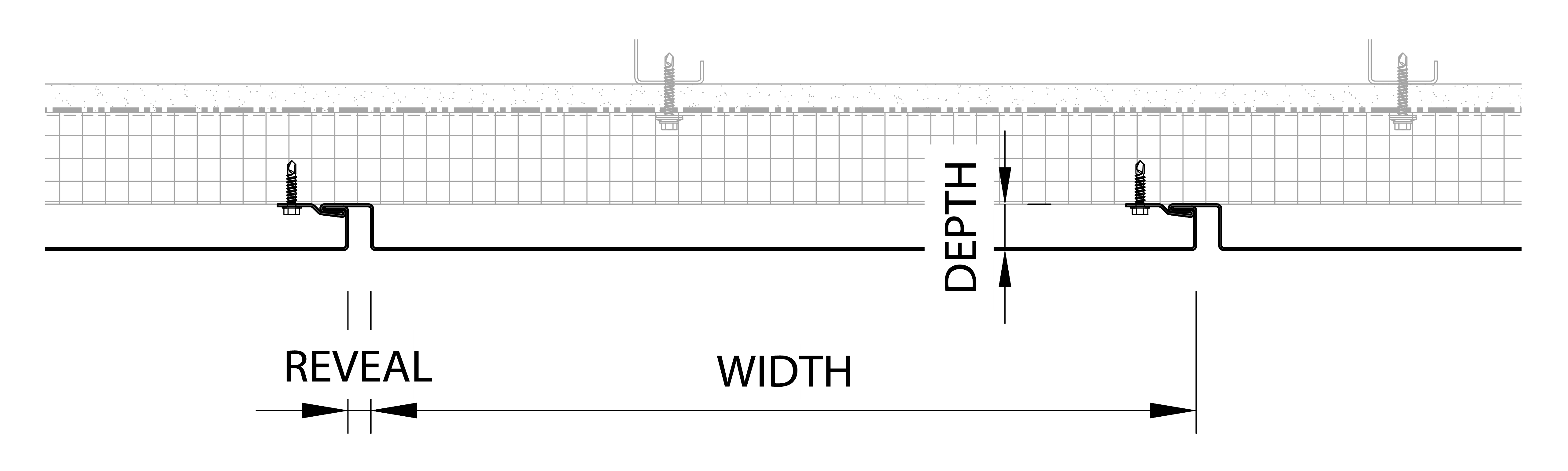

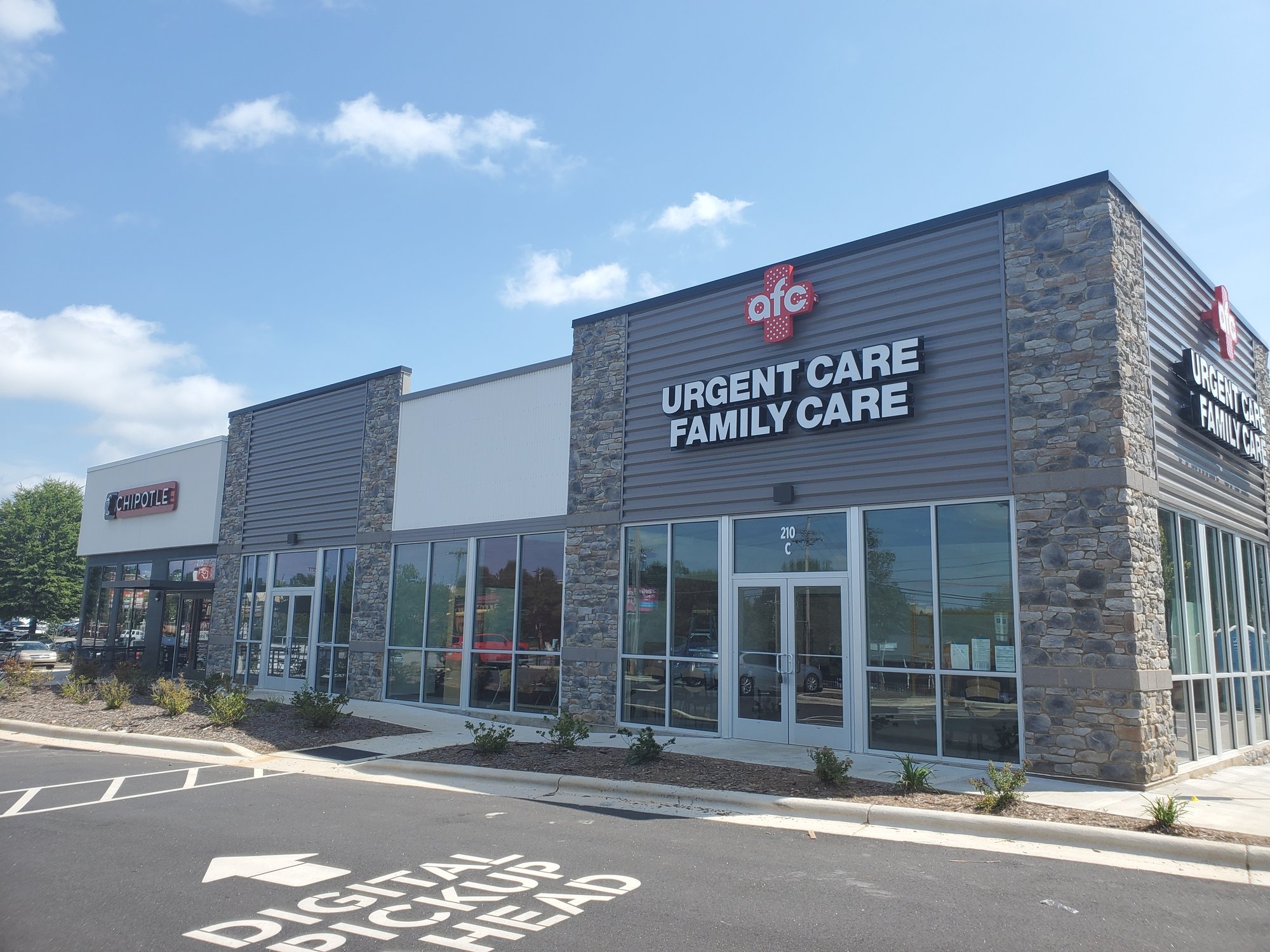

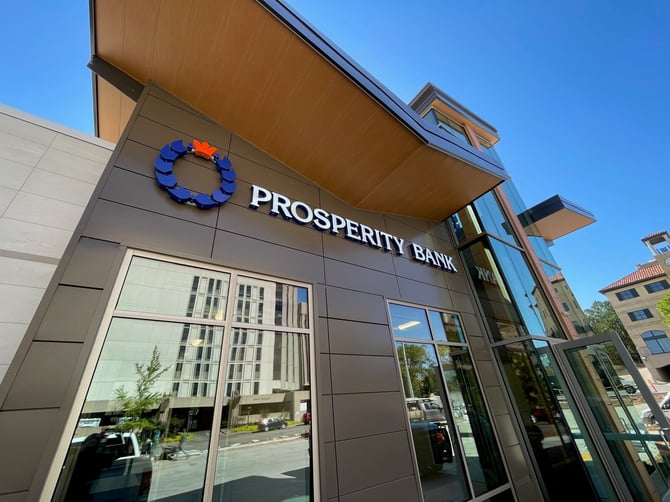

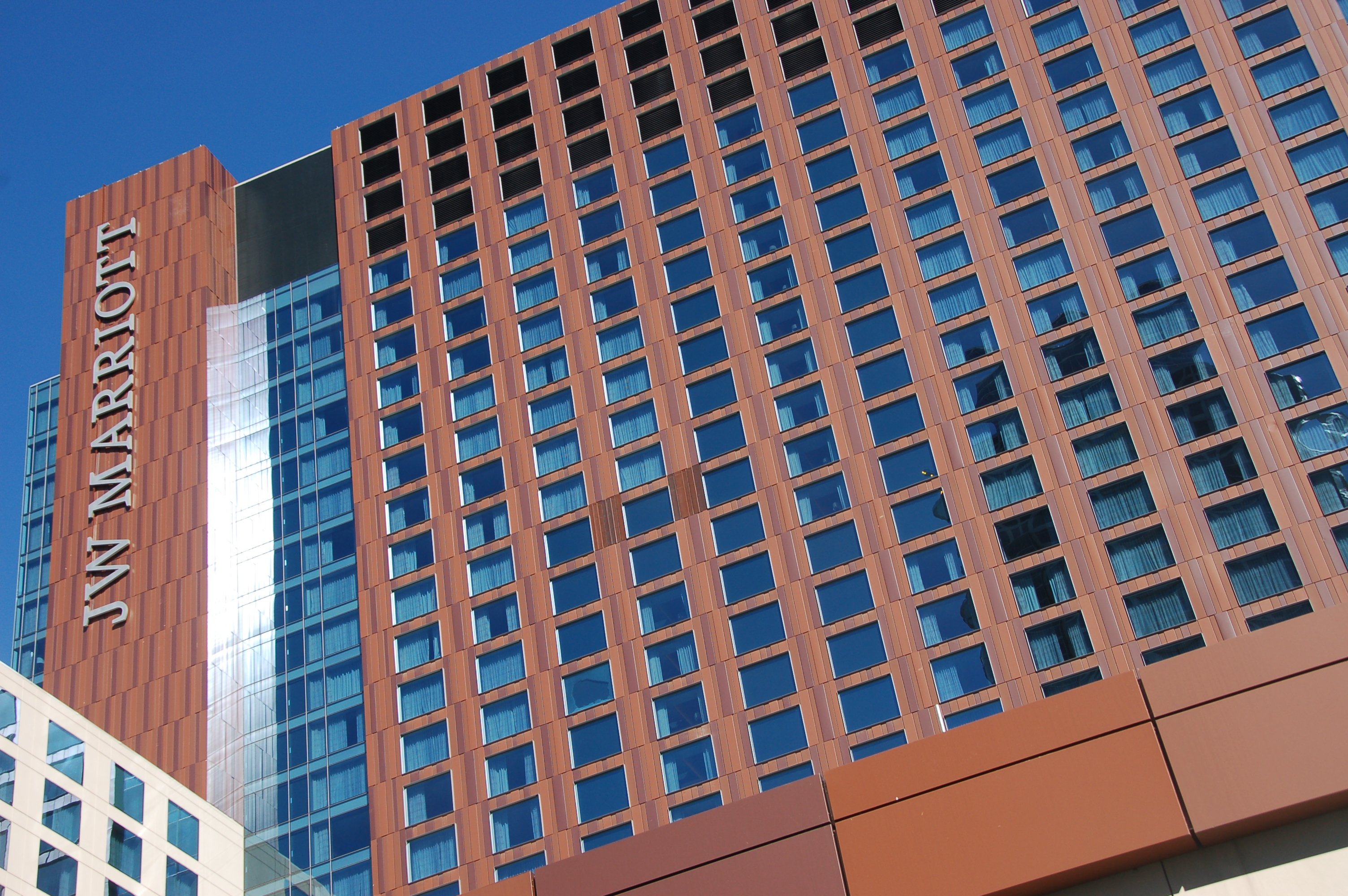

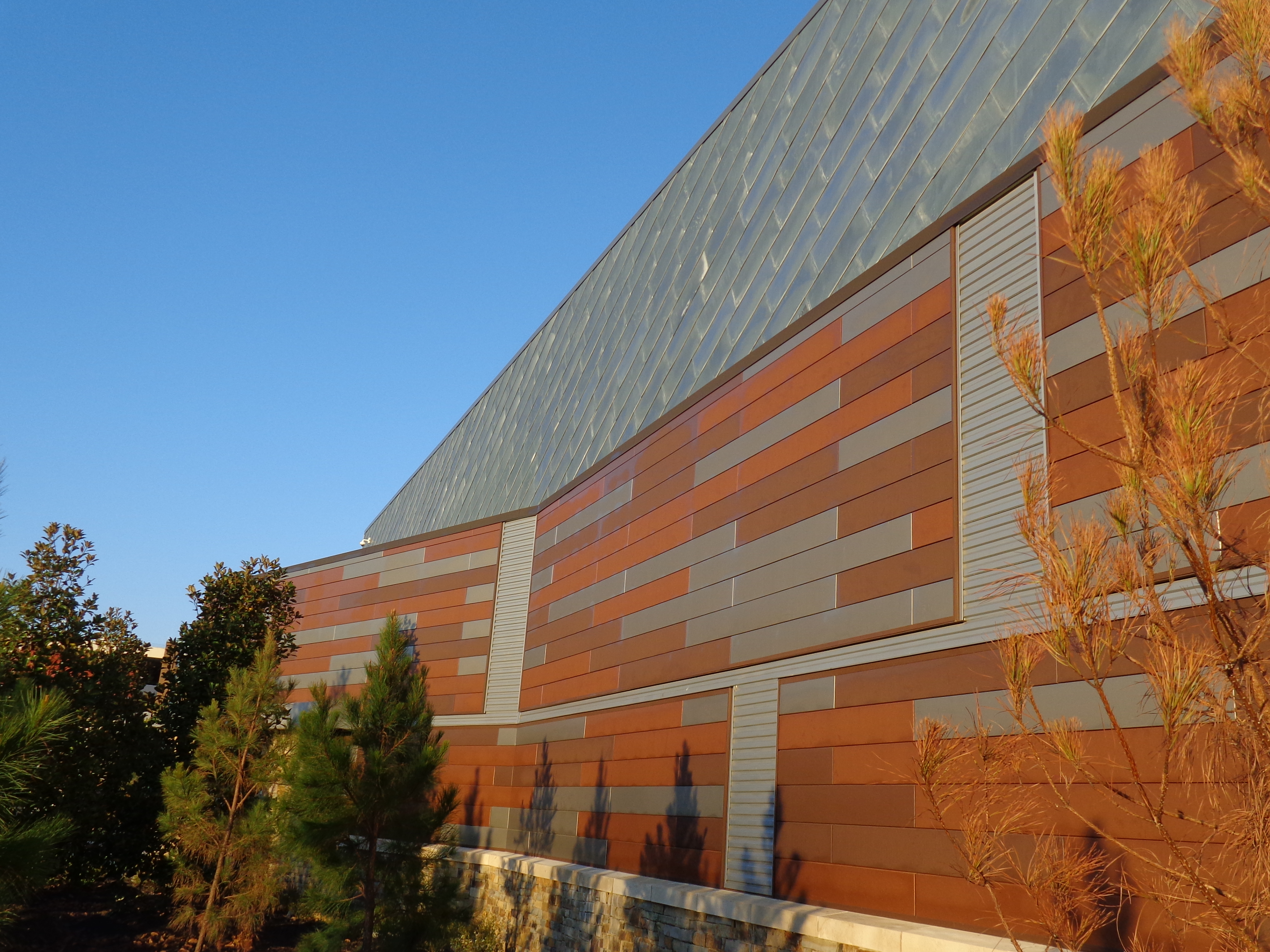

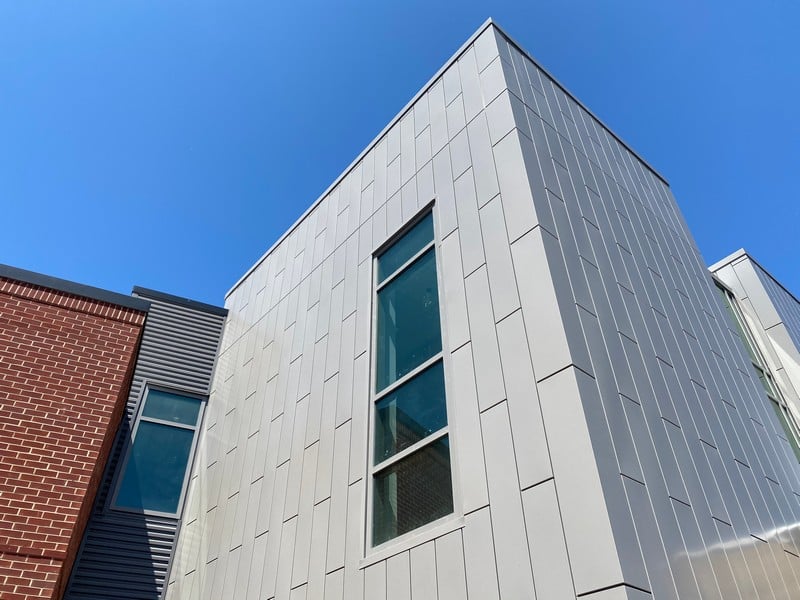

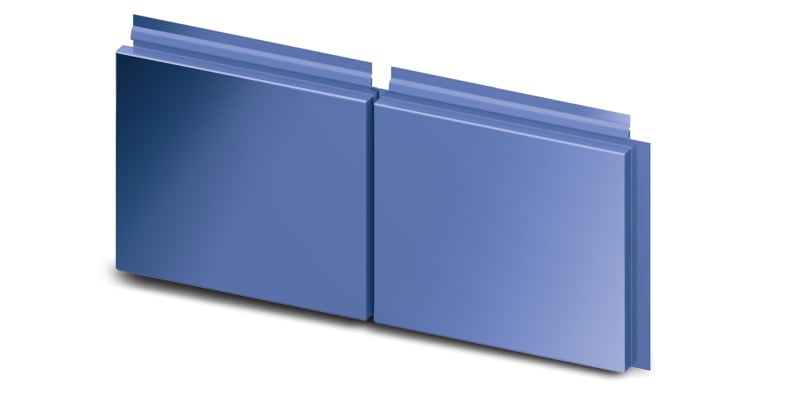

Visionline F-Series Wall system is ideal as a facade or rain screen and adds architectural styling and beauty to any project at a price point much lower than ACM systems. F-Series is a solid metal, flat plate wall panel system that does not require field-applied sealants, extrusions, gaskets, or exposed fasteners, which reduces onsite labor expense. Common applications include walls, facades, and rain screen, in both large sections and for architectural accents.

Available in McElroy’s architectural colors, F-Series panels are an excellent complimentary product to McElroy’s other roofing and siding systems. Architects and designers can mix and match components to achieve the desired architectural look.

F-Series panels are manufactured from a 22 gauge Galvalume steel substrate and coated with Sherwin Williams Fluropon PVDF (Kynar 500®) coating. Standard sizes are 16" x 24", 16" x 34" and 16" x 54" in 1" depth.  Other sizes are available - please inquire for details.

View Related Files Build a Submittal Package

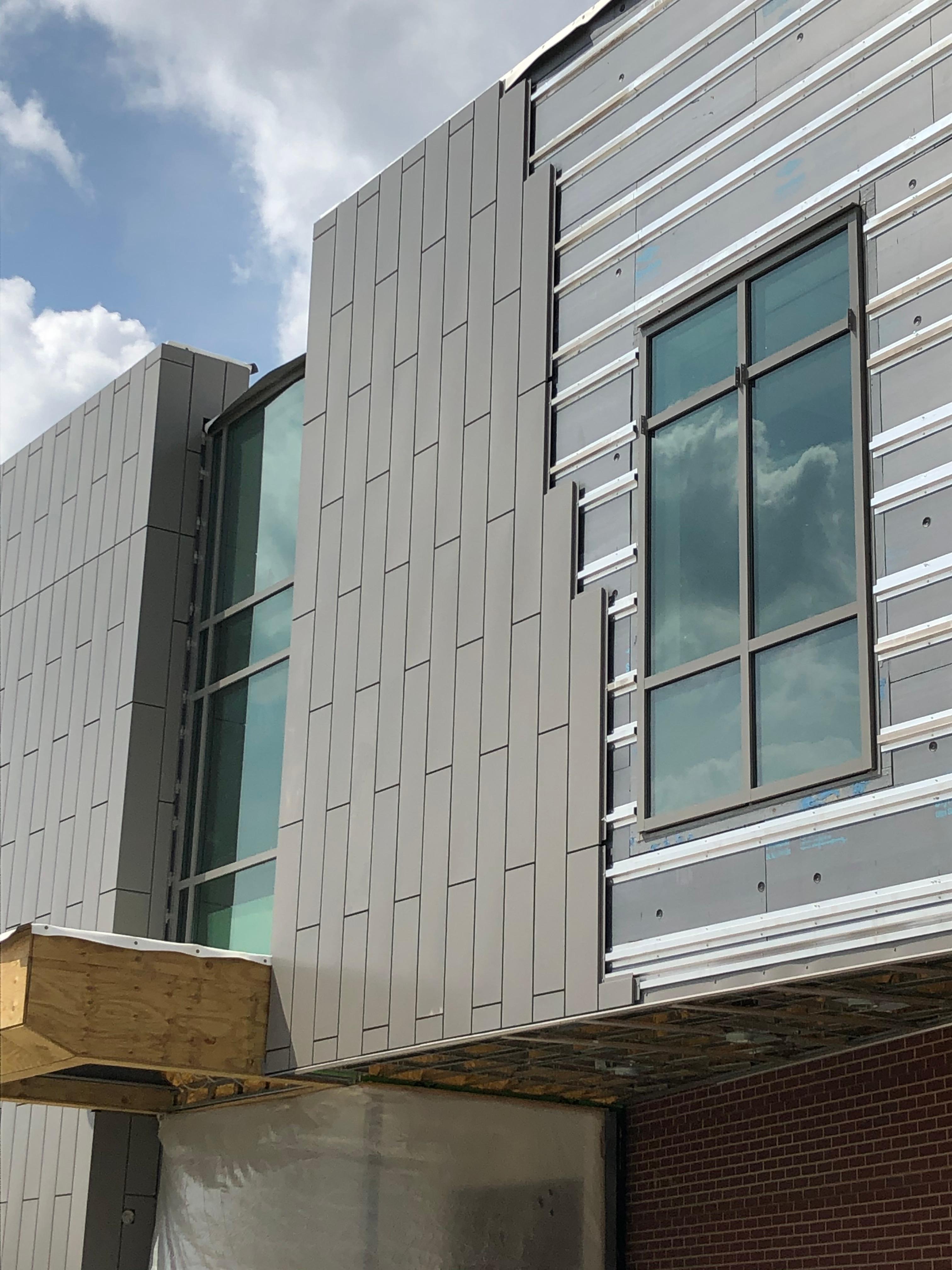

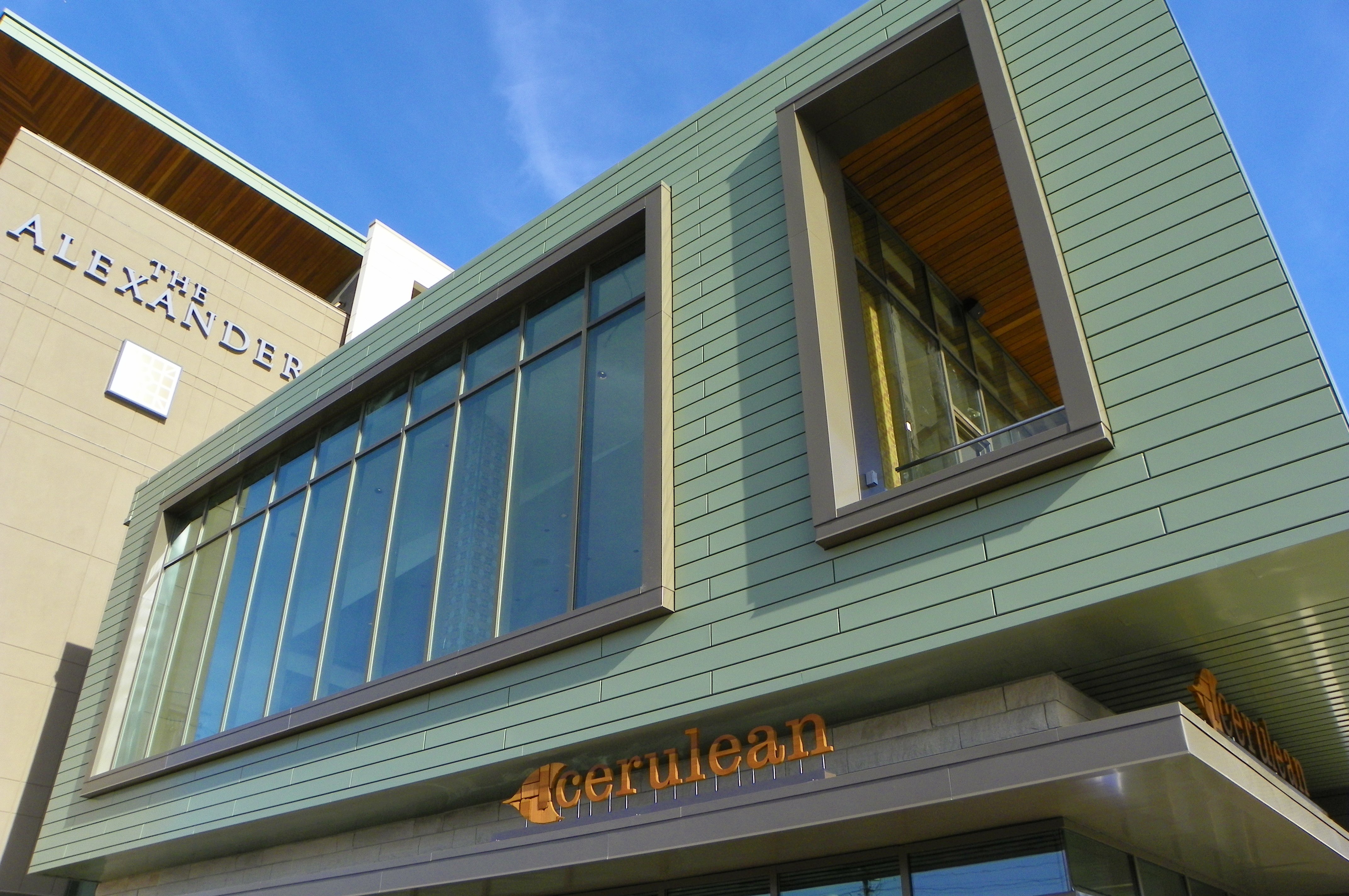

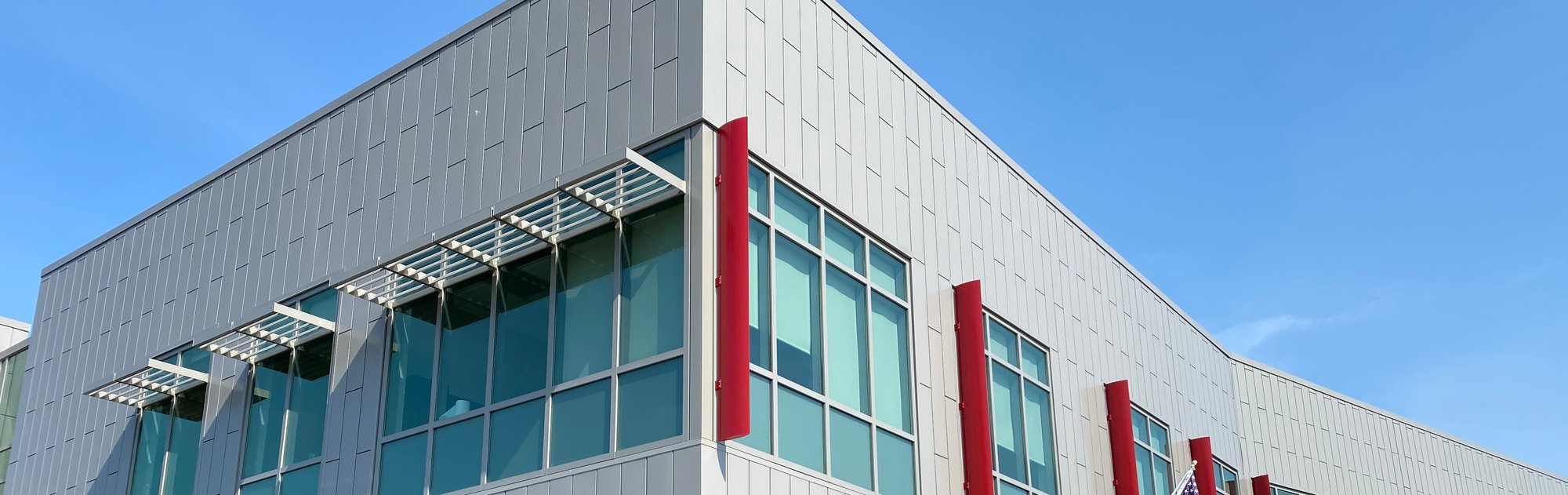

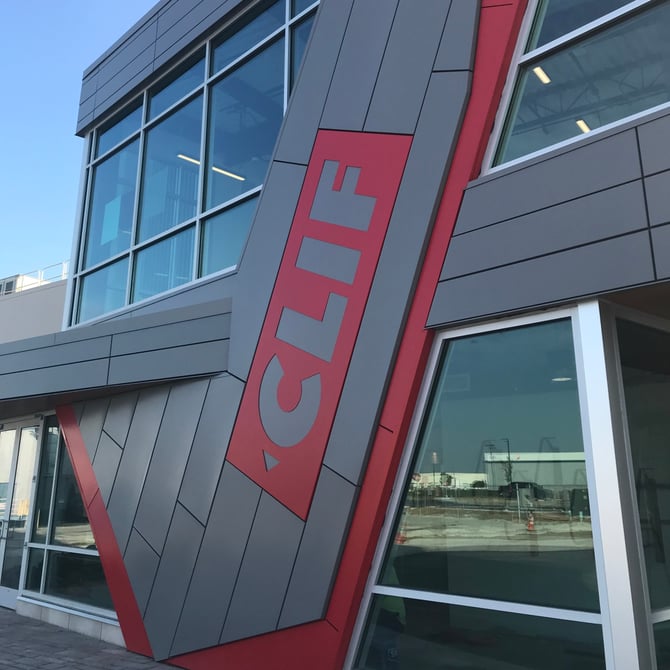

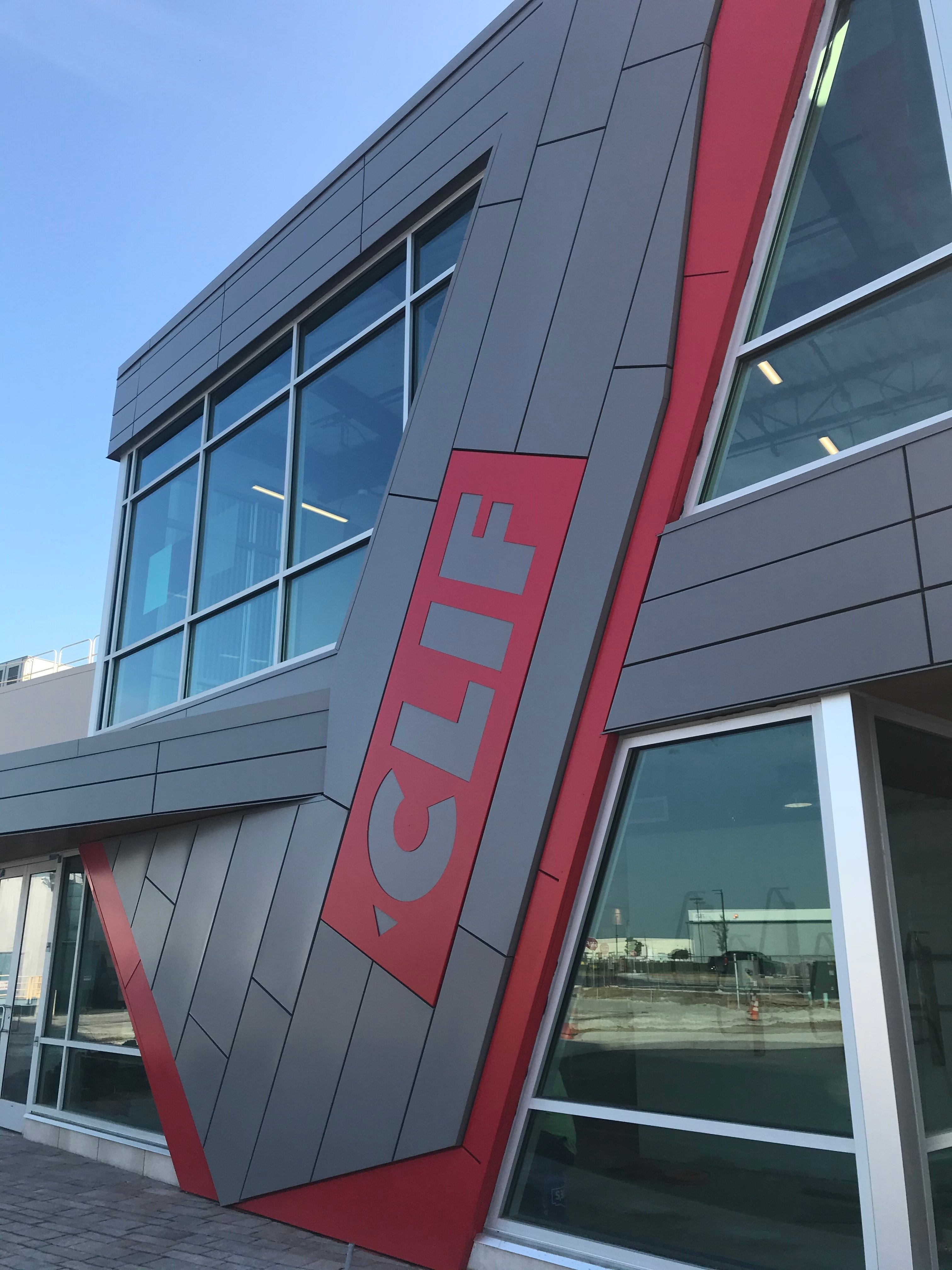

Click image to enlarge

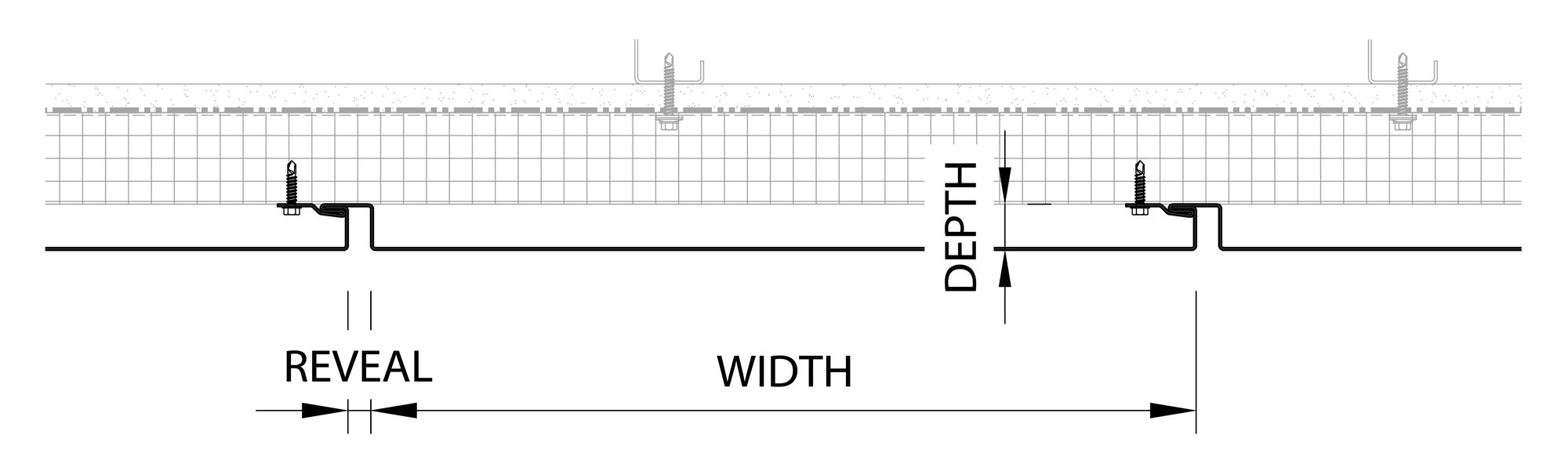

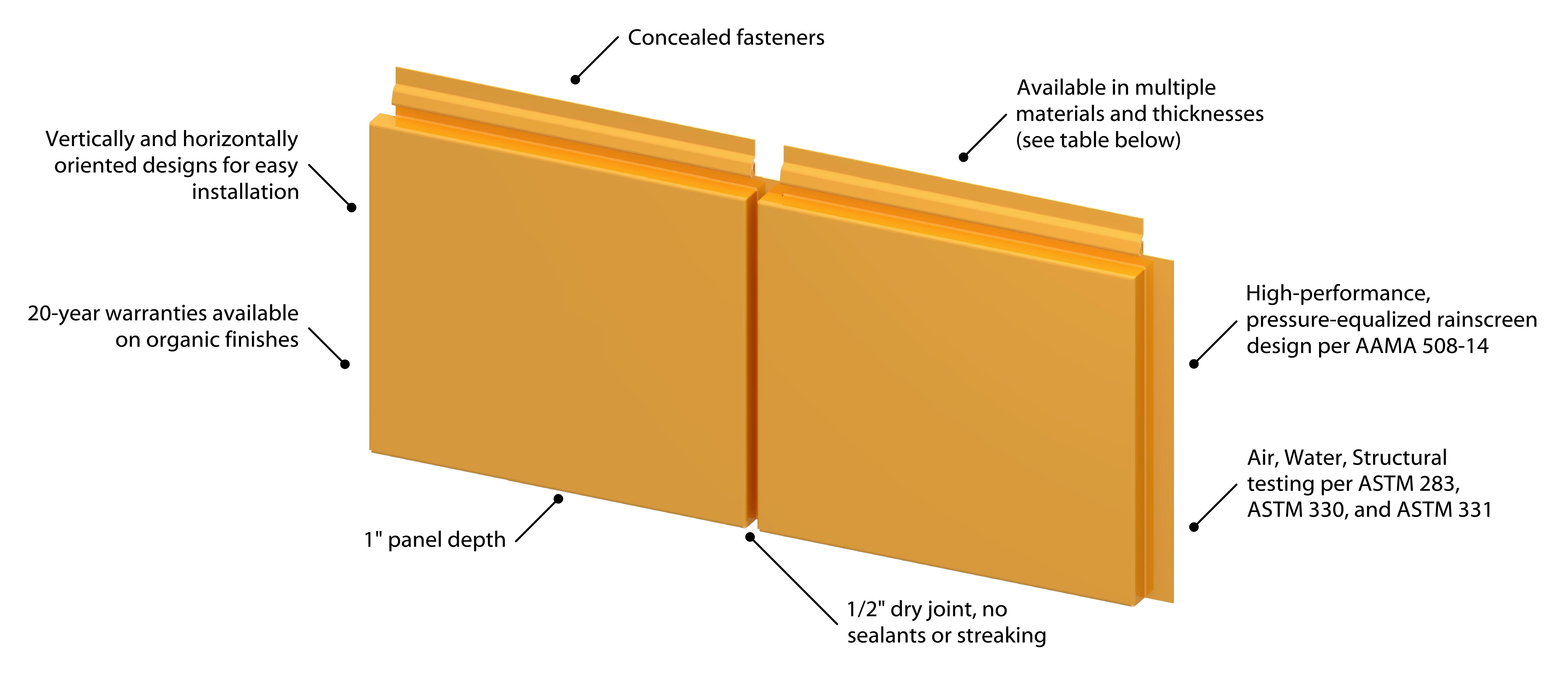

Specifications & Details

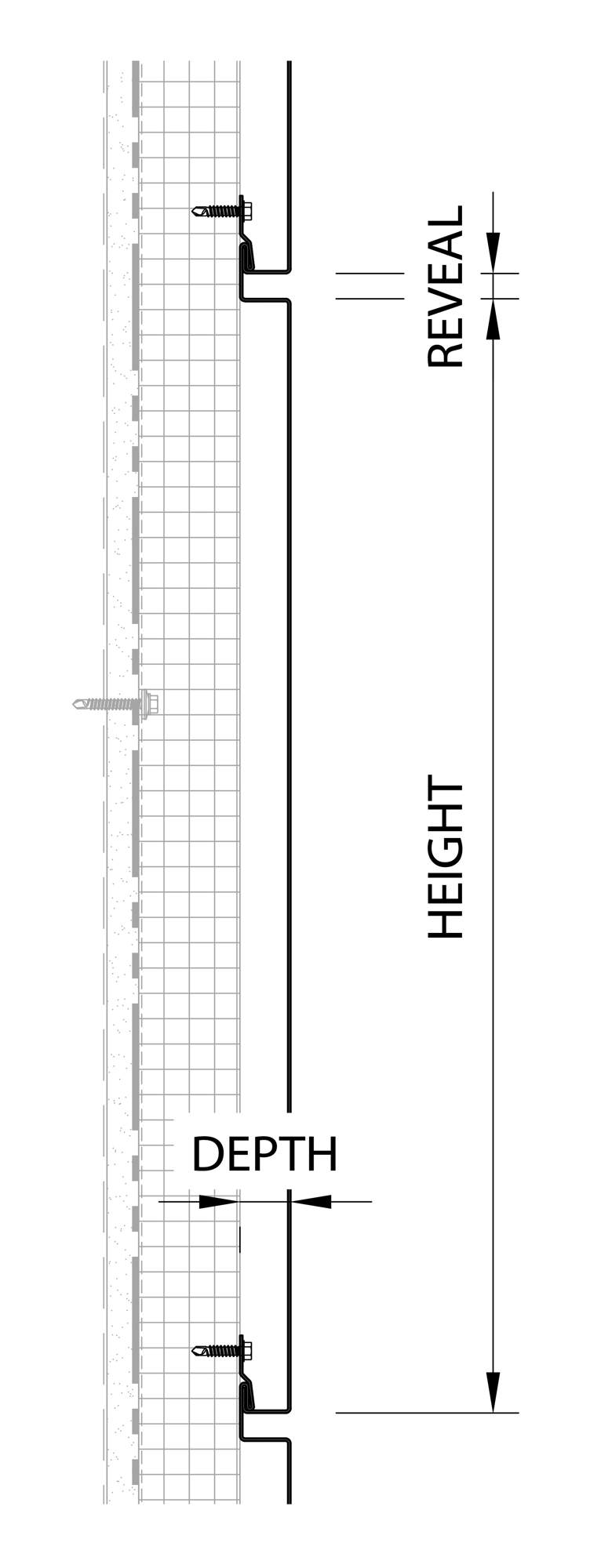

Details
- 22 Gauge Galvalume Substrate
- Fluropon PDVF (Kynar 500) coatings
- Field applied sealants, exposed fasteners, gaskets or extrusions are not required
Testing
- Air Infiltration in accordance with ASTM E 283 a 1.57 PSF
- Water Penetration in accordance with ASTM E 331 at 6.24 PSF
- Pressure Equalized Rain Screen Performance in accordance with AAMA 508
Options
Standard Sizes. Please inquire regarding other sizes. - 16" x 24"
- 16" x 34"
- 16" x 54"

Related Files

Get A Submittal Package

Customize your submittal package

Click on your desired documents below to select them for your package.

General Product and Warranty Information

Request

Samples & Color Charts

Request physical samples and color charts. All items will be sent out via UPS ground unless otherwise specified.

Request now

fanned-color-swatches

Shop Drawing Service
Shop Drawing Service

Running short of time to complete your own shop drawings? McElroy Metal can help. Click the button below to provide us some basic information and we’ll be in touch soon to discuss your project specifics.

Contact Us →

Download Shop Drawings
Download Shop Drawings

If you’re creating your own shop drawings, click the button below to gain full access to our CAD and PDF Files.

View Drawings →
