ROOF PANELS

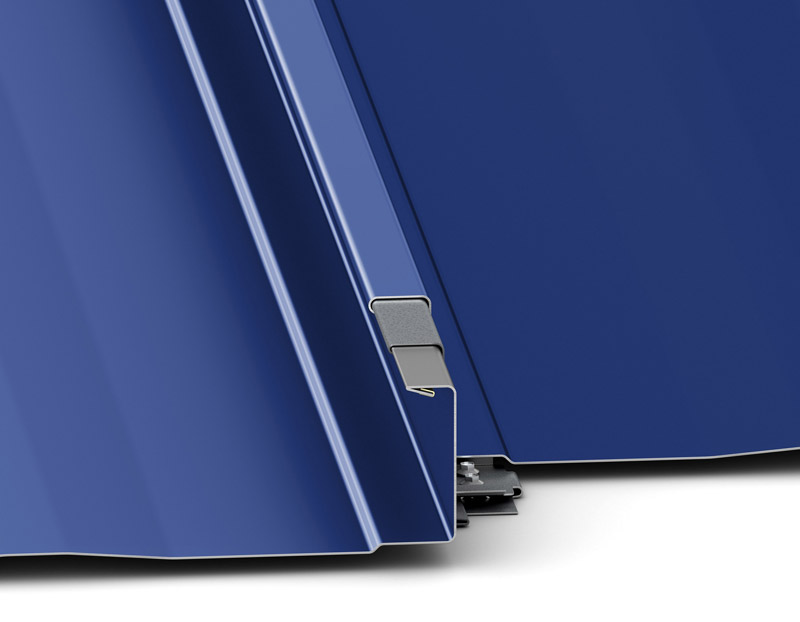

Maxima Standing Seam Panel
Maxima Standing Seam Panel
Great for:
WALLS
ROOFS
RESIDENTIAL
COMMERCIAL
With an opportunity to choose from three distinct Maxima profiles: Maxima, Maxima 1.5 and Maxima ADV, McElroy’s Maxima family of products represents the industry’s broadest selection of vertical leg standing seam systems. In order to meet the varying needs of architects and contractors, each offers unique performance characteristics that enable users to match a Maxima panel to specific aesthetic and performance specifications.
In some cases, Maxima panels can be produced on-site by McElroy factory technicians. Maxima 1.5" and 2" panels can also be curved for use with radius roof situations.
All Maxima panels are mechanically seamed. Mechanical seamers and hand crimpers are available for rent through Developmental Industries (DI) at mcelroyseamers.com, a website created just for McElroy Metal customers. The rental fees for each type of equipment can be found on this site as well as additional information you may need to be aware of within the terms and conditions. DI is the only approved supplier for this type of equipment.

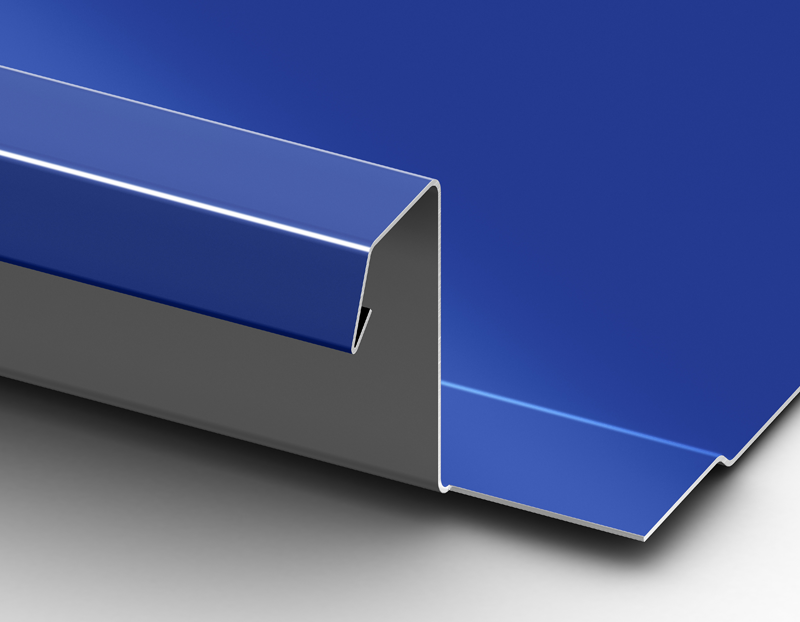

McElroy Metal provides factory eave notching on Maxima standing seam panels.





Installation Demo
Installation Animation
Eave Notching

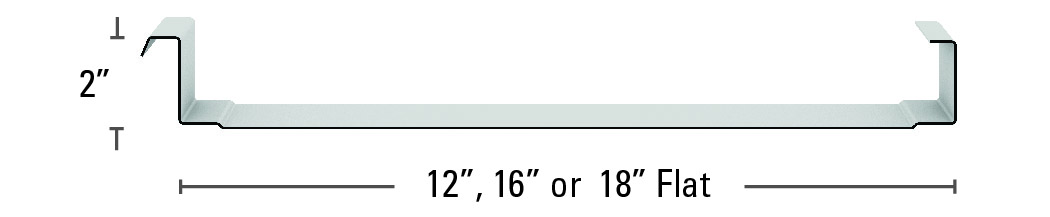

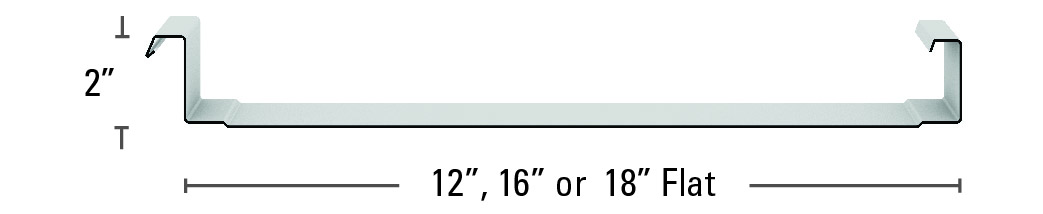

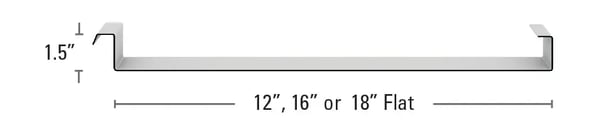

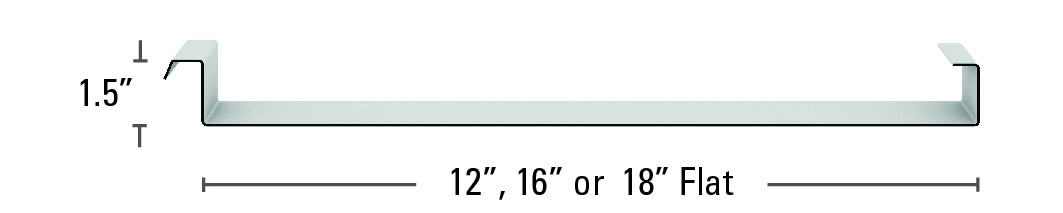

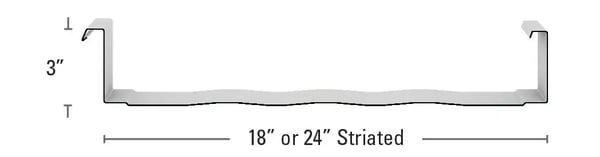

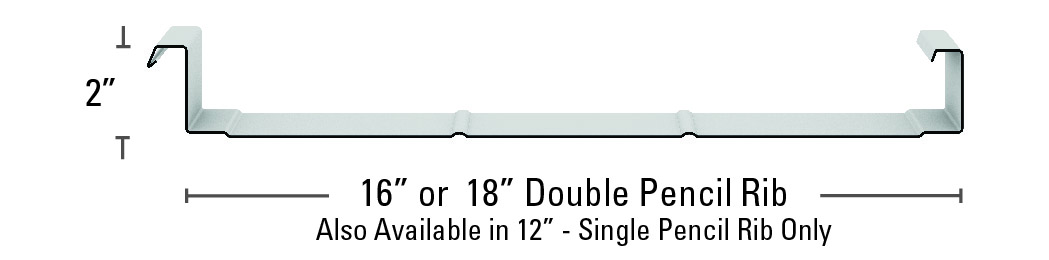

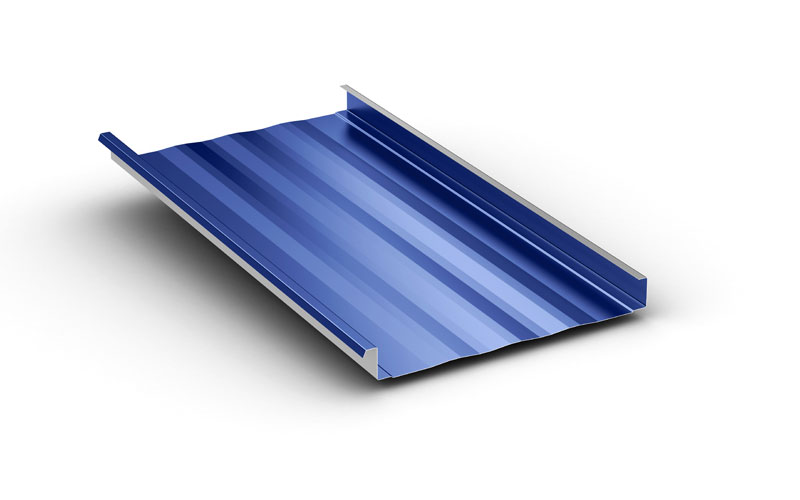

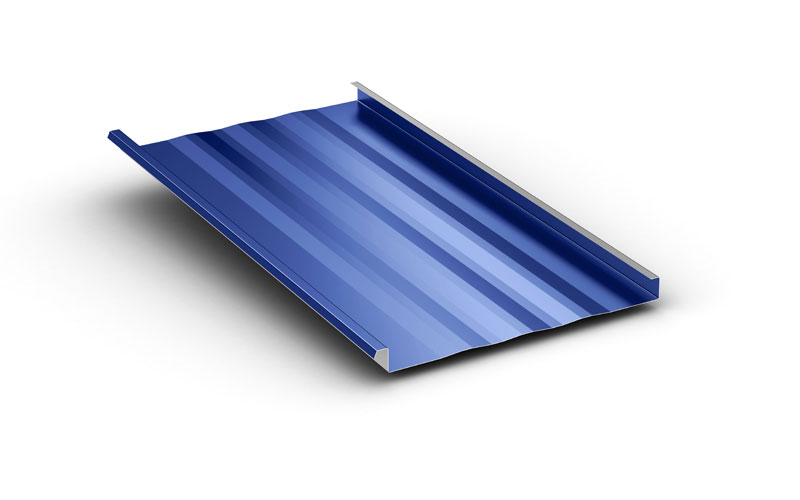

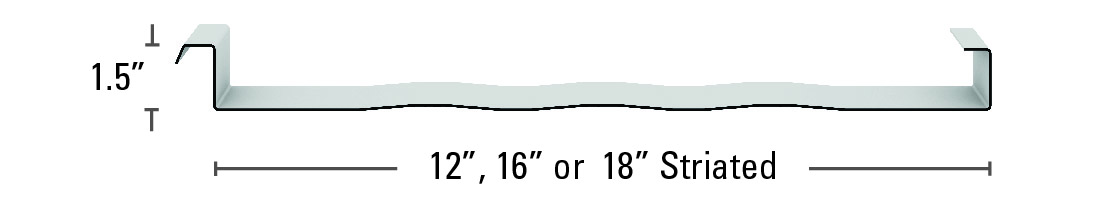

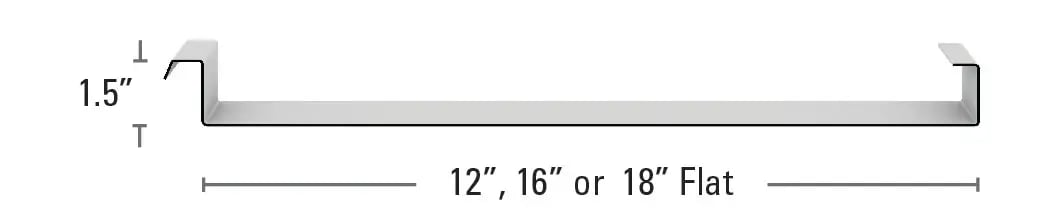

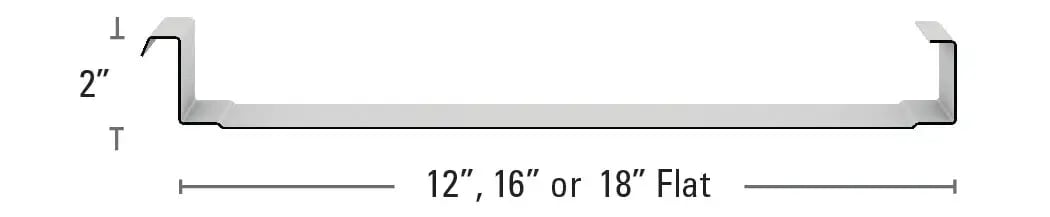

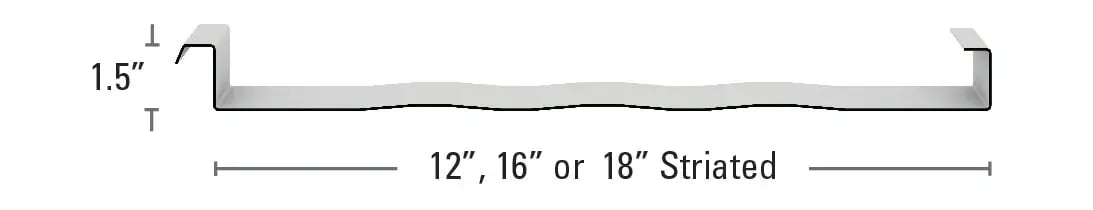

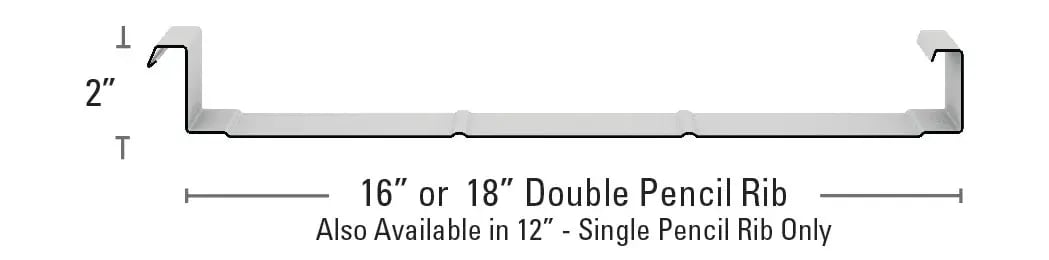

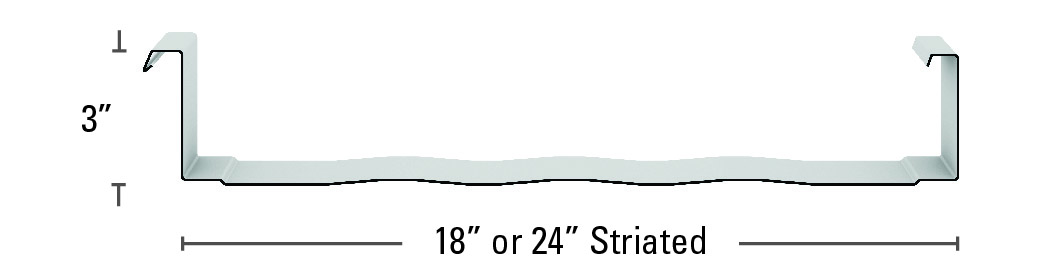

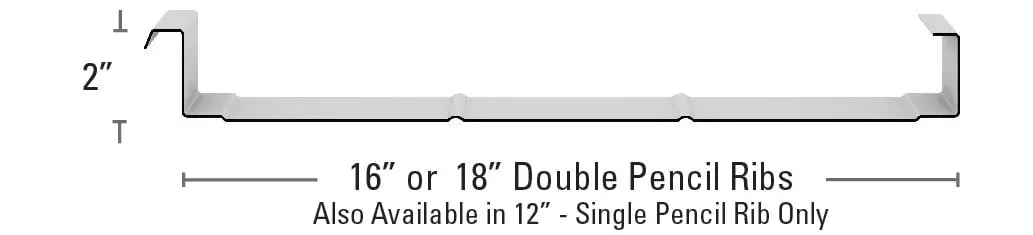

Renderings & Profiles















Specifications & Details
Details

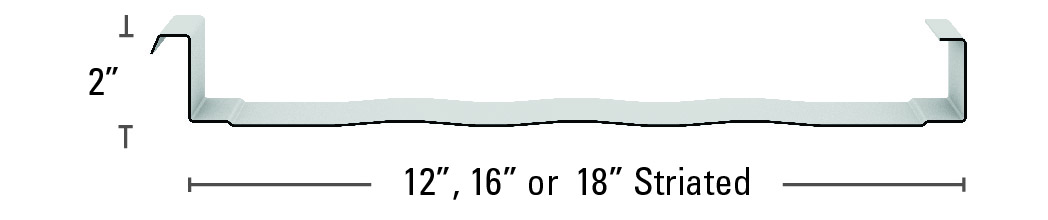

Profile
Mechanically seamed
Sealant
Factory applied (on non-curved panels only)
2" factory-formed eave notch
Upon request
Minimum slope for 1.5"
1:12
Minimum slope (for 2")
1/2:12
Minimum slope (for 3")
1/4:12
Installation
Can be installed over solid deck or open framing
Thermal Movement
Floating clips allow for 3 1/8"
Note
Maxima 2" and ADV also available jobsite formed for long lengths
Manufacturing Facilities
Maxima1.5": Peachtree City, GA, Houston, TX
Maxima 2": Clinton, IL; Peachtree City, GA; Adelanto, CA; Sunnyvale, TX; Houston, TX
Maxima 3": Peachtree City, GA
Aluminum - Sunnyvale, TX only
Note
Oil canning is a natural occurrence in metal panels and is not a cause for panel rejection.
Testing
Fire Rating
Class A
Uplift Test
UL580 Class 90, FM 4471 (2" only) (1-90 Rated), ASTM E1592 (1.5", 2" & 3")
Air Infiltration
ASTM E1680
Water Infiltration
ASTM E1646
Class 4 Impact Resistance
UL 2218
Florida State Approval
1747.3, 1832.4 (2" & 3")
Fire Resistance
UL263
Miami-Dade Approval
(2:16 Only)
ICC-ES Approval
ESL-1082
Note
All testing conducted with Galvalume® substrate. No testing available with aluminum.
Testing Data
For available Test Data, Section Properties or Load Tables, please visit our downloads section.

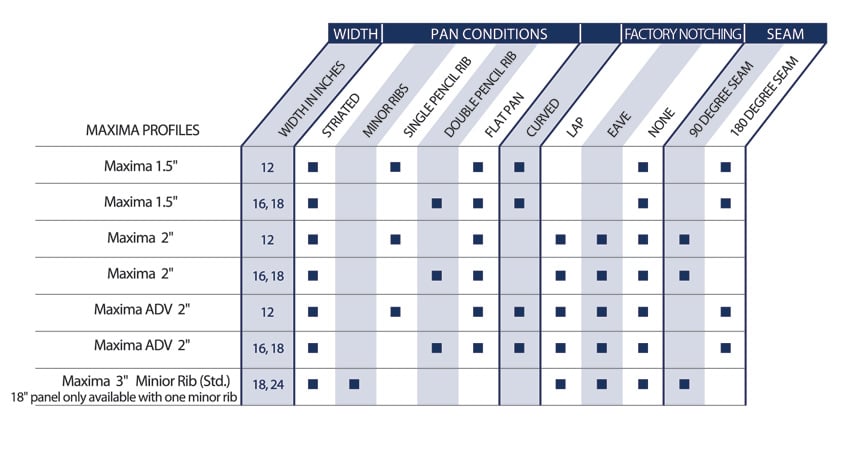

Panel Options
Seam Height
1.5”, 2” & 3”
Seam Style
2" and 3" - 90 Degree Seam
1.5" and ADV - 180 Degree Seam
Panel Width
- Maxima 1.5"; 2" & ADV: 12", 16", 18"

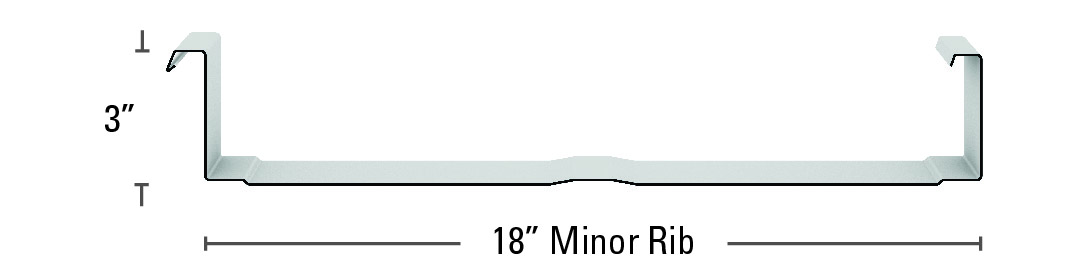

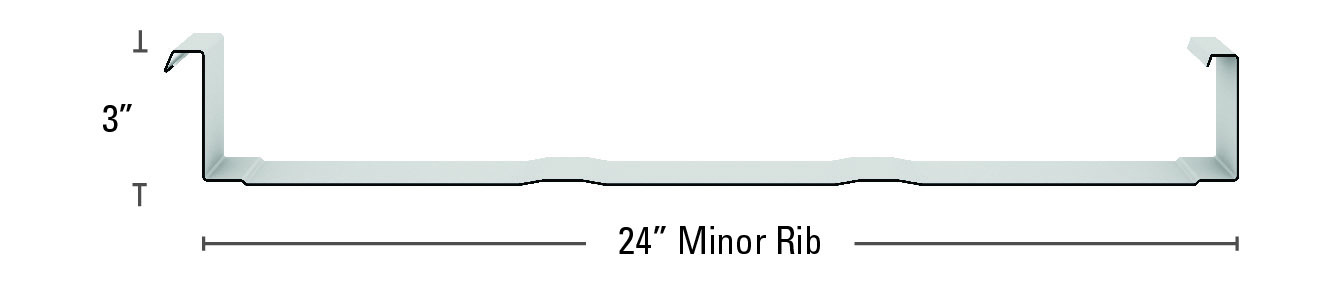

- Maxima 3": 18", 24"
Panel Configurations

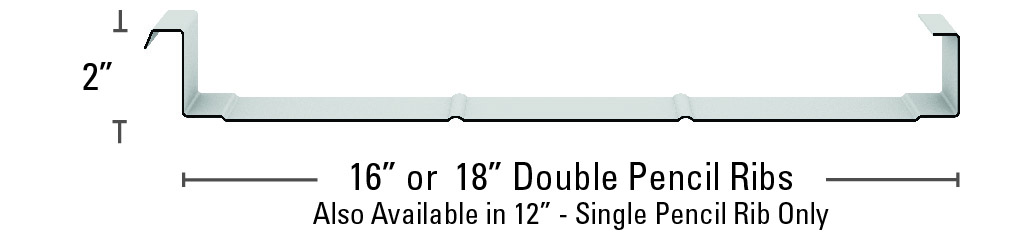

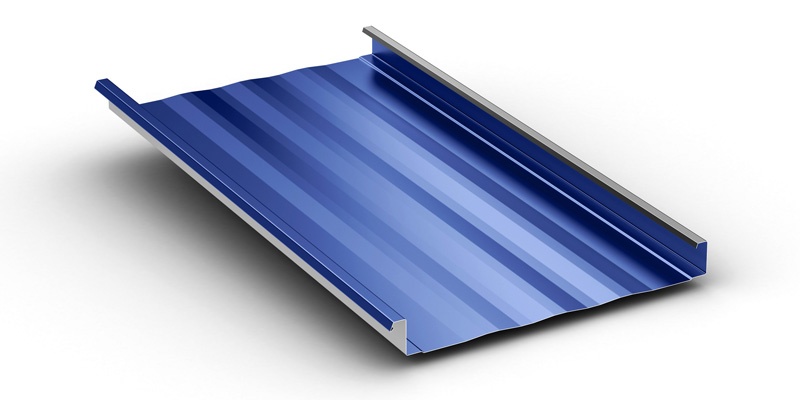

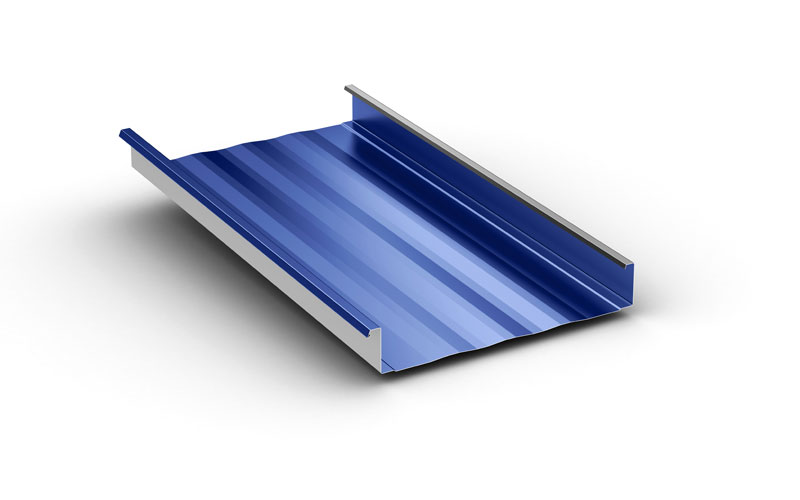

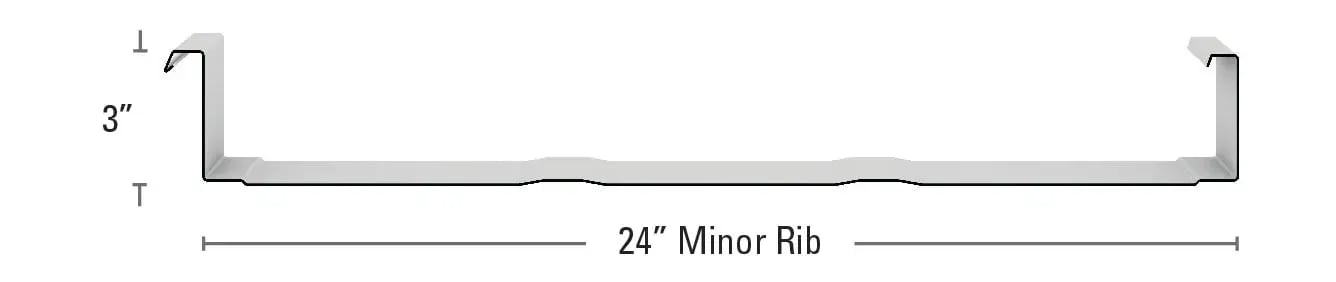

- Maxima 1.5"; 2" & ADV: Flat, Striated, Pencil Ribs, Minor ribs (3" only)
- Maxima 1.5" and ADV can be curved
Coating
Kynar 500® (PVDF)
Substrate
- Standard 24 GA Galvalume®
- Optional 22 GA Galvalume® (Inquire. Possible minimum order and longer lead time may apply.)
- Optional .032 and .040 aluminum (Inquire. Possible minimum order and longer lead time may apply.)
Details and Components Gallery

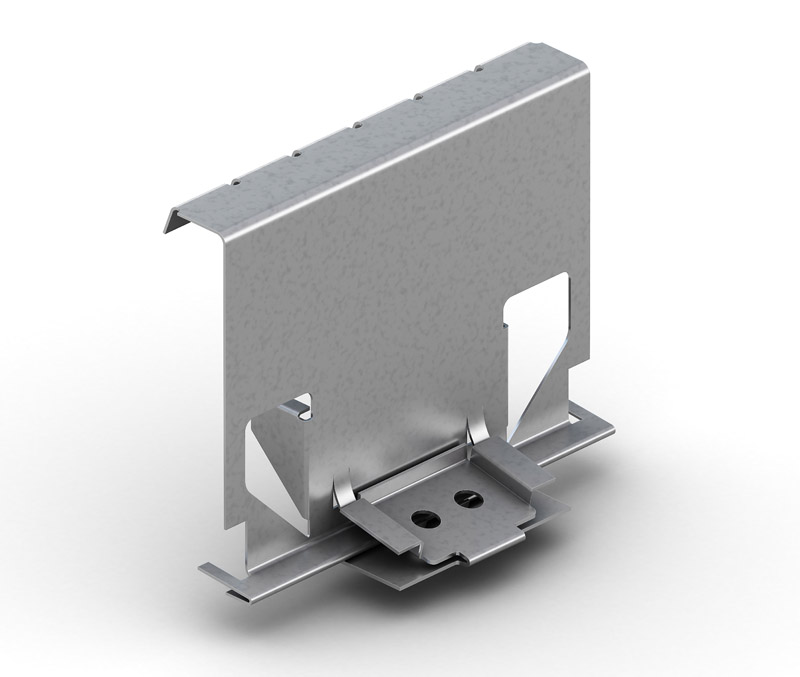

Maxima High Floating Clip

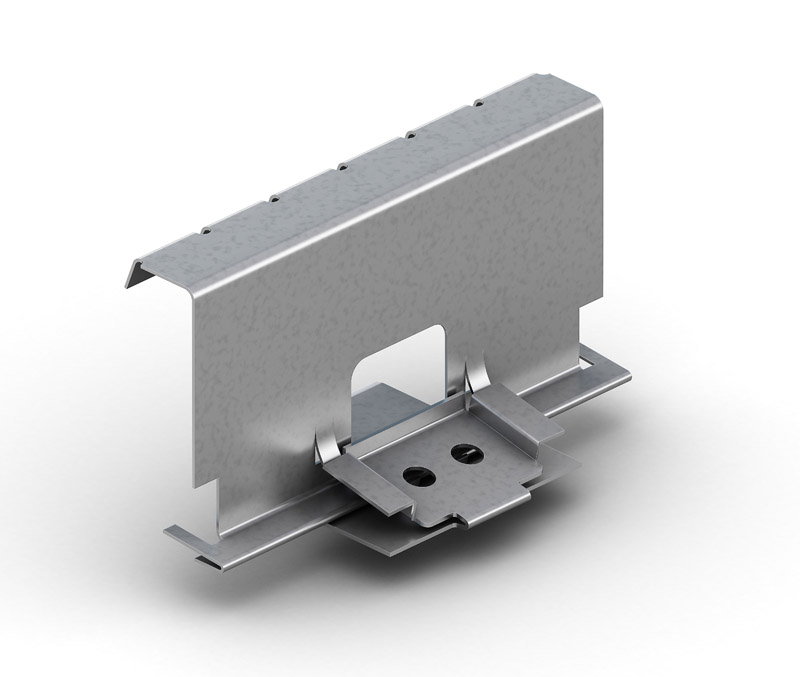

Maxima Low Floating Clip

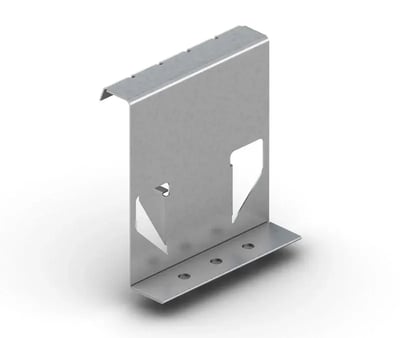

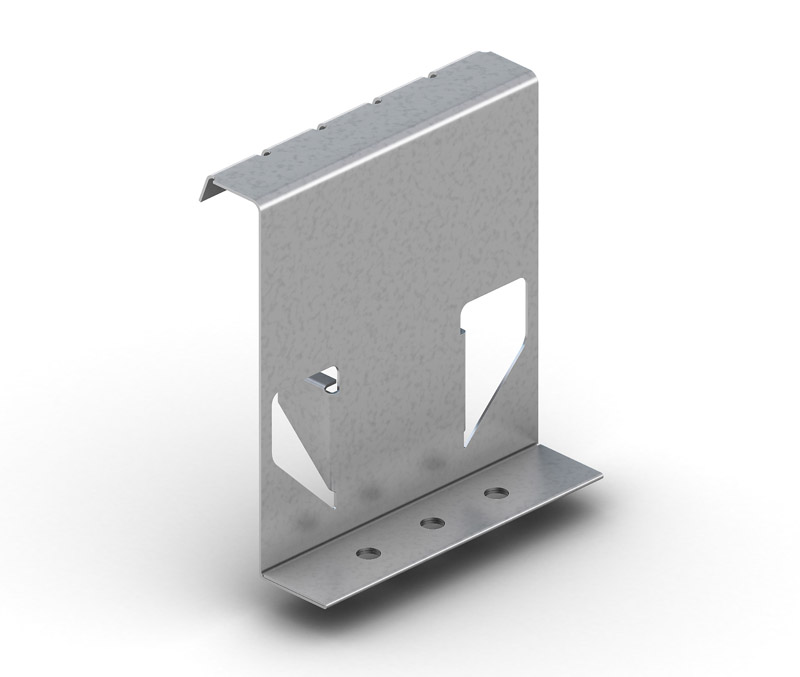

Maxima High Fixed Clip

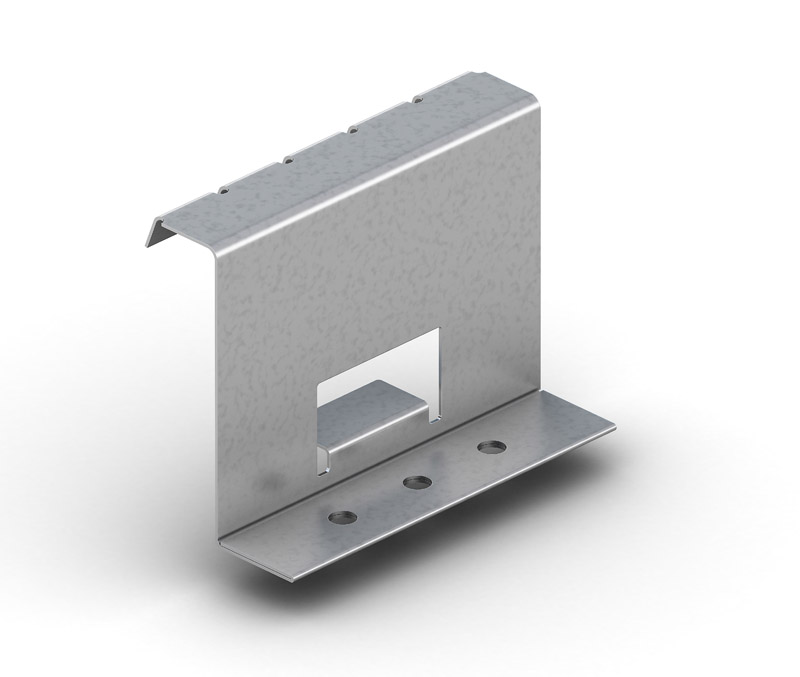

Maxima Low Fixed Clip

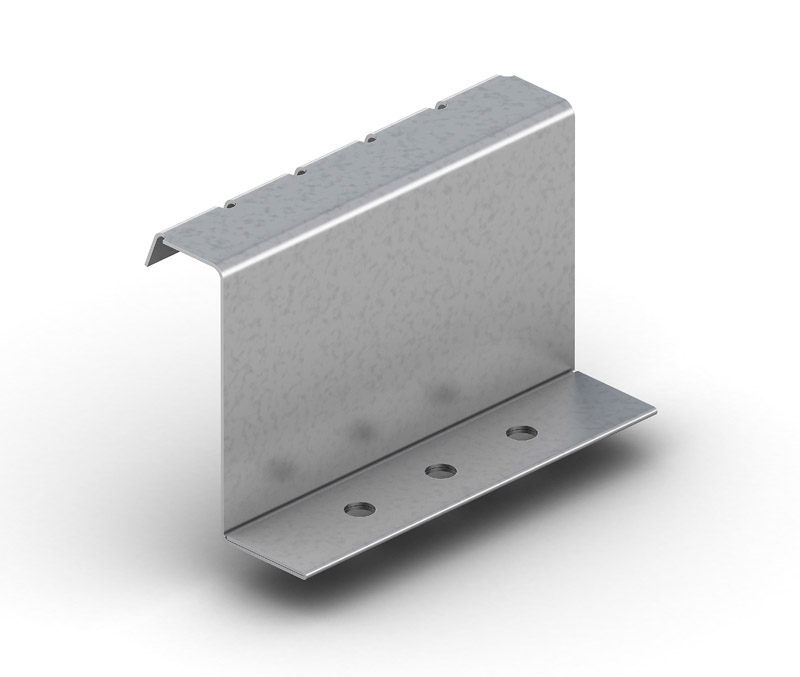

Maxima Fixed Utility Clip

Factory Eave Notching

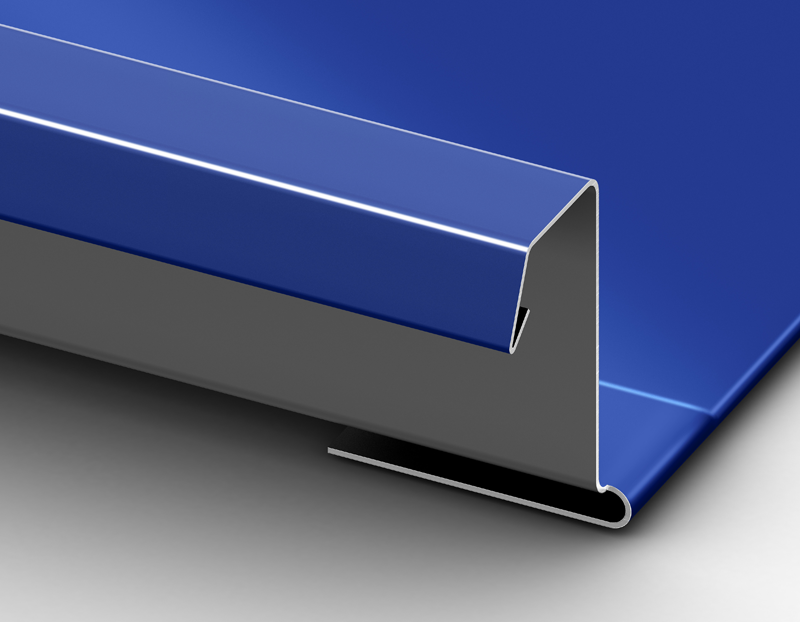

Eave Notching Folded in Field

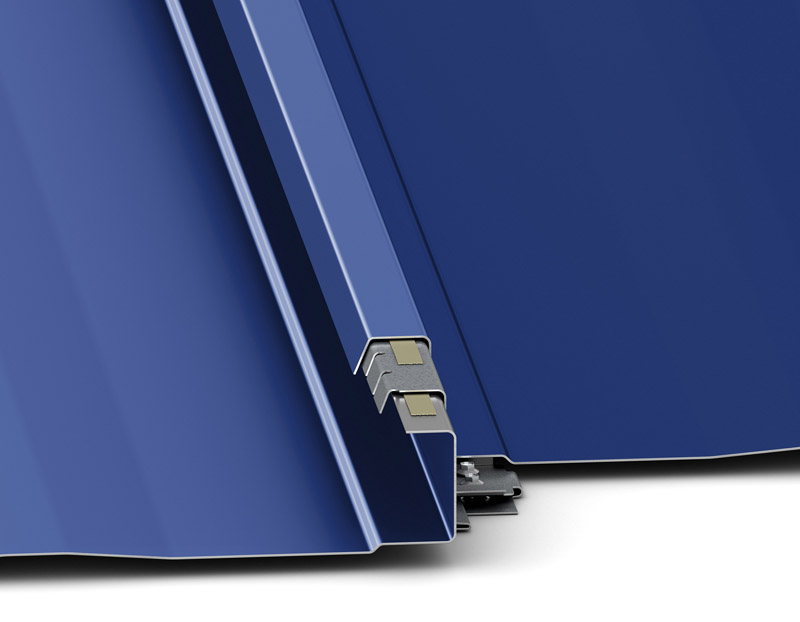

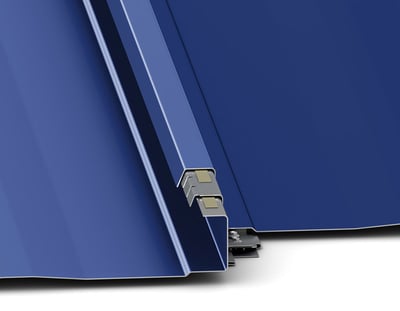

Maxima 1.5 Before Seaming

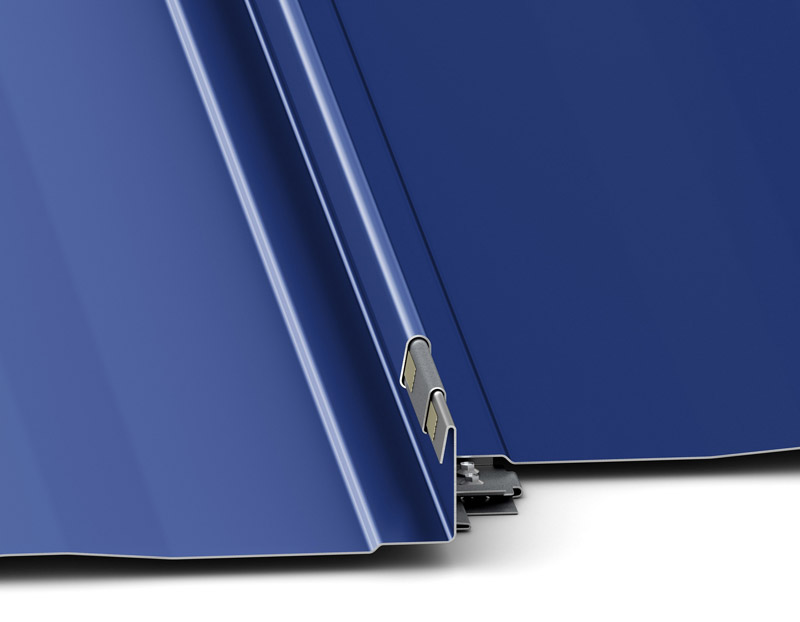

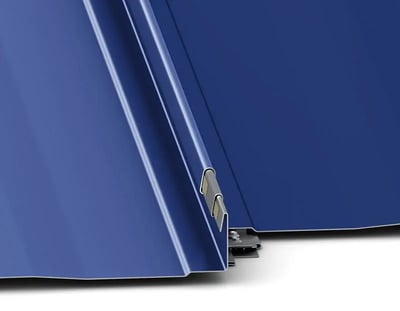

Maxima 1.5 After Seaming

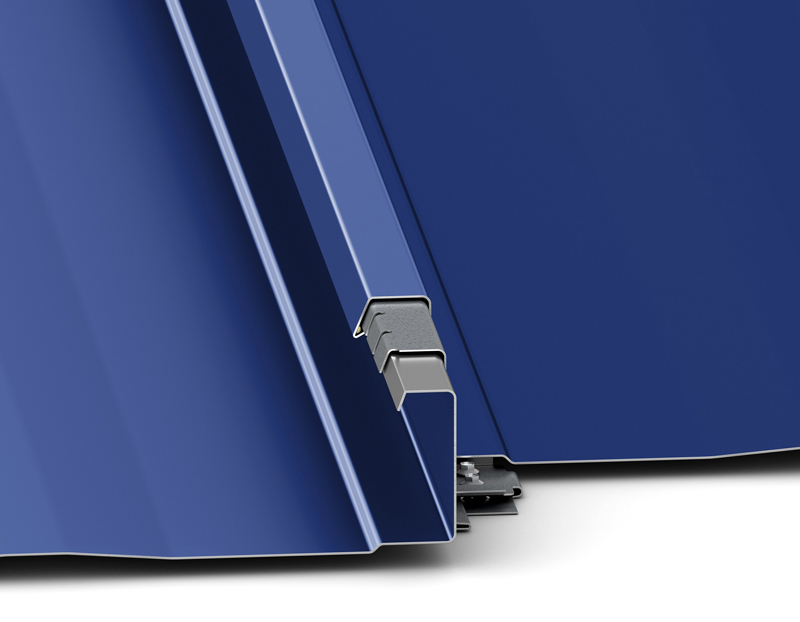

Maxima 2 Before seaming

Maxima 2 After Seaming

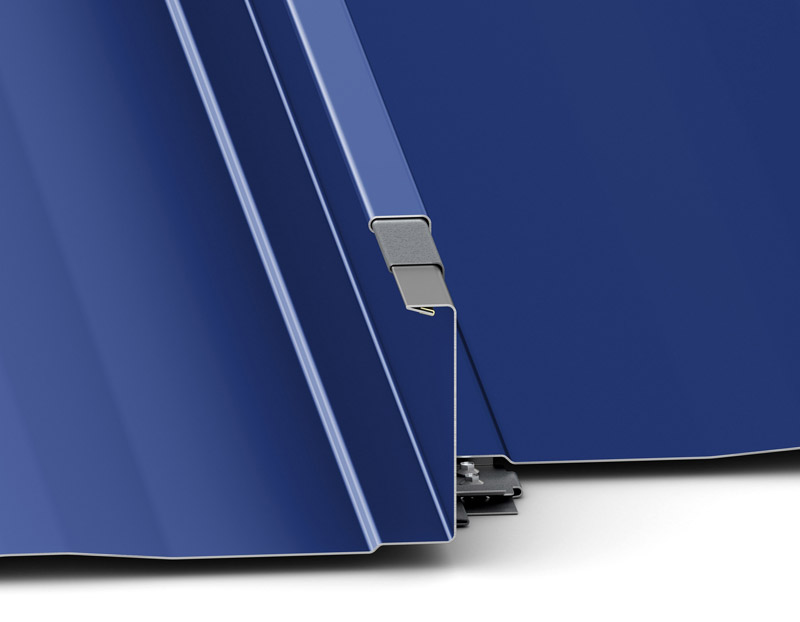

Maxima 3 Before Seaming

Maxima 3 After Seaming

Maxima ADV Before Seaming

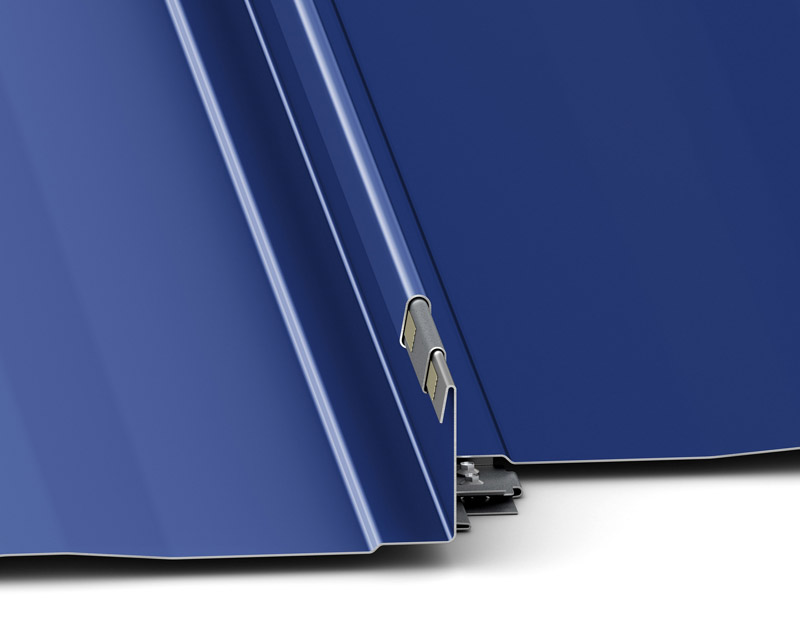

Maxima ADV 180 Fold After Seaming

Maxima High Floating Clip

Maxima Low Floating Clip

Maxima High Fixed Clip

Maxima Low Fixed Clip

Maxima Fixed Utility Clip

Factory Eave Notching

Eave Notching Folded in Field

Maxima 1.5 Before Seaming

Maxima 1.5 After Seaming

Maxima 2 Before seaming

Maxima 2 After Seaming

Maxima 3 Before Seaming

Maxima 3 After Seaming

Maxima ADV Before Seaming

Maxima ADV 180 Fold After Seaming

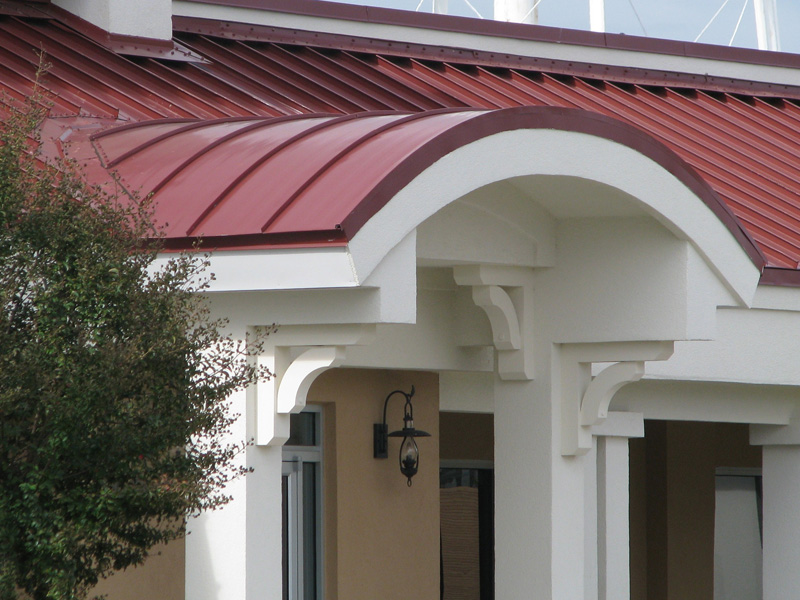

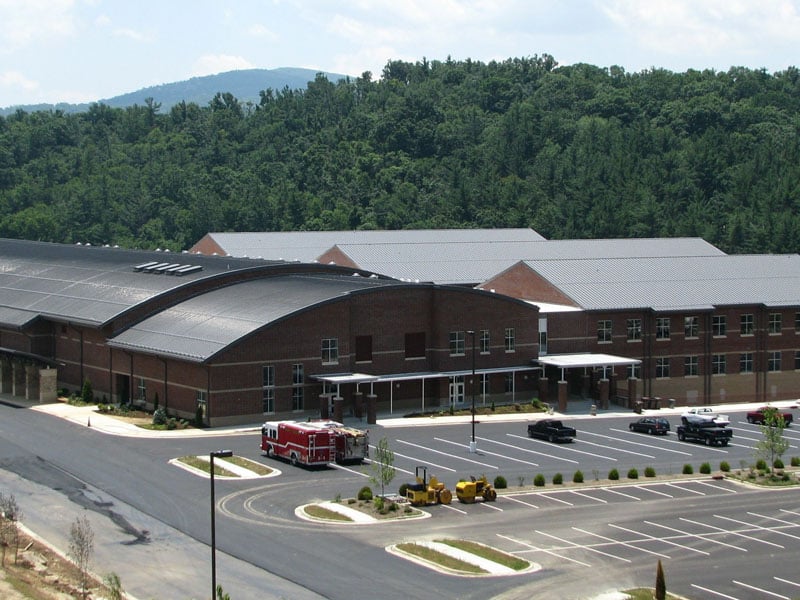

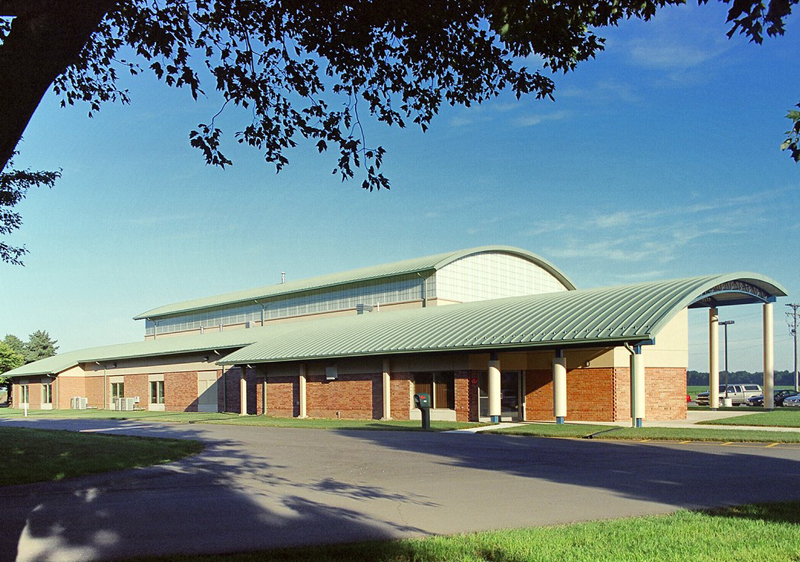

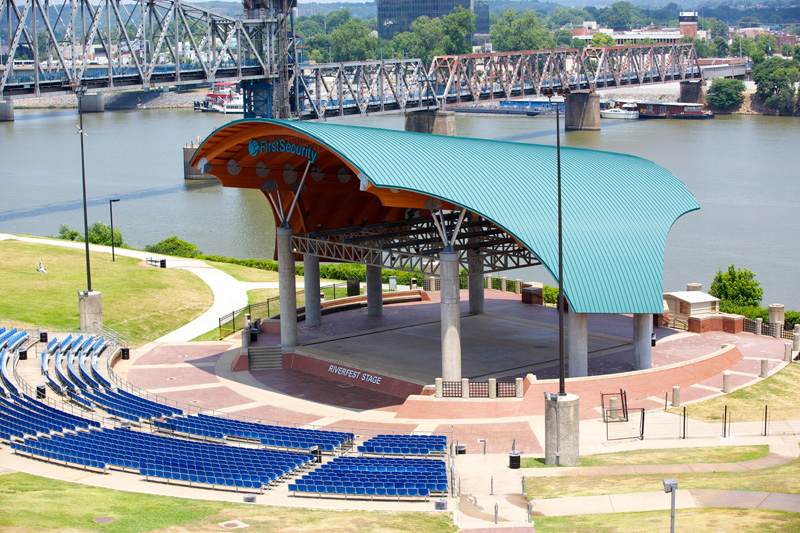

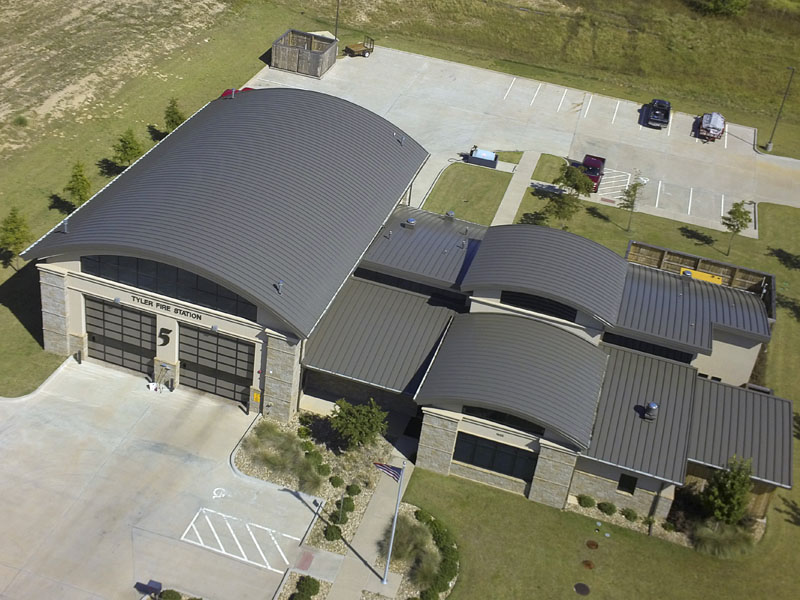

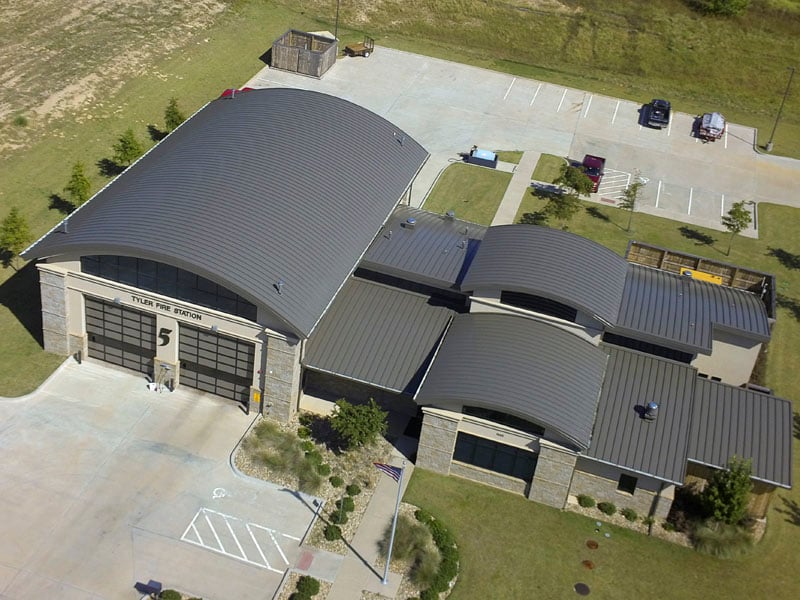

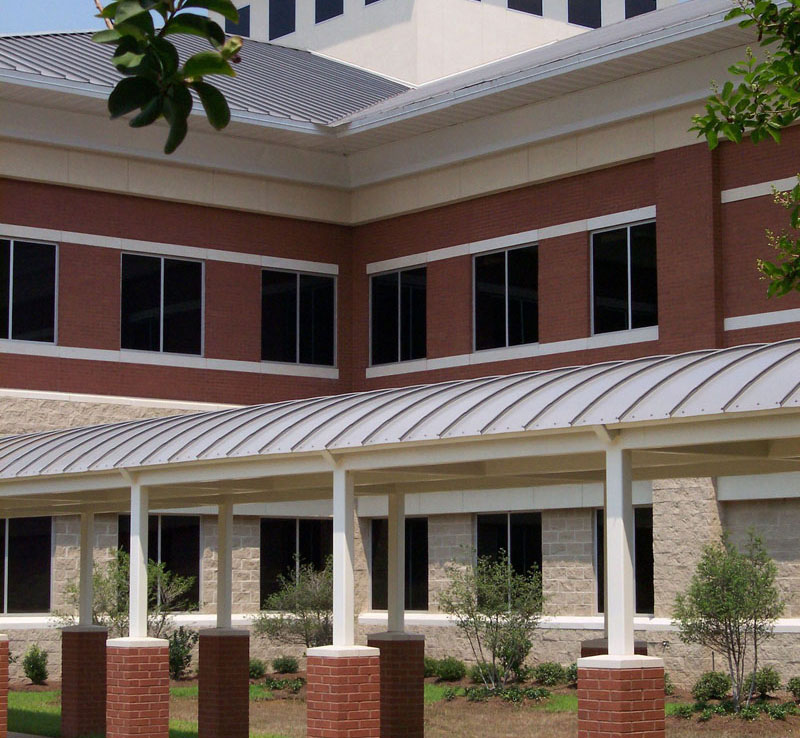

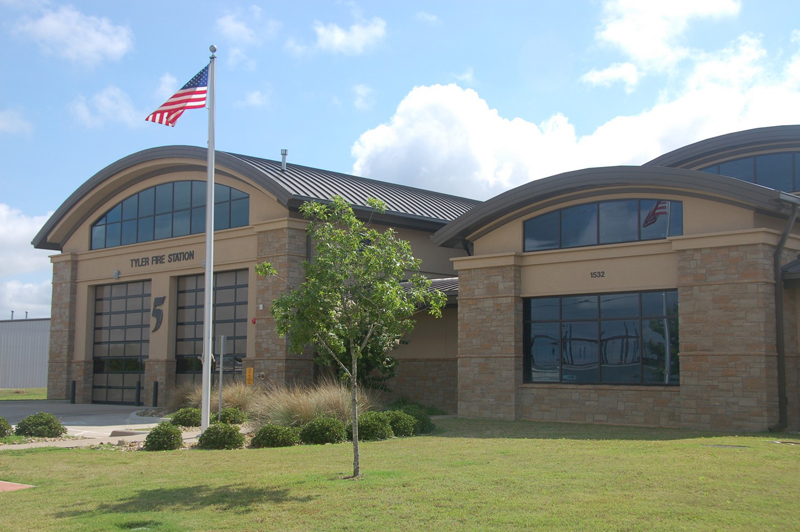

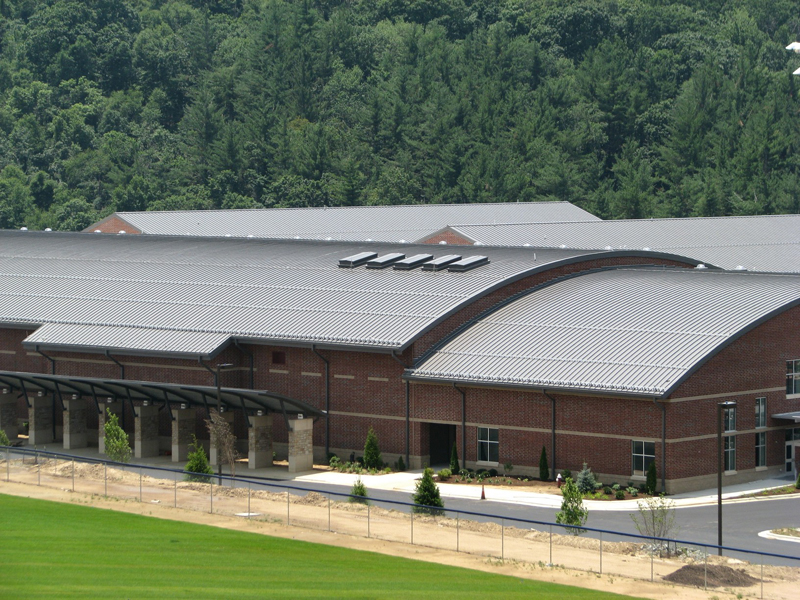

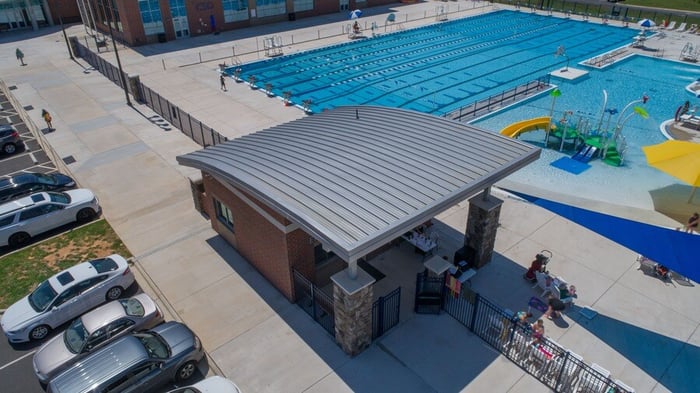

Curving Information
- Only Maxima 1.5 and Maxima ADV can be curved.
- Minimum radius (steel): Maxima 1.5 - 12’ and Maxima ADV – 25’
- 180 degree seam required
- Sealant to be field applied on curved applications
- Maxima 1.5 and Maxima ADV flat panels will curve naturally on a radius of 250’ or greater
