      Wave Concealed Fastened Metal Wall System

      Modern depth and movement from a concealed fastener wall panel designed for architectural façades.

      McElroy Metal’s Wave Panel introduces gentle movement and texture through its signature curved profile, creating a smooth, seamless aesthetic. Designed for vertical or horizontal installation, Wave offers designers flexibility while delivering long-term durability and minimal maintenance.

      Renderings & Profiles

      Color Charts

      Great for:

      walls-icon
      WALLS
      roofs-icon
      ROOFS
      residential-icon
      RESIDENTIAL
      commercial-icon
      COMMERCIAL

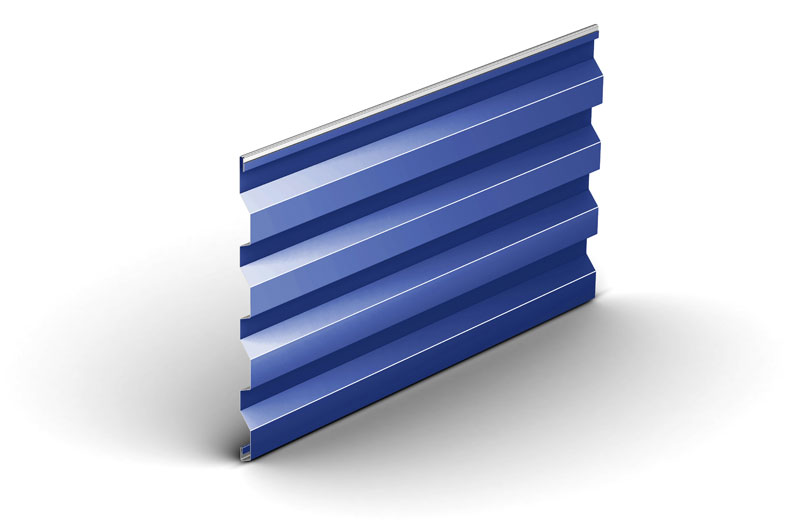

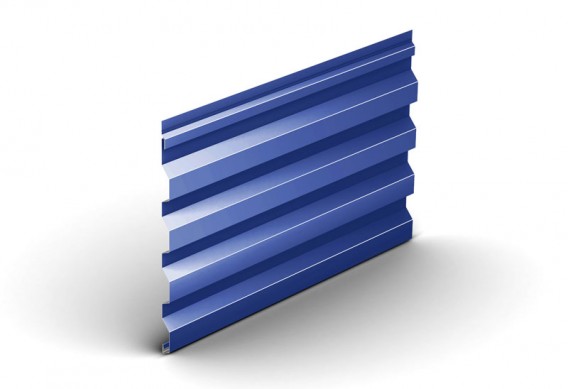

      Wave Fixed Panel

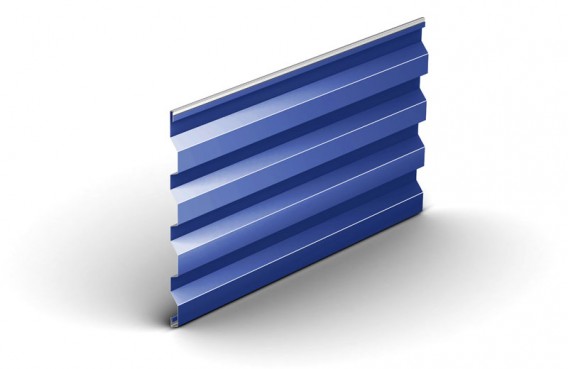

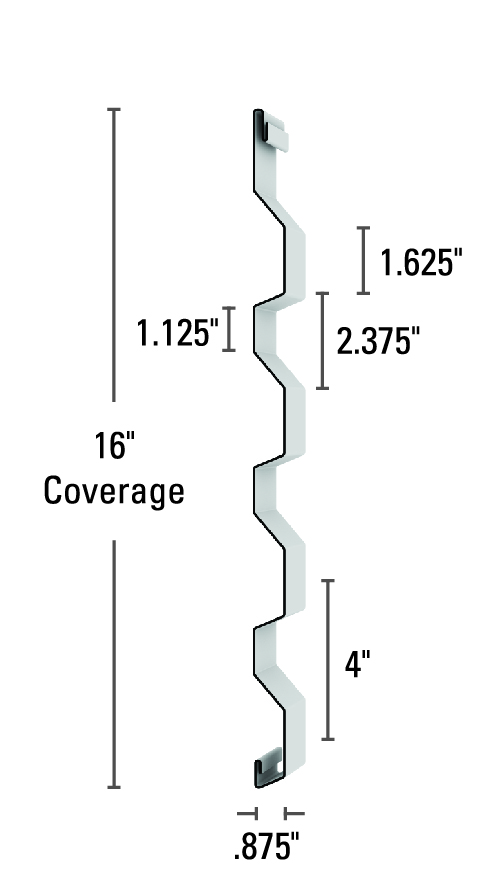

      Wave Floating Panel

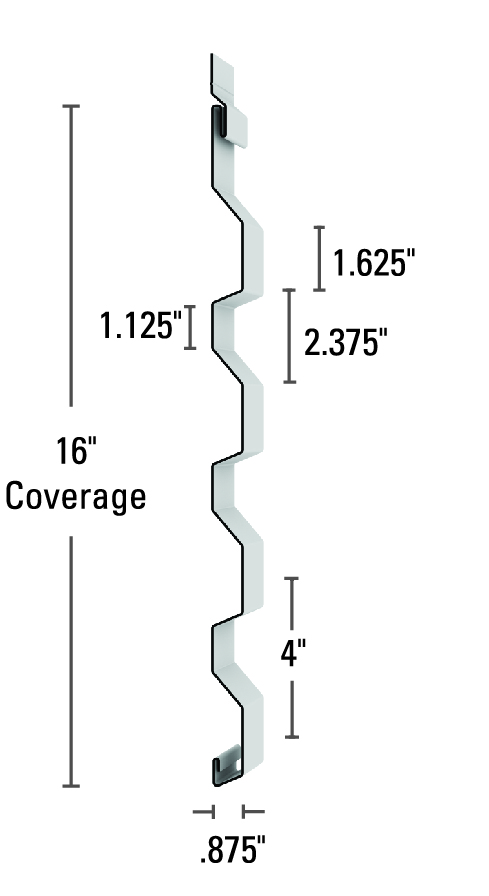

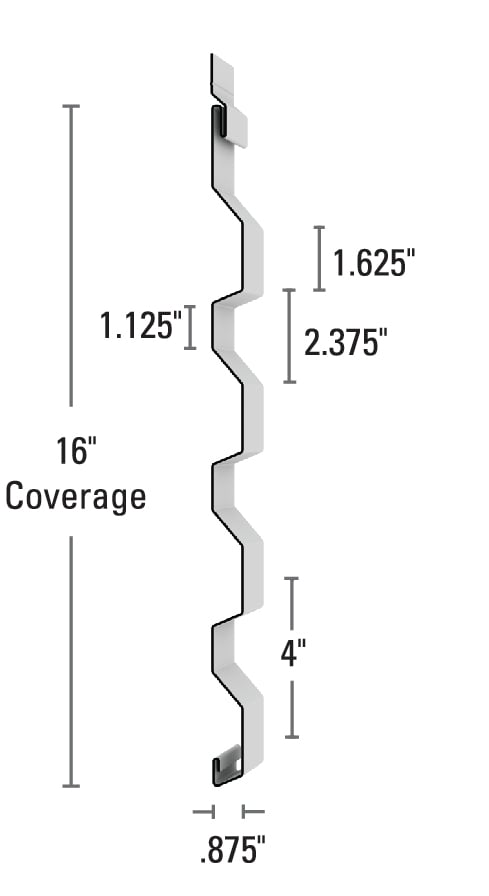

      Wave Fixed Panel Drawing

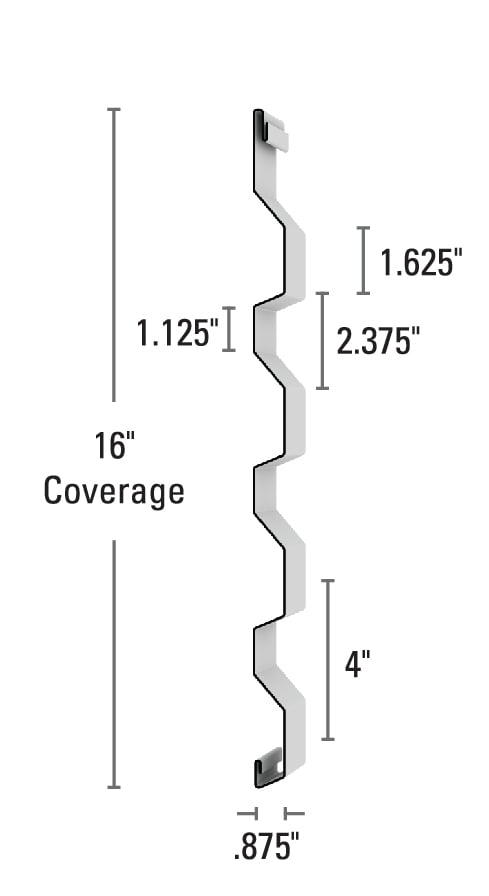

      Wave Floating Panel Drawing
      Wave Concealed Fastened Metal Wall System Specs at a Glance
      Panel Type
      Rib Height
      Major Rib On Center
      Cover Width
      Factory Panel Length
      Onsite Forming Available
      Substrate/Gauges
      Installation
      Finishes
      Minimum Slope
      Concealed Fastener Wall System
      7/8"
      4"
      16"
      Fixed: up to 40’; Floating: Up to 50’
      No
      24 GA Galvalume®-see notes below for additional options
      Solid Deck or Open Framing
      Kynar 500® (PVDF); Galvalume® Plus (acrylic-coated)
      N/A

      Wave Ideal Applications

      • Commercial and architectural façades seeking contemporary design texture.

      • Institutional buildings which require durable, low-maintenance wall cladding.

      • Retail and office projects emphasizing visual depth and modern appeal.

      • Accent walls or entryways that benefit from subtle movement and light play.

      See 3D Textures Here

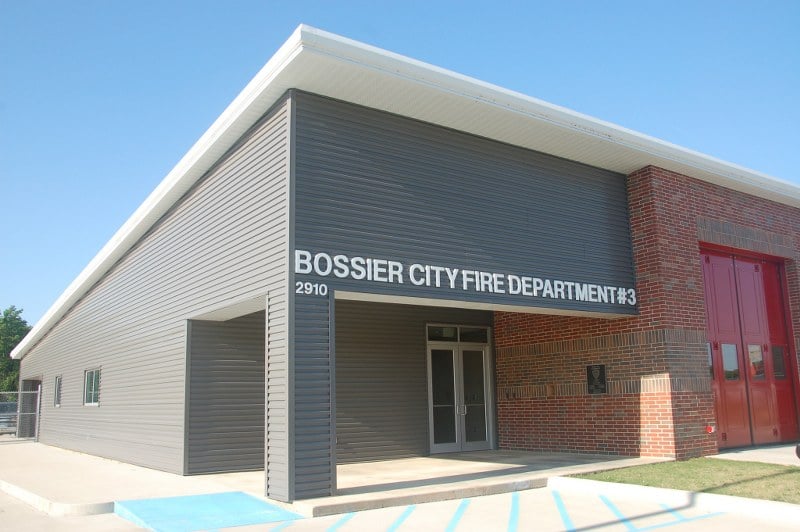

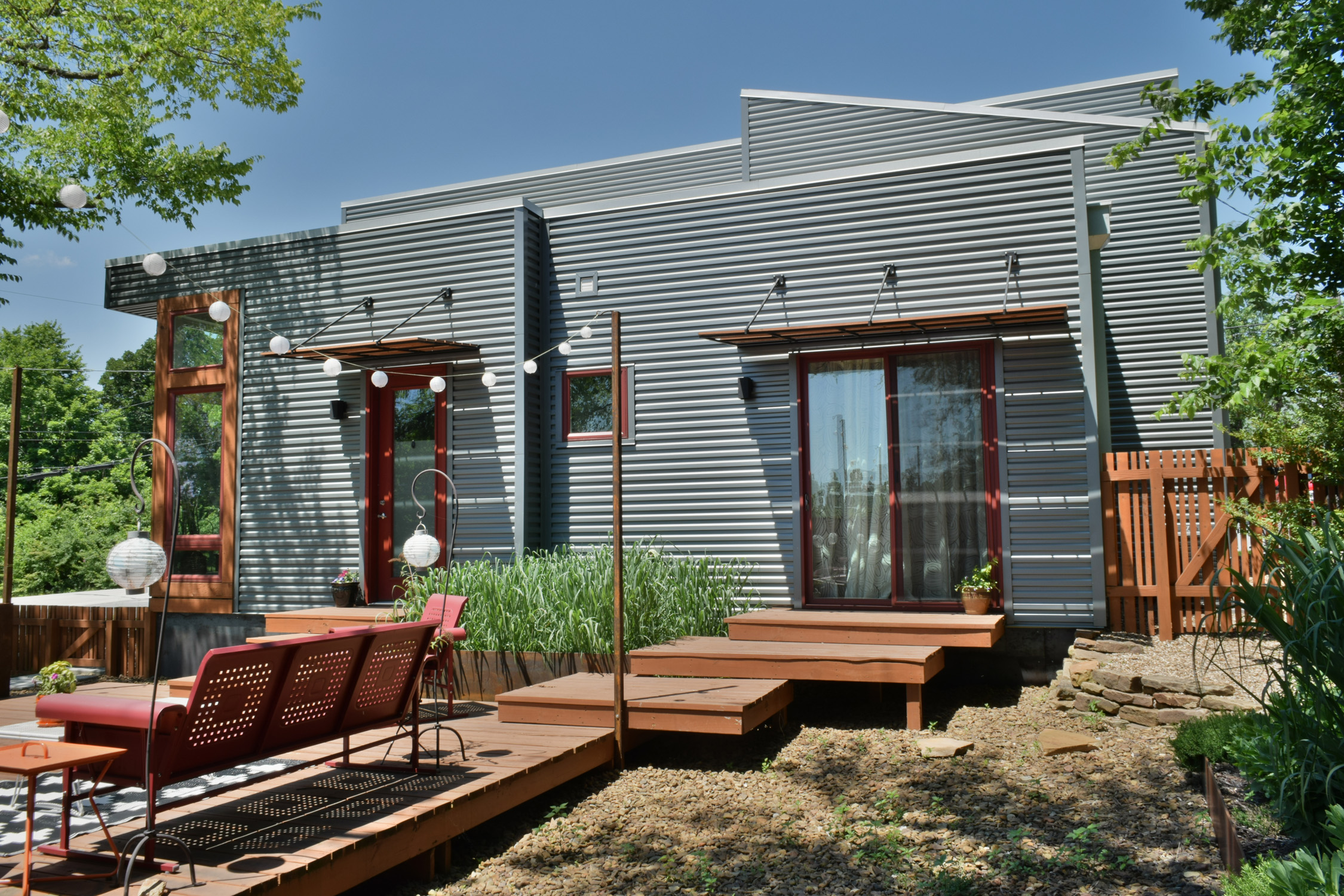

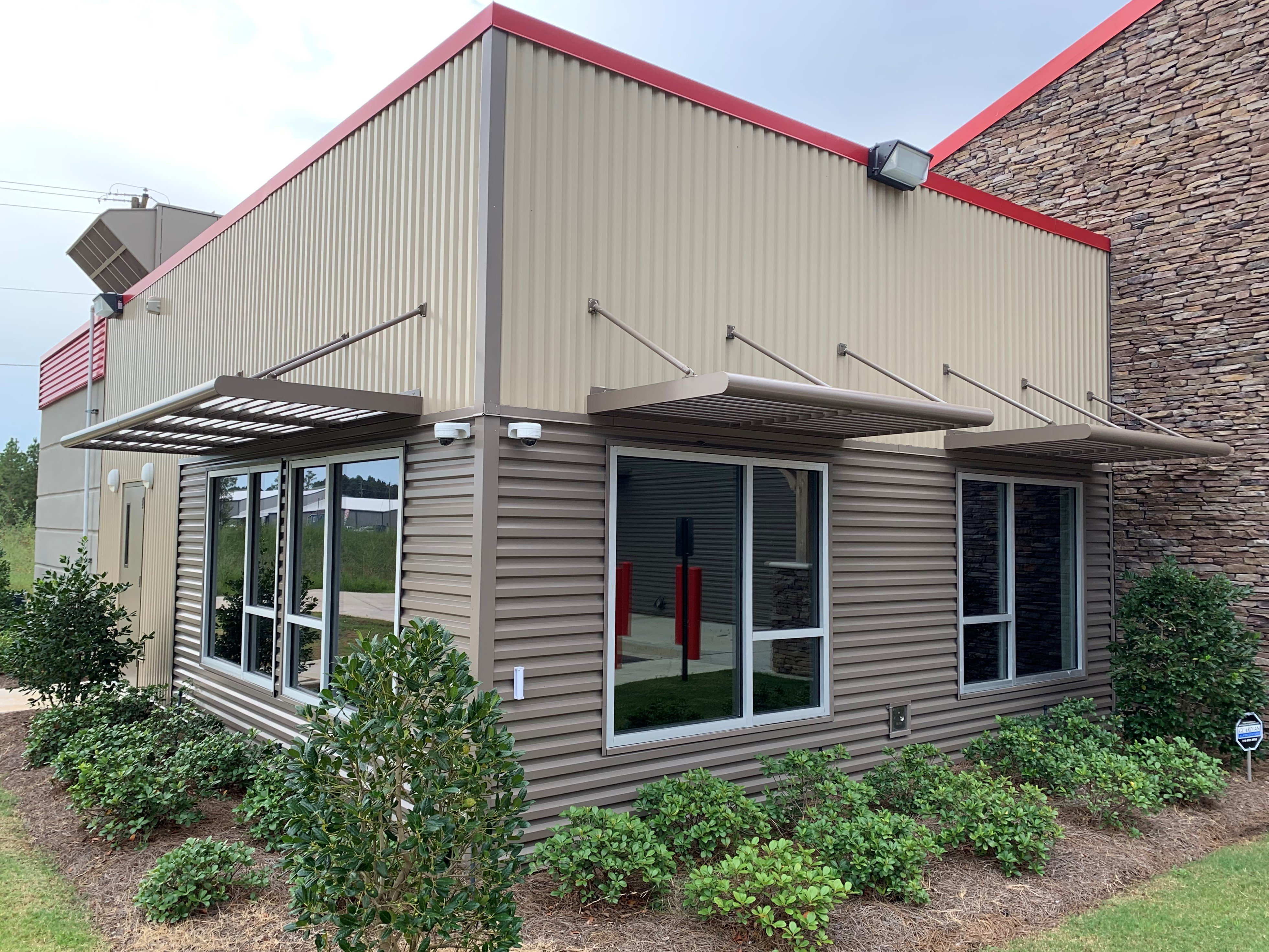

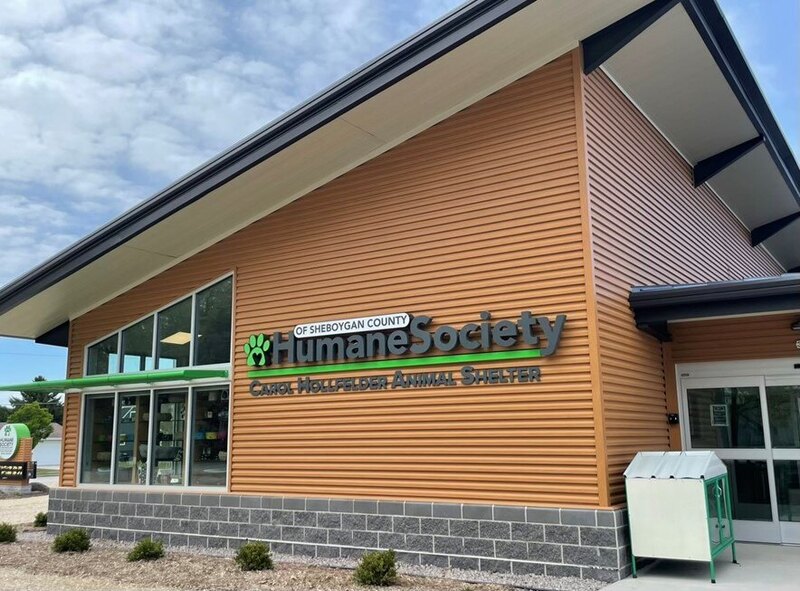

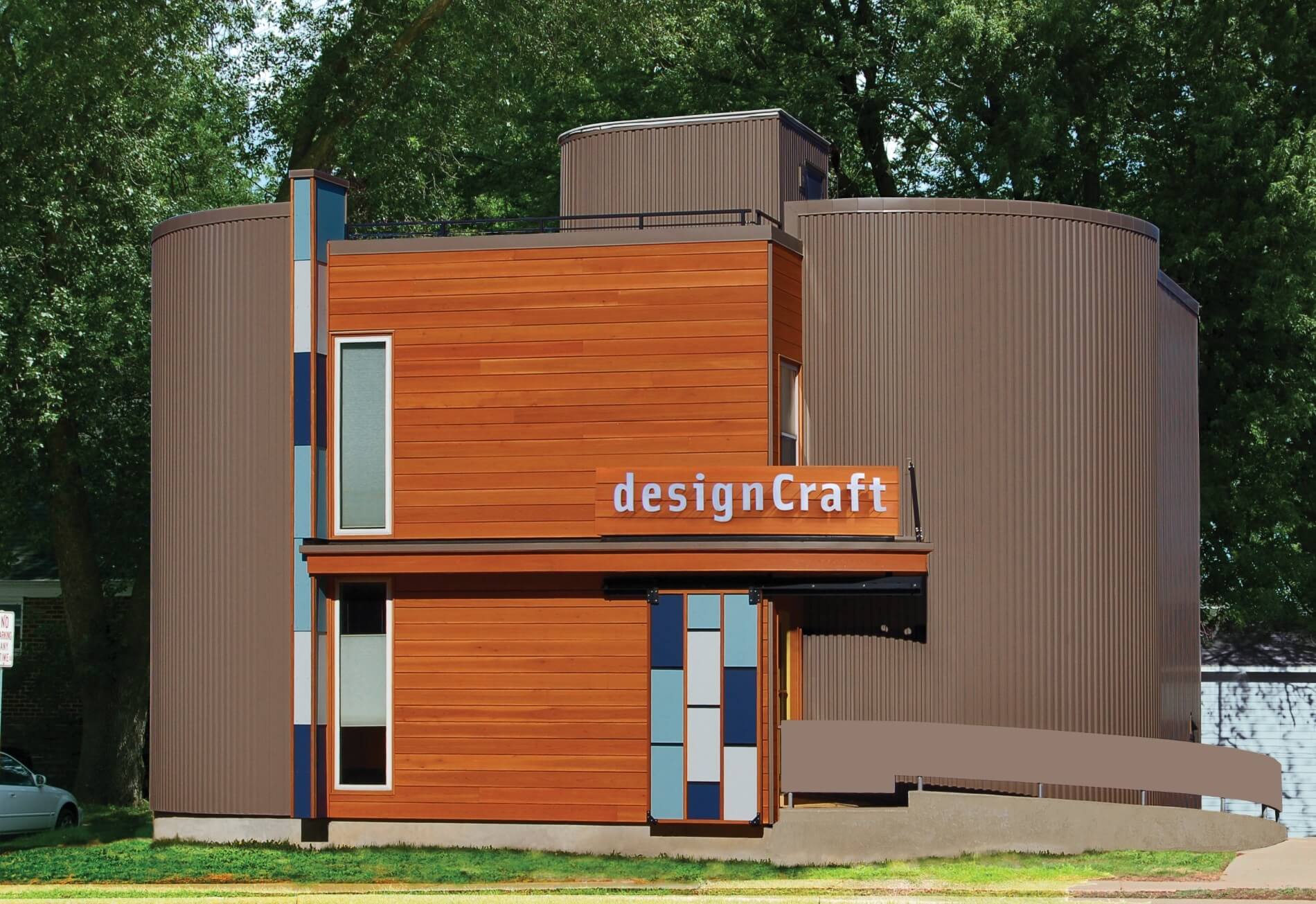

      Wave Panel Project

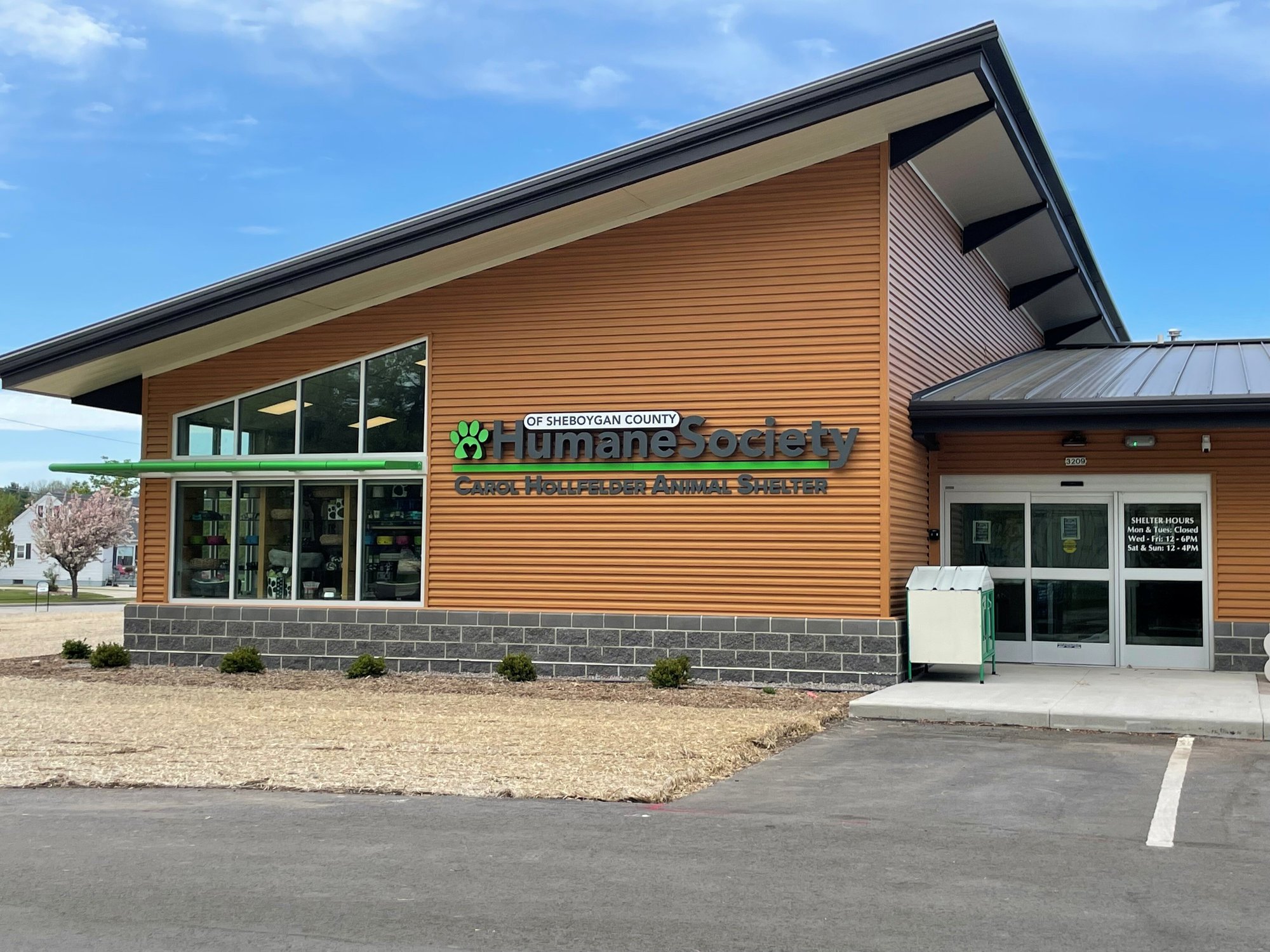

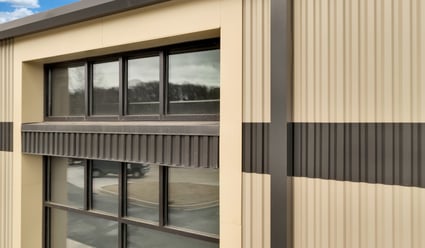

      Wave Panel Project

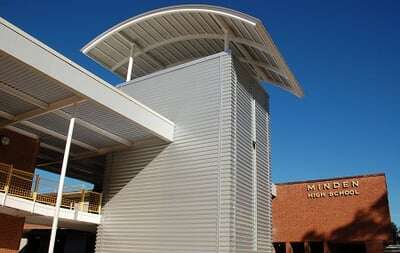

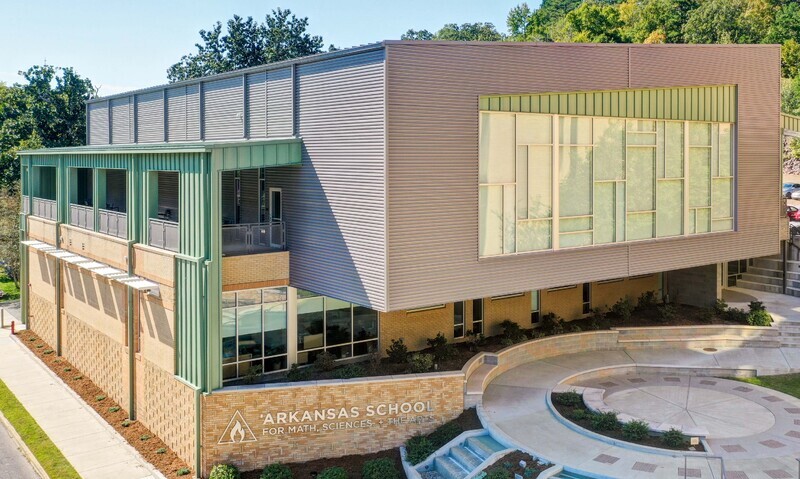

      Wave Panel Project

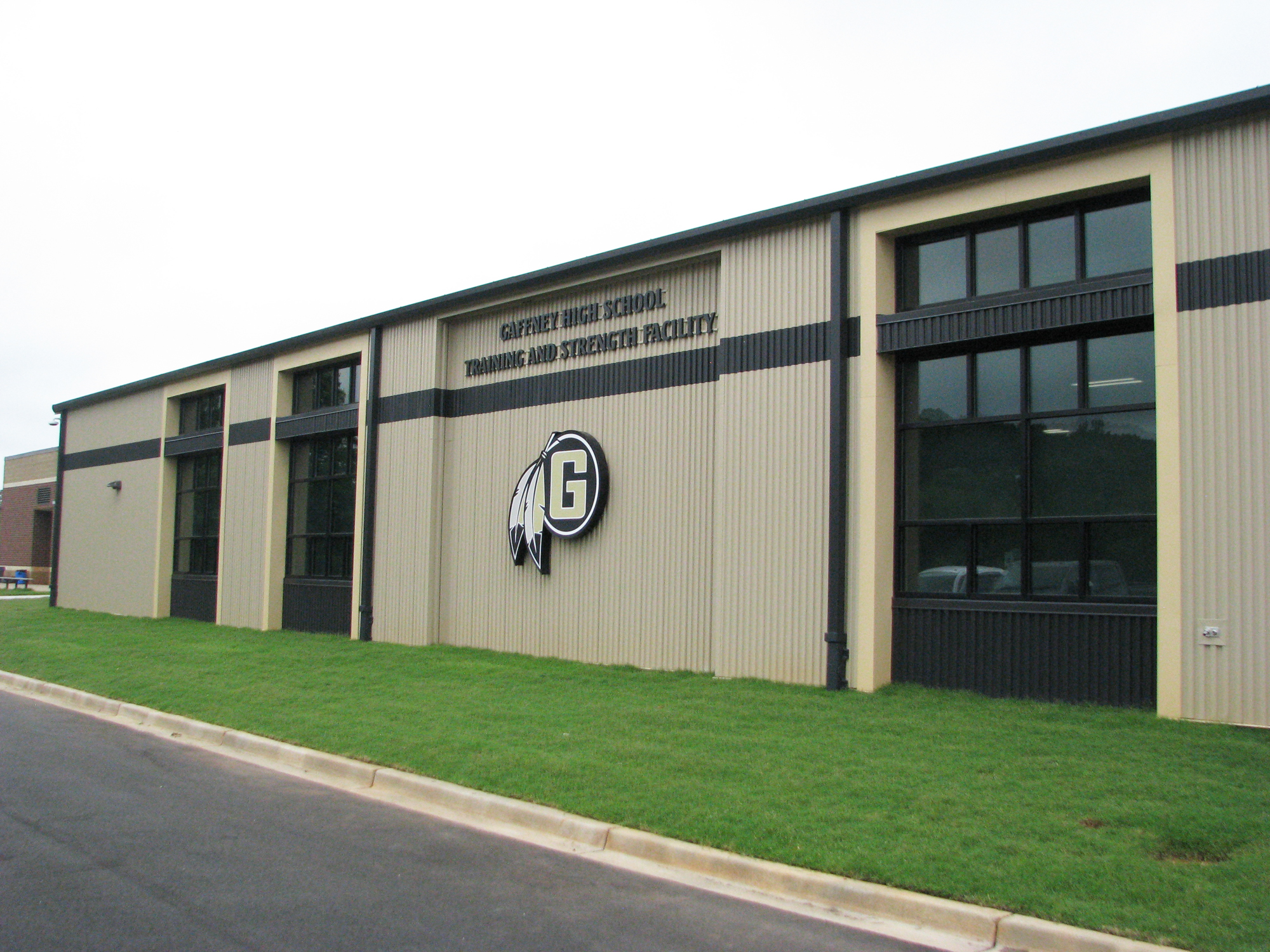

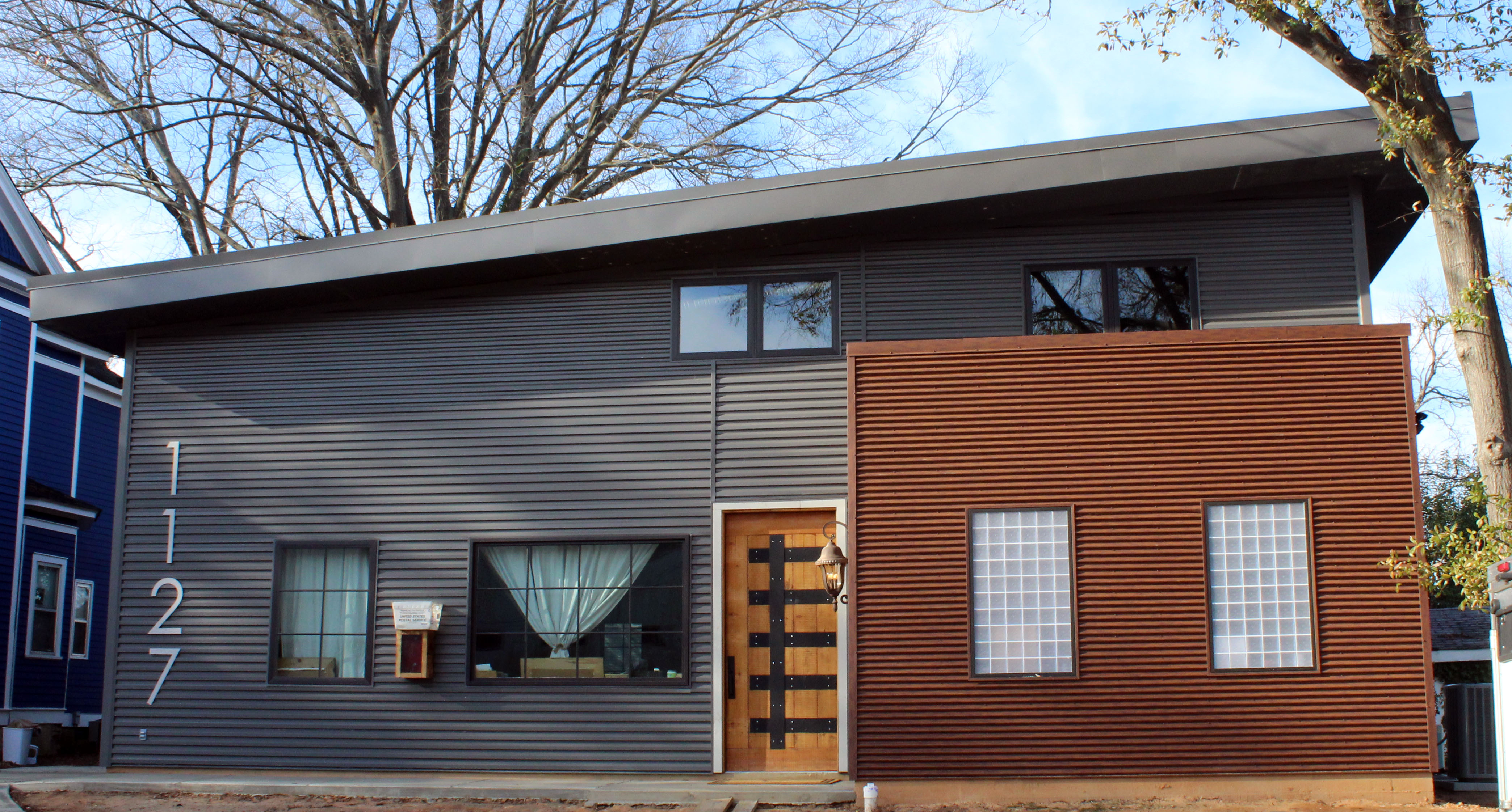

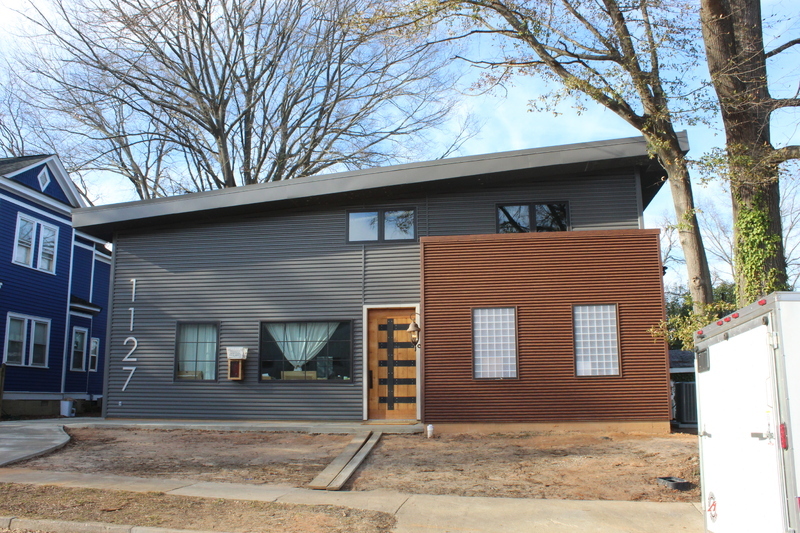

      Wave Panel Project in Charcoal

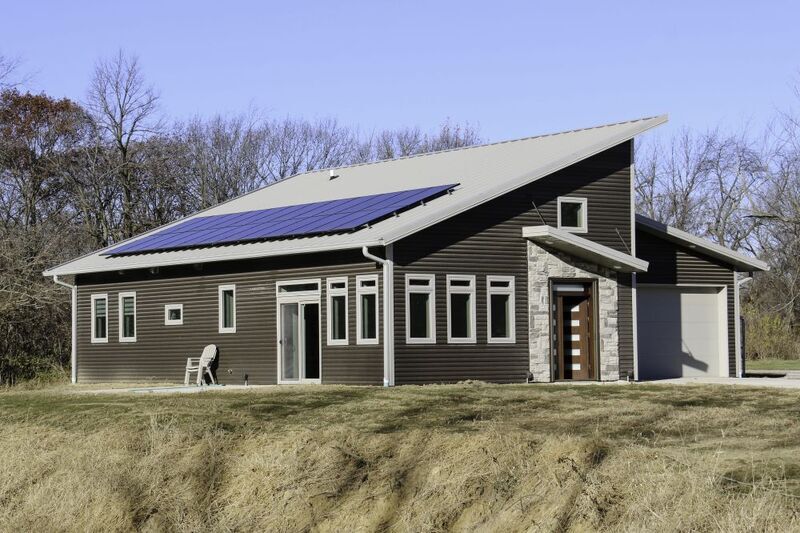

      Wave Panel Project
      Wave Panel Project
      Wave Panel Project
      Wave Panel Project
      Wave Panel Project

      Wave Panel Top 3 Benefits

      1. Distinct Architectural Aesthetic: Soft, flowing curves create a unique sense of movement and dimension.

      2. Flexible Installation Options: Can be installed vertically or horizontally for creative design freedom.

      3. Fade-Resistant Finishes: Offered in Kynar 500® (PVDF) coatings for superior color retention and UV protection.

      Color Charts

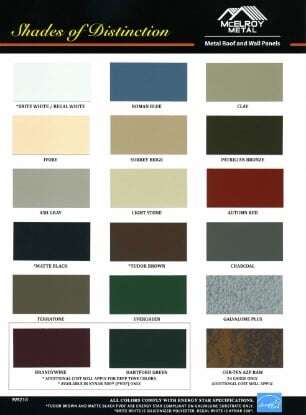

      Wave Panel Color Chart Architectural Color Chart

      CAD Drawings

      Wave Panel Horizontal Base Detail Wave Panel Horizontal Head Detail Wave Panel Horizontal High (High Flute) Detail Wave Panel Horizontal Head (Low Flute) Detail Wave Panel Horizontal Inside Corner (Alt.) Detail Wave Panel Horizontal Inside Corner (Cleated) Detail Wave Panel Horizontal Inside Corner Detail Wave Panel Horizontal Jamb (Alt.) Detail Wave Panel Horizontal Jamb Detail Wave Panel Horizontal Outside Corner (Alt.) Detail Wave Panel Horizontal Outside Corner (Cleated) Detail Wave Panel Horizontal Outside Corner Detail Wave Panel Horizontal Reveal (Alt.) Detail Wave Panel Horizontal Reveal Detail Wave Panel Horizontal Reveal Splice (Alt.) Detail Wave Panel Horizontal Reveal Splice Detail Wave Panel Horizontal Sill (High Flute) Detail Wave Panel Horizontal Sill (Low Flute) Detail Wave Panel Horizontal Wainscoat Detail Wave Panel Vertical Base Detail Wave Panel Vertical Head Detail Wave Panel Vertical Inside Corner Detail Wave Panel Vertical Inside Corner (High Flute) Detail Wave Panel Vertical Inside Corner (Low Flute) Detail Wave Panel Vertical Jamb Detail Wave Panel Vertical Jamb (High Flute) Detail Wave Panel Vertical Jamb (Low Flute) Detail Wave Panel Vertical Outside Corner Detail Wave Panel Vertical Outside Corner (High Flute) Detail Wave Panel Vertical Outside Corner (Low Flute) Detail Wave Panel Vertical Sill Detail Wave Panel Vertical Splice Detail Wave Panel Vertical Wainscoat Detail

      PDF Drawings

      Wave Panel Horizontal Base Detail Wave Panel Horizontal Head Detail Wave Panel Horizontal High (High Flute) Detail Wave Panel Horizontal Head (Low Flute) Detail Wave Panel Horizontal Inside Corner (Alt.) Detail Wave Panel Horizontal Inside Corner (Cleated) Detail Wave Panel Horizontal Inside Corner Detail Wave Panel Horizontal Jamb (Alt.) Detail Wave Panel Horizontal Jamb Detail Wave Panel Horizontal Outside Corner (Alt.) Detail Wave Panel Horizontal Outside Corner (Cleated) Detail Wave Panel Horizontal Outside Corner Detail Wave Panel Horizontal Reveal (Alt.) Detail Wave Panel Horizontal Reveal Detail Wave Panel Horizontal Reveal Splice (Alt.) Detail Wave Panel Horizontal Reveal Splice Detail Wave Panel Horizontal Sill (High Flute) Detail Wave Panel Horizontal Sill (Low Flute) Detail Wave Panel Horizontal Wainscoat Detail Wave Panel Vertical Base Detail Wave Panel Vertical Head Detail Wave Panel Vertical Inside Corner Detail Wave Panel Vertical Inside Corner (High Flute) Detail Wave Panel Vertical Inside Corner (Low Flute) Detail Wave Panel Vertical Jamb Detail Wave Panel Vertical Jamb (High Flute) Detail Wave Panel Vertical Jamb (Low Flute) Detail Wave Panel Vertical Outside Corner Detail Wave Panel Vertical Outside Corner (High Flute) Detail Wave Panel Vertical Outside Corner (Low Flute) Detail Wave Panel Vertical Sill Detail Wave Panel Vertical Splice Detail Wave Panel Vertical Wainscoat Detail

      English Installation Manuals

      Wave Panel Installation Manual

      Brochures/Flyers

      Wave Panel Flyer 2025 Product Catalog

      Metal Panel Care & Maintenance

      Operation and Maintenance Manual (Walls)

      Product Data Sheets

      SikaLastomer® 511 Product Data Wave Product Data

      Product & Trim Information Books

      Wave Product Information Book

      SDS - Substrate & Paint

      Galvalume® Substrate Paint - Almond Paint - Ash Gray  Paint - Bone White  Paint - Brandywine  Paint - Brite Red  Paint - Buckskin Paint - Champagne Metallic Paint - Charcoal  Paint - Colonial Red  Paint - Copper Penny  Paint - Dark Bronze Paint - Evergreen  Paint - Hartford Green  Paint - Home Depot Orange Paint - IHOP Blue Paint - Leadcoat Paint - Mansard Brown  Paint - Matte Black Paint - Medium Bronze Paint - Patina Green Paint - Patrician Bronze Paint - Preweathered Galvalume® Paint - Regal Blue Paint - Regal White Paint - Roman Blue Paint - Sandstone Paint - Silver Metallic Paint - Slate Gray Paint - Surrey Beige Paint - Texas Silver Metallic Paint - White Backer  Paint Pens - Kynar® Paint Pens- Kynar® ADS Data

      Specifications

      Wave Panel

    • Wave Fixed

      Customize (Recommended) Download All

      • Customize your submittal package Wave Fixed

      Click on your desired documents below to select them for your package.

      General Product and Warranty Information

      Panel Load Tables w/Section Properties and Testing

      Safety Data and Material Safety Data Sheets

    • Wave Floating

      Customize (Recommended) Download All

      • Customize your submittal package Wave Floating

      Click on your desired documents below to select them for your package.

      General Product and Warranty Information

      Panel Load Tables w/Section Properties and Testing

      Safety Data and Material Safety Data Sheets

      Finish and Substrate Warranties

      Standard Galvalume® Standard Fluropon® Kynar 500® PVDF with Galvalume® Substrate Standard Fluropon® Print Coat Kynar 500® with Galvalume® Substrate Project Specific Galvalume® Project Specific Fluropon® Kynar 500® PVDF with Galvalume® Substrate Project Specific Fluropon® Print Coat Kynar 500® with Galvalume Substrate

      Compare our concealed fastened panels using the tool below.

      For information on all McElroy Metal products, visit our full product library.


      Panel
      Seam Type
      Rib Height
      Panel Widths
      Minimum Slope
      Install Substrate
      Clips
      Substrate / Gauges
      Coating
      Notable Approvals / Tests
      Wave Concealed Fastened Metal Wall System
      Concealed Fastened Wall
      7/8"
      16"
      N/A
      Solid Deck or Open Framing
      N/A
      24 GA Galvalume®-see notes below for additional options
      Kynar 500® (PVDF); Galvalume® Plus (acrylic-coated)
      ASTM E1592

      Components Gallery

      Wave Floating

      Wave Floating

      Wave Fixed

      Wave Fixed

      Wave Floating

      Wave Floating

      Wave Fixed

      Wave Fixed

      Peachtree Solar-501-1

      Notes & Manufacturing Locations

      • Manufactured in: Houston, Texas; Peachtree City, GA

      • Installation Options: Wave is available in two installation configurations to accommodate different panel lengths and design needs.

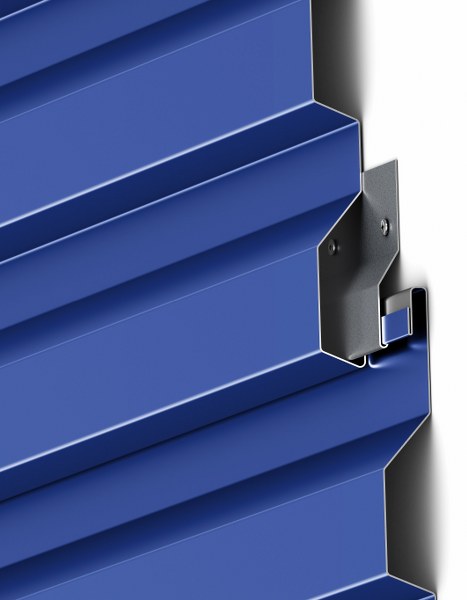

        • Wave Floating: Installed horizontally using hidden clips and fasteners for panel lengths greater than 40', resulting in a monolithic and aesthetically seamless appearance.

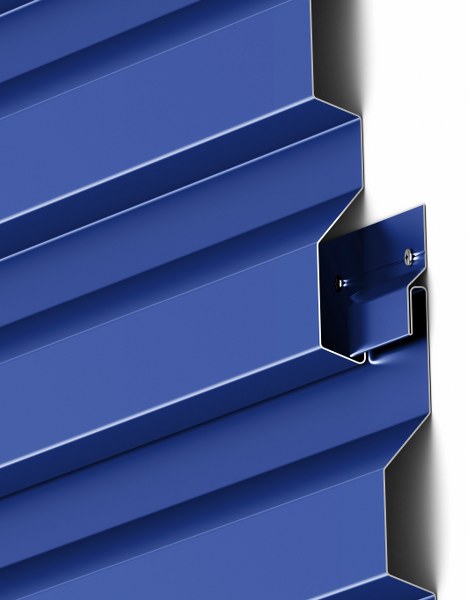

        • Wave Fixed: Also installed horizontally, Wave Fixed uses an integral fastening flange rollformed into the panel during manufacturing and is suitable for panel lengths 40' or less. Wave Fixed requires a specific starter clip that attaches to the base trim.

      • Additional Material Options: (Note: Minimum quantity and additional lead-time may apply)

        • 22 GA Galvalume®

      • Oil canning is a natural occurrence in metal panels and not a cause for rejection.
