Met-Tile Metal Tile Panels

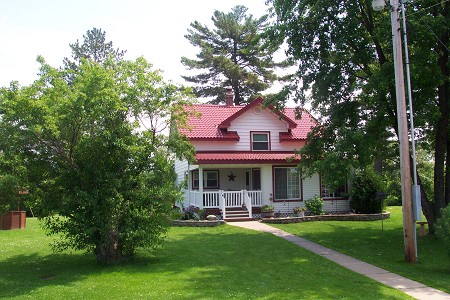

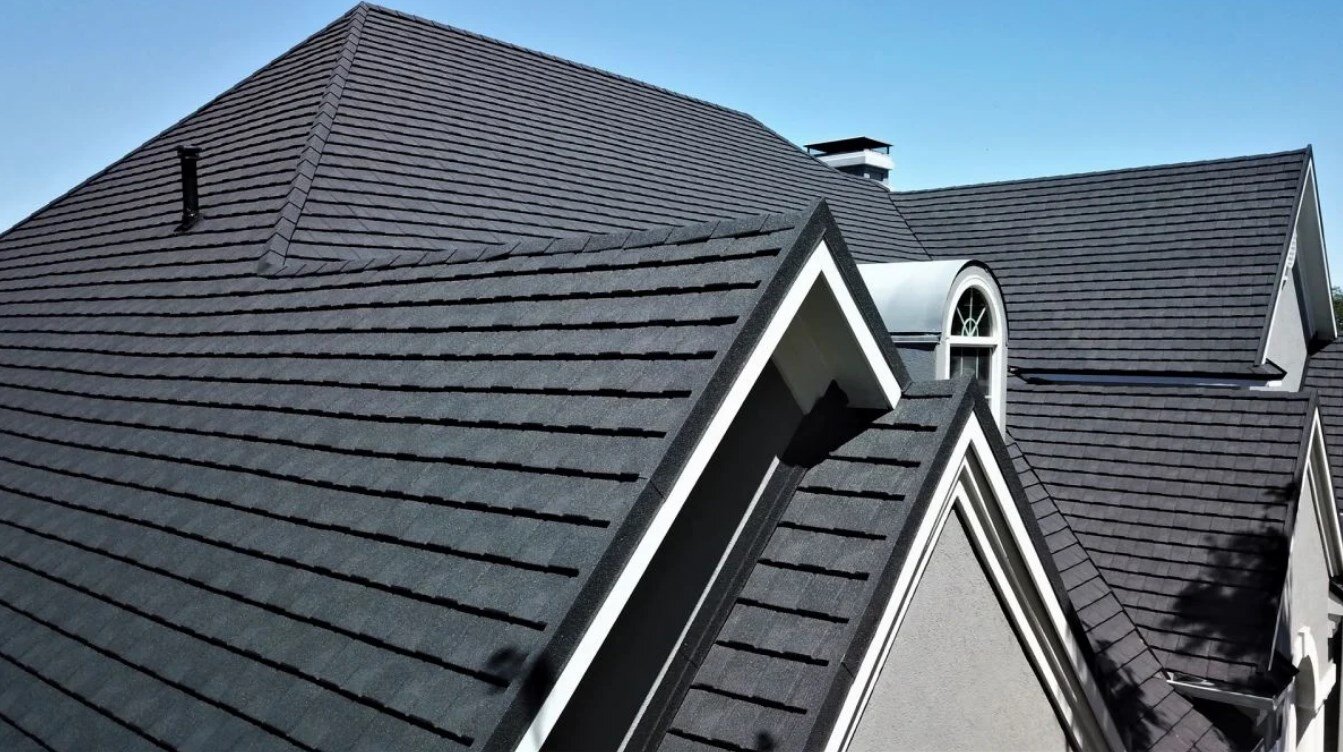

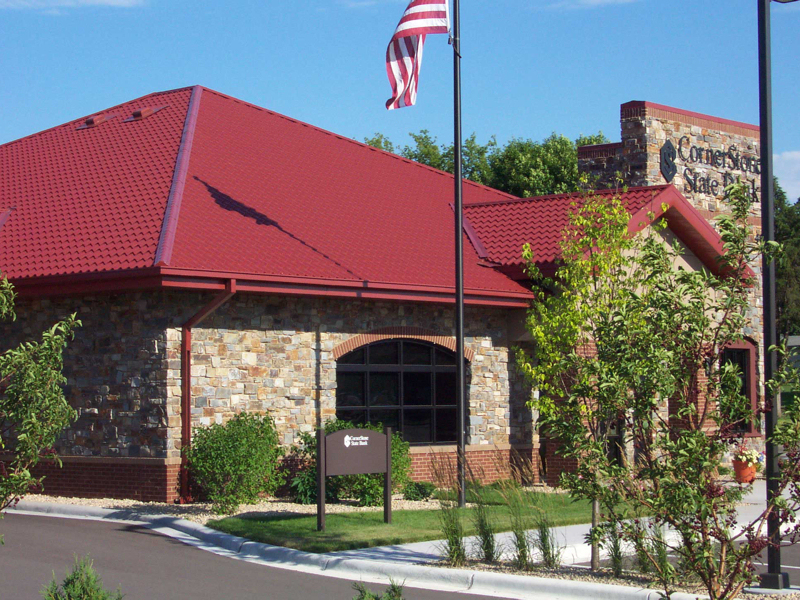

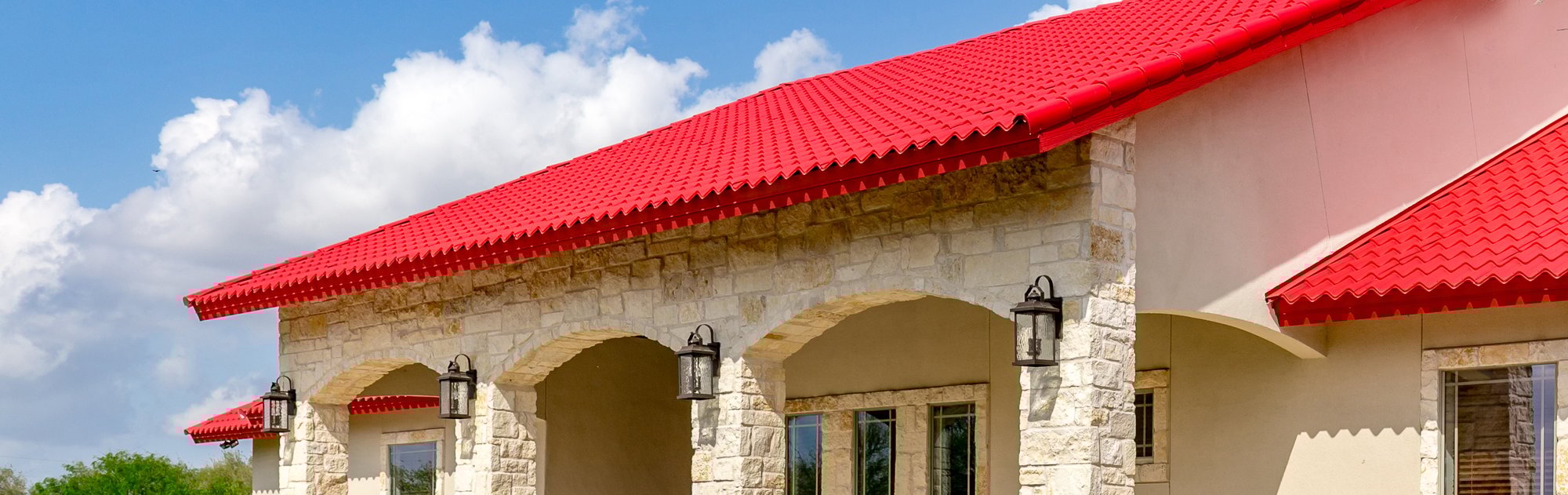

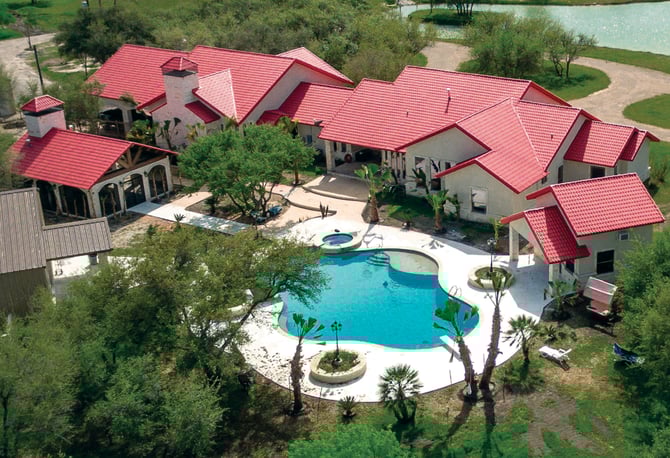

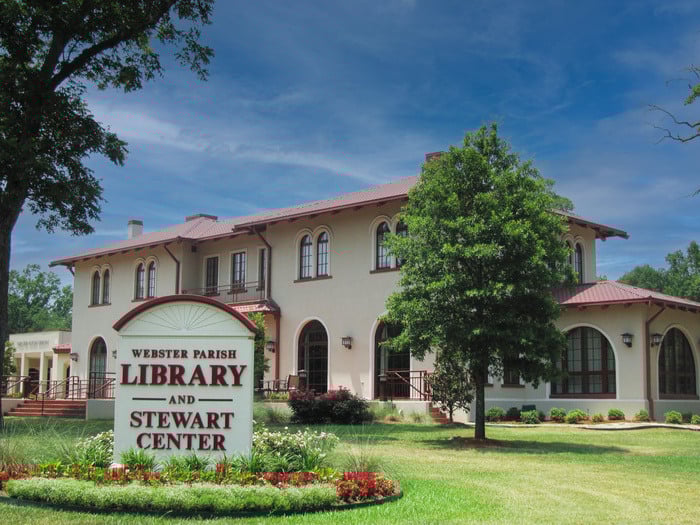

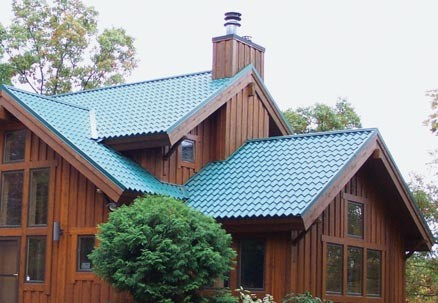

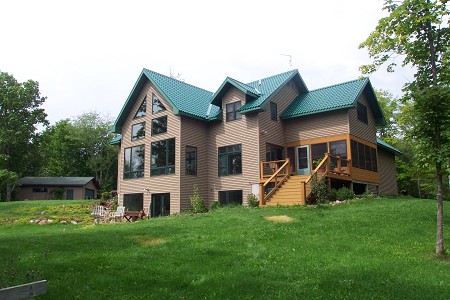

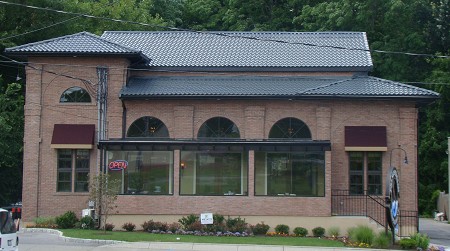

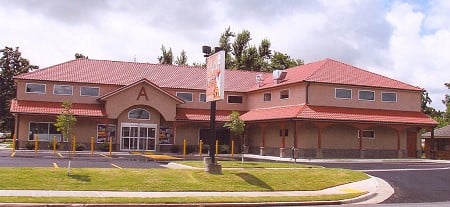

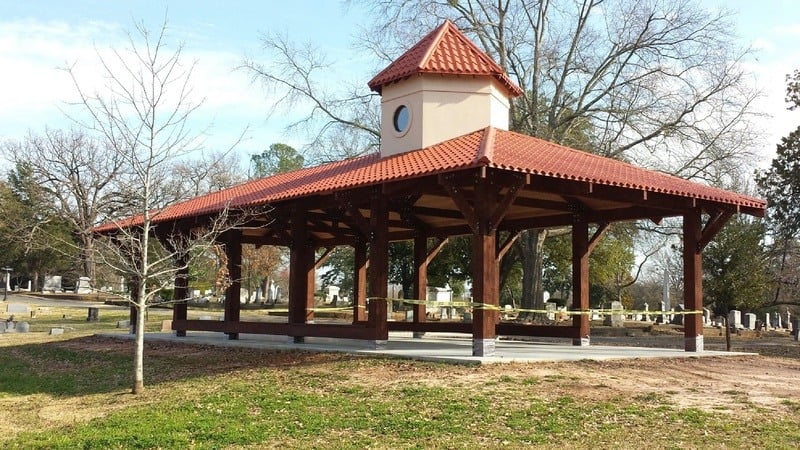

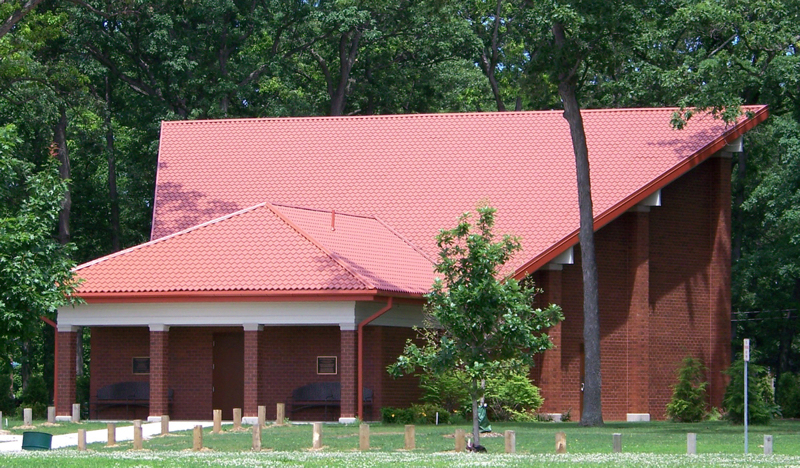

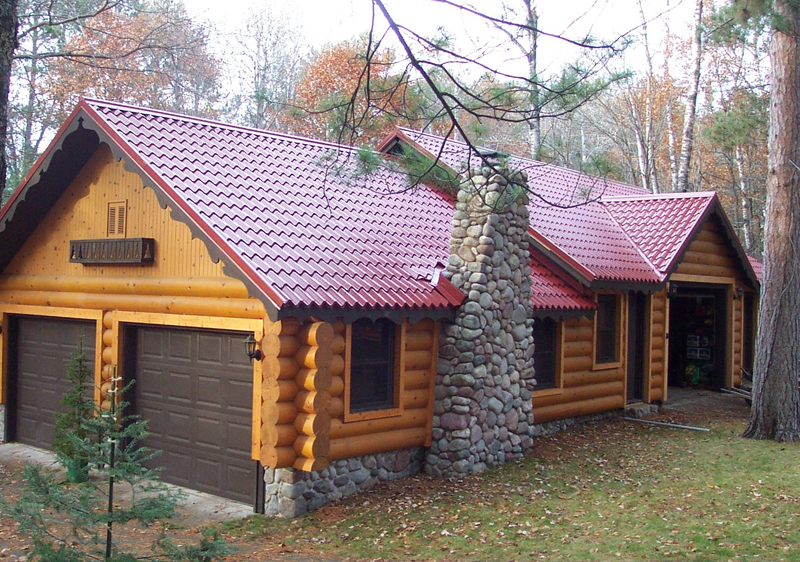

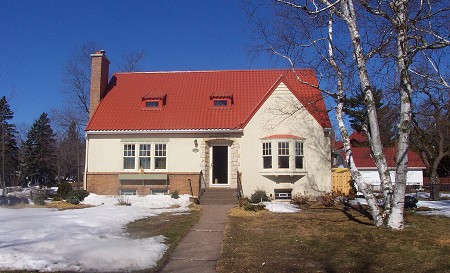

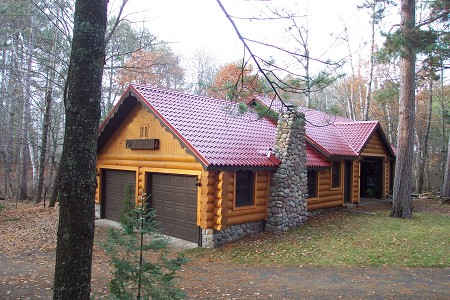

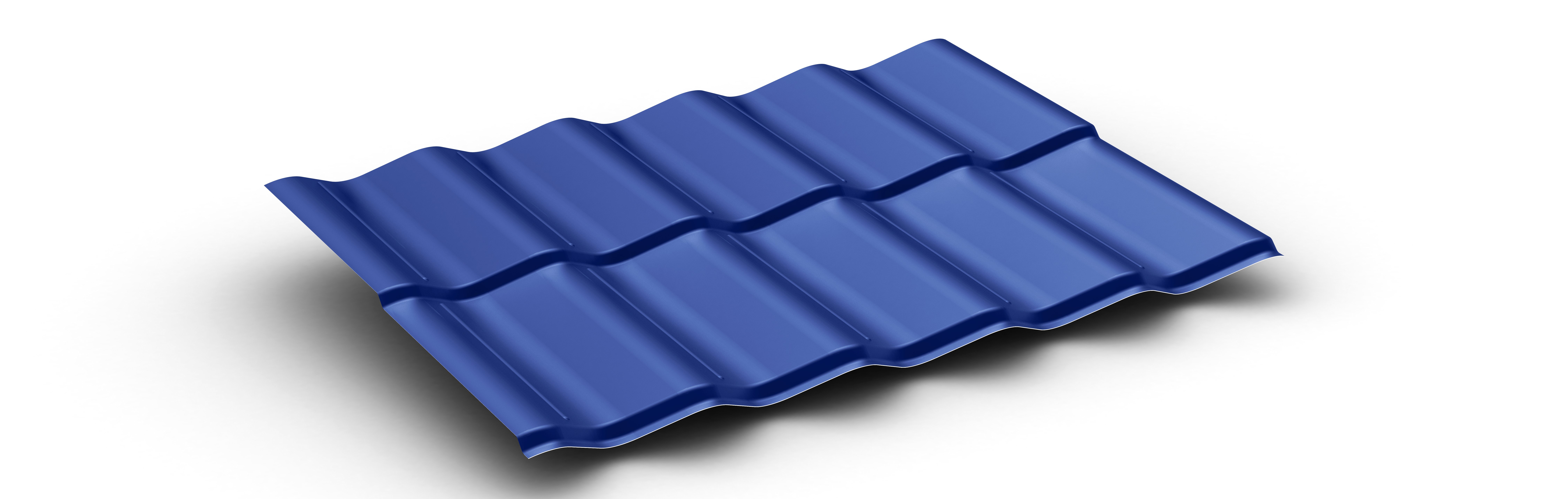

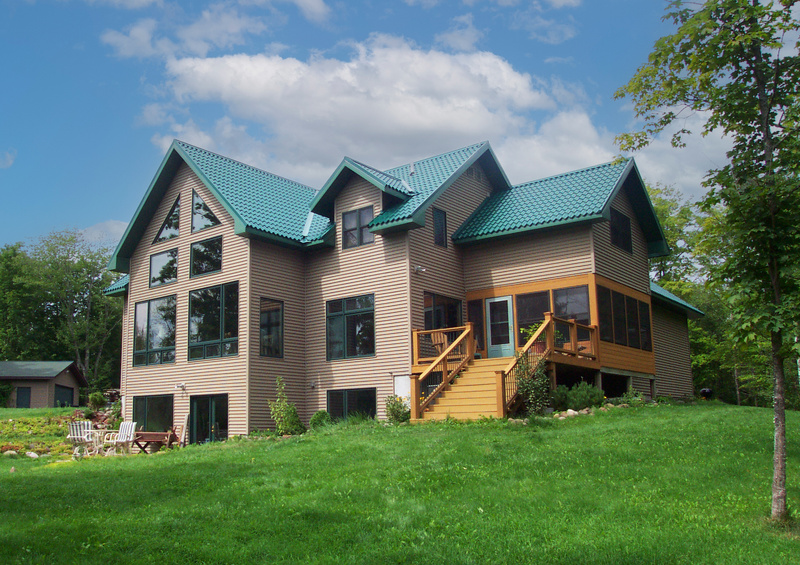

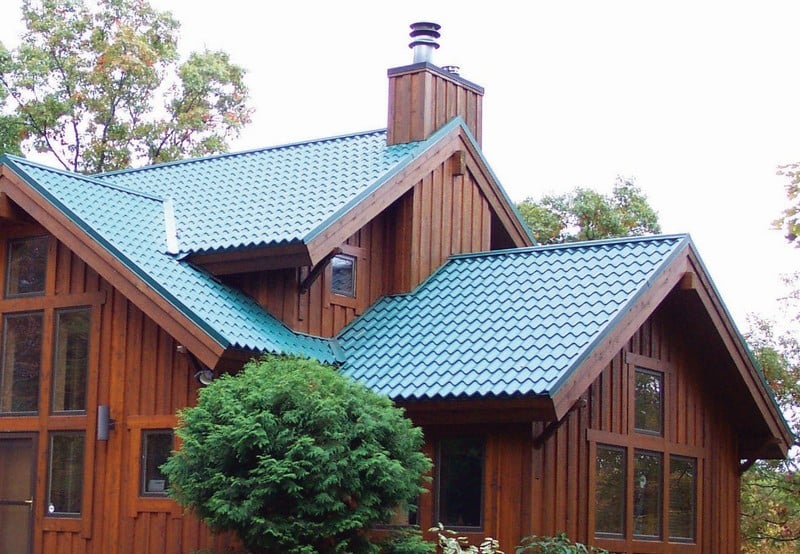

McElroy Metal's Met-Tile roofing panel provides the appearance of ceramic tile roofing with all the advantages and performance of metal.  Met-Tile is lightweight, energy efficient and aesthetically attractive. A Met-Tile roof looks so much like tile, most people are surprised to learn that they are actually metal roof tiles.

Click here to see Low Gloss Kynar 500 (PVDF) colors

Click image to enlarge

Great for

Walls

Walls

Roofs

Roofs

Residential

Residential

Commercial

Commercial

Because Met-Tile is a panelized roofing system, installation requires a fraction of the time required by the installation of real ceramic tiles. Met-Tile's many benefits are what make Met-Tile such a popular option among property owners and service providers who want something fast, easy, efficient, affordable and attractive.

Specifications & Details

Details
Minimum slope (with sealant) 1 1/2:12
Minimum slope (without sealant) 3:12
Installation Must be over solid deck
Manufacturing Facilities Sunnyvale, TX
Note Oil Canning is a natural occurrence in metal panels and is not a cause for panel rejection
Testing
Fire Rating Class A
Florida Approval 17905.1
Testing Data For available Test Data, Section Properties or Load Tables, please visit our downloads section.
Panel Options
Panel lengths 2' - 20' (in 1' increments)
Steps 1' on center
Panel width 38 5/16"
Panel coverage 36 3/16"
Coating Low gloss, Kynar 500® (PVDF)
Substrate 26 GA Galvalume® stucco embossed only

Related Files

Get A Submittal Package

Customize your submittal package

Click on your desired documents below to select them for your package.

General Product and Warranty Information

Panel Load Tables w/Section Properties and Testing

Safety Data and Material Safety Data Sheets

Request

Samples & Color Charts

Request physical samples and color charts. All items will be sent out via UPS ground unless otherwise specified.

Request now

samples

FAQs

While the upfront costs of installing a metal roof are often higher than shingles, a metal roof lasts longer and will be replaced or repaired far less frequently. A typical shingle roof lasts anywhere from 12 to 20 years, depending upon how well it’s maintained and weather elements it may encounter. Metal roofs, on the other hand, can last between 40 and 60 years while also requiring less maintenance, making them a more cost-effective choice over the lifespan of the roof.

Learn More

While it may be true that metal roofs on buildings like garages and pole barns intensify the sound of falling rain, this is primarily caused by the lack of a roof deck, insulation, and underlayment. On a residential home, layers of building materials between the metal roof and the living area reduce the noise significantly, making metal roofs as quiet as any other roofing material when it rains. Check out this video to see and hear for yourself.

Metal roofing actually reflects much of the sun’s heat and energy. While conventional shingles absorb much of the sun’s heat, metal roofing can actually reduce cooling energy costs by as much as 20%. That’s because the coating used on modern metal roof panels incorporates special pigments that reflect the sun’s energy and release heat that is absorbed throughout the day.

Residential metal roofing is available in a variety of aesthetically pleasing designs that can heighten the curb appeal of any home. In addition to conventional panels, there are several styles that are virtually indistinguishable from conventional tile and shingles. Metal roofing is available in a wide array of colors as well, making it easy to find an option that best suits any style of residential home.

The odds of a lightning strike hitting a metal roof are the same as any other roof, regardless of material. In the event that there is a lightning strike, however, metal roofing will not ignite and catch fire since it is not combustible.

Far from it. Studies conducted by the Insurance Institute for Business & Home Safety (IBHS) have found that metal roofing is far less likely to be punctured by hail than conventional asphalt shingles, withstanding even golf ball-sized hailstones with only cosmetic damage.

Metal roofing consistently outperforms shingles when it comes to resisting harsh elements. In addition to being fire and hail resistant, metal roofs are also effective against extreme winds. Many insurance companies recognize the durability of metal roofing, offering discounts for structures with metal roofs.

Definitely not! Like most building materials, metal roofing is available in varying levels of quality. Homeowners should be sure to ask their contractor or supplier what substrate and paint coating they are recommending for their home. Galvalume steel substrates and Kynar 500® (PVDF) coatings provide the best long-term peformance. Click here for facts about substrates and coatings.

Shop Drawing Service
Shop Drawing Service

Running short of time to complete your own shop drawings? McElroy Metal can help. Click the button below to provide us some basic information and we’ll be in touch soon to discuss your project specifics.

Contact Us →

Download Shop Drawings
Download Shop Drawings

If you’re creating your own shop drawings, click the button below to gain full access to our CAD and PDF Files.

View Drawings →

Find a Distributor/Contractor Near You

Whether you’re building a new home or planning renovations, a metal roof can deliver long-term cost savings and comfort. To explore your options and find the product that meets your aesthetic and budgetary needs, contact a McElroy Metal distributor or contractor in your area today. We can’t wait to help make your dream home a reality.

Find a Contractor

Related Products

Milan

Learn more

Substructural Components

Learn more

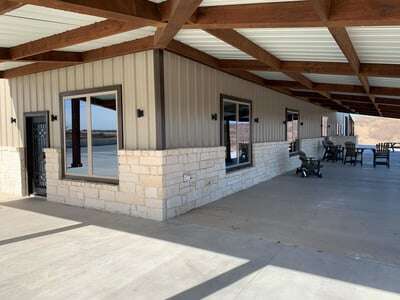

R-Panel
