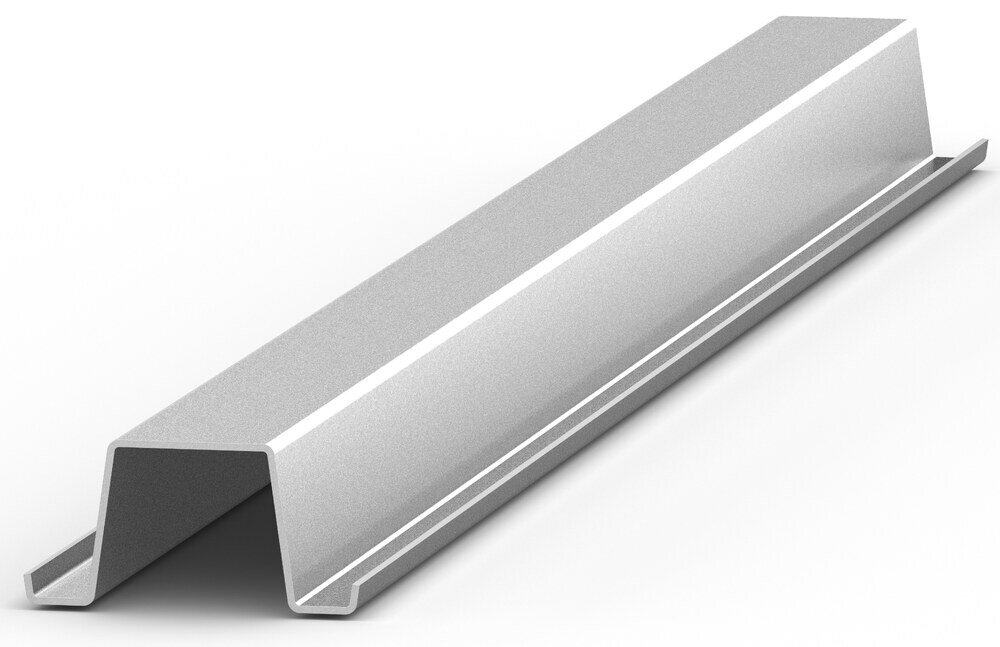

Mac-Girt Substructural Component

A versatile, heavy-duty sub-girt designed for strength and simplicity.

The McElroy Metal Mac-Girt is a robust substructural member used to support wall and roof panels, create spacing, and transfer loads across building assemblies. Its cold-formed shape offers excellent strength and compatibility, making it ideal for both new construction and retrofit applications.

{"@context":"https://schema.org","@id":"https://www.mcelroymetal.com/substructural-components/mac-girt#product","@type":"Product","additionalProperty":[{"@type":"PropertyValue","name":"Factory panel length","value":"3’ to 30’"},{"@type":"PropertyValue","name":"Coating","value":"Galvanized"},{"@type":"PropertyValue","name":"Shape type","value":"Cold-formed Mac-Girt section"},{"@type":"PropertyValue","name":"Common uses","value":"Wall and roof panel support, retrofit framing, load transfer, and sub-girt assembly"},{"@type":"PropertyValue","name":"Web dimensions","value":"1 ½” tall"},{"@type":"PropertyValue","name":"Gauge options","value":"16 Ga, 18 GA, 20 GA"},{"@type":"PropertyValue","name":"Material","value":"High-strength structural steel, ASTM A653 or equivalent"},{"@type":"PropertyValue","name":"On-site forming","value":"No"}],"brand":{"@type":"Brand","name":"McElroy Metal"},"description":"Discover Mac-girts for enhanced support and durability in metal cladding systems. Explore our substructural components and custom options to elevate your building projects.","manufacturer":{"@type":"Organization","name":"McElroy Metal","url":"https://www.mcelroymetal.com/"},"name":"Mac-Girt Substructural Component","url":"https://www.mcelroymetal.com/substructural-components/mac-girt"}

Mac-Girt Substructural Component Specs at a Glance

Shape Type:

Common Uses:

Web Dimensions:

Flange Widths:

Gauge Options:

Material:

Finishes:

Lengths:

Optional Features:

Cold-formed Mac-Girt section

Wall and roof panel support, retrofit framing, load transfer, and sub-girt assembly

1 ½” tall

N/A

16 Ga, 18 GA, 20 GA

High-strength structural steel, ASTM A653 or equivalent

Galvanized

3’ to 30’

N/A

Mac-Girt Substructural Component Ideal Applications

Wall and roof panel support providing consistent attachment and load distribution.
Sub-girt framing for metal wall systems.
Vertical and horizontal girt installations across a range of wall configurations.
Retrofitting over existing walls to create a new attachment plane.
Load-transfer reinforcement within cladding systems.

Mac-Girt Substructural Component Top 3 Benefits

Versatile Installation Orientation: Can be used as a horizontal or vertical girt depending on project requirements.
Multiple Gauges: Available in several thicknesses to meet load, span, and spacing needs.
Compatible with Multiple Wall Systems: Integrates easily with McElroy Metal wall panels, retrofit systems, and other substructural components.

Literature
Product Info
SDS - Substrate & Paint
Submittals
Substructural Section Properties

Brochures/Flyers

2025 Product Catalog

Product Data Sheets

Substructural Parts Product Data

Product & Trim Information Books

Substructural Components Product Information Book

SDS - Substrate & Paint

Galvanized Safety Data Sheet Gray Purlin Safety Data Sheet

Download All

General Product and Warranty Information

Panel Load Tables w/Section Properties and Testing

Safety Data and Material Safety Data Sheets

Substructural Section Properties

Hat, Channel, Mac-Girt, Sub-Girt Effective Section Properties Hat, Channel, Mac-Girt, Sub-Girt Gross Section Properties

Notes & Manufacturing Locations

Manufactured in: Sunnyvale, TX

Find a Distributor / Contractor Near You

Whether you’re building a new home or planning renovations, a metal roof can deliver long-term cost savings and comfort. To explore your options and find the product that meets your aesthetic and budgetary needs, contact a McElroy Metal distributor or contractor in your area today. We can’t wait to help make your dream home a reality.

Find a Contractor

Frequently Asked Questions

The questions below address common considerations and help guide product selection for your project.

What is the primary use of the Mac-Girt?

It supports wall and roof panels while providing spacing, load transfer, and structural alignment.

Is the Mac-Girt different from a standard sub-girt?

Yes. The Mac-Girt is typically heavier-duty and offers broader compatibility across various panel systems and retrofit assemblies.

Do you offer multiple gauges and sizes?

No. We offer the Mac-Grit in 1 ½” height only.

Are both galvanized and red oxide primer offered?

No. Our Mac-Girt is offered only in a galvanized finish.
