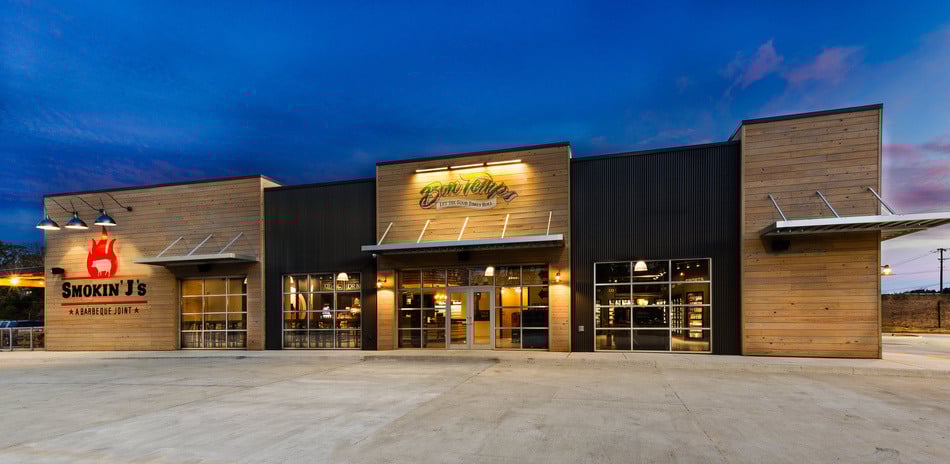

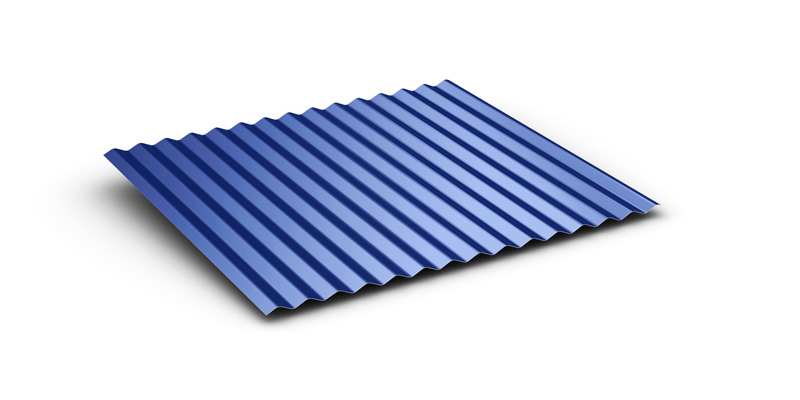

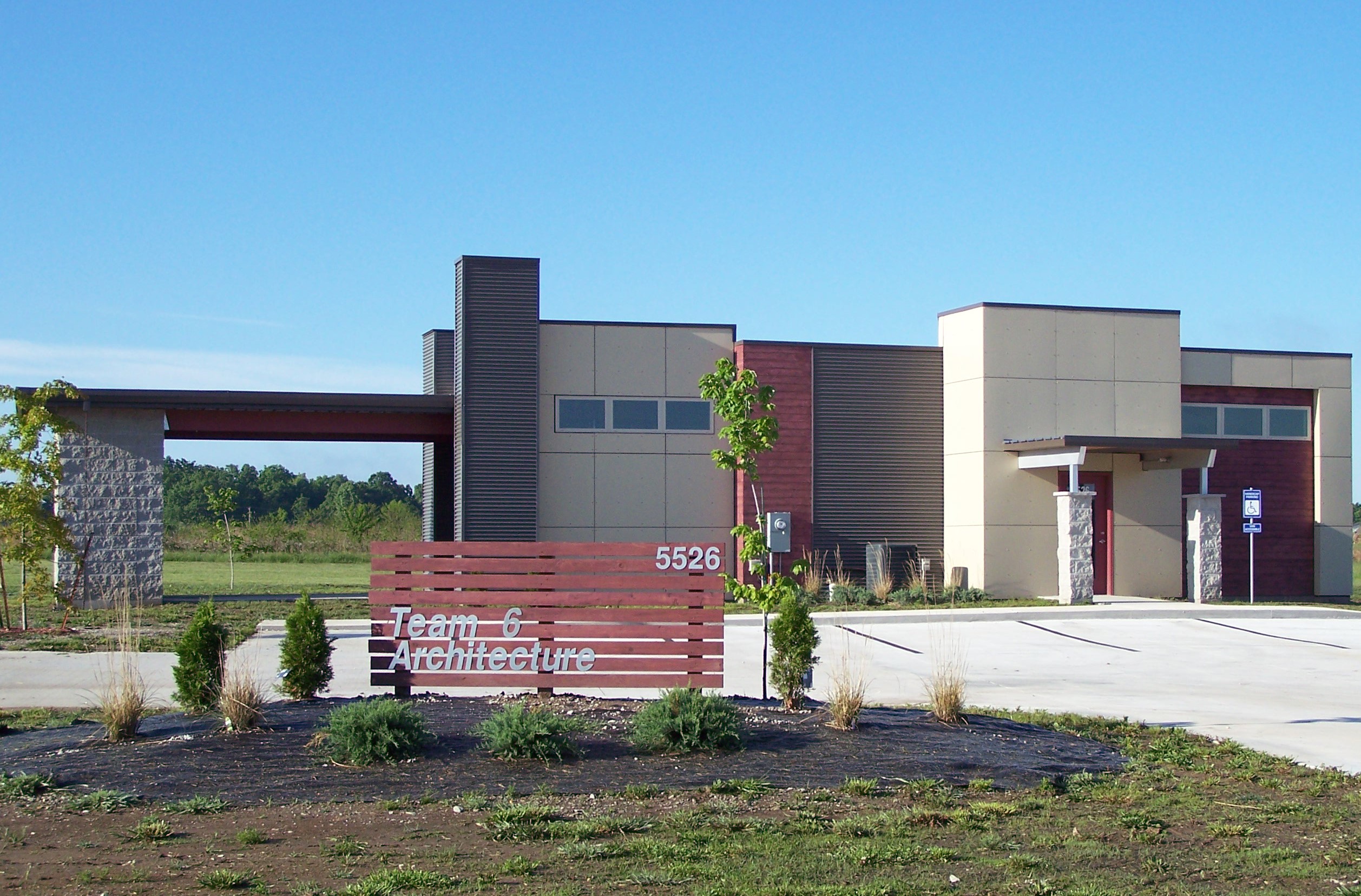

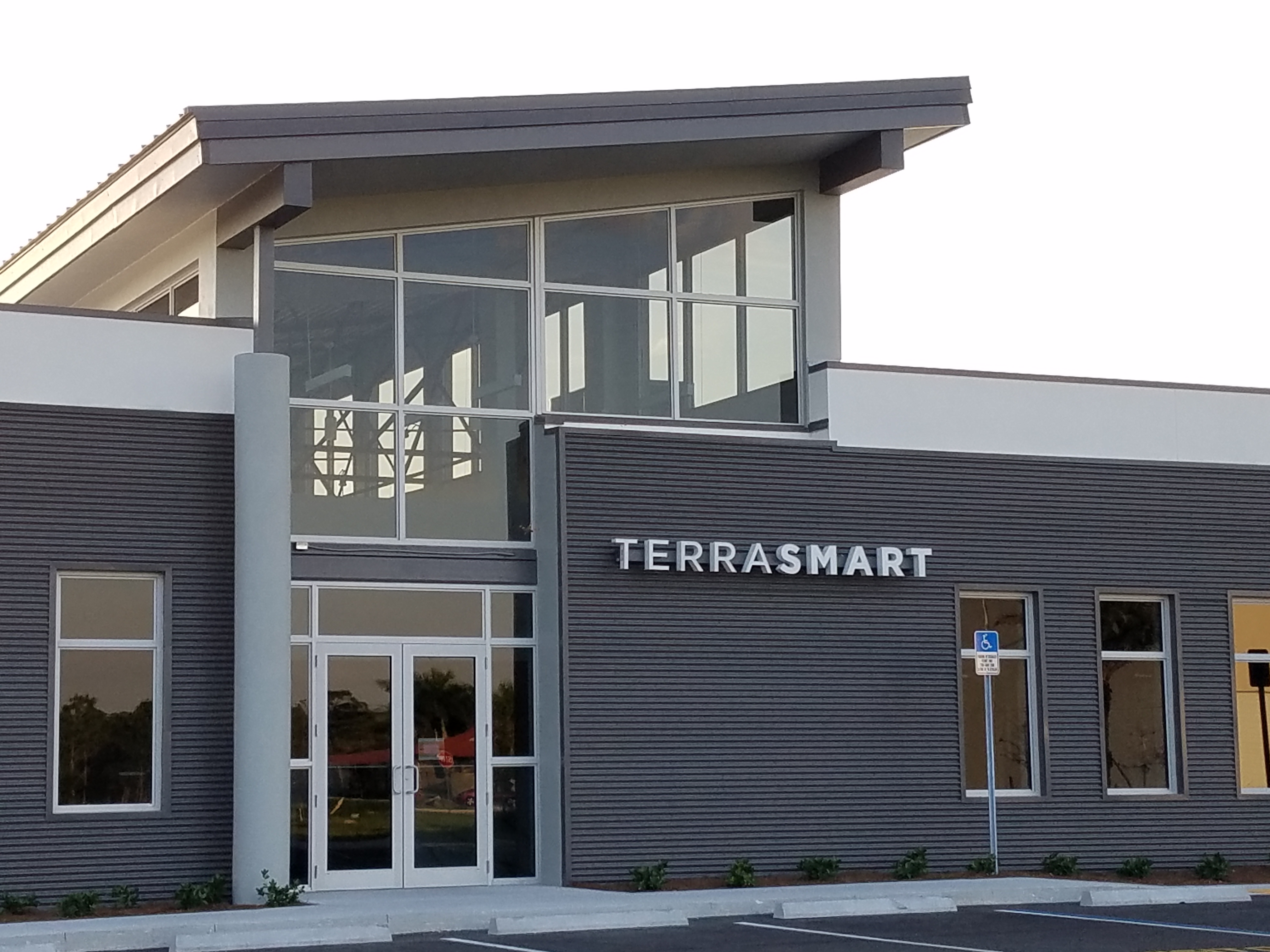

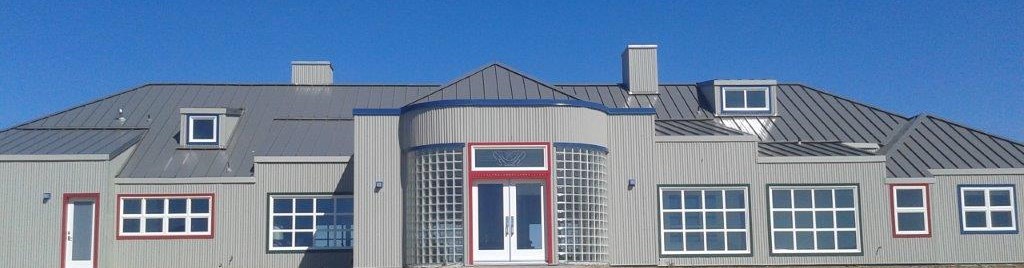

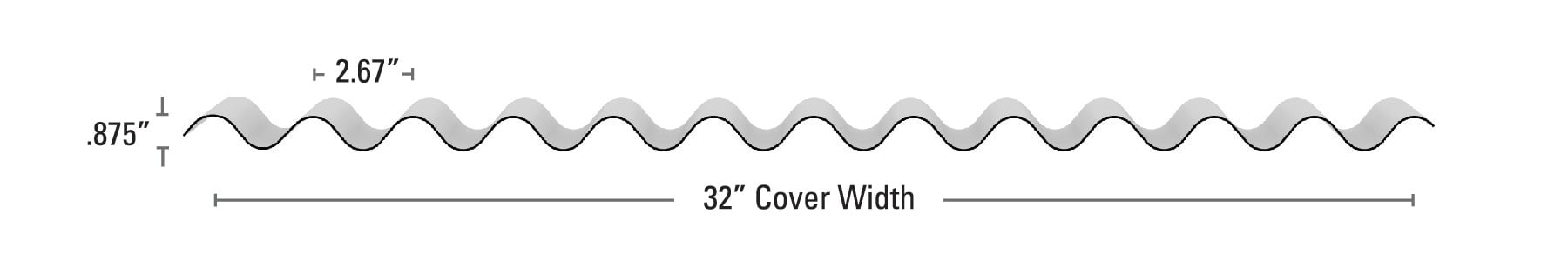

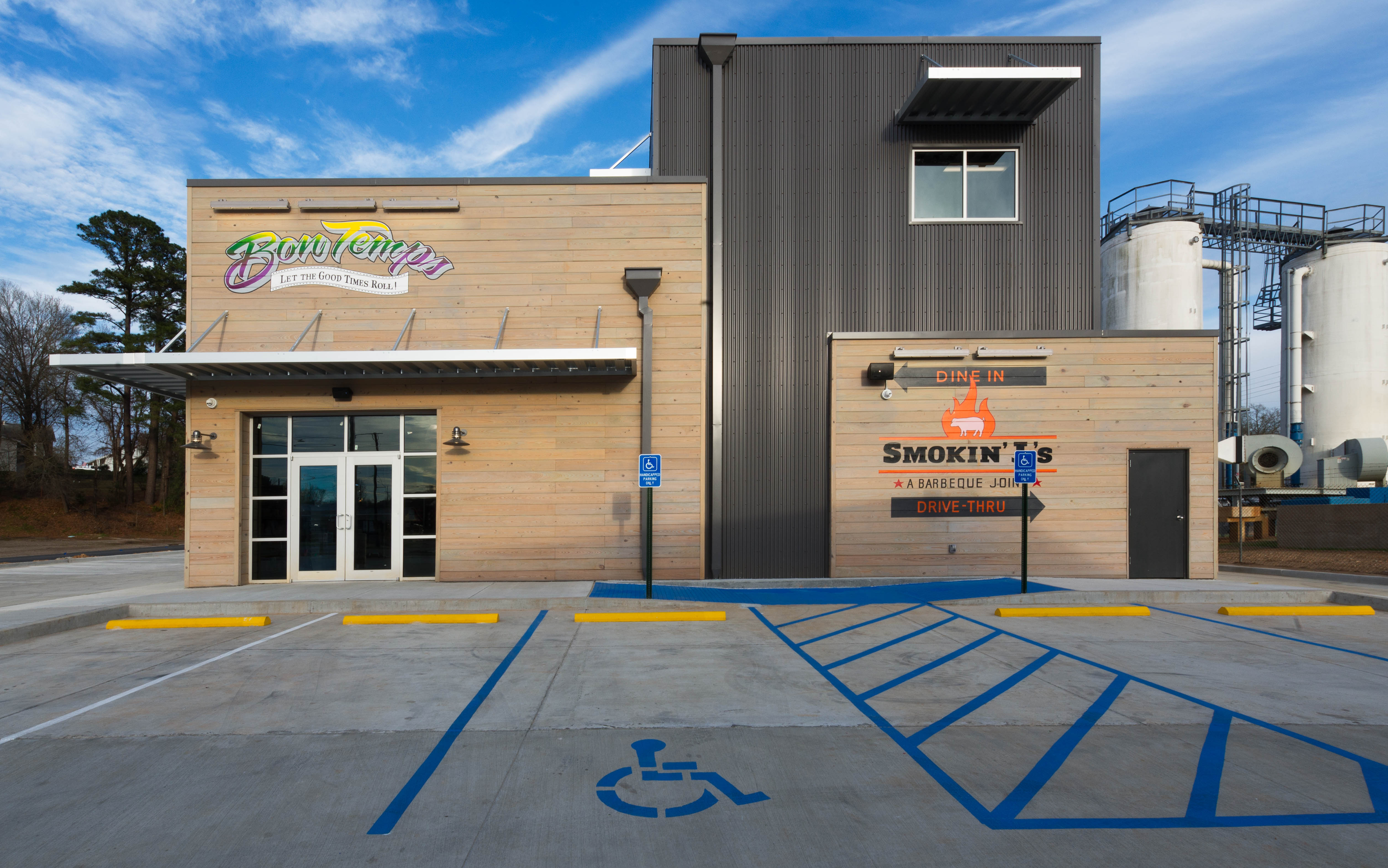

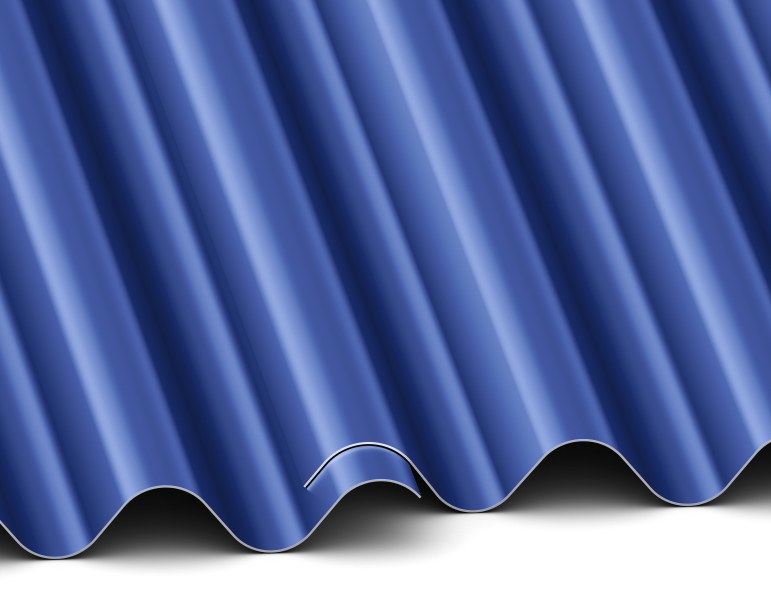

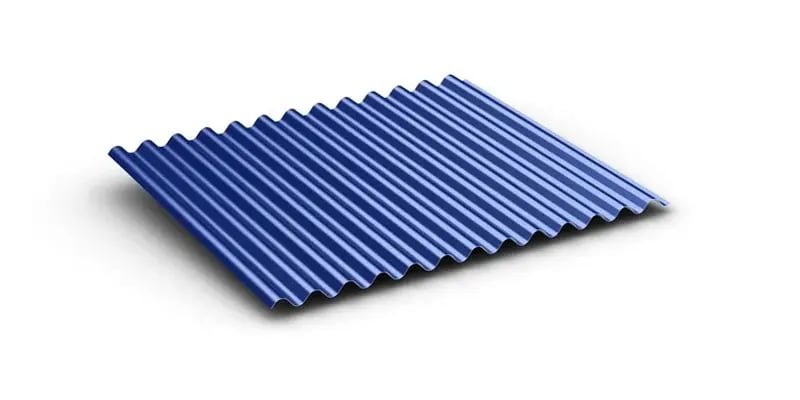

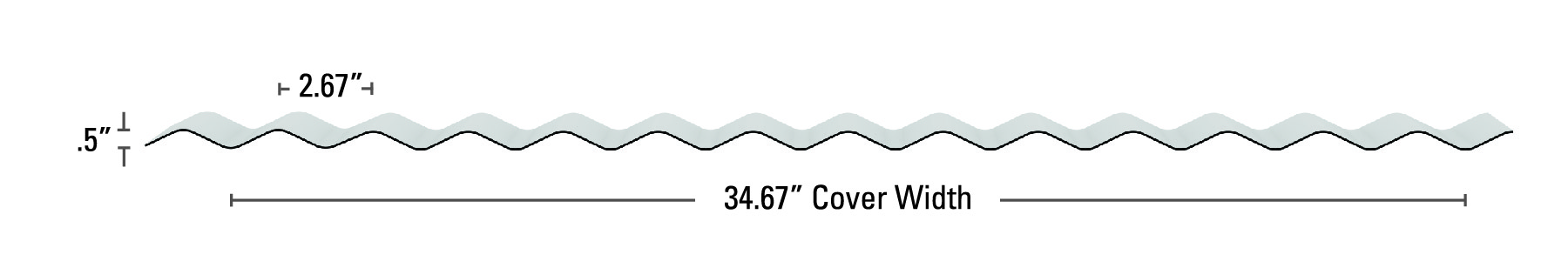

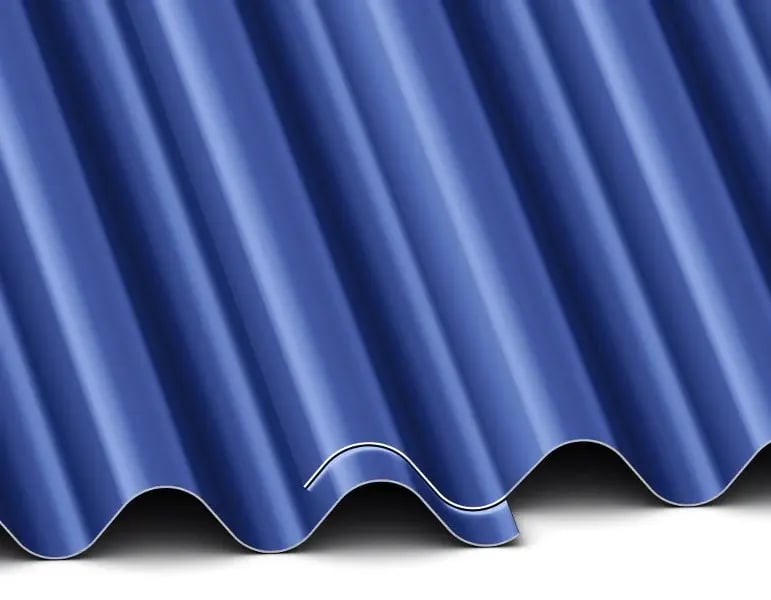

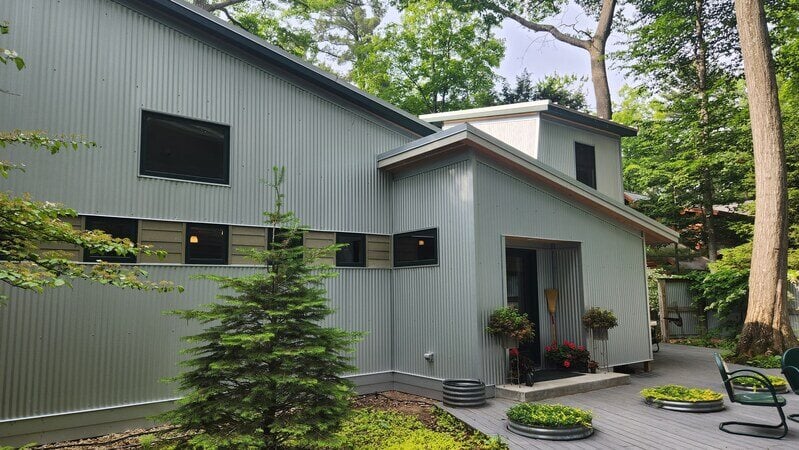

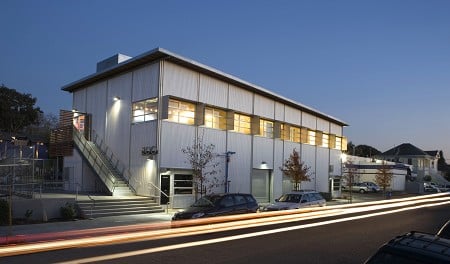

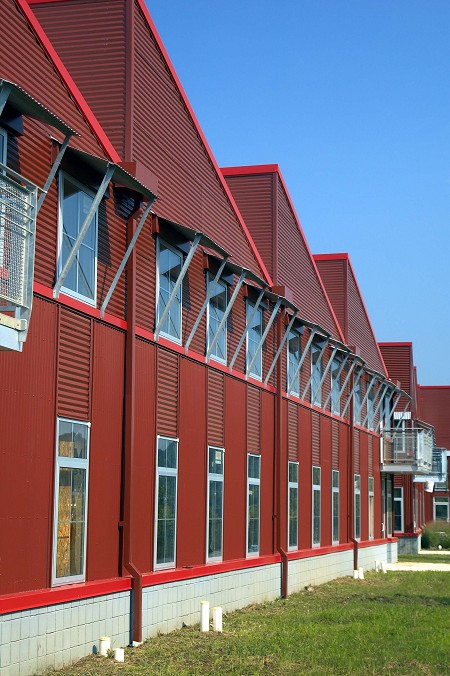

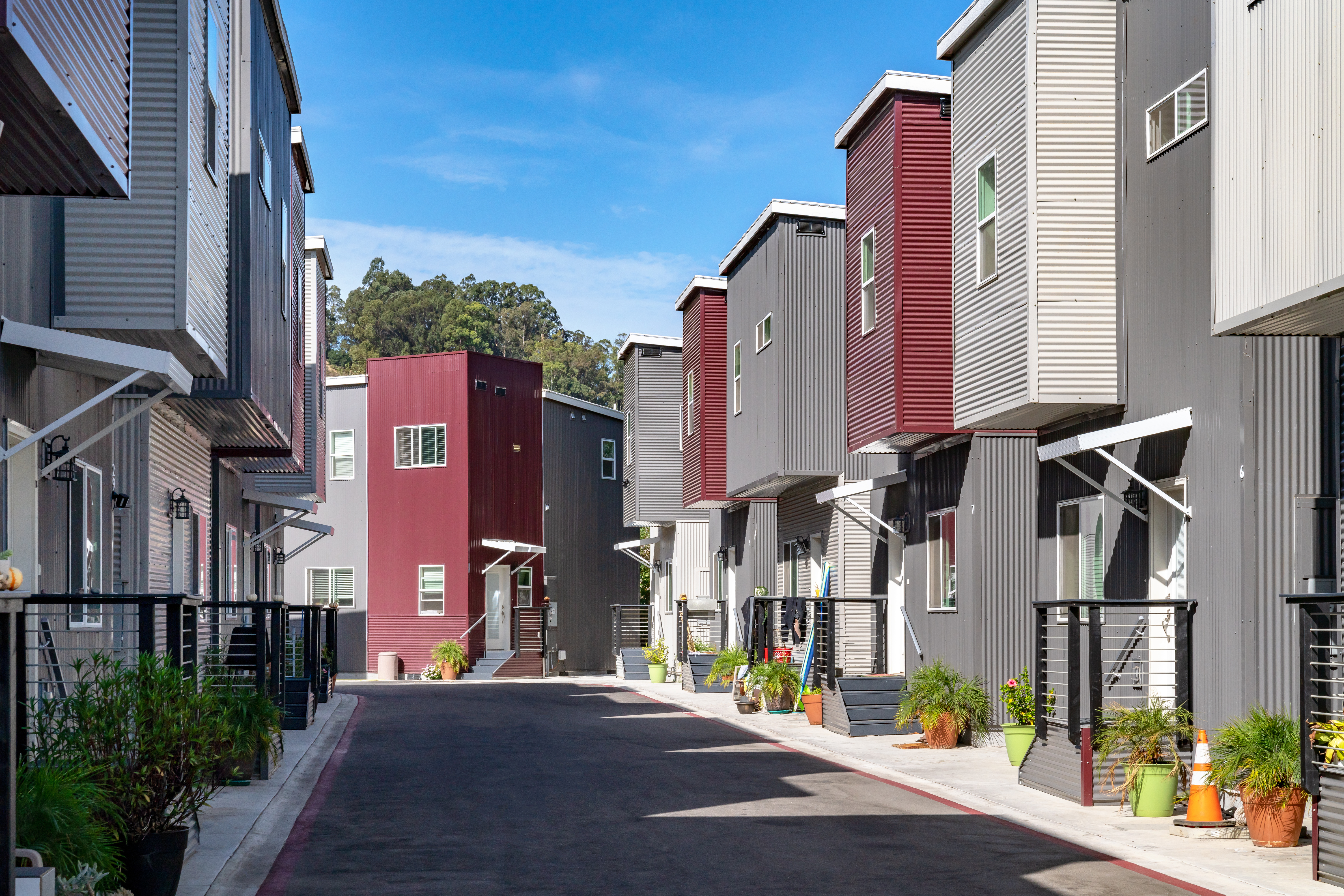

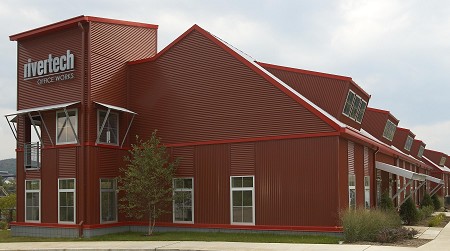

While quickly communicating their high-strength performance attributes, McElroy’s corrugated metal panels are reminiscent of yesteryear and simpler times. Consistent, rounded corrugations make Multi-Cor and M-Cor ideal panels to achieve nostalgic appeal whether installed as a wall, roof or interior accent panel.

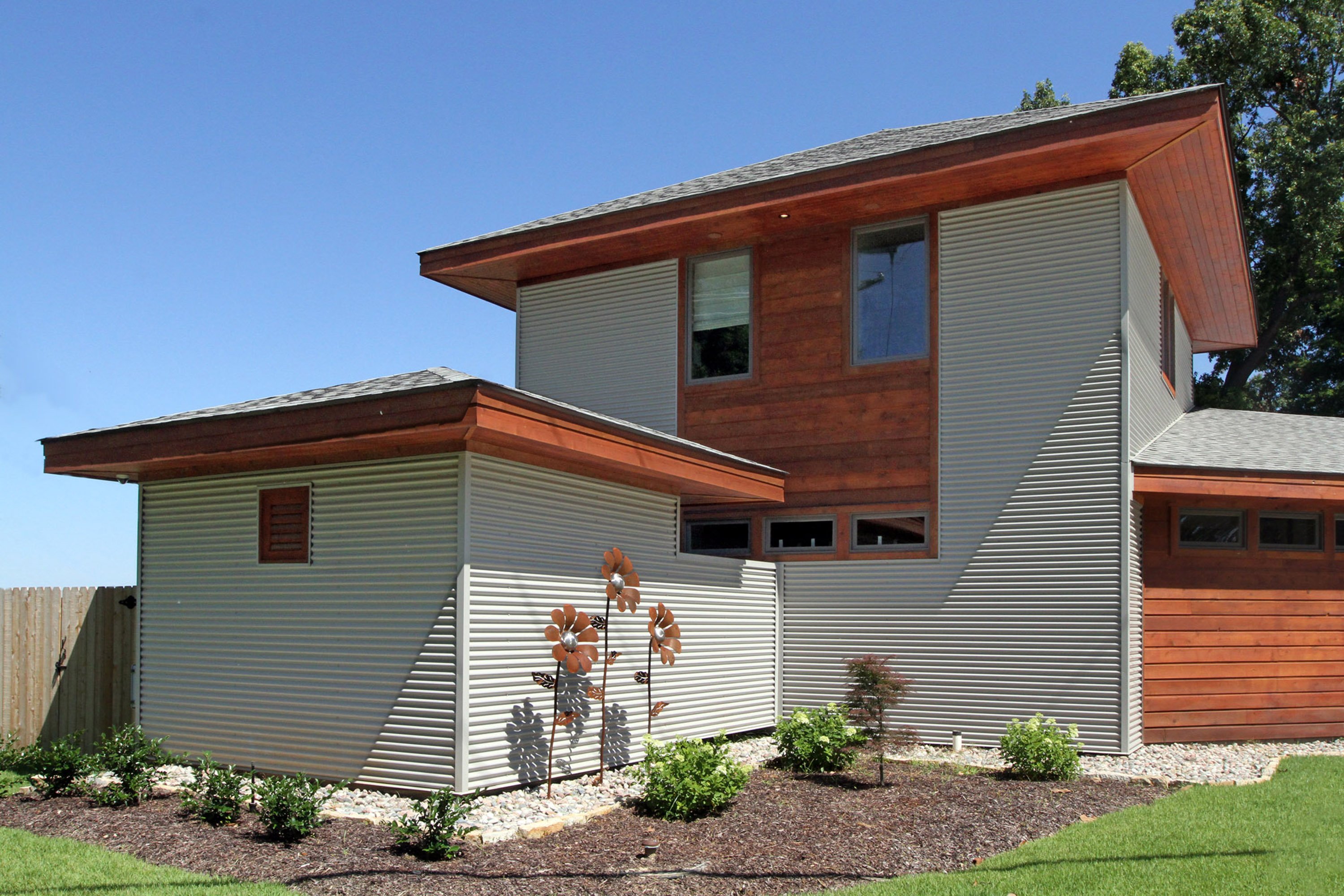

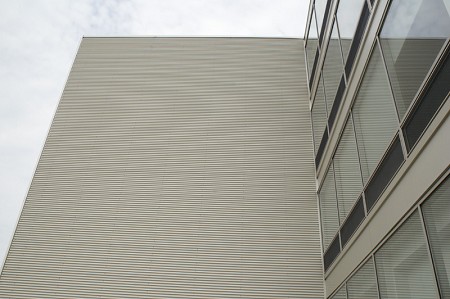

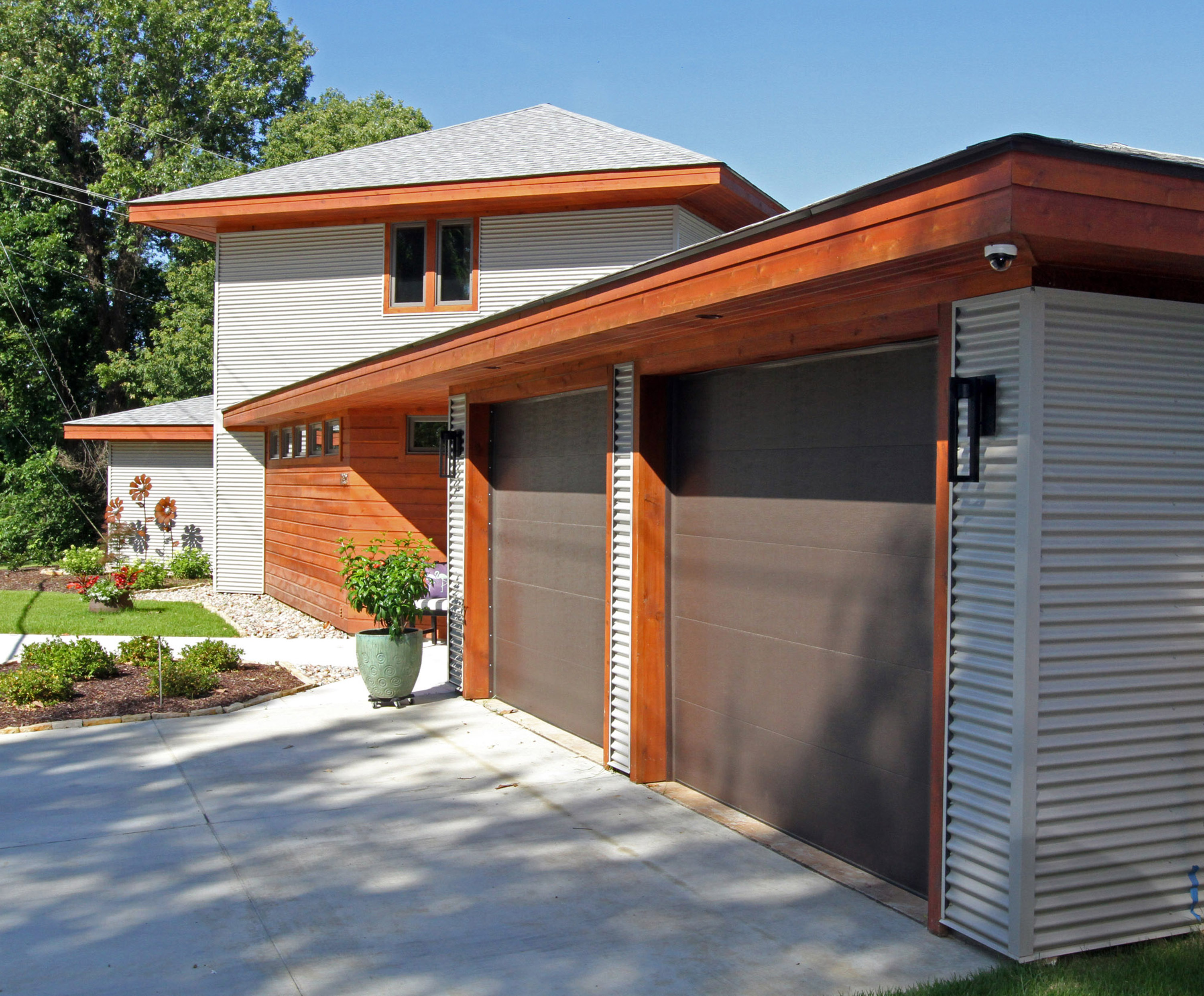

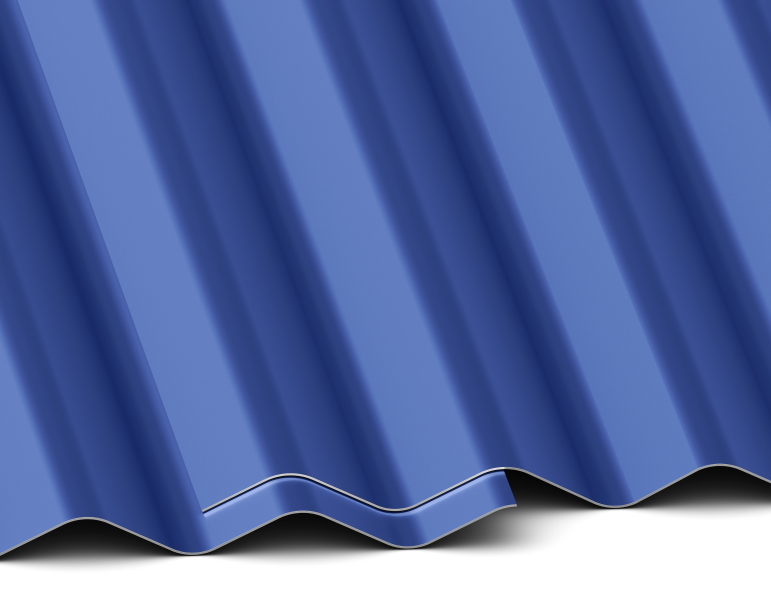

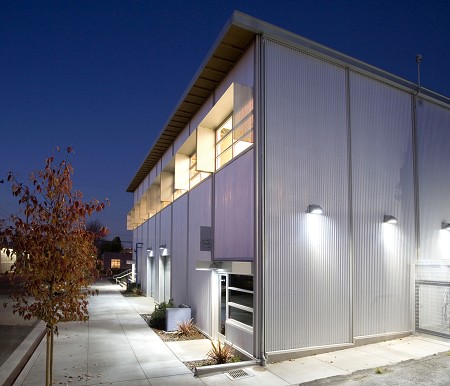

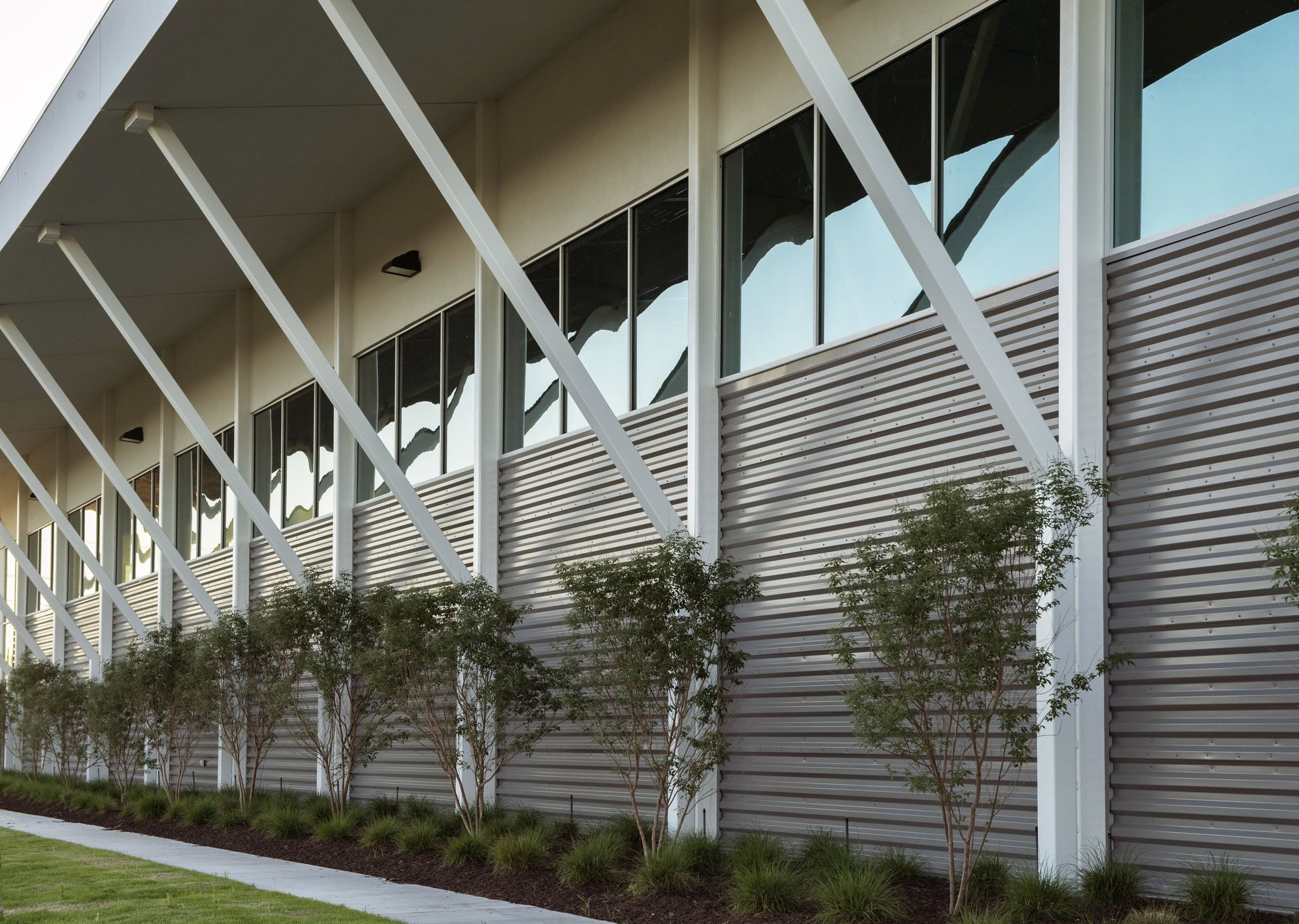

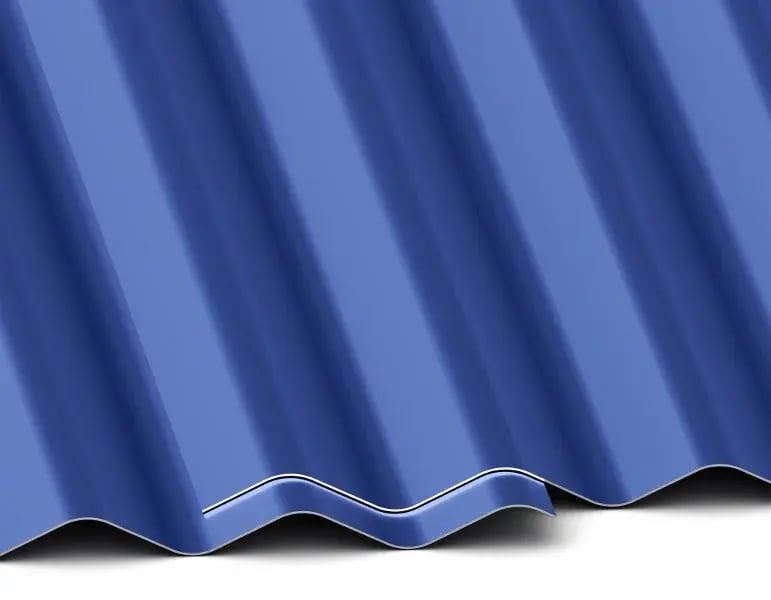

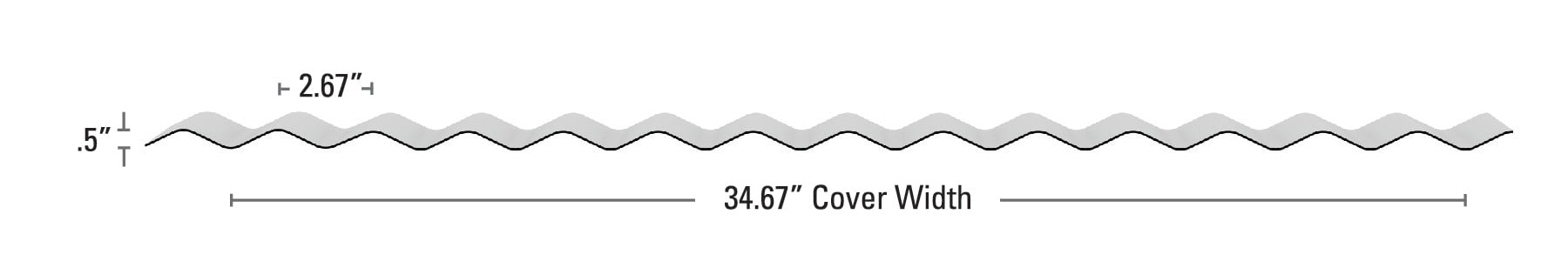

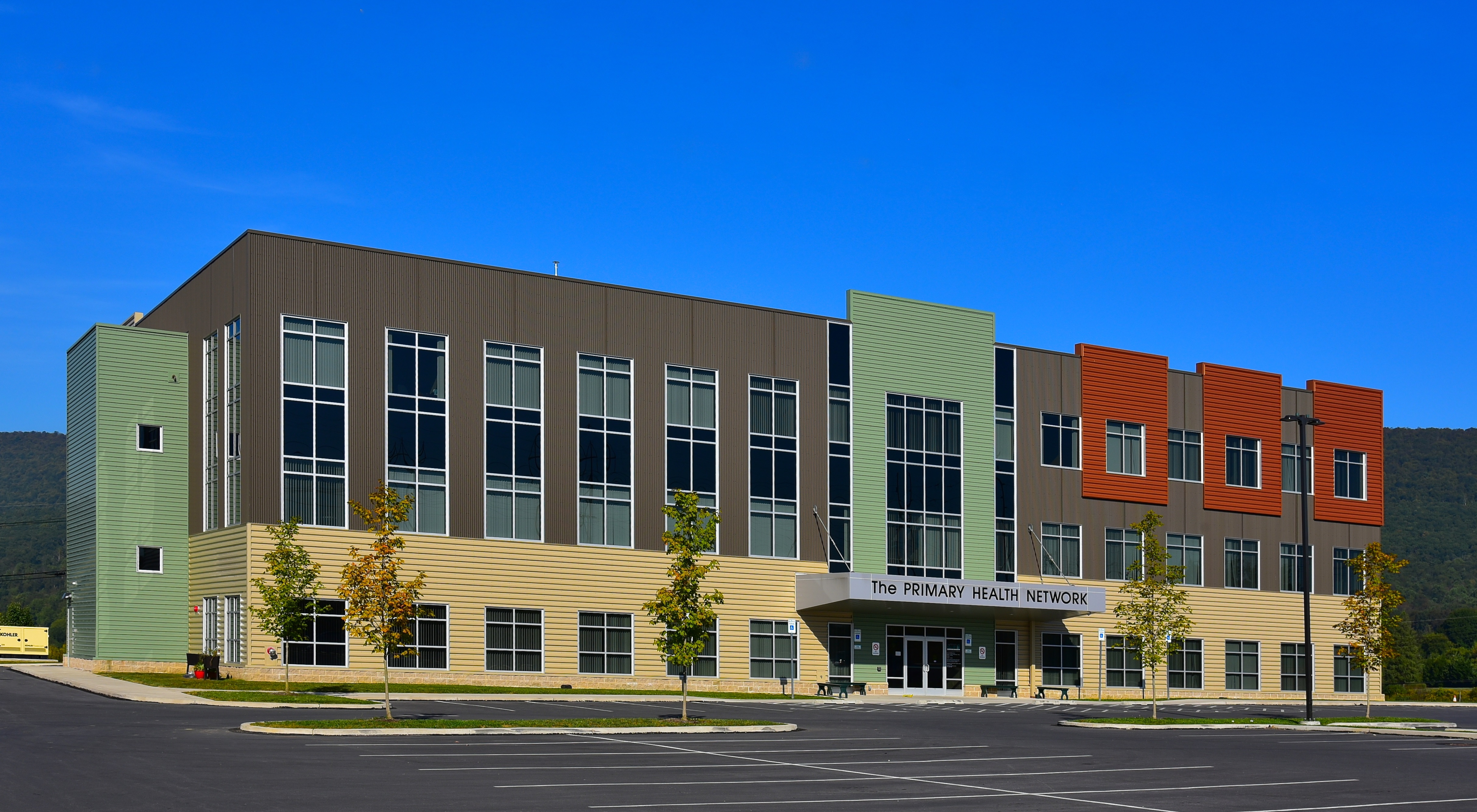

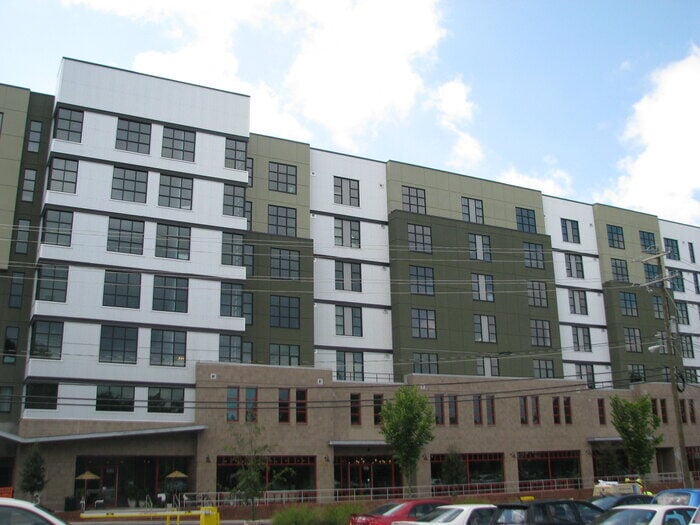

For added aesthetic appeal, horizontal installations showcase corrugated design capabilities. Multi-Cor and M-Cor are similar in design, with M-Cor offering a more subtle rib height and configuration.
View Related Files
| Details | |
|---|---|
| Minimum slope | 1:12 |
| Tape Sealant | Required on all slopes |
| Installation | Over solid deck or open framing |
| Manufacturing Facilities | Bossier City, LA |
| Note | Oil Canning is a natural occurrence in metal panels and is not a cause for panel rejection |
| Testing | |
|---|---|
| Fire Rating | Class A |
| Uplift Test | UL580 Class 90 (Multi-Cor only) |
| Class 4 Impact Resistance | UL2218 |
| Florida State Approval | 10680.1 (Multi-Cor only) |
| Texas Department of Insurance Approval | Evaluation RC-158 (Multi-Cor only) |
| Testing Data | For any available Test Data, Section Properties or Load Tables, please visit our downloads section. |
| Panel Options | |
|---|---|
| Coating | - Kynar 500® (PVDF) - Silicone Modified Polyester (SMP) |
| Substrate | - Standard 26 GA Galvalume® - Optional 24, 22, GA Galvalume (Multi-Cor) - Optional 29, 24 GA Galvalume (M-Cor) |
