FW Panel

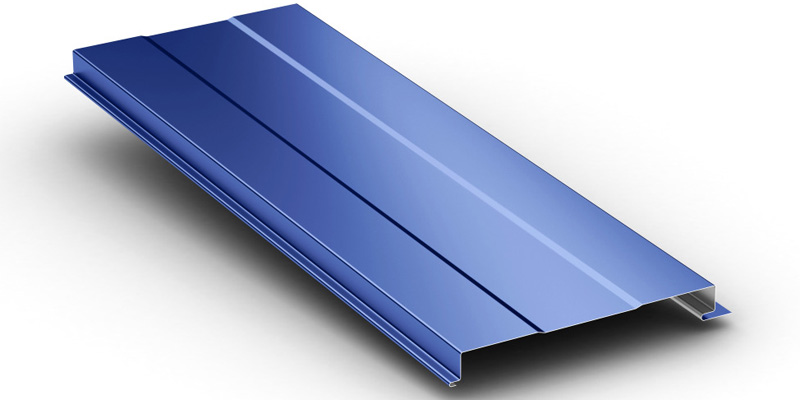

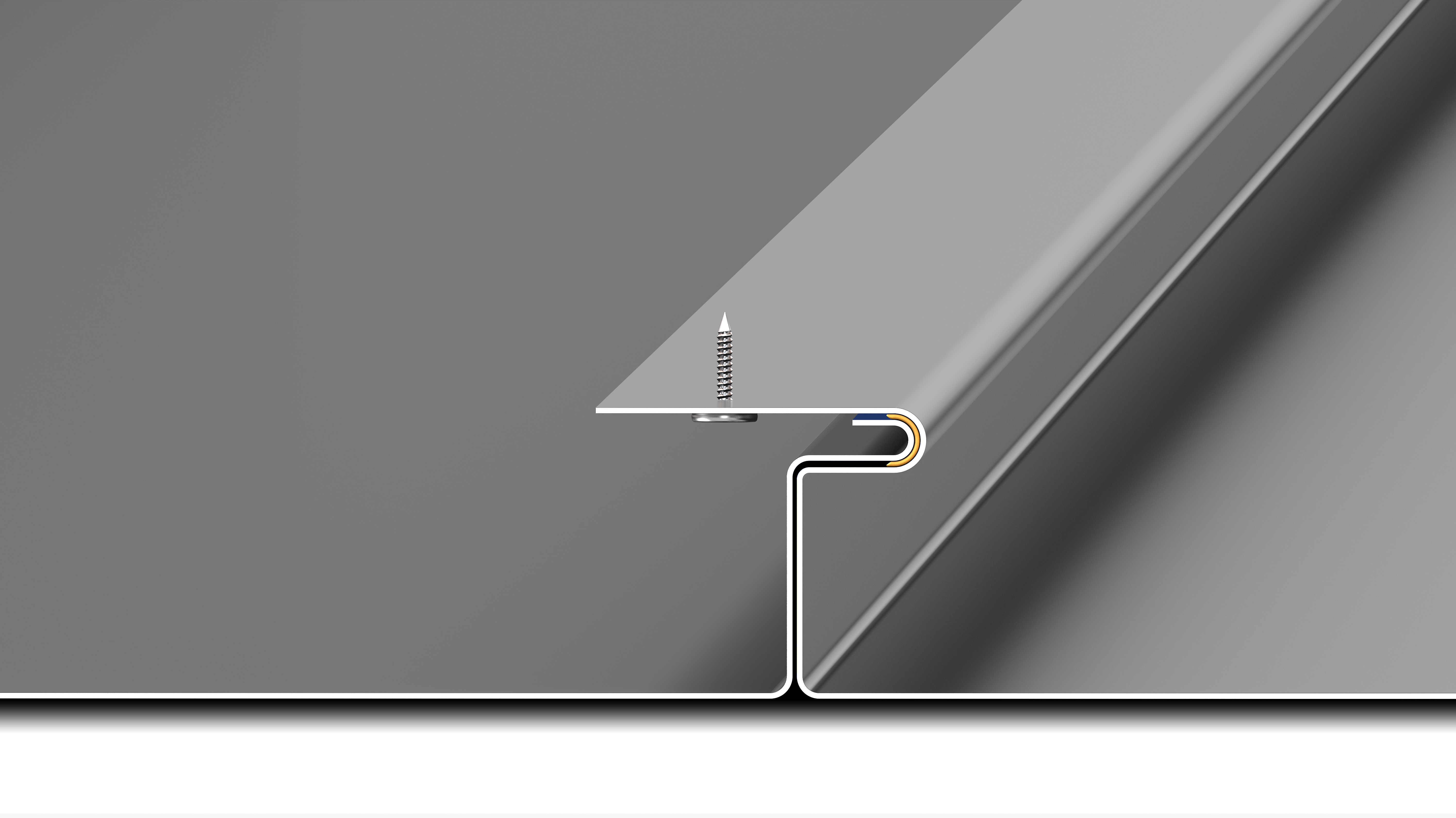

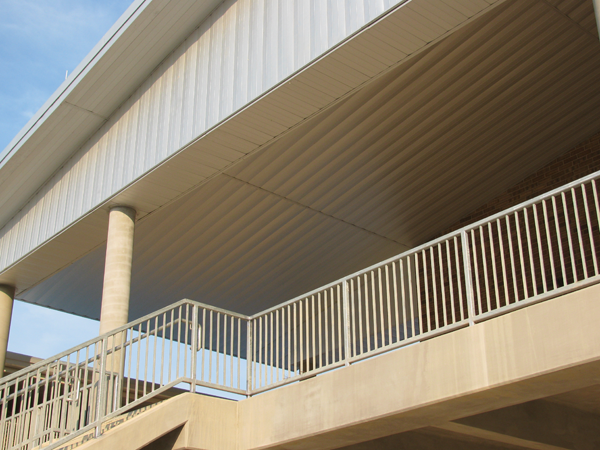

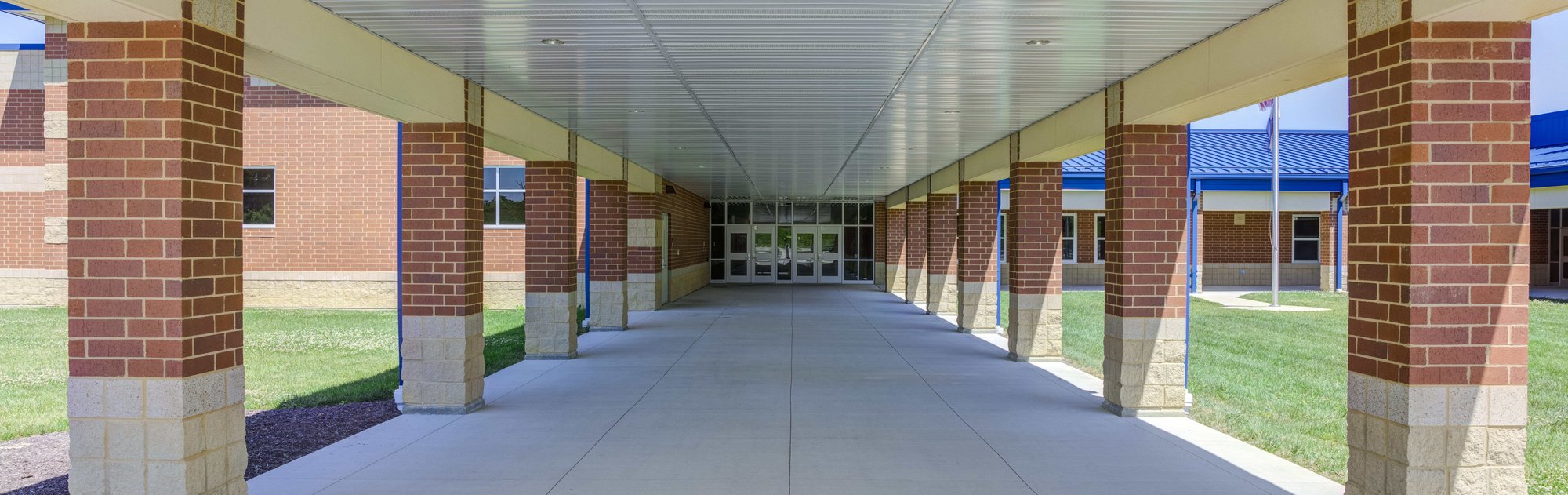

FW Panel is a 1 1/2" deep flush metal panel designed for use in vertical and horizontal applications.

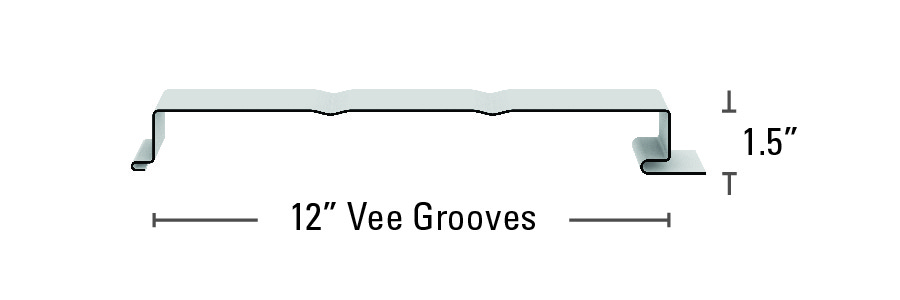

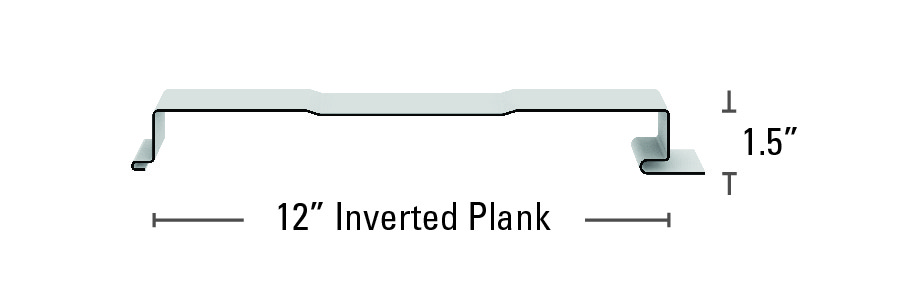

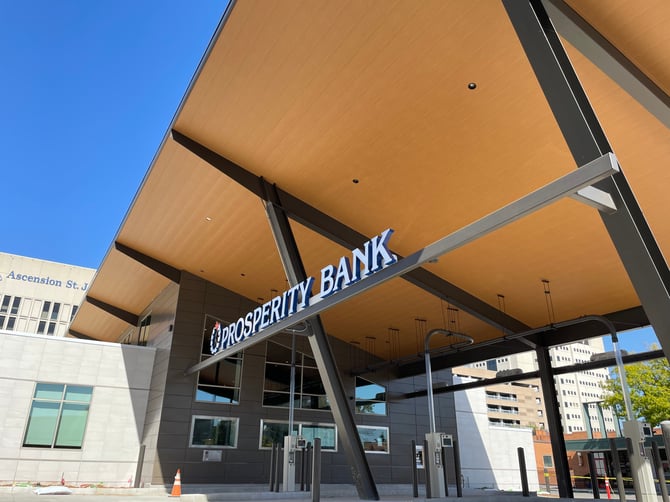

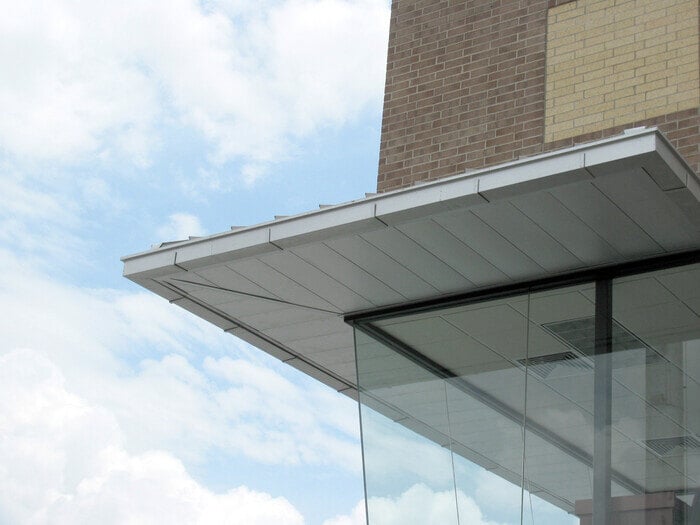

Available 12" panel width options include: vee grooves, inverted plank, reveals of up to 3", or a traditional smooth appearance. Regardless of the pattern, the 1 1/2" depth and the tongue-and-groove engagement remain the same.

Click image to enlarge

Great for

Walls

Walls

Roofs

Roofs

Residential

Residential

Commercial

Commercial

Specifications & Details

Details
Maximum Length 24 GA 2' minimum and 8' maximum
22 GA 2' minimum and 15' maximum
Manufacturing Facilities Houston, TX
Note Oil canning is a natural occurrence in metal panels and is not a cause for panel rejection.
Testing
Uplift Test ASTM E1592 (FW Panel)
Note No testing data on FW Reveal
Testing Data For available Test Data, Section Properties or Load Tables, please visit our downloads section.
Panel Options
Panel widths 12"

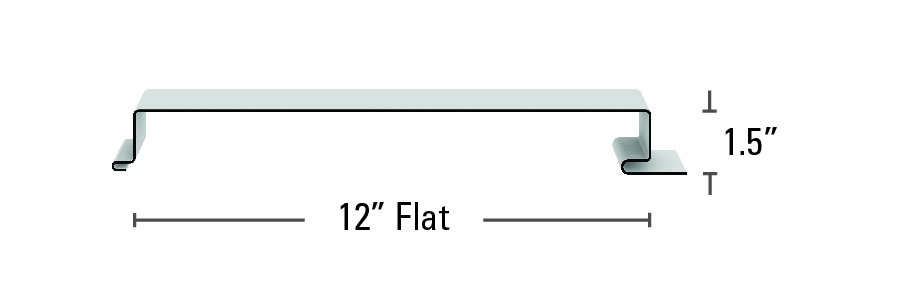

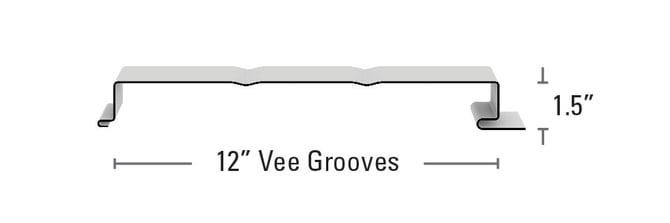

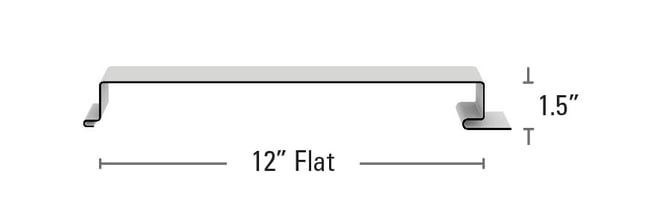

Pan configurations Inverted Plank, Flat, Vee Grooves

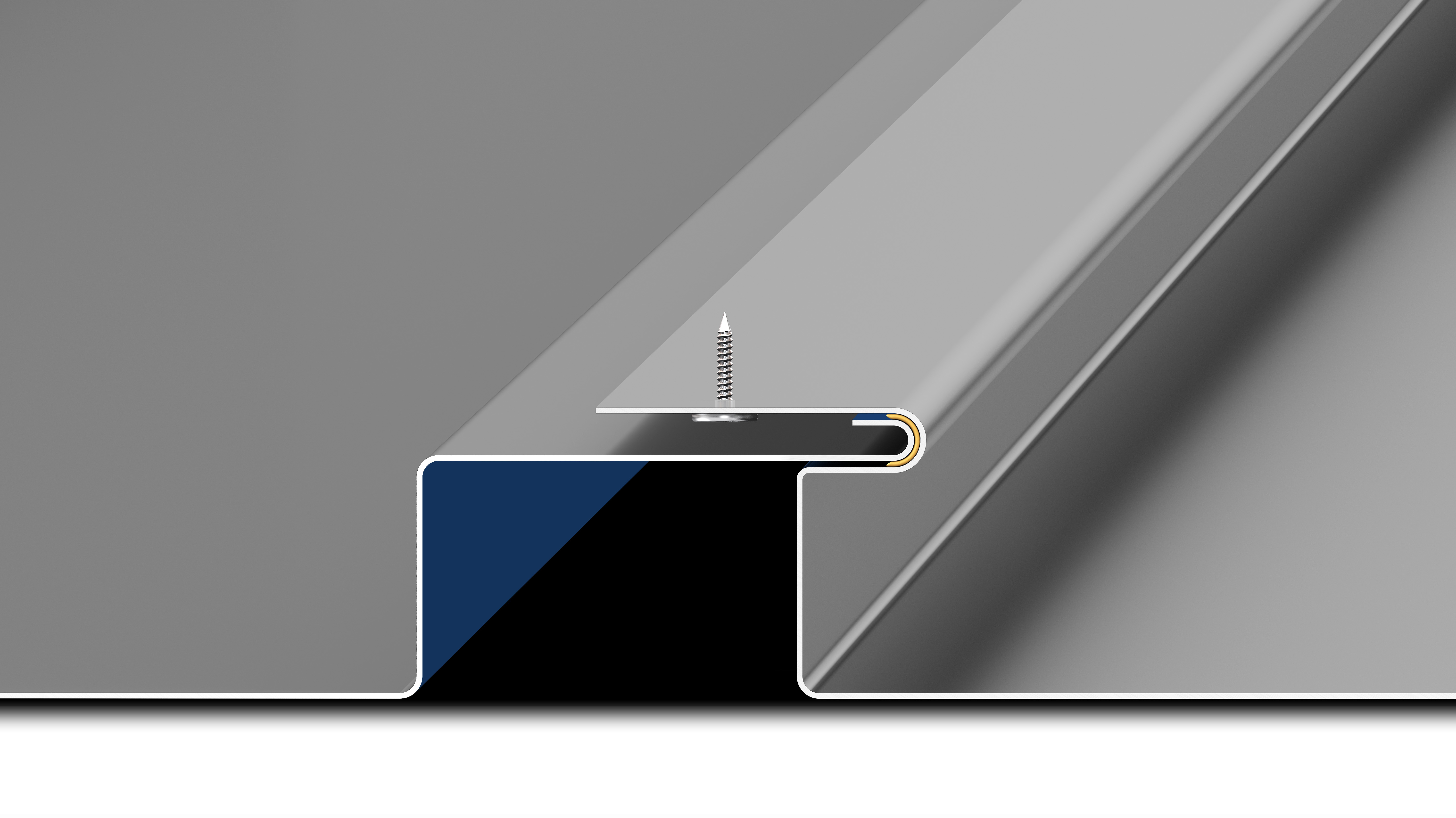

Reveal Options 1" to 3" (panel remains at 12" and reveal size increases coverage)
Coating Kynar 500® (PVDF)
Substrate - Standard 24 GA Galvalume®
- Optional 22 GA Galvalume

Related Files

Get A Submittal Package

Customize your submittal package

Click on your desired documents below to select them for your package.

General Product and Warranty Information

Panel Load Tables w/Section Properties and Testing

Safety Data and Material Safety Data Sheets

Request

Samples & Color Charts

Request physical samples and color charts. All items will be sent out via UPS ground unless otherwise specified.

Request now

fanned-color-swatches

FAQs

Metal roofing consistently outperforms shingles when it comes to resisting harsh elements. In addition to being fire and hail resistant, metal roofs are also effective against extreme winds. Many insurance companies recognize the durability of metal roofing, offering discounts for structures with metal roofs.

Learn More

Thanks to a combination of ASV (Above Sheathing Ventilation) and special coating designed to reflect the sun’s energy and release absorbed heat, metal roof panels can reduce energy costs by as much as 20% compared to asphalt shingles.

Learn More

Compared to shingles and clay tile, metal roofing holds up better against hail and extreme winds in addition to being fire resistant. In fact, many insurance companies offer discounted rates to homes with metal roofs because they’re more likely to hold up under harsh conditions.

Learn More

With a lifespan of up to 60 years, a metal roof is an ideal long-term solution for residential roofing. Homeowners can rest easy knowing that they won’t need to replace the roof before selling their house or shortly after purchasing a new home.

Learn More

While it may be true that metal roofs on buildings like garages and pole barns intensify the sound of falling rain, this is primarily caused by the lack of a roof deck, insulation, and underlayment. On a residential home, layers of building materials between the metal roof and the living area reduce the noise significantly, making metal roofs as quiet as any other roofing material when it rains. Check out this video to see and hear for yourself.

Metal roofing actually reflects much of the sun’s heat and energy. While conventional shingles absorb much of the sun’s heat, metal roofing can actually reduce cooling energy costs by as much as 20%. That’s because the coating used on modern metal roof panels incorporates special pigments that reflect the sun’s energy and release heat that is absorbed throughout the day.

The odds of a lightning strike hitting a metal roof are the same as any other roof, regardless of material. In the event that there is a lightning strike, however, metal roofing will not ignite and catch fire since it is not combustible.

Far from it. Studies conducted by the Insurance Institute for Business & Home Safety (IBHS) have found that metal roofing is far less likely to be punctured by hail than conventional asphalt shingles, withstanding even golf ball-sized hailstones with only cosmetic damage.

Metal roofing consistently outperforms shingles when it comes to resisting harsh elements. In addition to being fire and hail resistant, metal roofs are also effective against extreme winds. Many insurance companies recognize the durability of metal roofing, offering discounts for structures with metal roofs.
