Max-Rib Panel

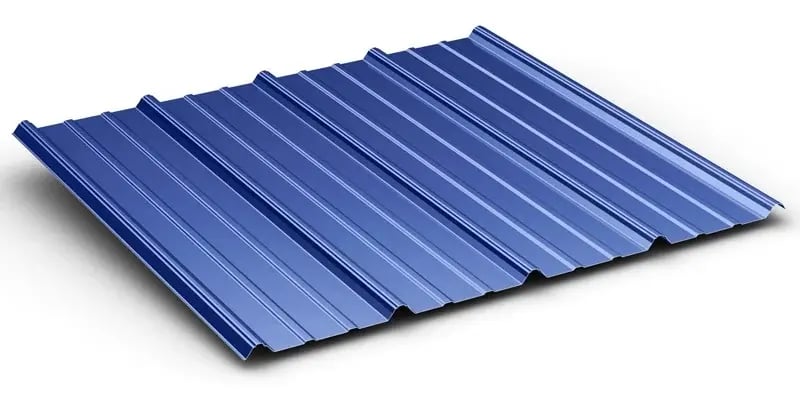

Max-Rib is a low profile (3/4") panel that is equally well suited for residential roofing and post frame applications.

Varying applications, end uses, and expectations require different metal panel alternatives. Fortunately, McElroy’s popular Max-Rib profile is available in five distinct options: Max-Rib Ultra, Max-Rib II, Max-Rib 100Max-Rib 185, and Max-Rib Commodity. The best choice for your individual project depends on factors such as performance, desired longevity, and budget.

Post Frame Trim
Residential Trim
Substrates and Coatings
Max-Rib Installation Animation

Click image to enlarge

Great for

Walls

Walls

Roofs

Roofs

Residential

Residential

Commercial

Commercial

Max-Rib Ultra - Galvalume® substrate with Kynar 500® (PVDF) coating

For unsurpassed performance in a light gauge panel, Max-Rib Ultra is the ultimate choice. This distinctive metal panel combines the long-life performance of a Galvalume steel substrate with a fade and chalk resistant Kynar 500® (PVDF) based Fluropon® paint system by Sherwin Williams. The end result is an exceptional metal panel that provides unmatched resistance to chalking and fading and the best assurance that your project will retain its beauty year-after-year. Max-Rib Ultra is the preferred panel for residential roofs and any building where owners are concerned about quality and long-term performance.

Max-Rib II - Galvalume substrate with a Silicone Modified Polyester (SMP) coating

Combining the long-life characteristics of a Galvalume steel substrate with the proven performance of a high-quality Silicone Modified Polyester (SMP) coating, Max-Rib II is an excellent multi-use metal panel.

Max-Rib 100 - Galvanized G100 substrate with a Silicone Modified Polyester (SMP) coating

Combining a zinc-coated G100 Galvanized substrate with a high-quality Silicone Modified Polyester coating, Max-Rib 100 is an ideal panel when a Galvanized substrate is required.

Max-Rib 185 - Bare Galvanized substrate

Utilized primarily for confinement applications, McElroy inventories a limited quantity of G185 bare in Marshall, MI. Please inquire for availability and lead times.

Max-Rib Commodity

Max-Rib Commodity is a 10-year warrantied economical panel that is ideal for interior applications or basic shade and shelter applications.

Specifications & Details

Details
Minimum slope (with sealant) 1:12
Minimum slope (without sealant) 3:12
Note Max-Rib also available with MoistureLok
Manufacturing Facilities Bossier City, LA; Marshall MI; Winchester, VA; Adelanto, CA; Lewisport, KY; Merkel, TX; Mauston, WI; Asburn, GA; Diamond, MO
Note Oil Canning is a natural occurrence in metal panels and is not a cause for panel rejection
Testing Data
Fire Rating Class A
Uplift Test UL 580 Class 90
Class 4 Impact Resistance UL2218
Florida State Approval 1747.2, 1832.3
Fire Resistance UL263
Texas Department of Insurance Approval Evaluation RC-157
Testing Data For available Test Data, Section Properties or Load Tables, please visit our downloads section.
Panel Options
Coating - Kynar 500® (PVDF)
- Silicone Modified Polyester (SMP)
Substrate - Standard 29 and 26 GA Galvalume®
- Standard 29 GA G100 Galvanized

Related Files

Get A Submittal Package

Customize your submittal package

Click on your desired documents below to select them for your package.

General Product and Warranty Information

Panel Load Tables w/Section Properties and Testing

Safety Data and Material Safety Data Sheets

Request

Samples & Color Charts

Request physical samples and color charts. All items will be sent out via UPS ground unless otherwise specified.

Request now

fanned-color-swatches

FAQs

While the upfront costs of installing a metal roof are often higher than shingles, a metal roof lasts longer and will be replaced or repaired far less frequently. A typical shingle roof lasts anywhere from 12 to 20 years, depending upon how well it’s maintained and weather elements it may encounter. Metal roofs, on the other hand, can last between 40 and 60 years while also requiring less maintenance, making them a more cost-effective choice over the lifespan of the roof.

Learn More

While it may be true that metal roofs on buildings like garages and pole barns intensify the sound of falling rain, this is primarily caused by the lack of a roof deck, insulation, and underlayment. On a residential home, layers of building materials between the metal roof and the living area reduce the noise significantly, making metal roofs as quiet as any other roofing material when it rains. Check out this video to see and hear for yourself.

Metal roofing actually reflects much of the sun’s heat and energy. While conventional shingles absorb much of the sun’s heat, metal roofing can actually reduce cooling energy costs by as much as 20%. That’s because the coating used on modern metal roof panels incorporates special pigments that reflect the sun’s energy and release heat that is absorbed throughout the day.

Residential metal roofing is available in a variety of aesthetically pleasing designs that can heighten the curb appeal of any home. In addition to conventional panels, there are several styles that are virtually indistinguishable from conventional tile and shingles. Metal roofing is available in a wide array of colors as well, making it easy to find an option that best suits any style of residential home.

The odds of a lightning strike hitting a metal roof are the same as any other roof, regardless of material. In the event that there is a lightning strike, however, metal roofing will not ignite and catch fire since it is not combustible.

Far from it. Studies conducted by the Insurance Institute for Business & Home Safety (IBHS) have found that metal roofing is far less likely to be punctured by hail than conventional asphalt shingles, withstanding even golf ball-sized hailstones with only cosmetic damage.

Metal roofing consistently outperforms shingles when it comes to resisting harsh elements. In addition to being fire and hail resistant, metal roofs are also effective against extreme winds. Many insurance companies recognize the durability of metal roofing, offering discounts for structures with metal roofs.

Definitely not! Like most building materials, metal roofing is available in varying levels of quality. Homeowners should be sure to ask their contractor or supplier what substrate and paint coating they are recommending for their home. Galvalume steel substrates and Kynar 500® (PVDF) coatings provide the best long-term peformance. Click here for facts about substrates and coatings.
