138T and 238T Standing Seam Roofing Systems

Need a New Roof? How Building Owners Can Reduce Cost with a Metal Roof

Symmetrical Standing Seam Systems

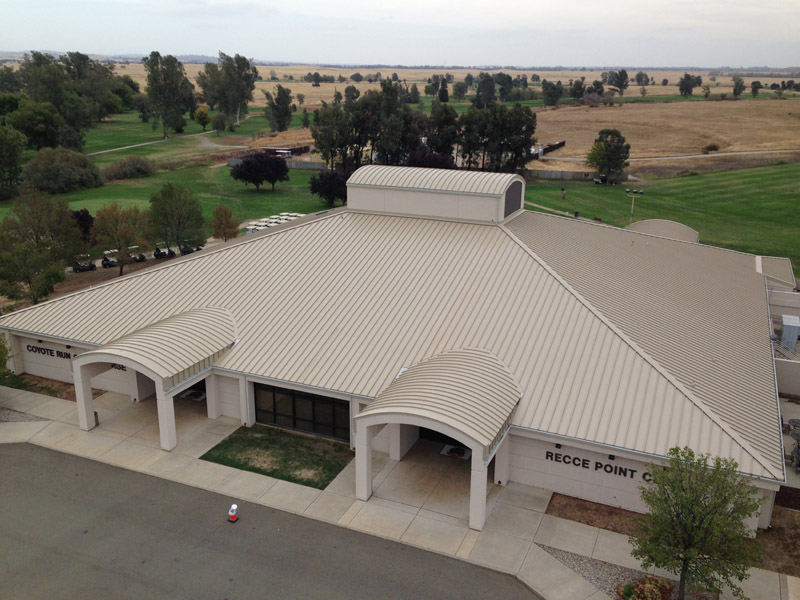

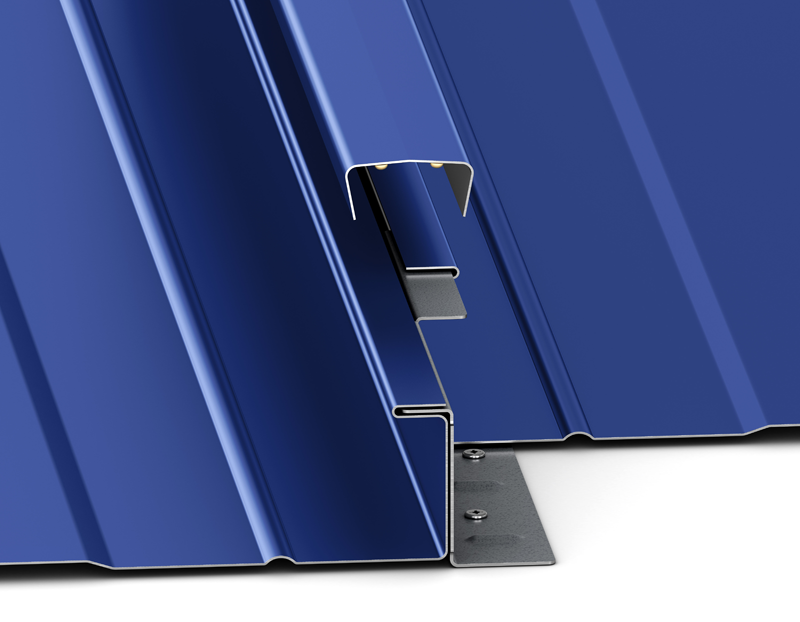

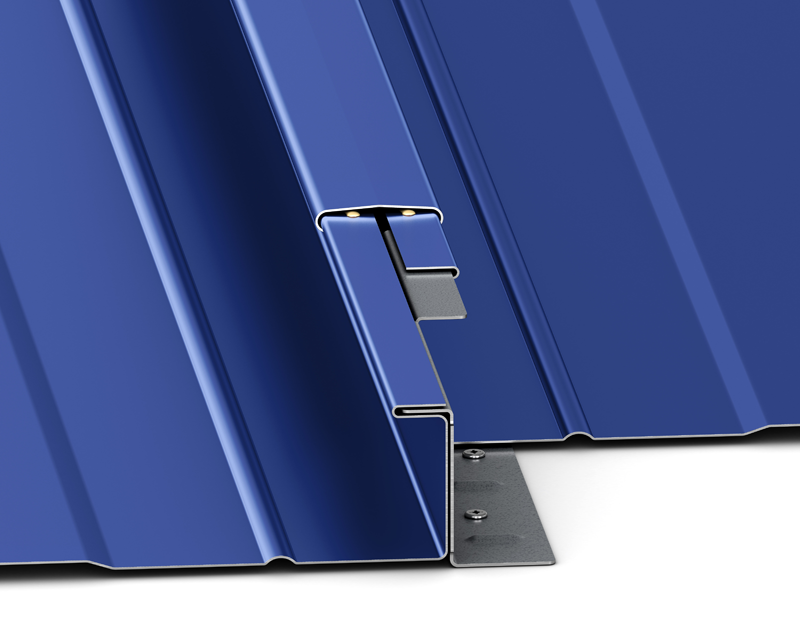

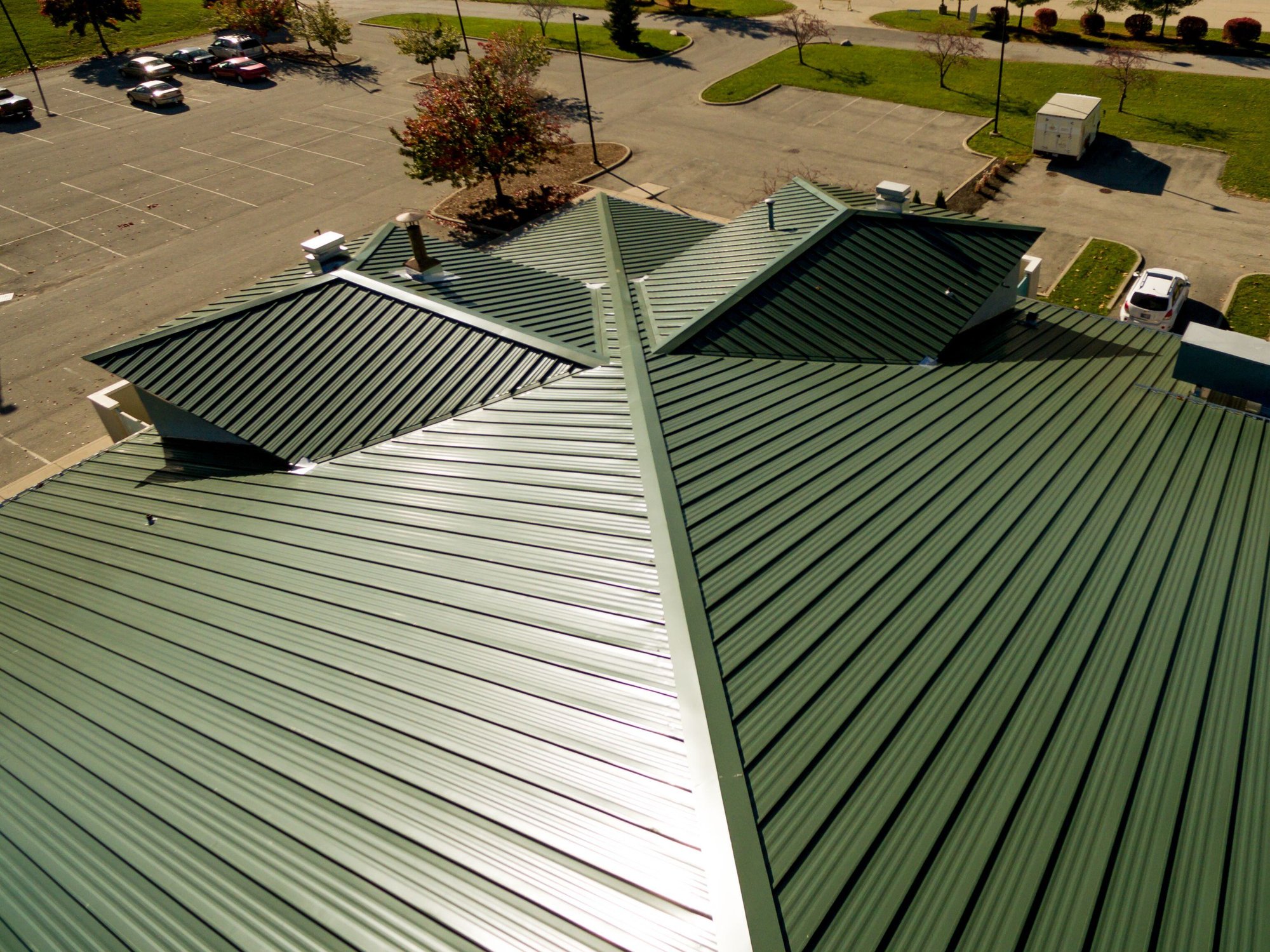

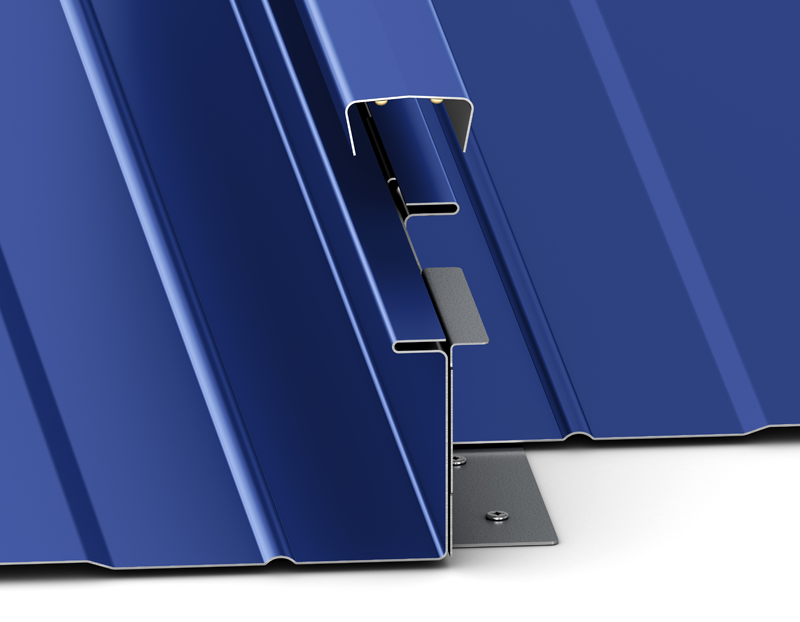

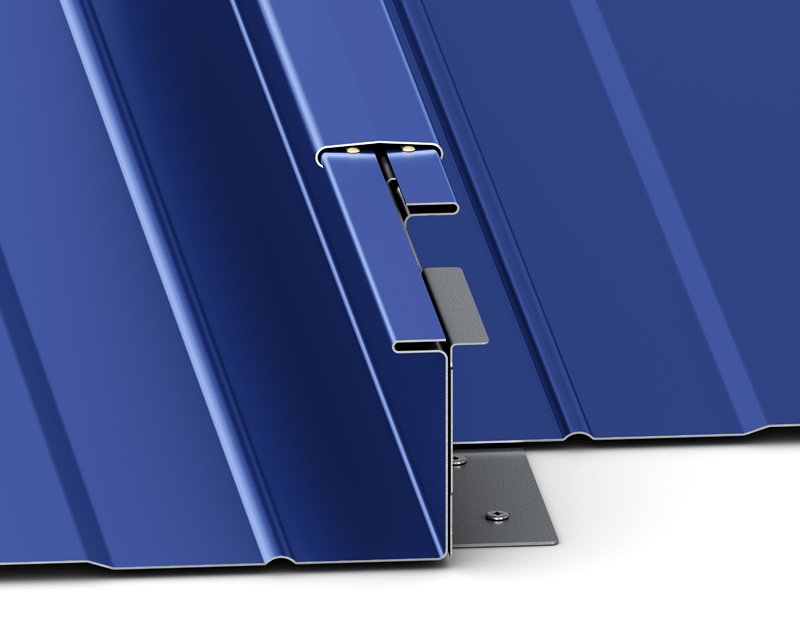

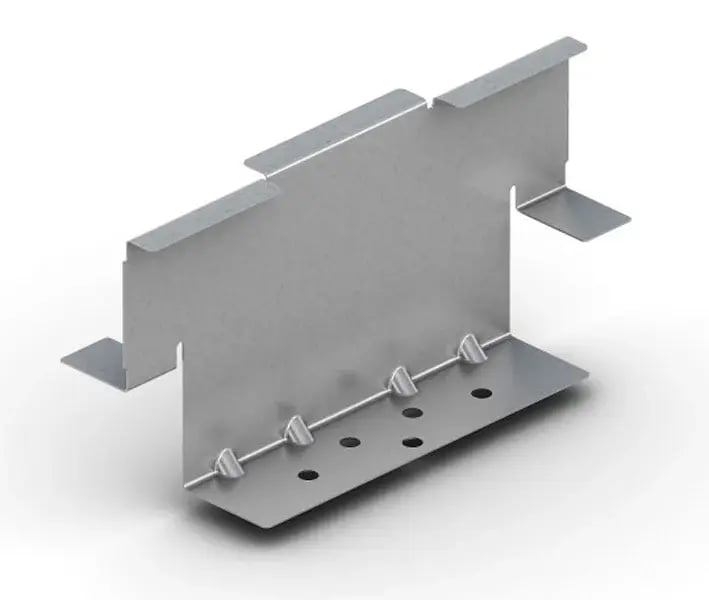

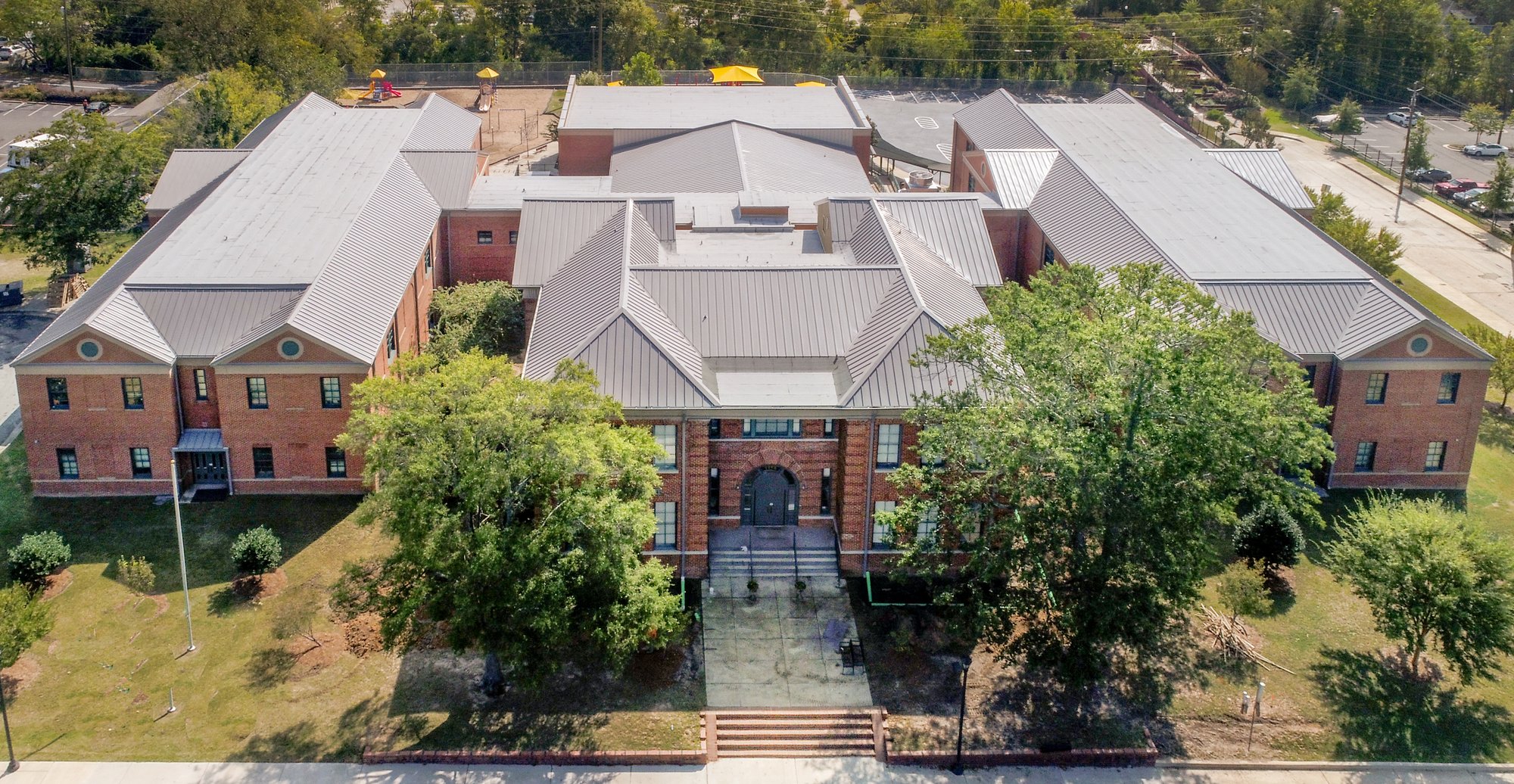

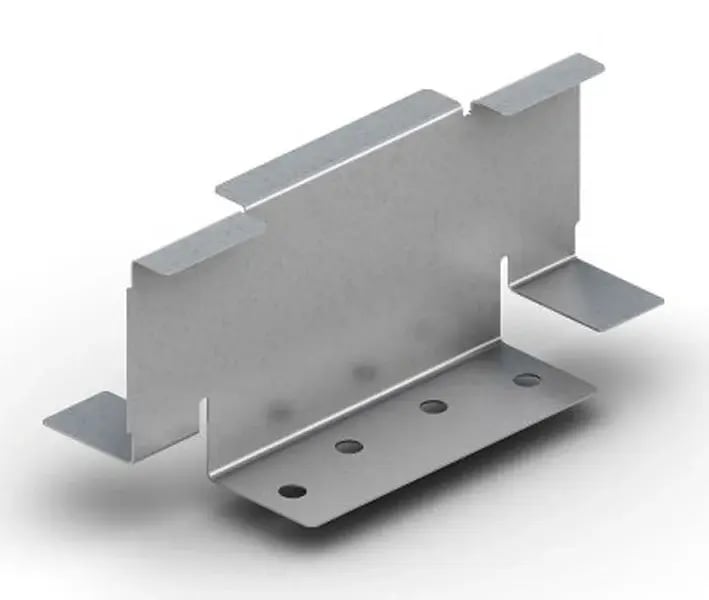

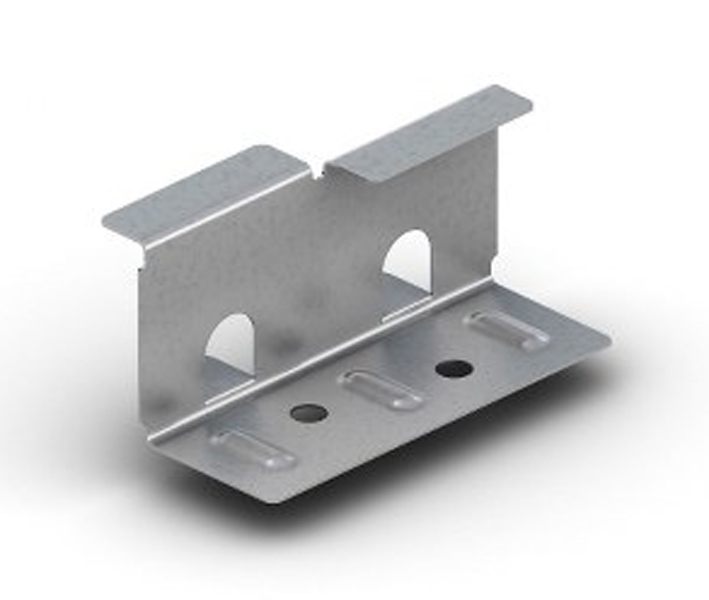

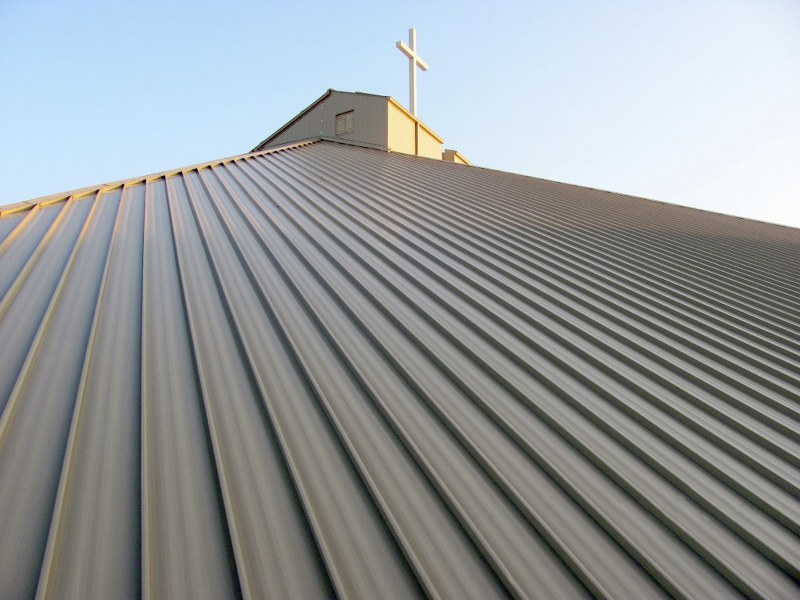

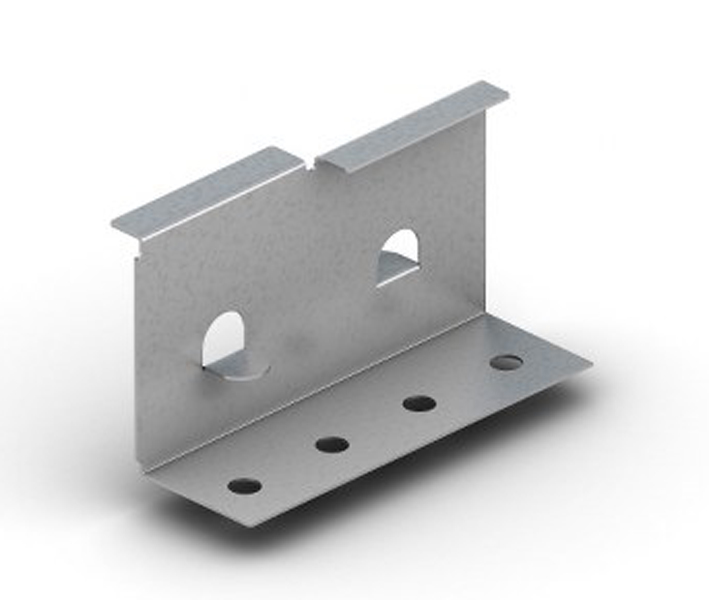

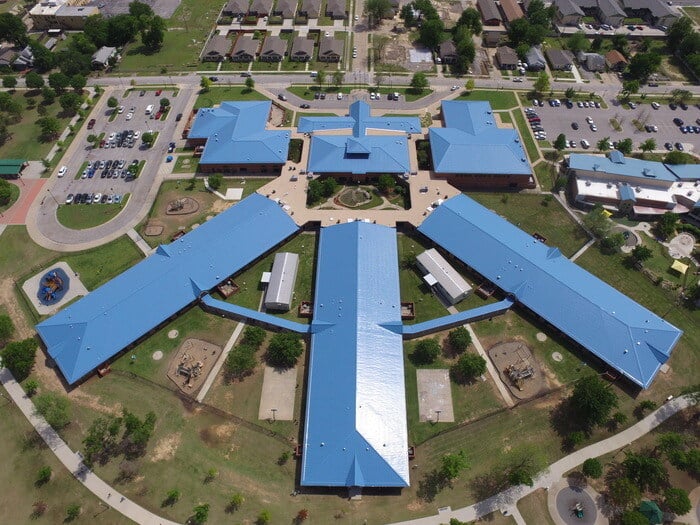

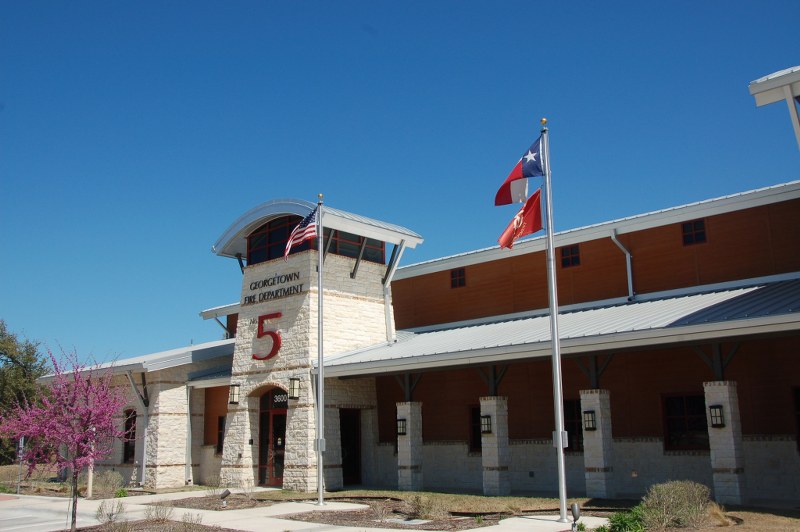

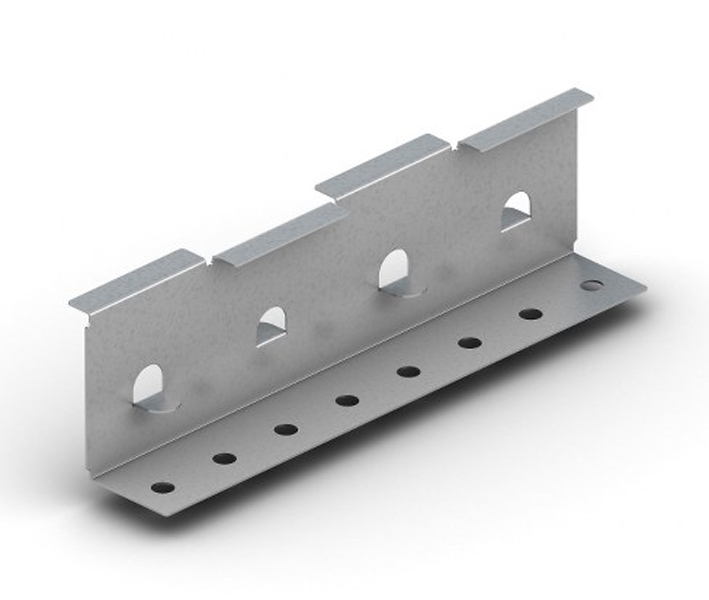

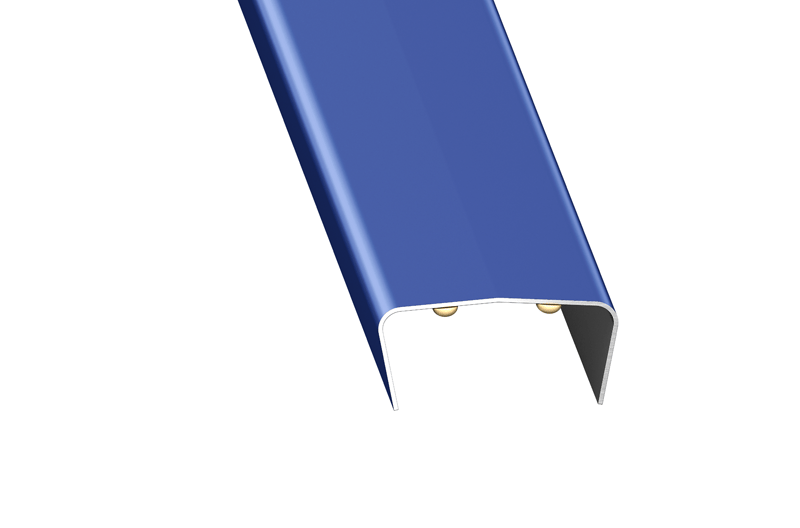

While standing seam roofing systems have been used for generations, 138T and 238T panels feature technological advances in roofing that set a new standard for standing seam performance. 138T and 238T systems are classified as symmetrical standing seam systems that feature mechanically seamed caps.  This product family offers many advantages including patented recover solutions featuring the industry's best method to recover existing metal or shingle roofs. The most important advantage of the 238T and 138T systems are that they are easy to repair or alter after installation. Unlike asymmetrical standing seam systems, individual 138T and 238T panels can be removed and replaced. With Galvalume® roof life expectancy approaching 60 years, this ability to replace individual panels is very important.  Mechanical seamers and hand crimpers are available for rent through Developmental Industries (DI) at mcelroyseamers.com.

View an installation animation

View a video showing seam cap and panel removal

View Related Files Build a Submittal Package

Click image to enlarge

Great for

Walls

Walls

Roofs

Roofs

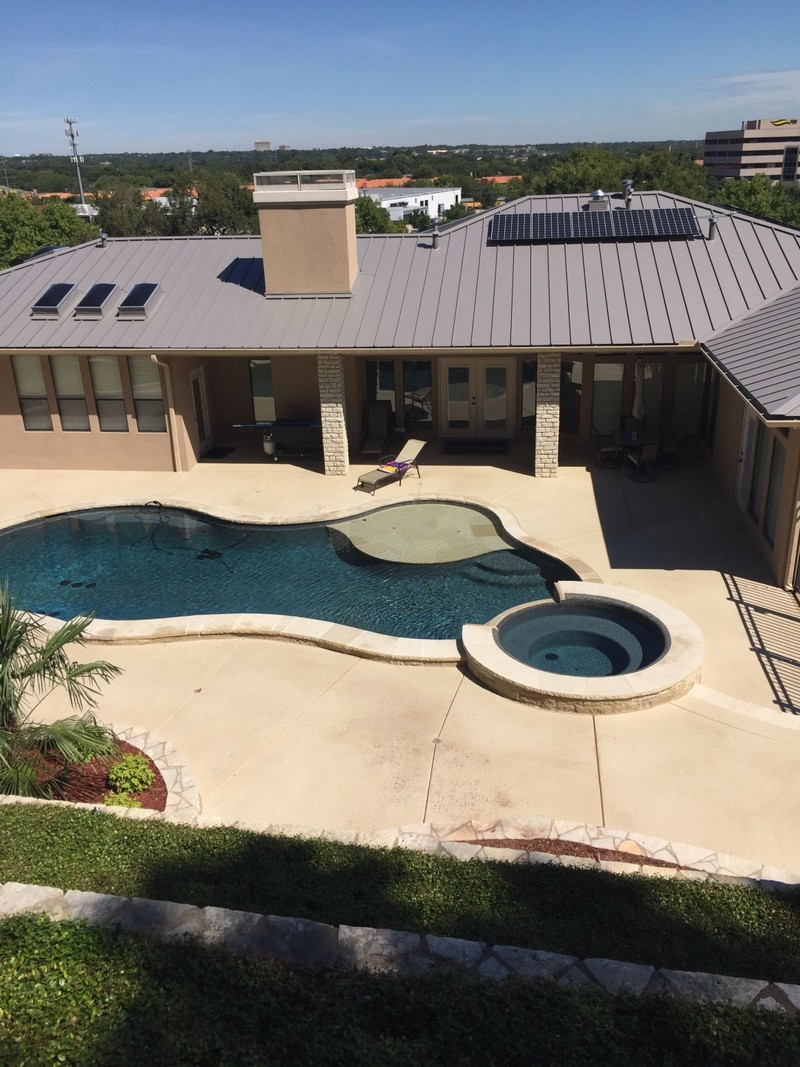

Residential

Residential

Commercial

Commercial

138T and 238T advantages include:

Curving Information

  • 138T panels can be curved (16”, 18" width only)
  • 238T panels can be curved (16”, 18” widths only)

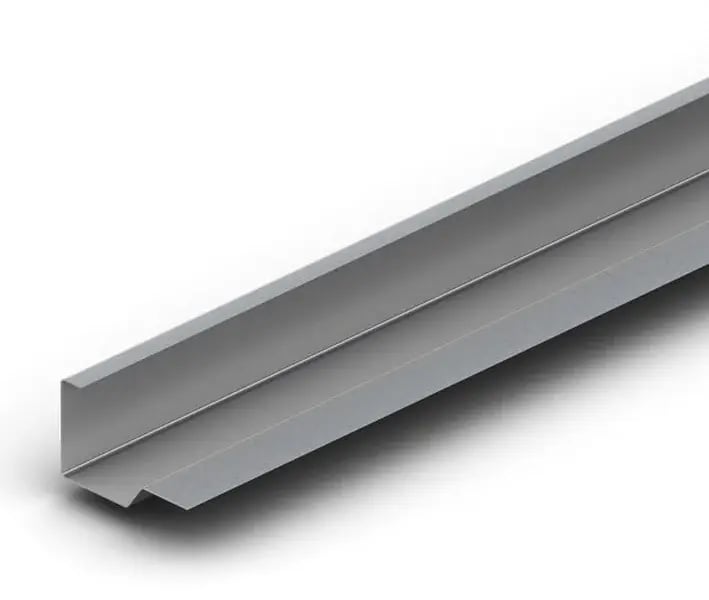

  • 138T, 238T and Multi-Span Clips are curved onsite by McElroy curving technicians
  • Minimum Radius:
    138T Steel - 10’ radius
    138T Alum - 10' radius
    238T Steel – 24’ radius
    238T Alum - 14' radius

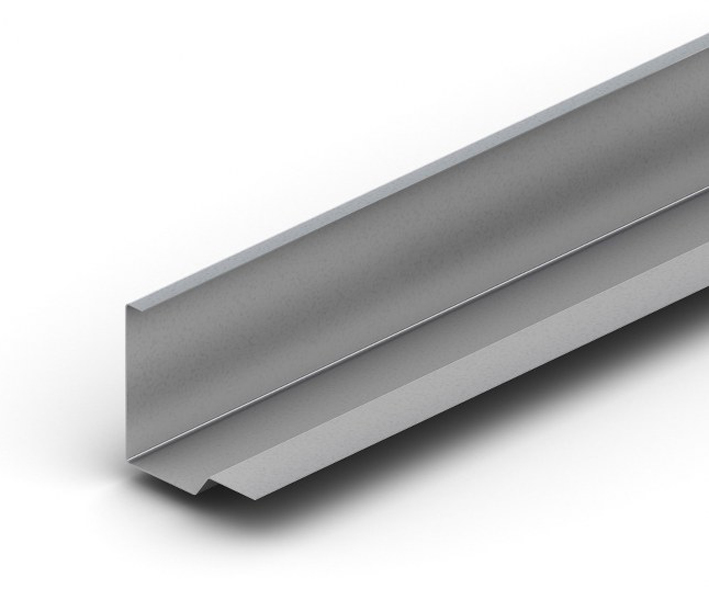

  • Multi-Span Clips - 35’ radius
  • Maximum length on Multi-Span clips is 30’
  • 138T flat panels will curve naturally on a radius of 150’ or greater
  • 238T flat panels will curve naturally on a radius of 225’ or greater

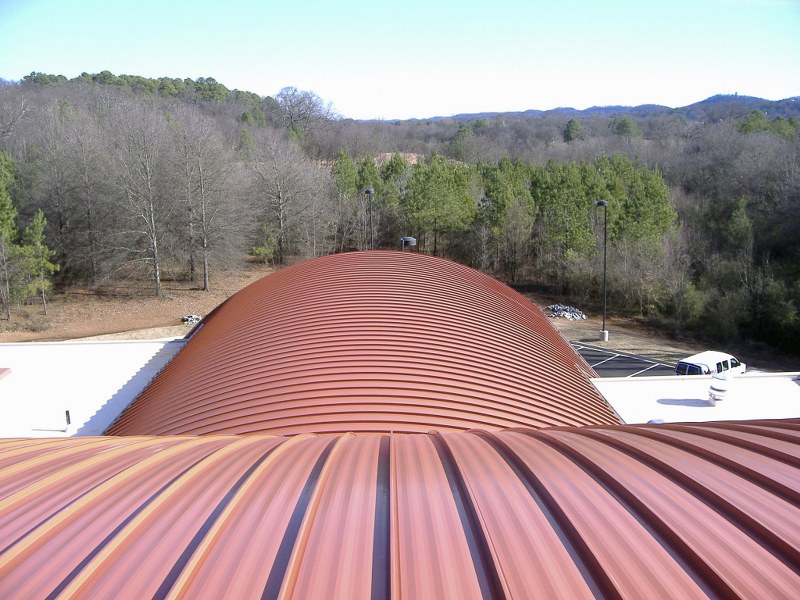

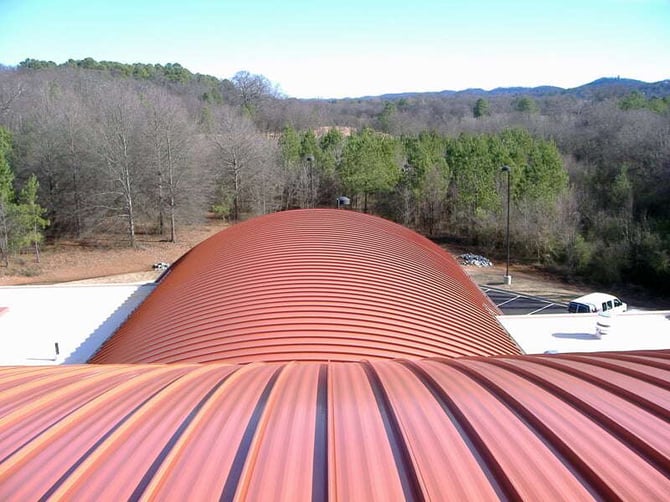

  • 138T/238T panels can be curved for either Convex or Candy Cane radius applications
  • Equipment for Curving & Candy Cane style panels is based in Houston, TX but is mobile for jobsite production

See more standing seam curved panels here.

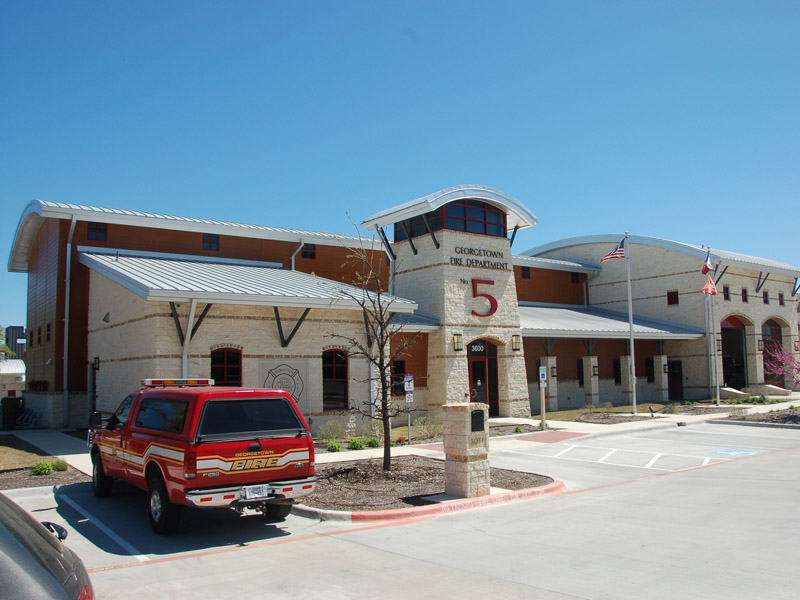

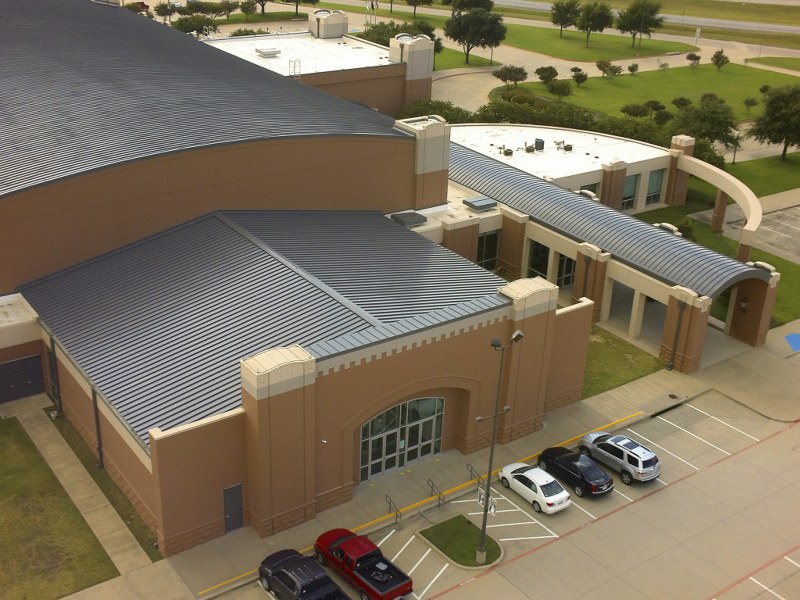

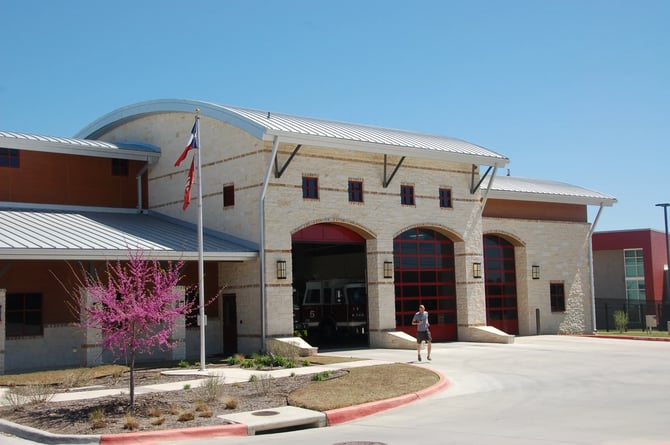

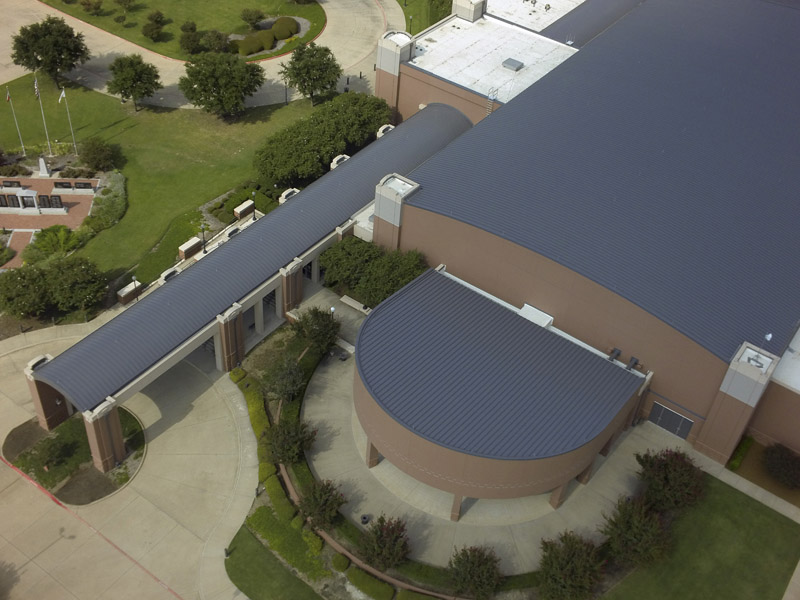

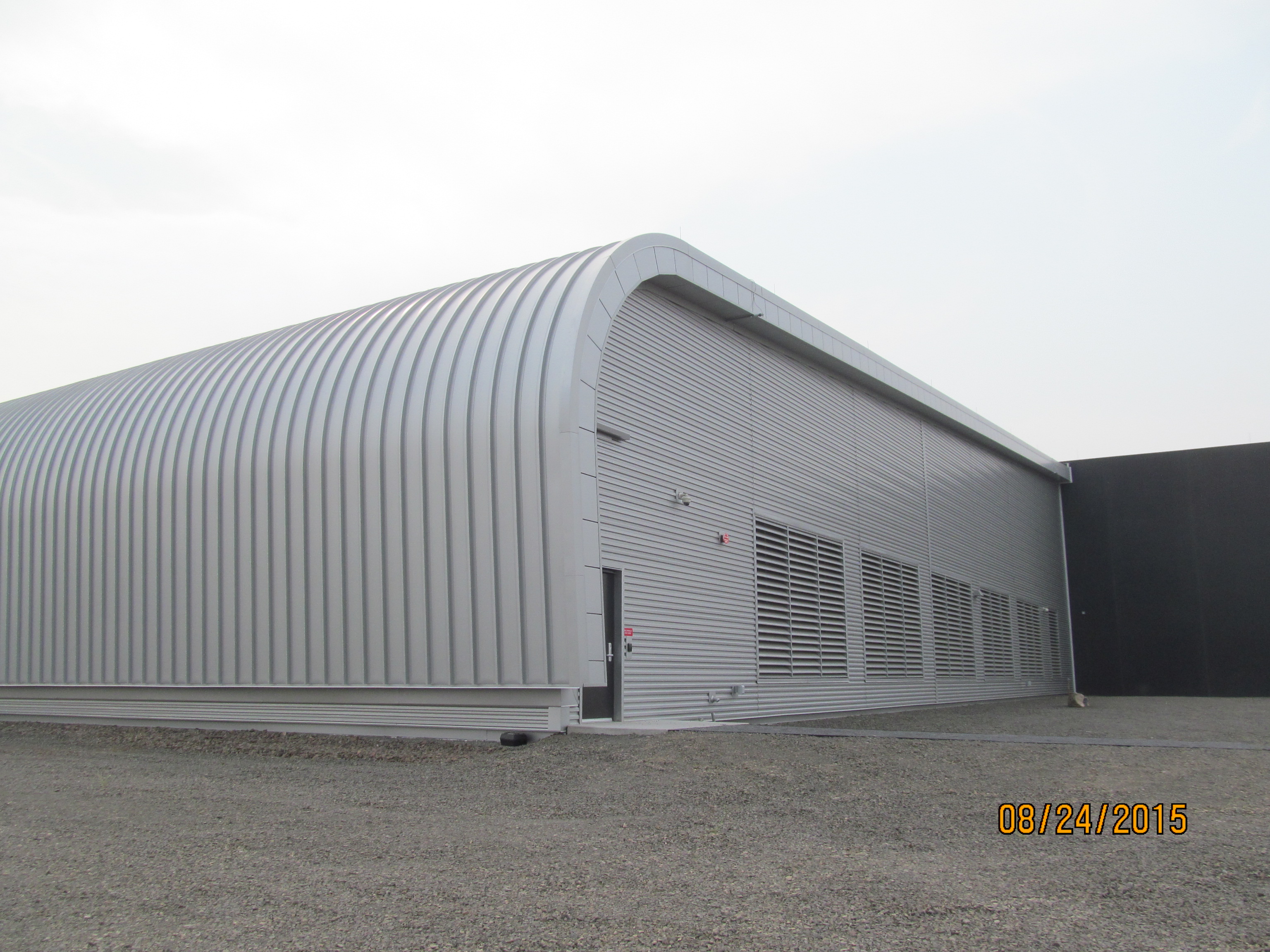

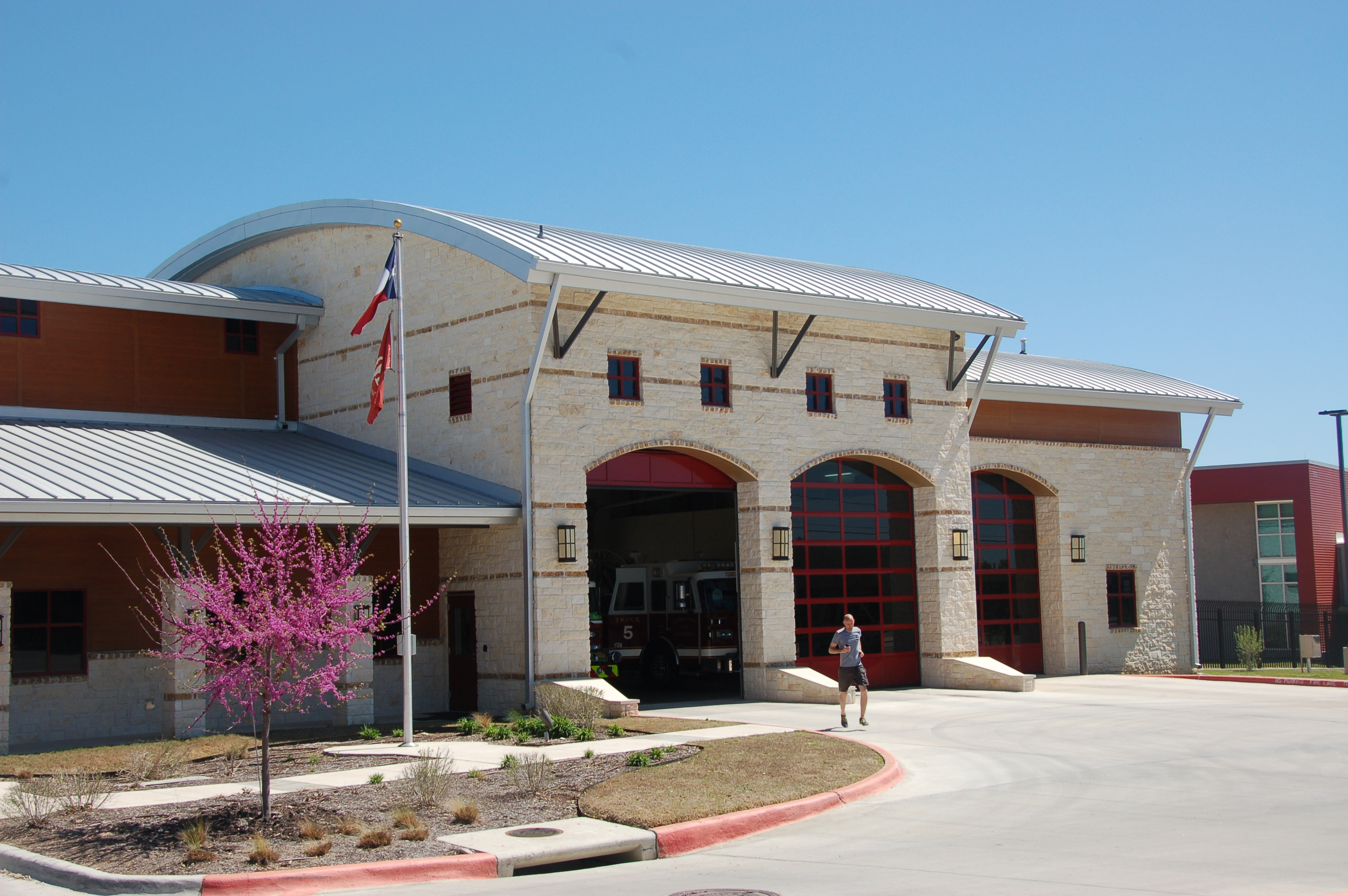

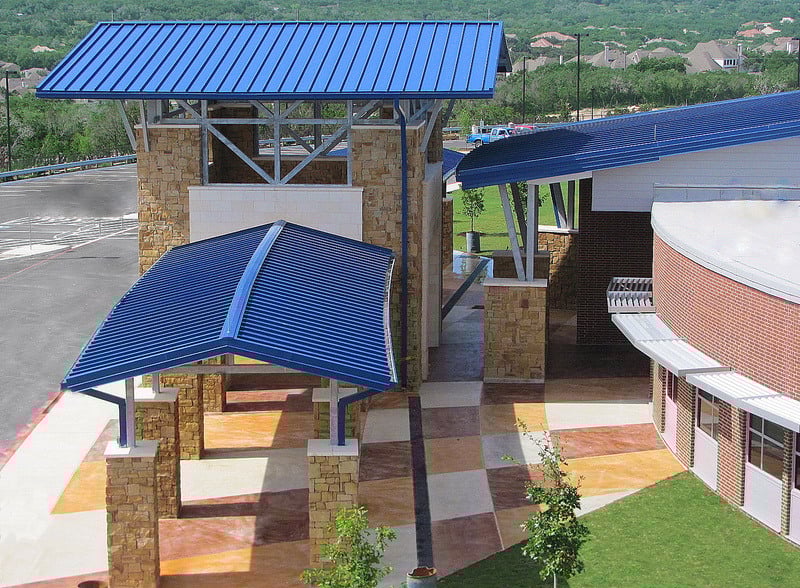

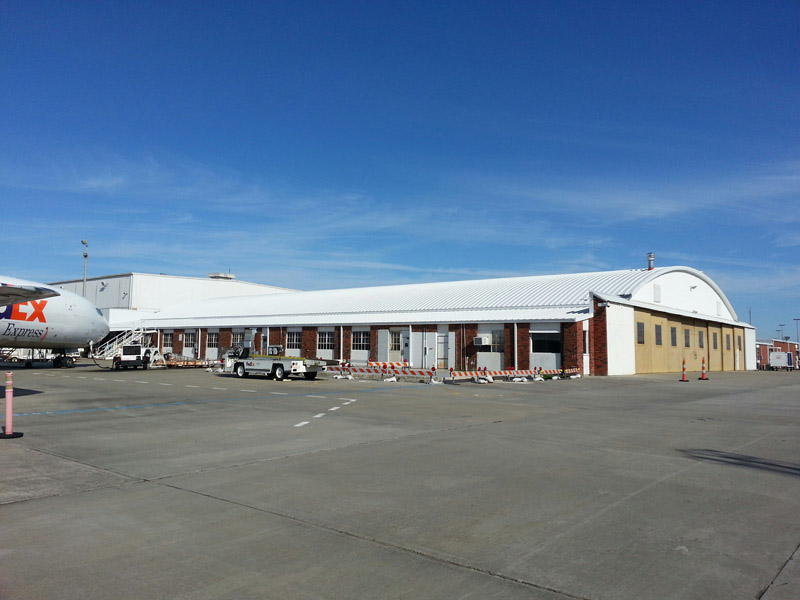

Curving Photos

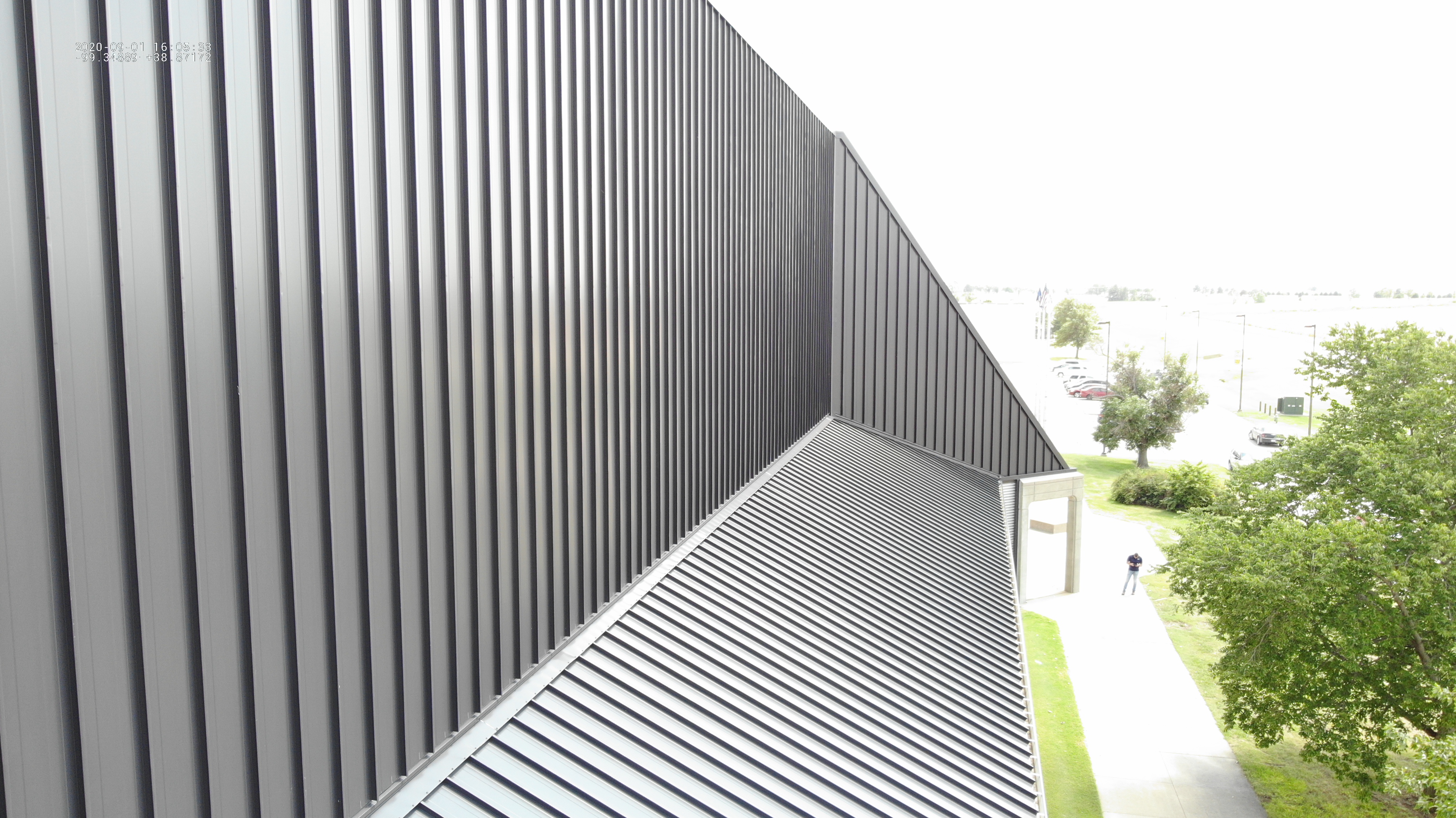

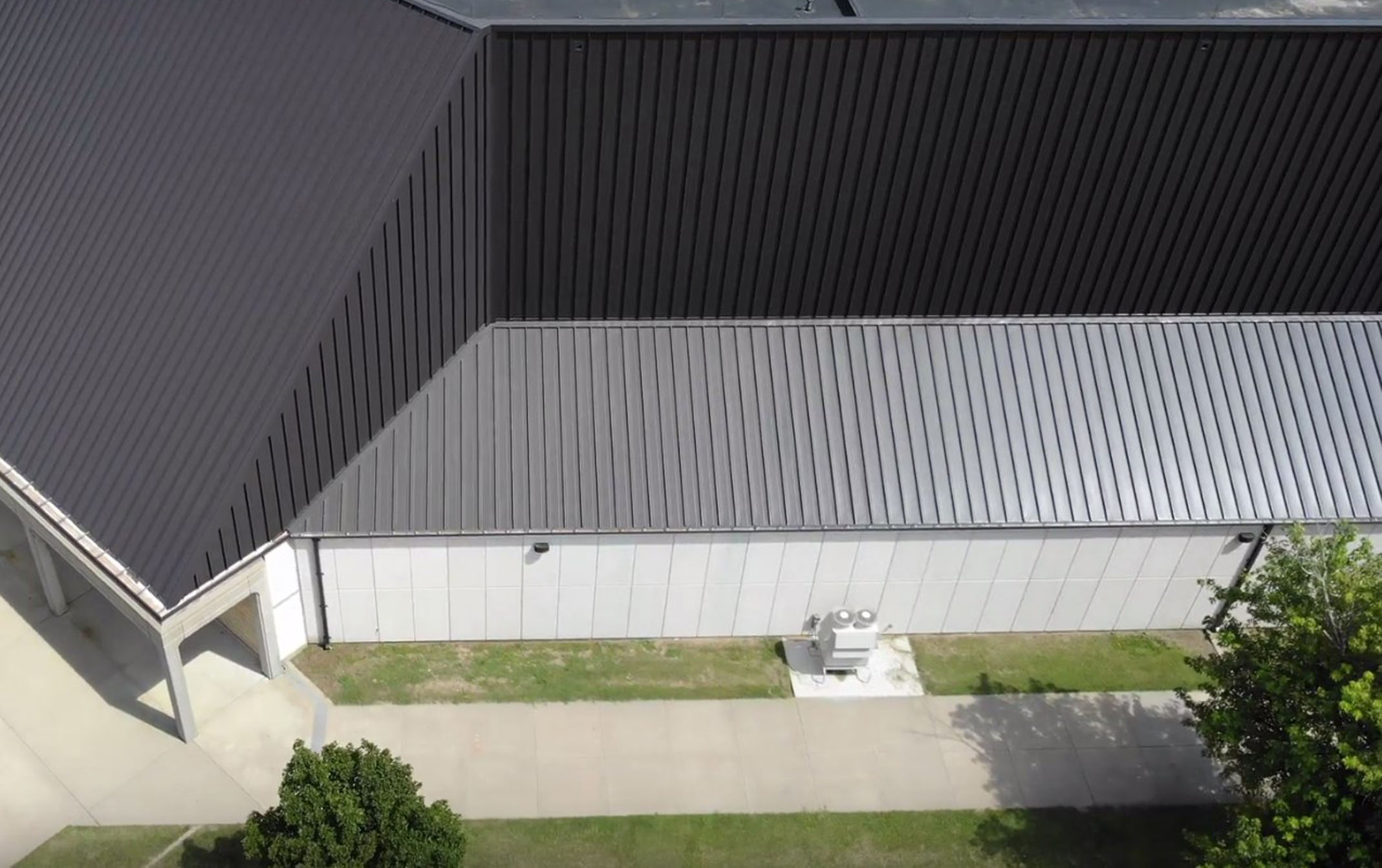

138T & 238T Wall Systems

Need a concealed fastener wall panel option with design flexibility and decades-long curb appeal? We have you covered with our 138T & 238T profile.

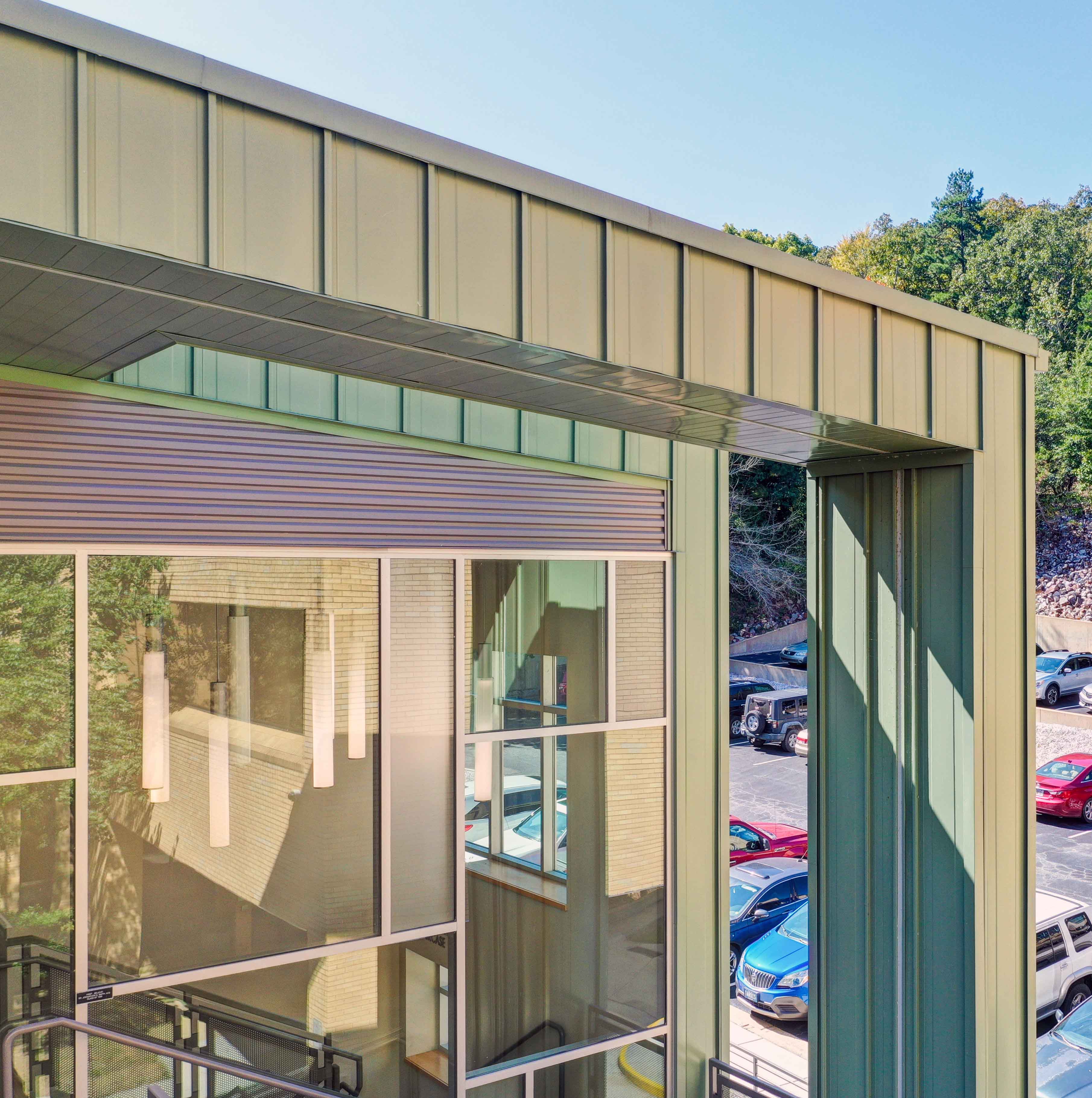

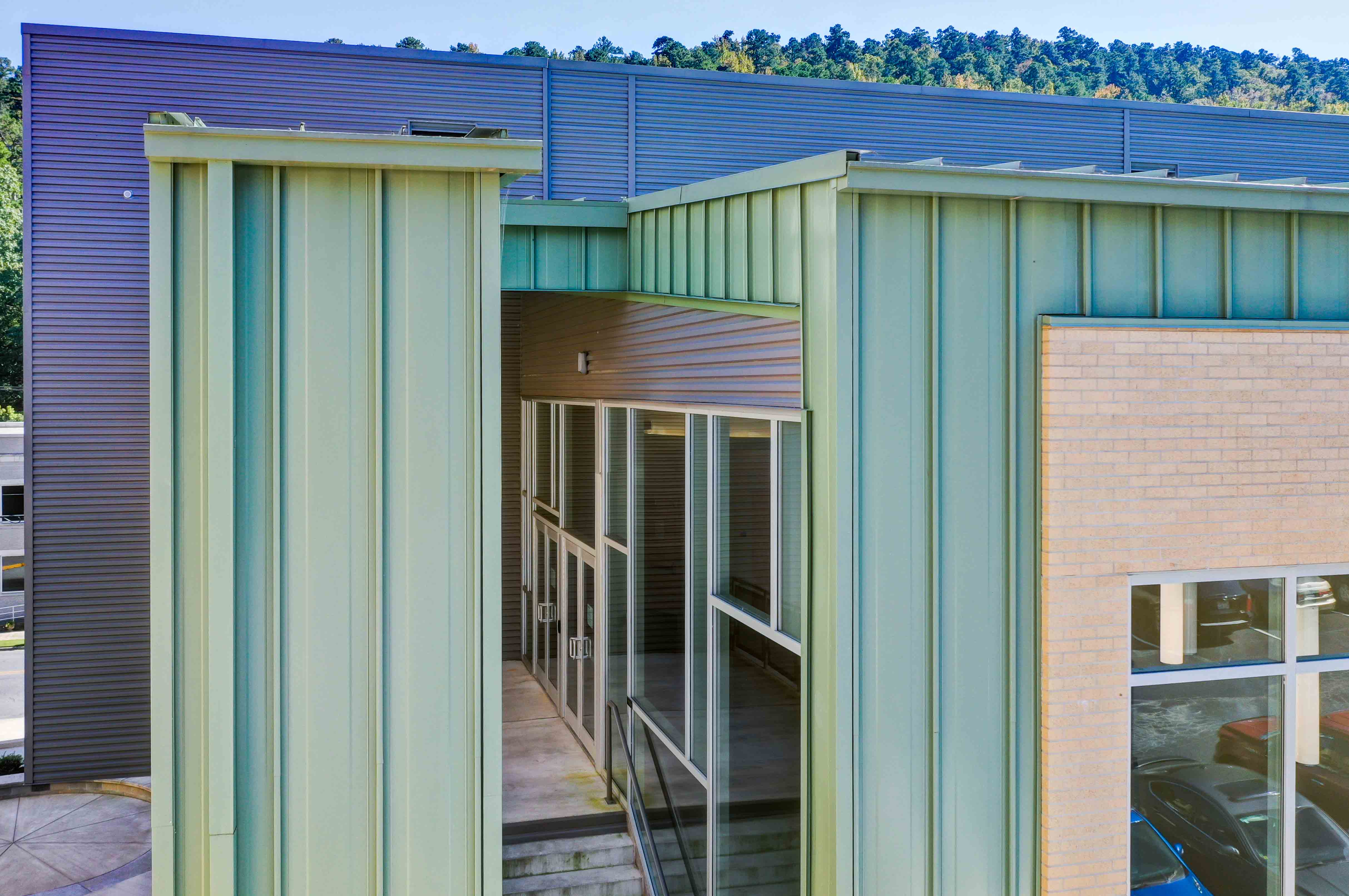

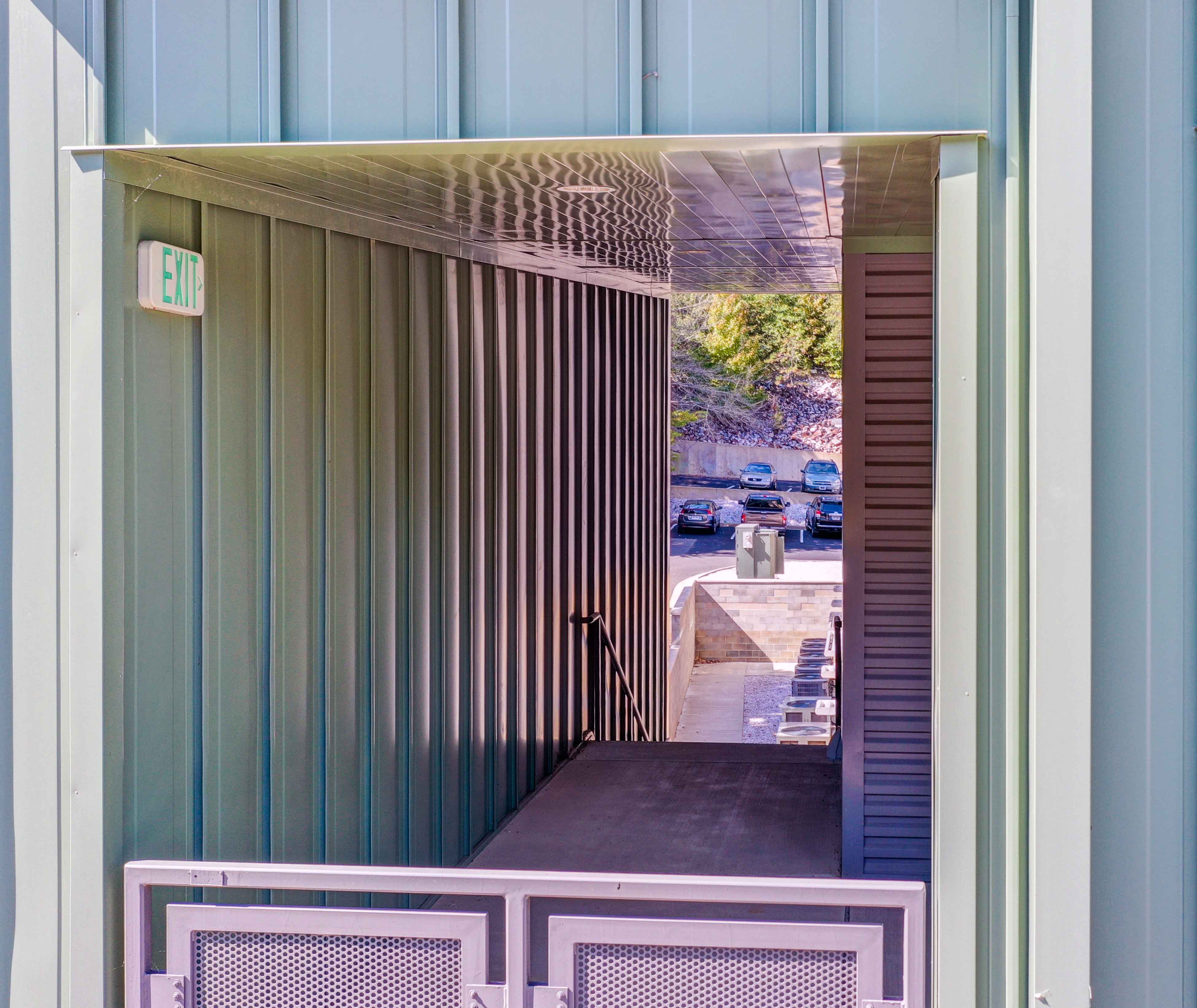

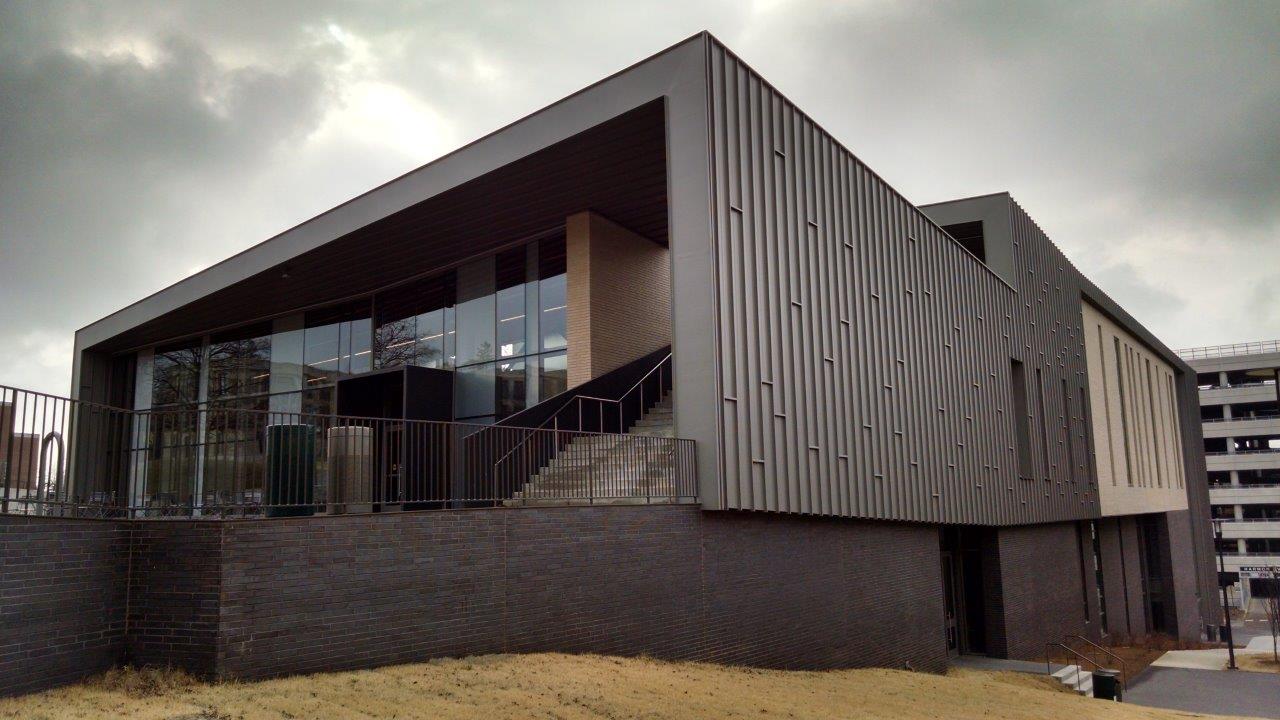

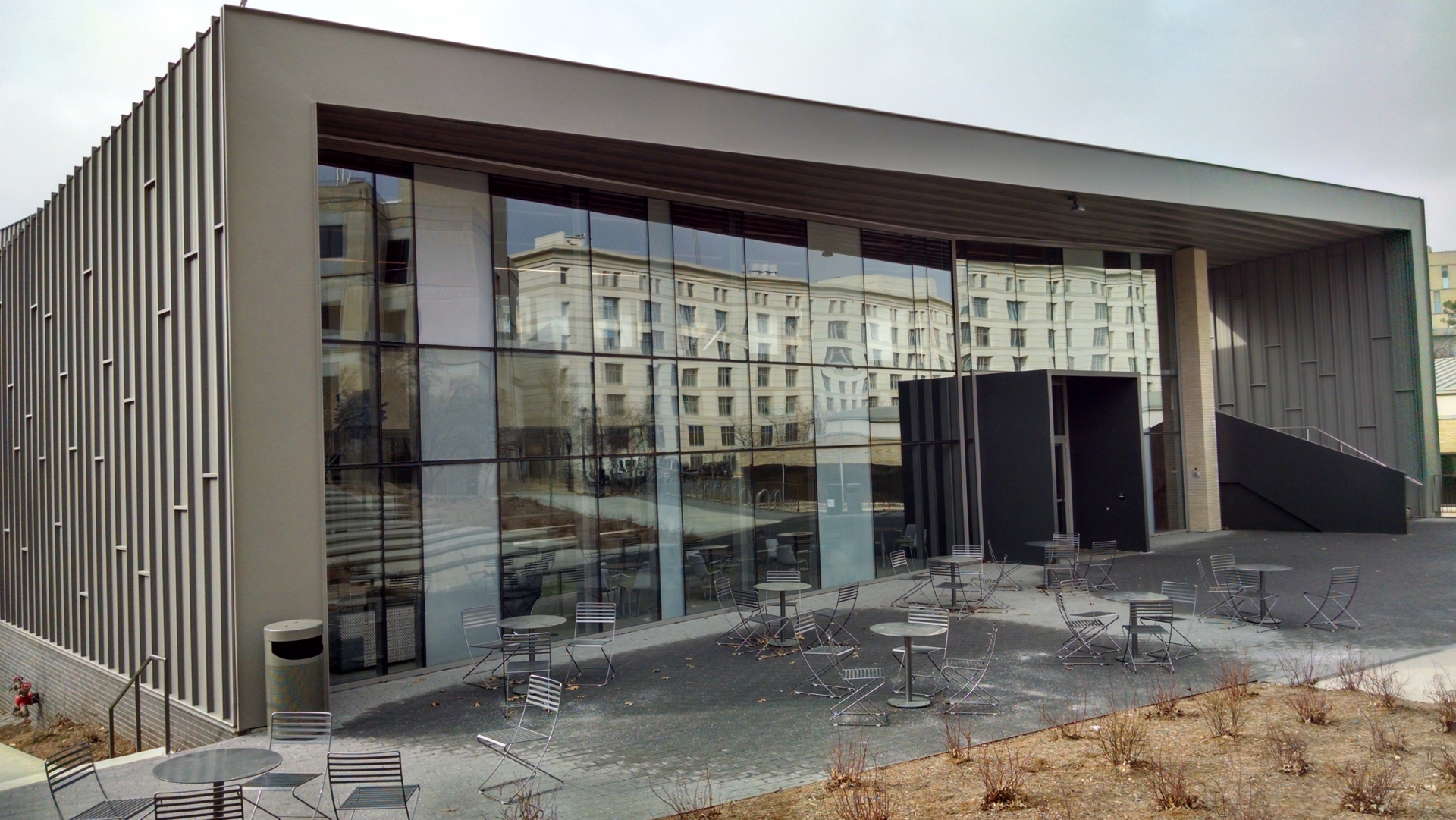

With panel widths from 16-24", in-seam sealant, and several different pan conditions, this system can be used to create stunning applications like the award-winning Champions Hall project at the University of Arkansas.

Additional Benefits:

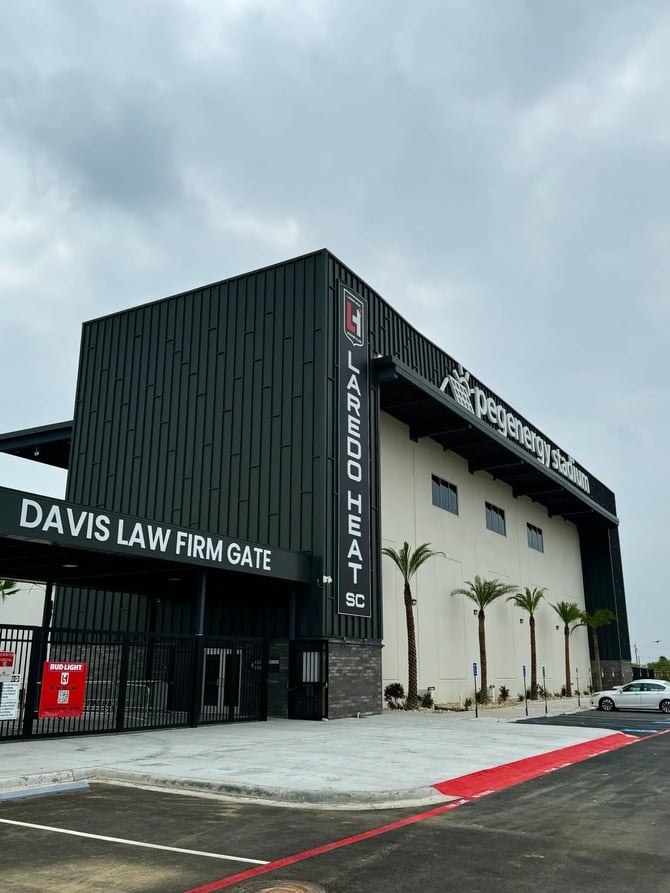

  • Mechanically seamed system offers greatly reduced air infiltration

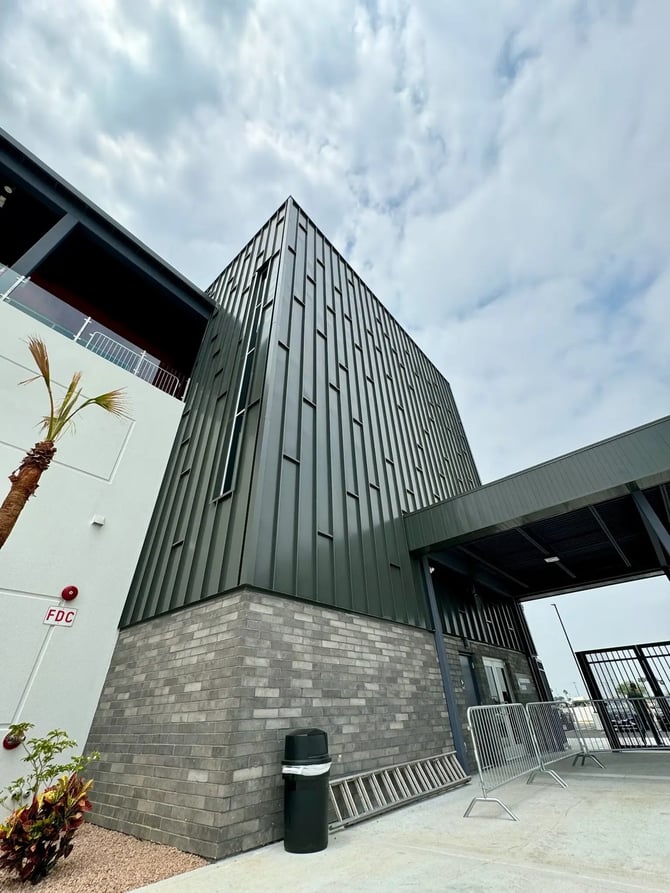

  • Symmetrical panel allows for easy panel replacement if necessary for building modifications/repair

Contact a McElroy representative for more information about 138T and 238T wall applications.

Additional Information

Specifications & Details

Details
138T Minimum slope 1:12
238T Minimum slope 1/2:12
1/4:12 considered with prior approval
Installation - 138T must be installed over solid deck
- 238T can be installed over solid deck or open framing
Manufacturing Facilities -Panels can be factory or jobsite formed
-Factory forming at Clinton, IL; Peachtree City, GA; Adelanto, CA; Houston, TX;
Note 138T & 238T are mechanically seamed profiles
Note Oil Canning is a natural occurrence in metal panels and is not a cause for panel rejection
Testing
138T/238T - Uplift test: UL 580 Class 90; ASTM E 1592
- Fire Rating: UL Class A
- Impact Resistance: UL Class 4
238T Only - Uplift: FM4471
- Air Infiltration: ASTM E1680
- Water Infiltration: ASTM E1646
- Static Water: FM 4471 Appendix G, ASTM E2140
- Texas Department of Insurance: RC-270
- Florida State Approval: FBC #16606.1; #16606.2; #16606.3
- Miami Dade Approval
- ICC-ES Approval: ESL-1082
- FM Class: 1-SH
Testing Data For available Test Data, Section Properties or Load Tables, please visit our downloads section.
Panel Options

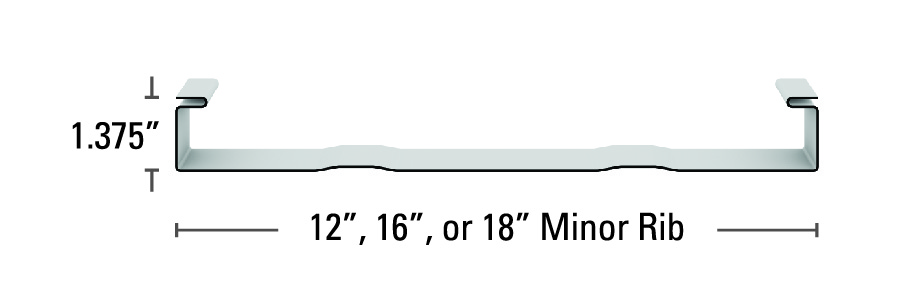

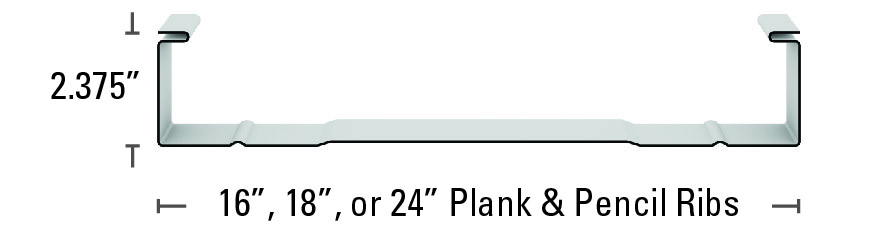

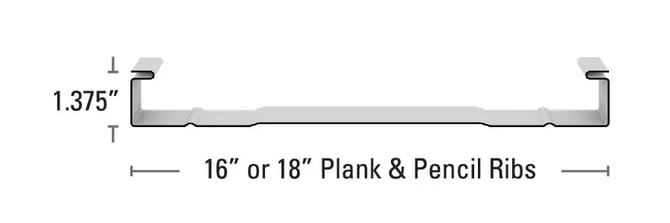

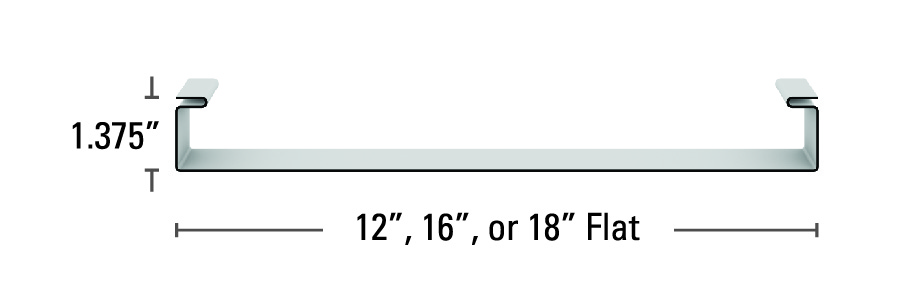

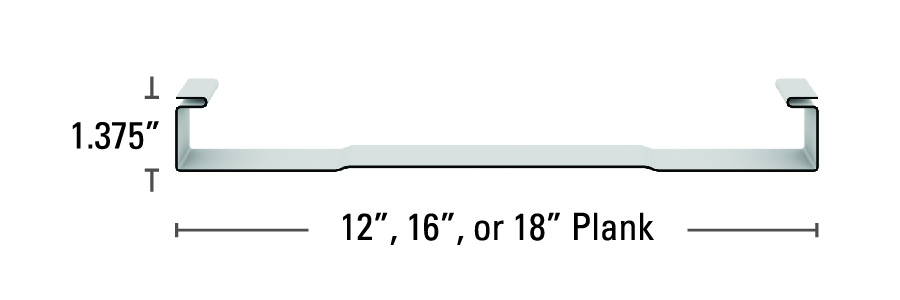

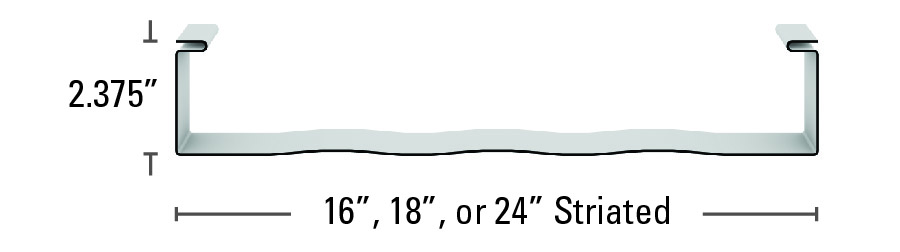

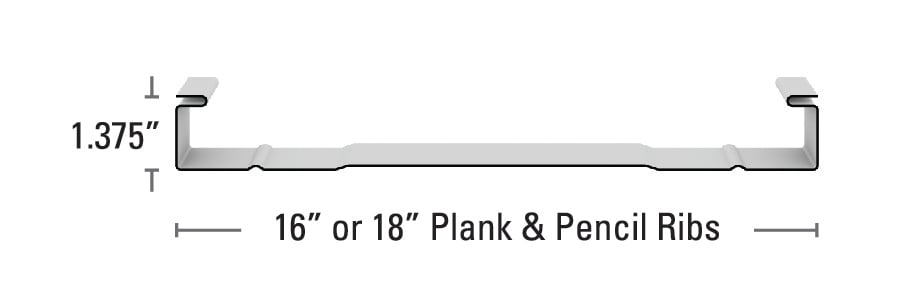

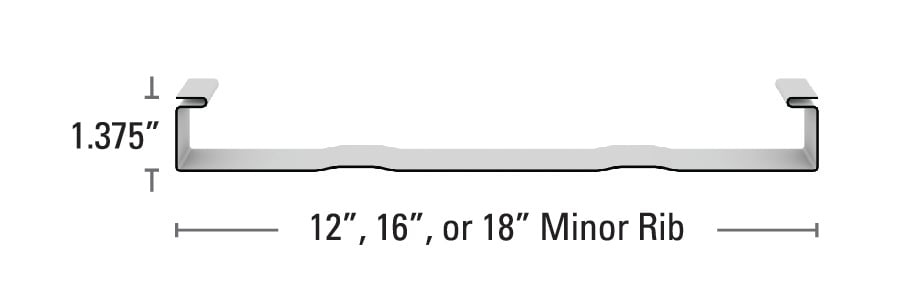

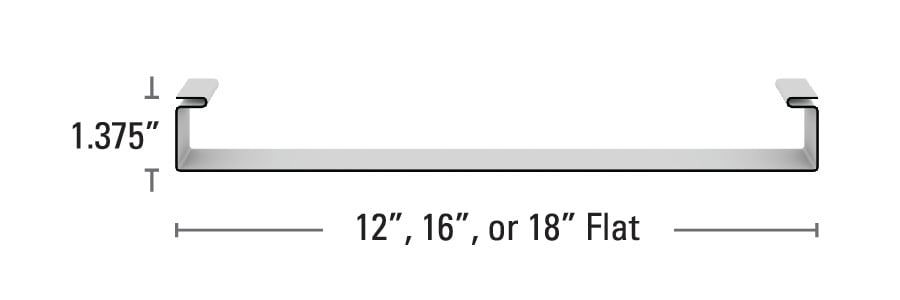

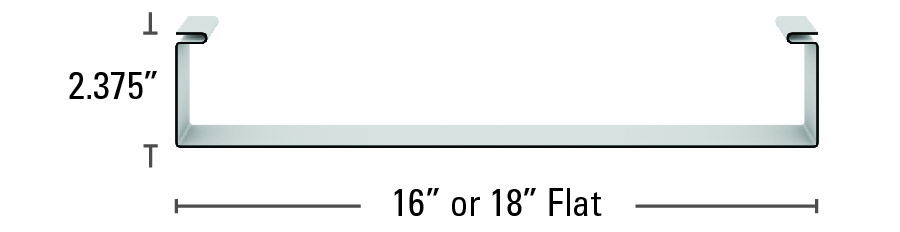

Panel Height & Width 138T: 1 3/8" x 12", 16", 18"

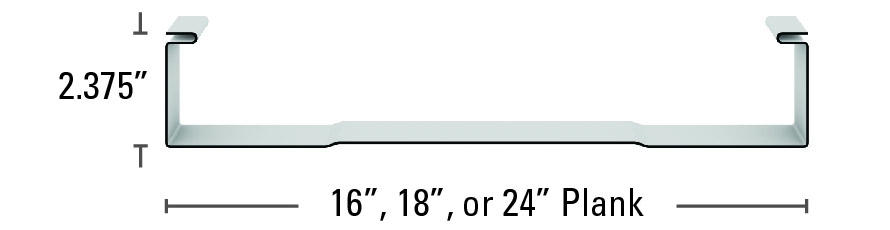

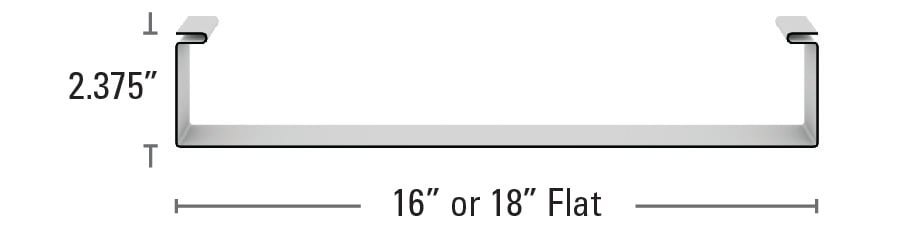

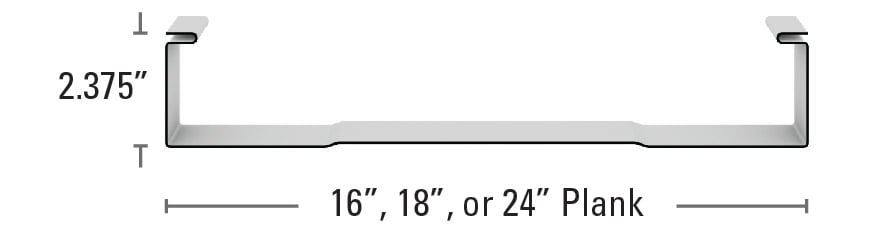

238T: 2 3/8" x 16", 18", 24"
238T: 24" Panel formed on-site only

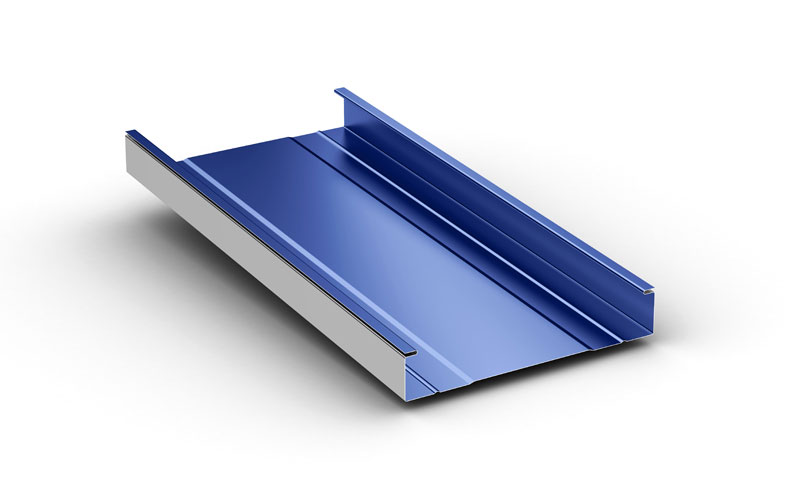

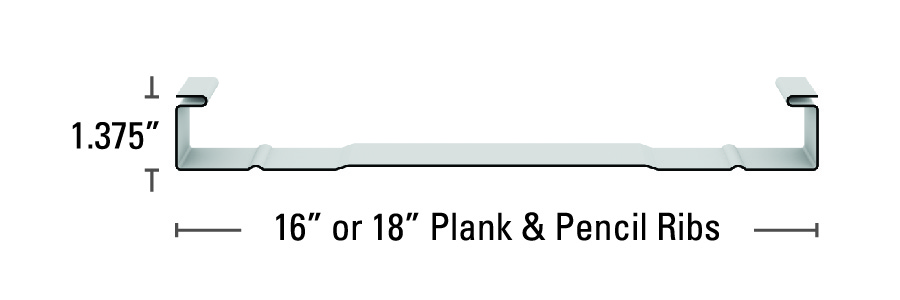

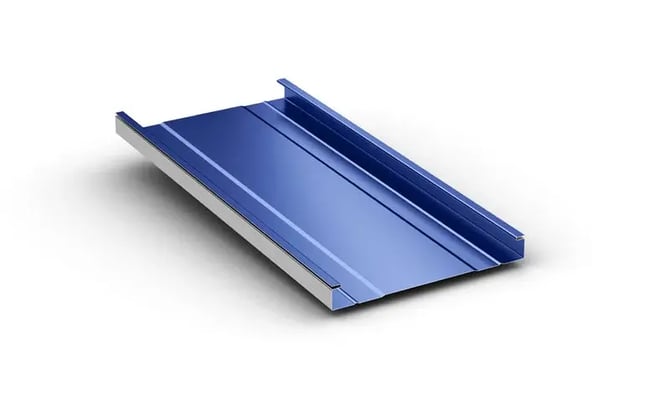

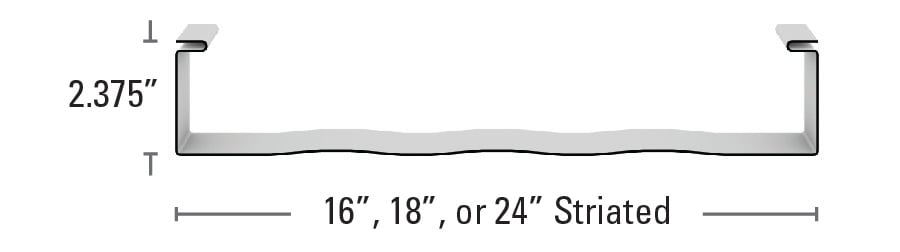

Panel Configurations - 138T (16" & 18"): Flat, Striated, Plank & Pencil Ribs, Plank, Minor ribs (Plank & Pencil Rib recommended)

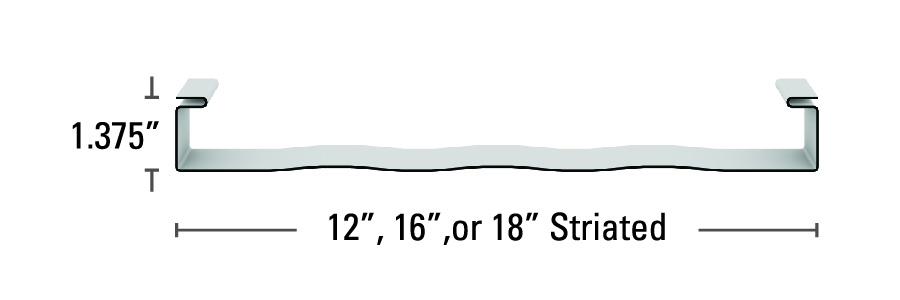

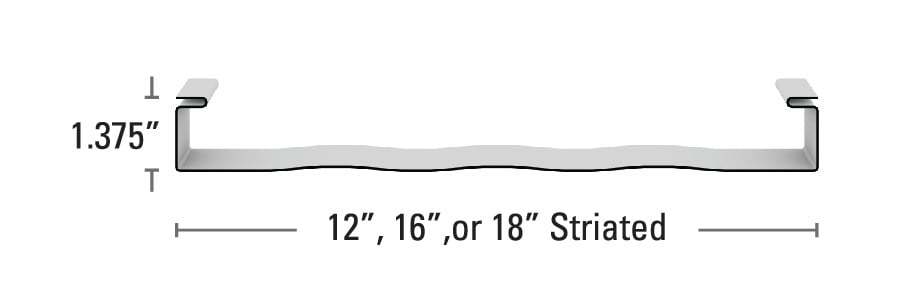

138T (12"): Flat, Striated, Minor Ribs, Plank (Plank recommended)
- 238T: Flat (16" & 18" only), Striated, Plank & Pencil Ribs, Plank, Minor Ribs (Plank & Pencil Rib recommended)
Coating Kynar 500® (PVDF)
Substrate - Standard 24 GA Galvalume®
- Optional 22 GA Galvalume®
- Optional .032 and .040 aluminum

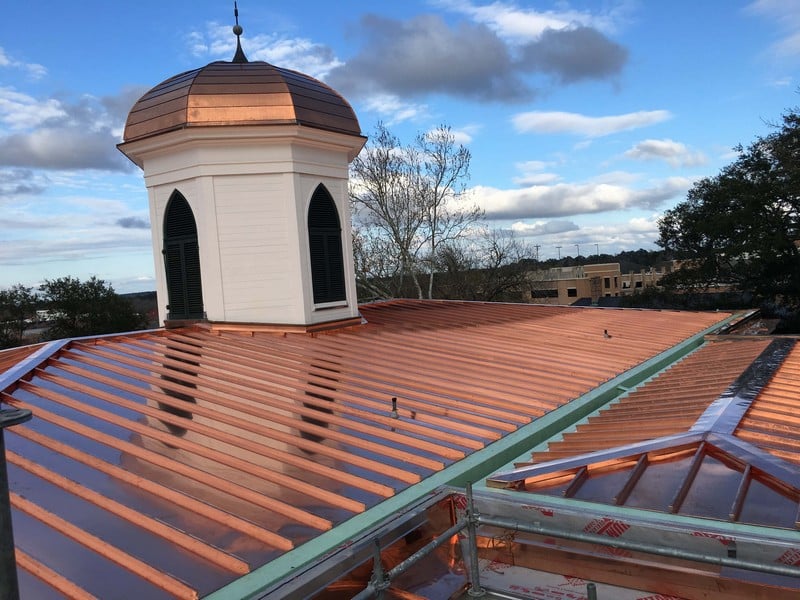

- Optional 16 oz and 20 oz copper (Houston Plant Only)

R-Seal®️️️️️️️️️️️

r-seal-logo

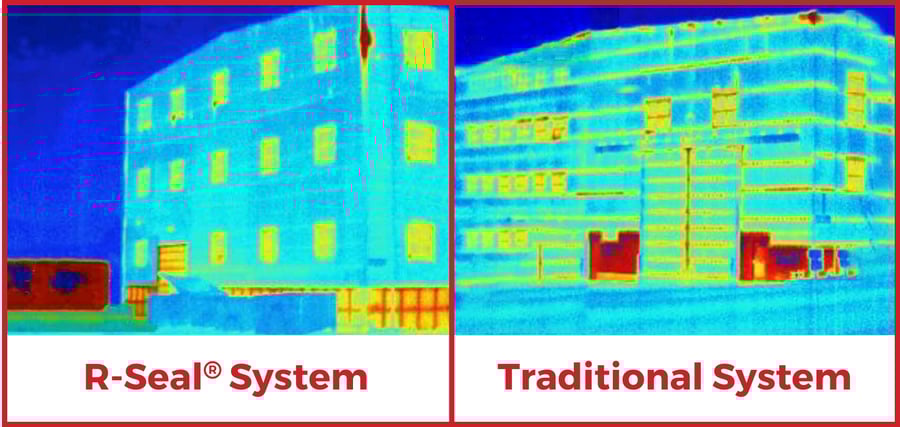

R-Seal’s continuous insulation system reduces heat transfer through the building's framing. Traditional insulation systems allow more heat to be conducted through the building's framing.

r-seal-system-vs-traditional-system

Continuous Insulation System R-Seal®️ Advantages

  • Offers 7.5 per inch R-value
  • R-Seal is designed to be installed on top of Open frame metal buildings with purlins spaced 5’ O.C.
  • Rigid urethane board with shiplap side joints and waterproof facer
  • Tape seal flap makes a watertight joint between boards
  • Continuous R-Value of 7.5 per inch (no break over purlins)
  • 42” wide board x up to 53’ long for super fast installation
  • With R-30 (4”) YOU CAN WALK ON IT!
  • Air-tight and water-tight after installation
  • Trades go right to work after installation in the building compressing the construction schedule
  • Ideal for new construction or removing and replacing a standing seam
  • Paintable

Related Files

Specifications

Product Approval Report / ICC-ES Approvals

Technical Bulletins / Miscellaneous Testing

Get A Submittal Package

138T - 12"
Customize (Recommended)

Customize your submittal package 138T - 12"

Click on your desired documents below to select them for your package.

General Product and Warranty Information

Panel Load Tables w/Section Properties and Testing

Safety Data and Material Safety Data Sheets

138T - 16"
Customize (Recommended)

Customize your submittal package 138T - 16"

Click on your desired documents below to select them for your package.

General Product and Warranty Information

Panel Load Tables w/Section Properties and Testing

Safety Data and Material Safety Data Sheets

138T - 18"
Customize (Recommended)

Customize your submittal package 138T - 18"

Click on your desired documents below to select them for your package.

General Product and Warranty Information

Panel Load Tables w/Section Properties and Testing

Safety Data and Material Safety Data Sheets

238T - 16"
Customize (Recommended)

Customize your submittal package 238T - 16"

Click on your desired documents below to select them for your package.

General Product and Warranty Information

Panel Load Tables w/Section Properties and Testing

Safety Data and Material Safety Data Sheets

238T - 18"
Customize (Recommended)

Customize your submittal package 238T - 18"

Click on your desired documents below to select them for your package.

General Product and Warranty Information

Panel Load Tables w/Section Properties and Testing

Safety Data and Material Safety Data Sheets

238T - 24"
Customize (Recommended)

Customize your submittal package 238T - 24"

Click on your desired documents below to select them for your package.

General Product and Warranty Information

Panel Load Tables w/Section Properties and Testing

Safety Data and Material Safety Data Sheets

Request

Samples & Color Charts

Request physical samples and color charts. All items will be sent out via UPS ground unless otherwise specified.

Request now

fanned-color-swatches

Weathertightness Warranties
Weathertightness Warranties

If your project requires a Weathertightness Warranty and you don’t already have a job specific Pre-Approval Form issued by McElroy Metal, click the button below to get started.

See Warranties →

Shop Drawing Service
Shop Drawing Service

Running short of time to complete your own shop drawings? McElroy Metal can help. Click the button below to provide us some basic information and we’ll be in touch soon to discuss your project specifics.

Contact Us →

Download Shop Drawings
Download Shop Drawings

If you’re creating your own shop drawings, click the button below to gain full access to our CAD and PDF Files.

View Drawings →
