Matrix

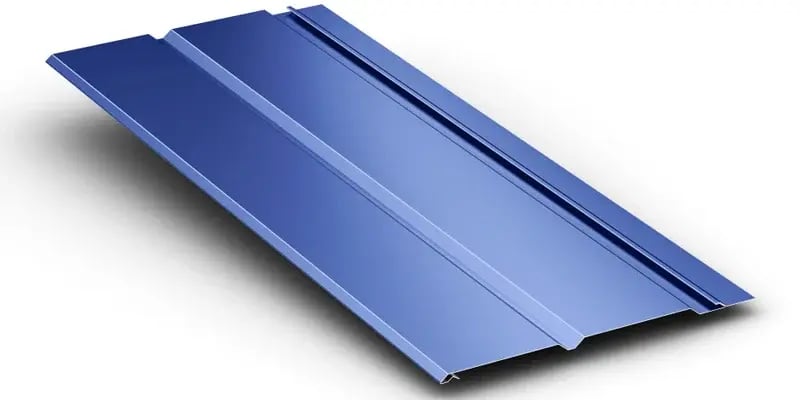

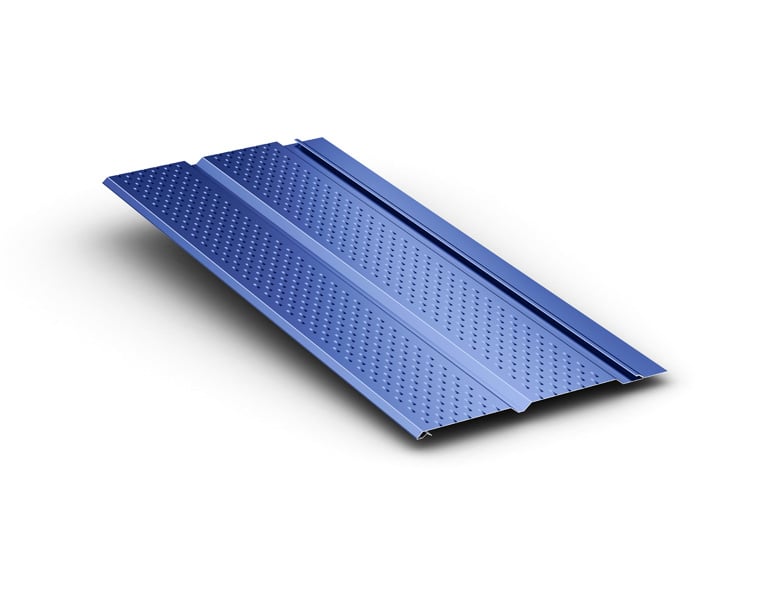

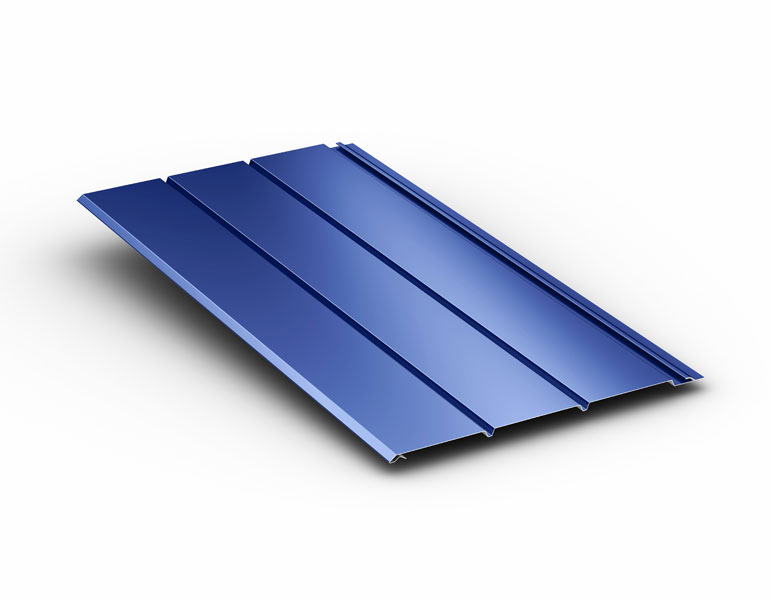

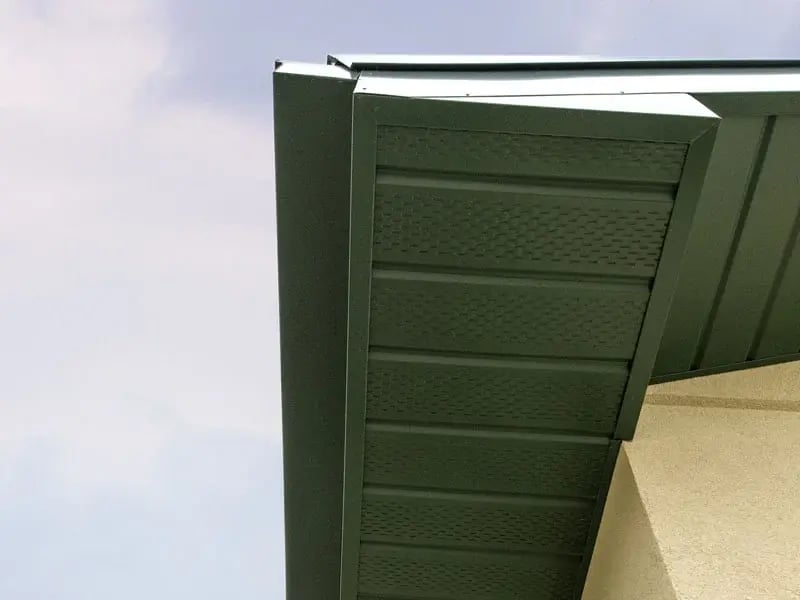

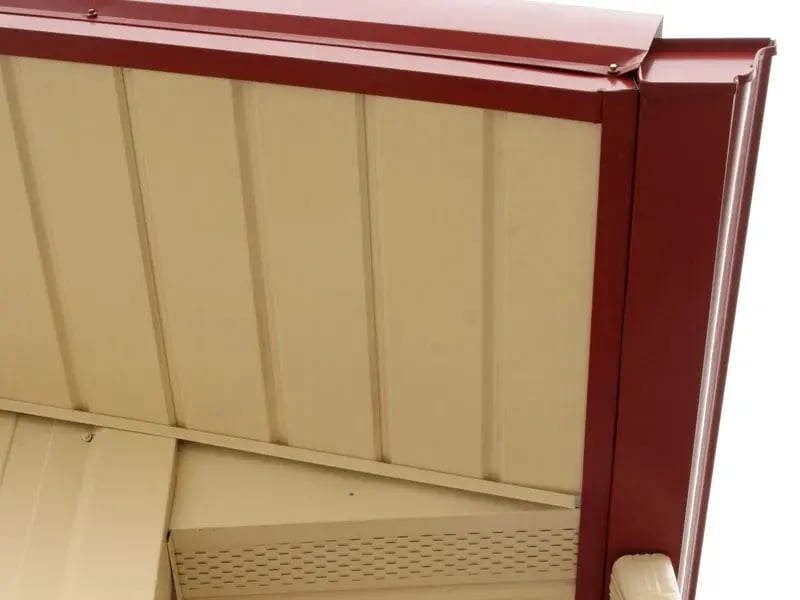

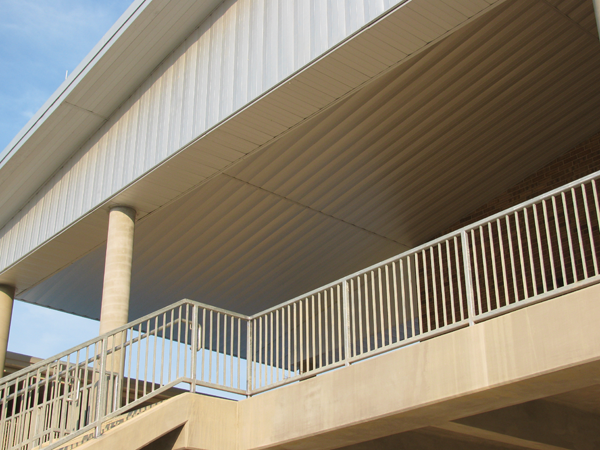

Matrix soffit panels add an elegant touch to any commercial or residential project. Matrix is available in 12 and 16 inch widths and in colors that match McElroy's wall and roof panels.

The Matrix soffit system will add an elegant touch to any commercial or residential project. Matrix is available in a wide variety of gauges with Silicone Modified Polyester (SMP) and Kynar 500® (PVDF) colors.

Click image to enlarge

Great for

Walls

Walls

Roofs

Roofs

Residential

Residential

Commercial

Commercial

Specifications & Details

Details

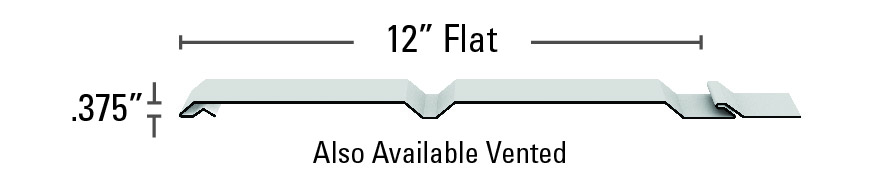

Stocked lengths 11.5" and 23.5"
Net free area 10% with vented surface
Manufacturing Facilities - Matrix 12" is produced in Lewisport, KY
- Matrix 16" is produced in Marshall, MI
Note Oil Canning is a natural occurrence in metal panels and is not a cause for panel rejection
Testing
Uplift Test ASTM E1592
Testing Data For available Test Data, Section Properties or Load Tables, please visit our downloads section.
Panel Options

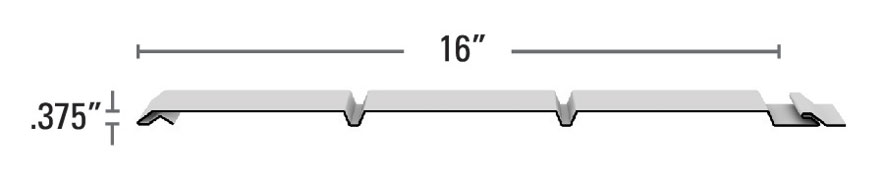

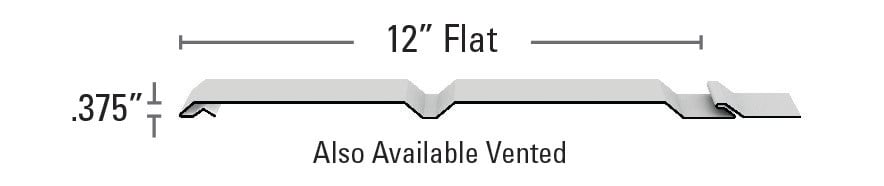

Panel width 12" and 16"

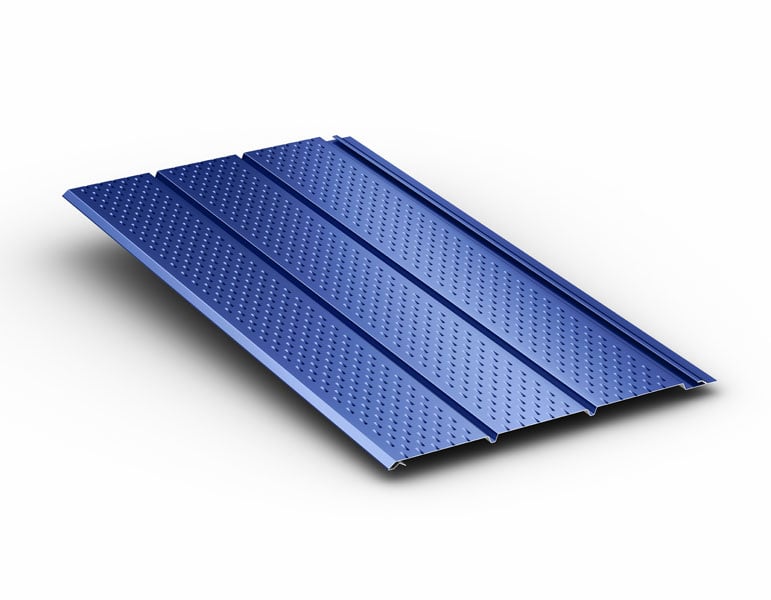

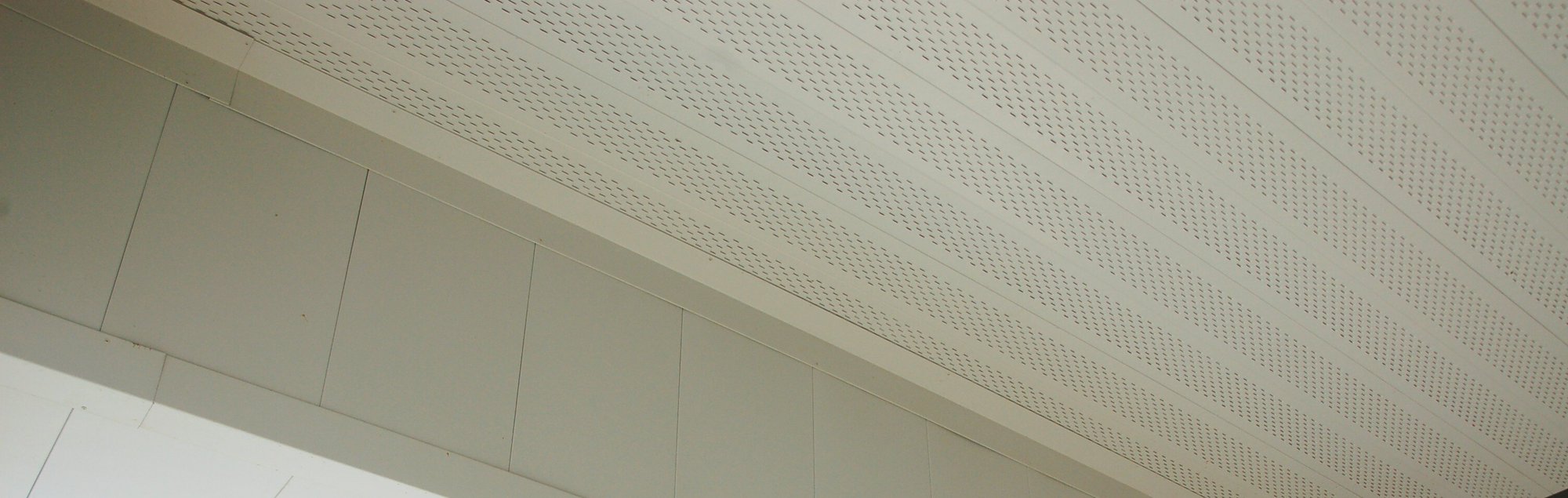

Panel configurations Non-Vented or Vented
Coating - Silicone Modified Polyester (SMP)
- Kynar 500® (PVDF)
Substrate - 12" Standard 24 and 29 GA Galvalume®
- 16" Standard 26 and 29 GA Galvalume

Related Files

Weathertightness Warranties (select standing seam panels only)

Product Data Sheets

Product & Trim Information Books

Installation Manuals

Technical Bulletins / ASTM E1592 Uplift Tests

Technical Bulletins / Panel Load Tables w/Section Properties
