Multi-Rib Panel

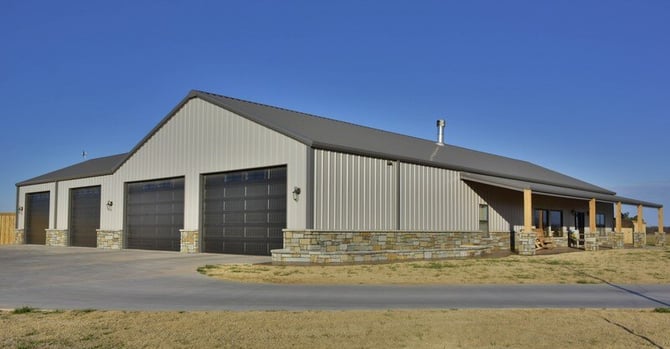

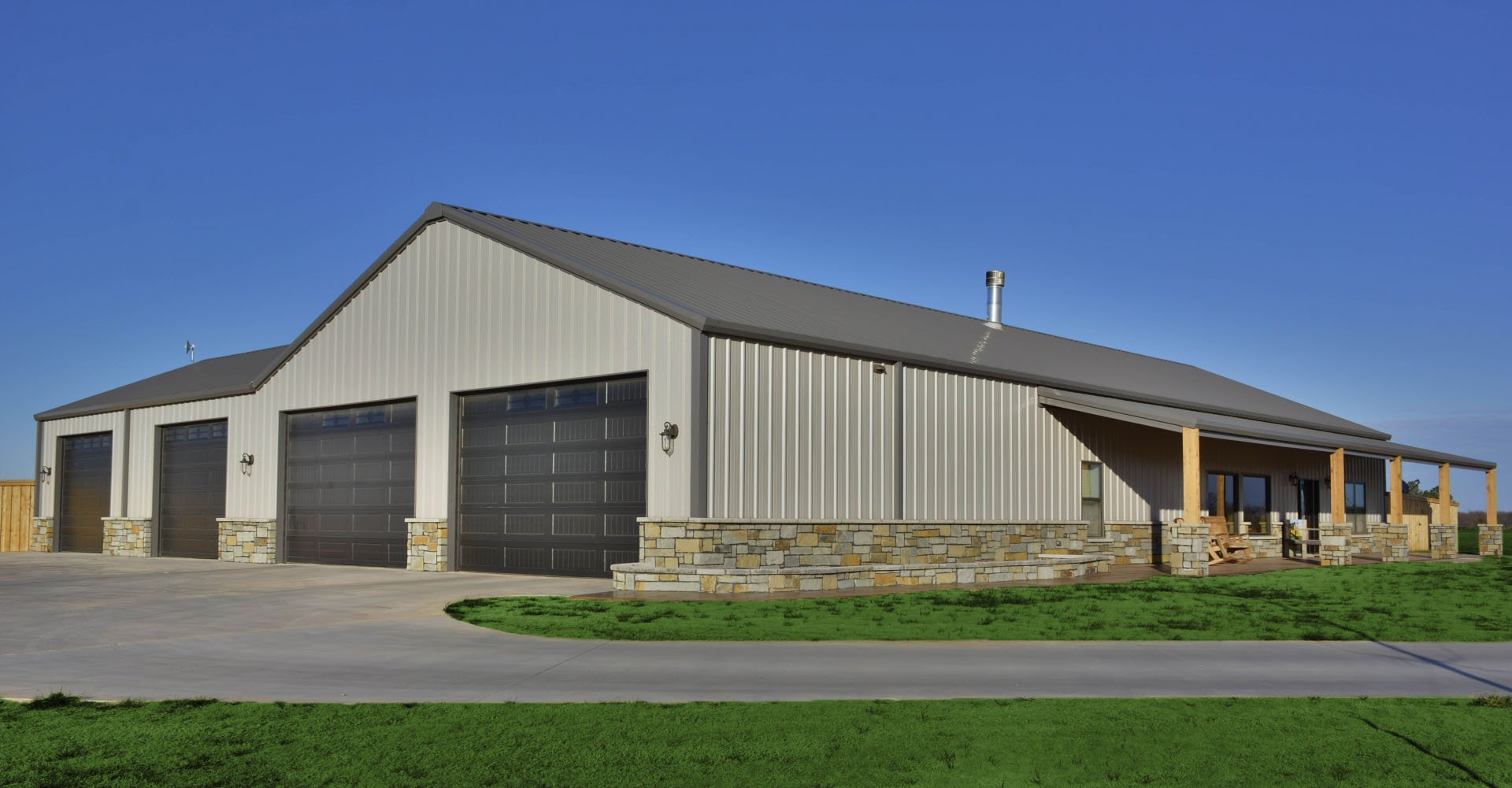

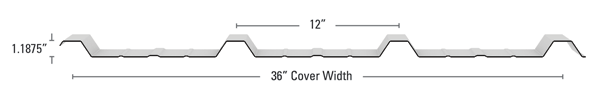

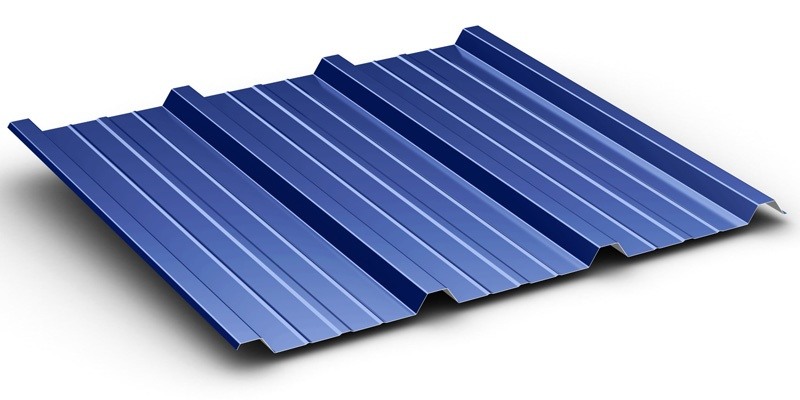

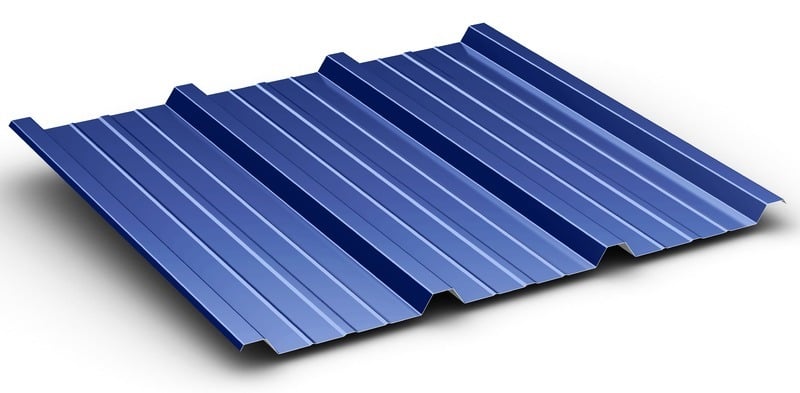

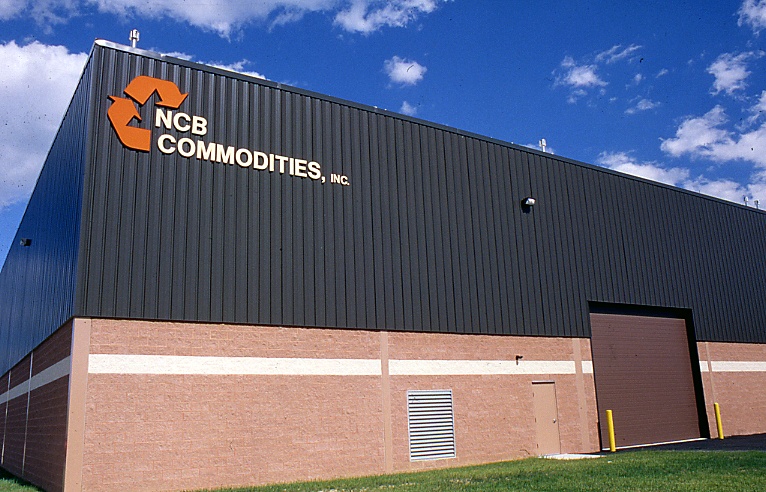

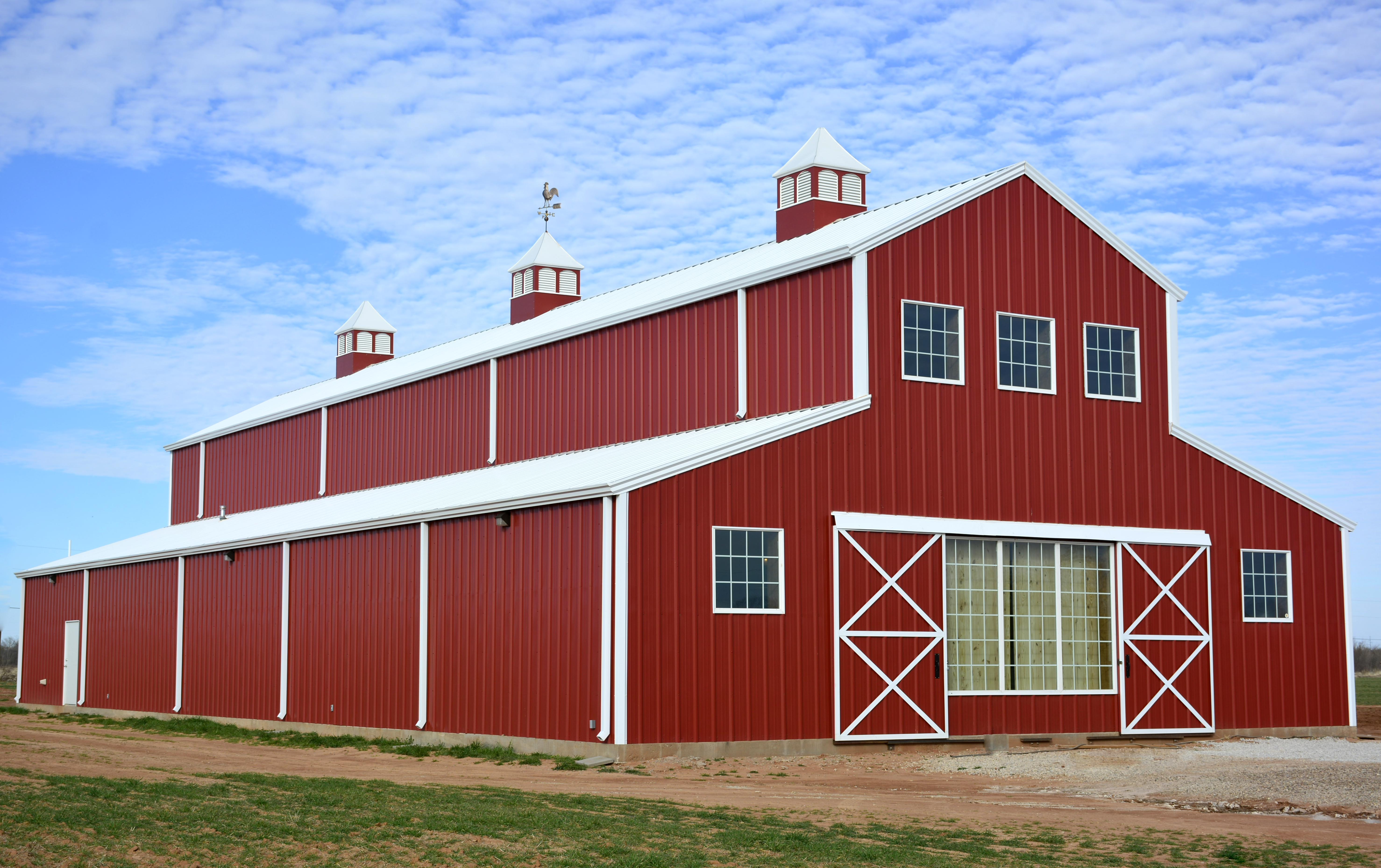

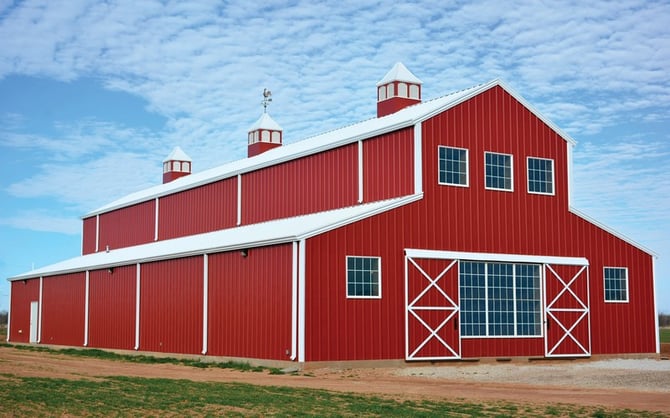

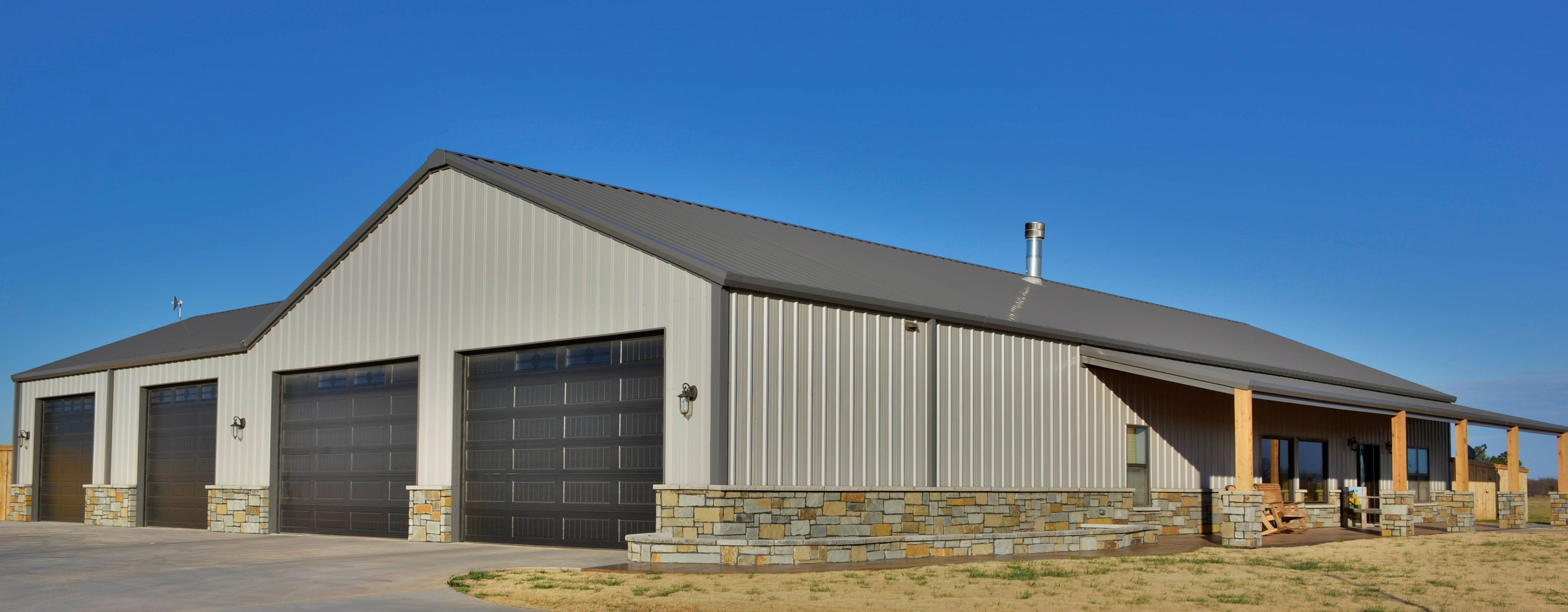

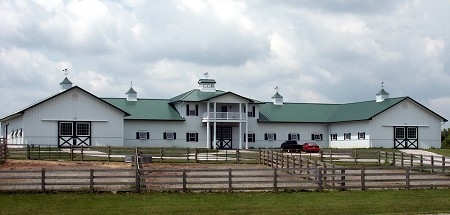

Multi-Rib is McElroy’s proprietary version of the industry’s standard R-Panel and is a multi-use roof and wall rib panel primarily used in pre-engineered metal building applications. An optional purlin bearing leg (PBR) rests on purlins and provides support for fastening the panel lap.

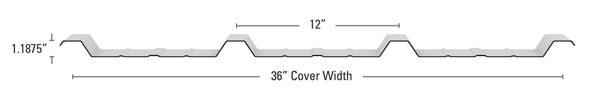

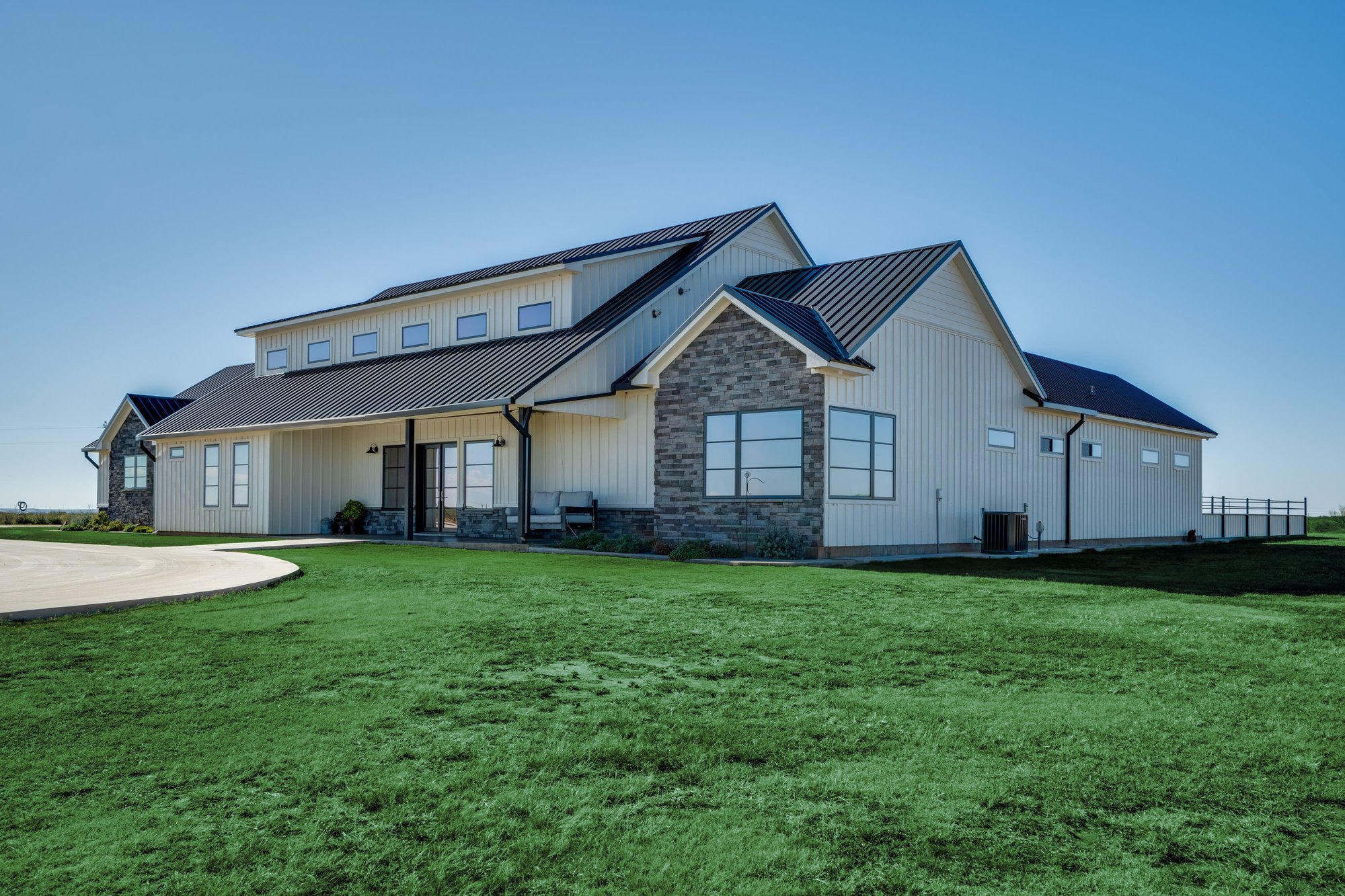

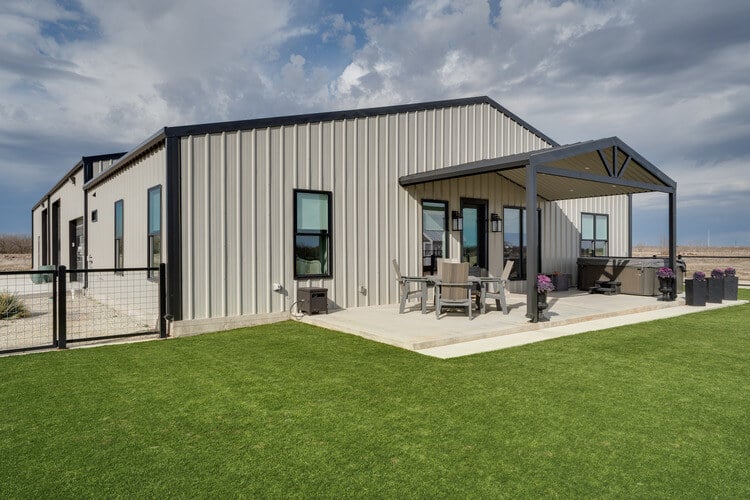

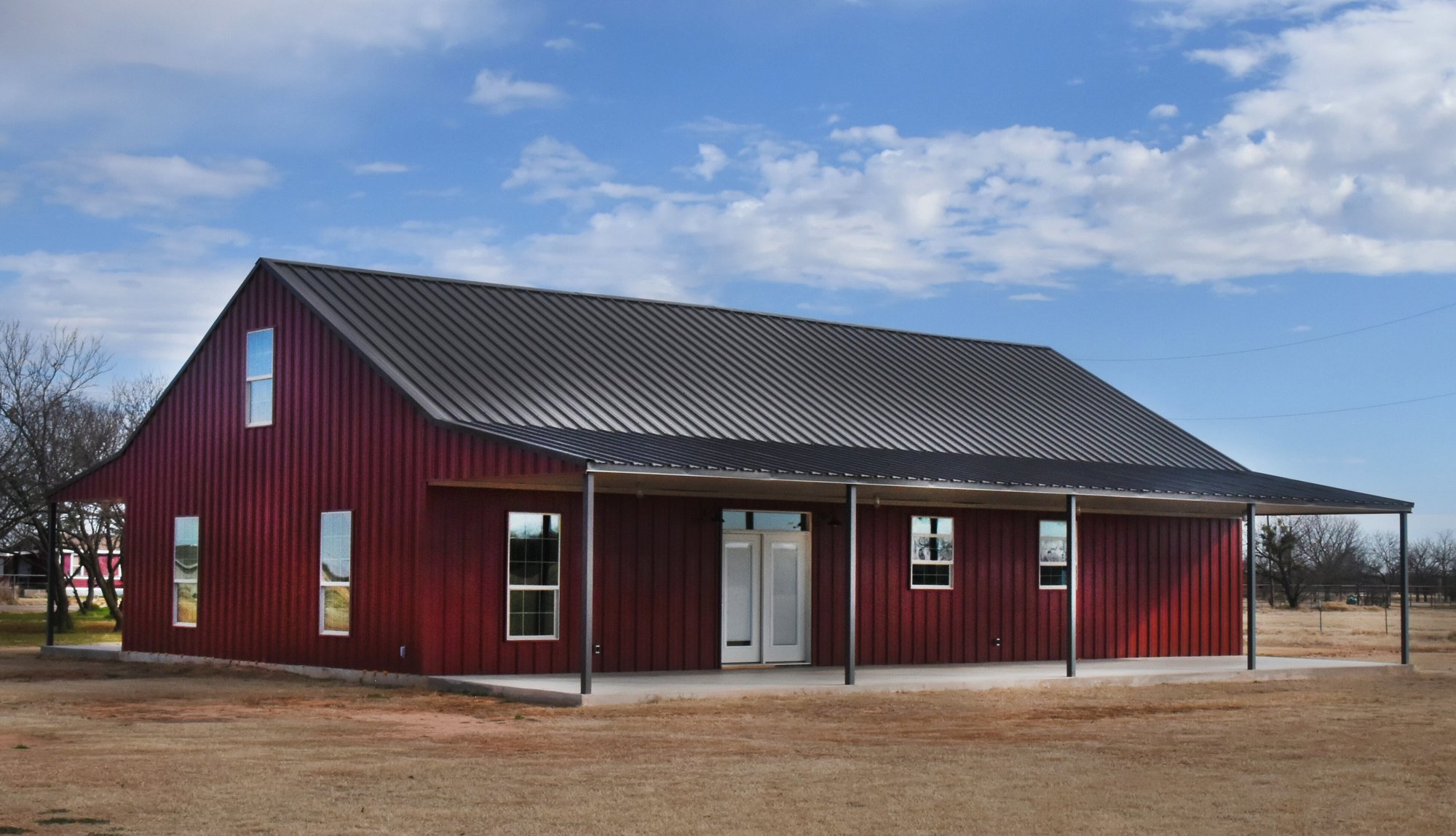

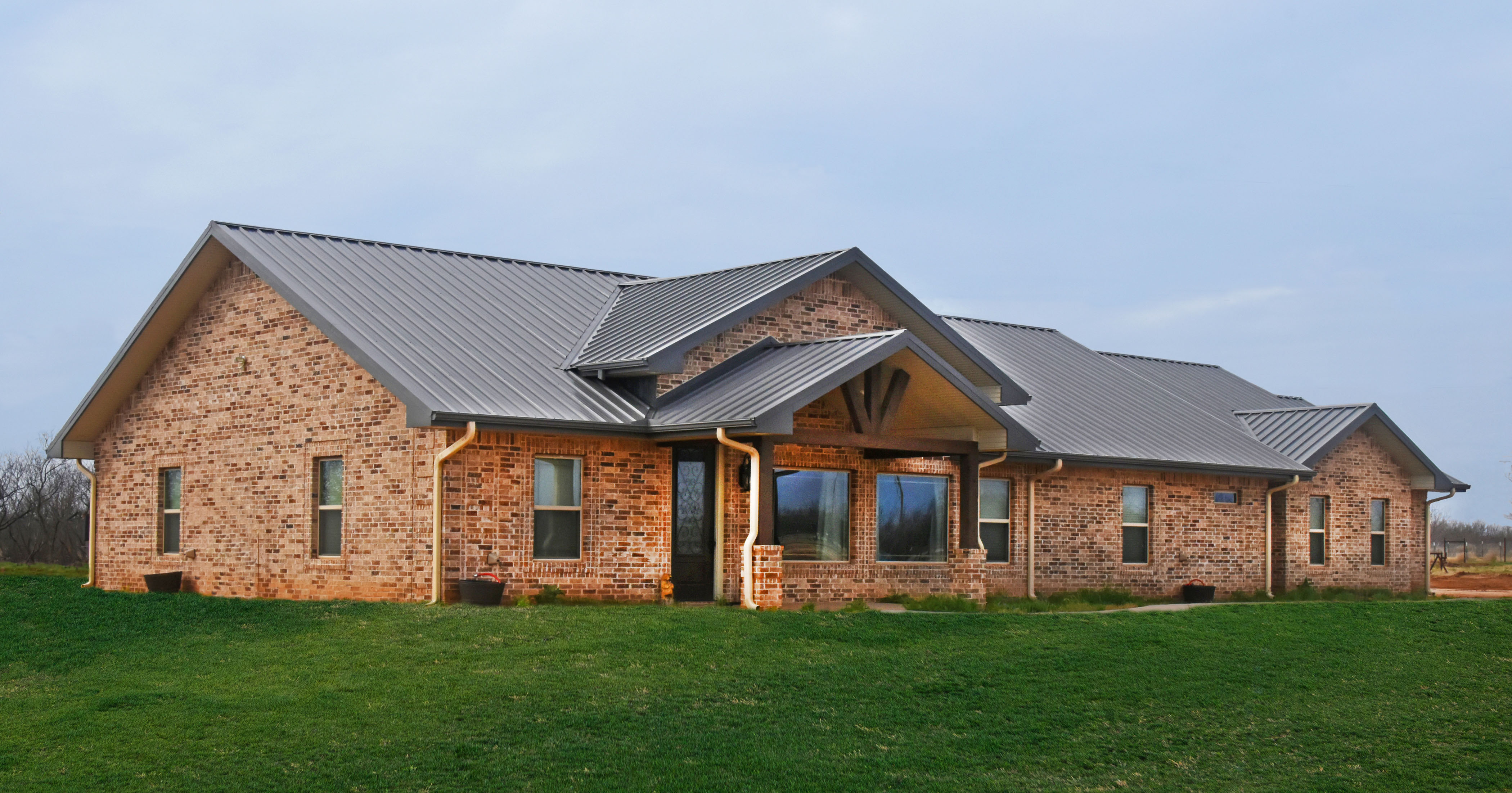

Multi-Rib is also commonly utilized for residential roofing, primarily in the Southwestern region. Featuring 1 1/4" major ribs, 12 inches on center, Multi-Rib's bold profile adds a distinct beauty to any home.

Click image to enlarge

Great for

Walls

Walls

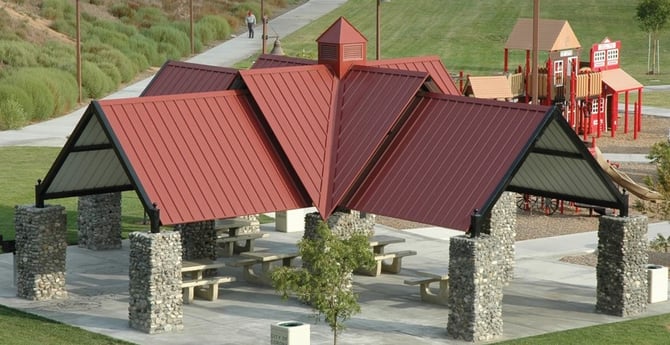

Roofs

Roofs

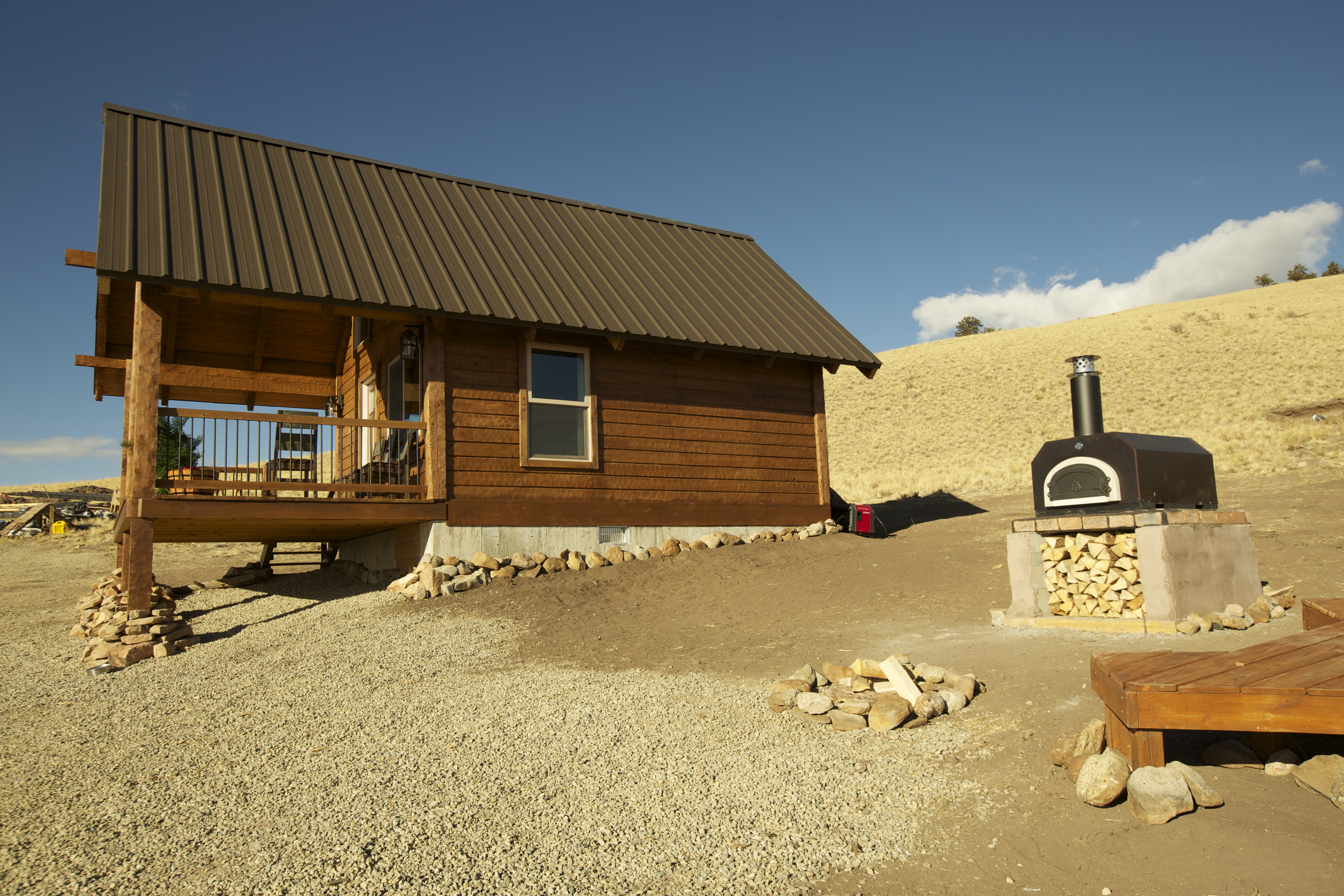

Residential

Residential

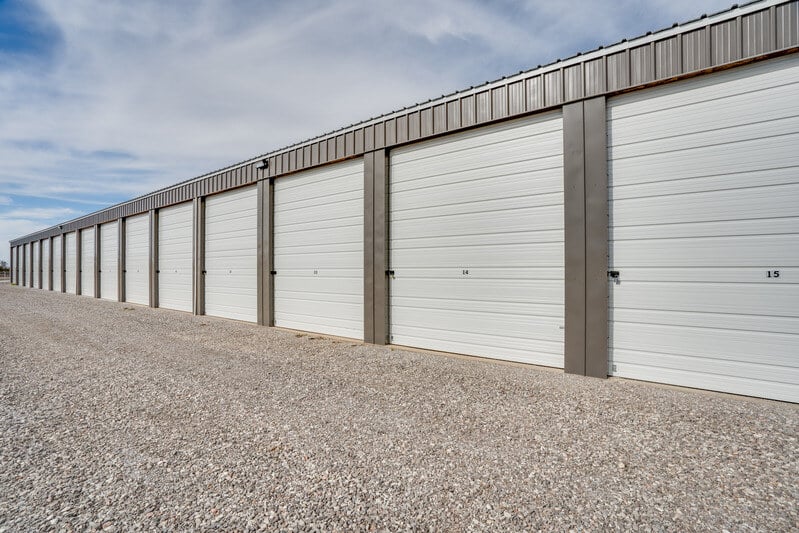

Commercial

Commercial

Specifications & Details

Details
Minimum slope (with sealant) 1:12
Manufacturing Facilities Bossier City, LA'; Clinton, IL; Winchester, VA; Adelanto, CA; Merkel, TX
Note Multi-Rib is also available with MoistureLok
Note Oil Canning is a natural occurrence in metal panels and is not a cause for panel rejection
Testing
Fire Rating Class A
Uplift Test UL580 Class 90; ASTM E1592 (26 GA PBR Only)
Air Infiltration ASTM E1680
Water Infiltration ASTM E1646
Class 4 Impact Resistance UL2218
Florida State Approval 1747.8, 1832.10
Fire Resistance UL263
Texas Department of Insurance Approval Evaluation RC-63 and RC-283
Testing Data For available Test Data, Section Properties or Load Tables, please visit our downloads section.
Panel Options
Panel Options 26 Ga: PBR and Non PBR. 24 & 22 Ga: Non PBR
Coating - Kynar 500® (PVDF)
- Silicone Modified Polyester (SMP)
Substrate - Standard 26 GA Galvalume®
- Optional 24, 22 GA Galvalume
