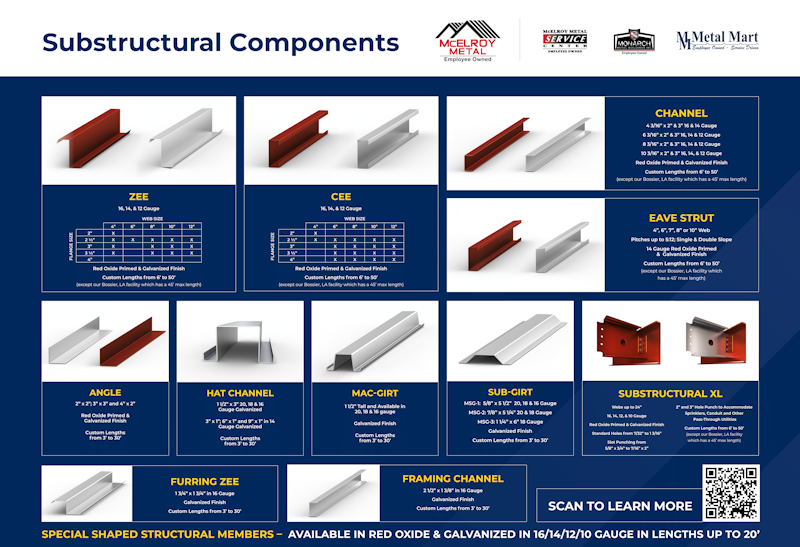

Substructural Components

Substructural Components

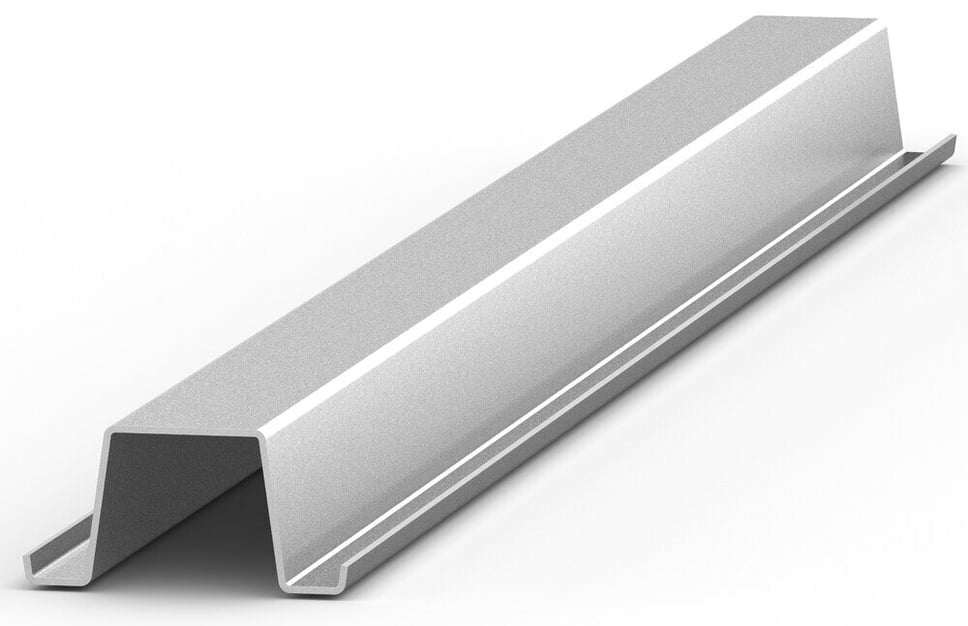

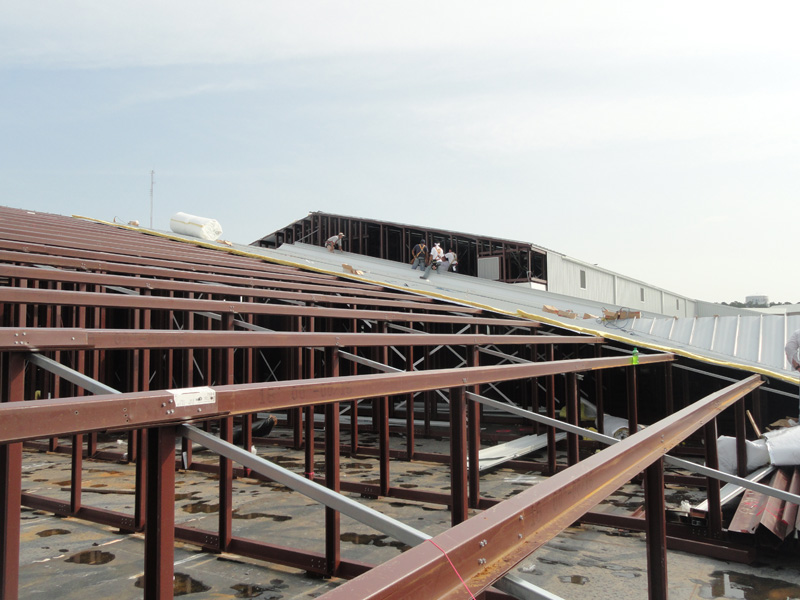

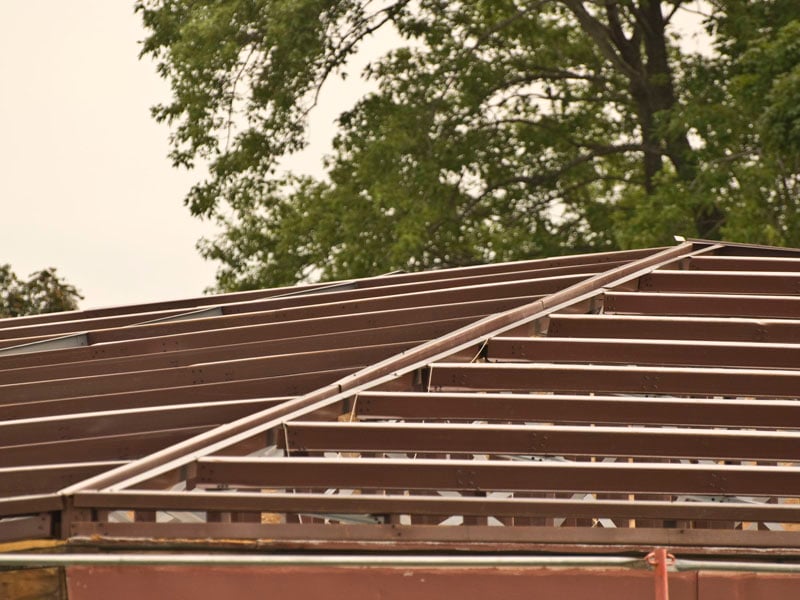

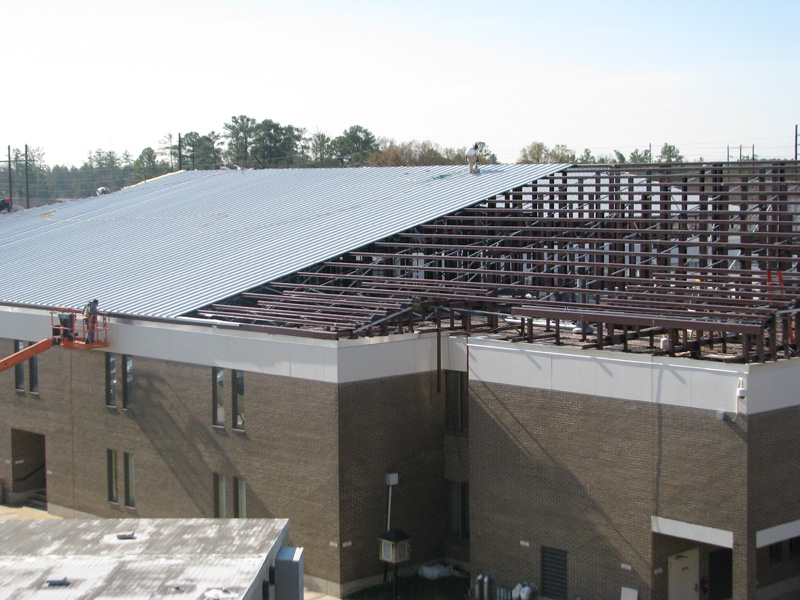

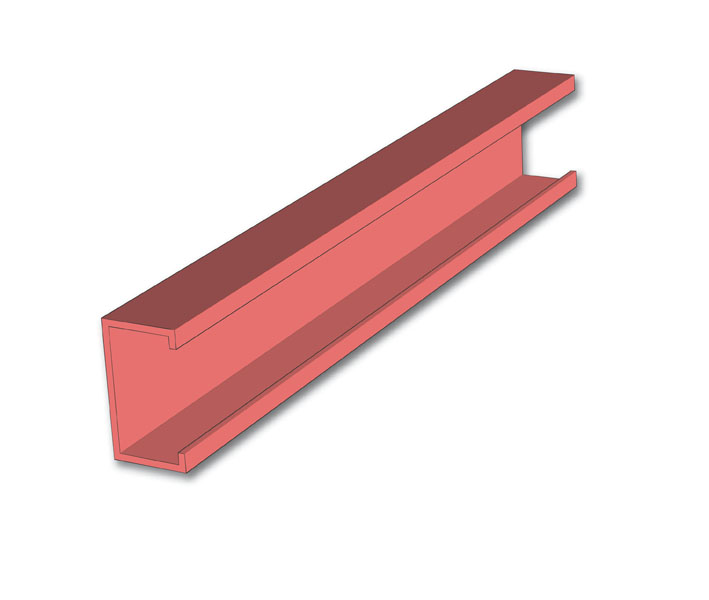

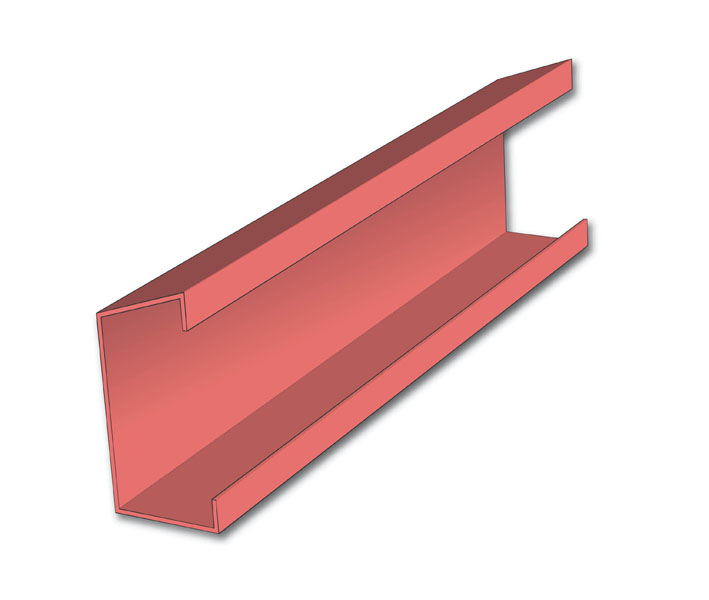

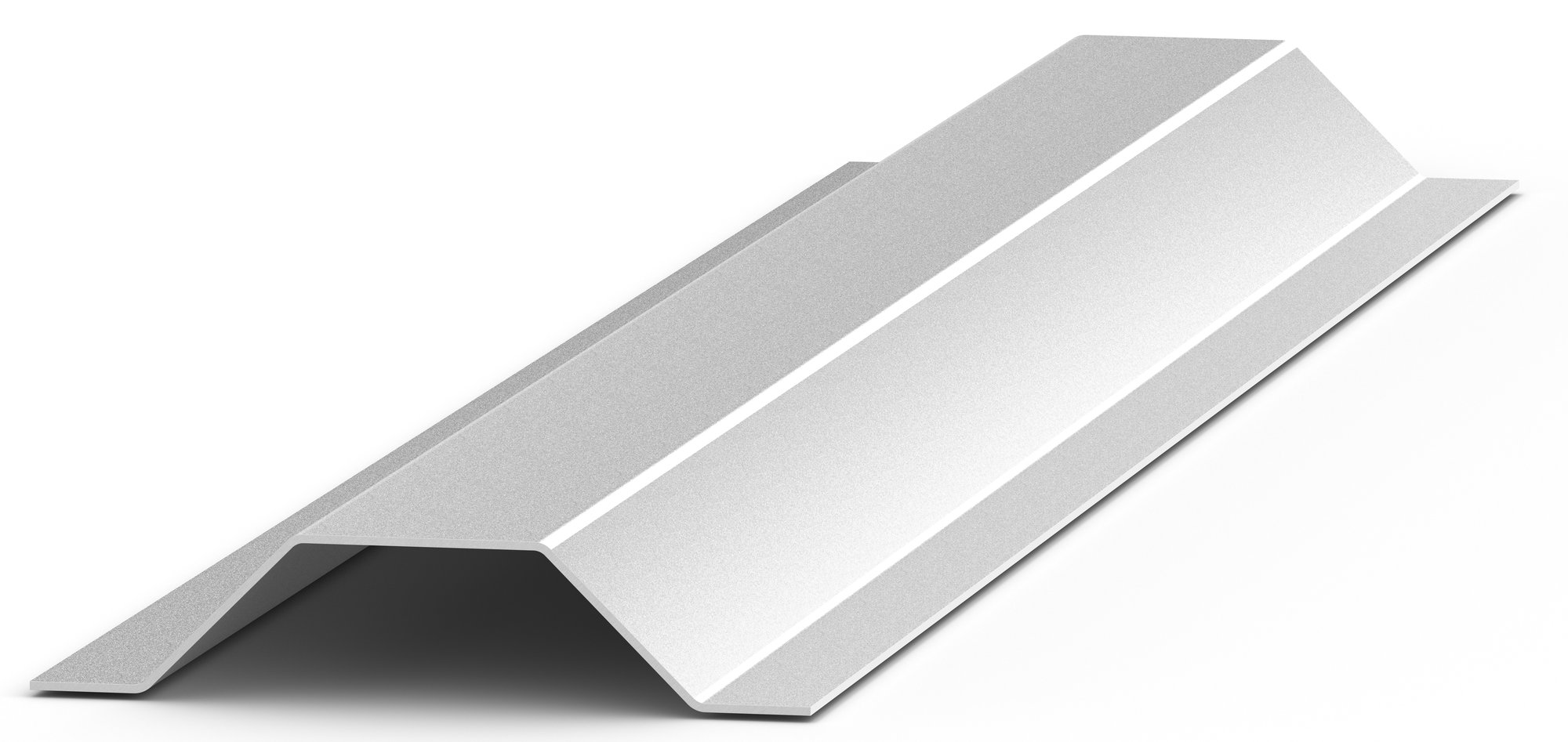

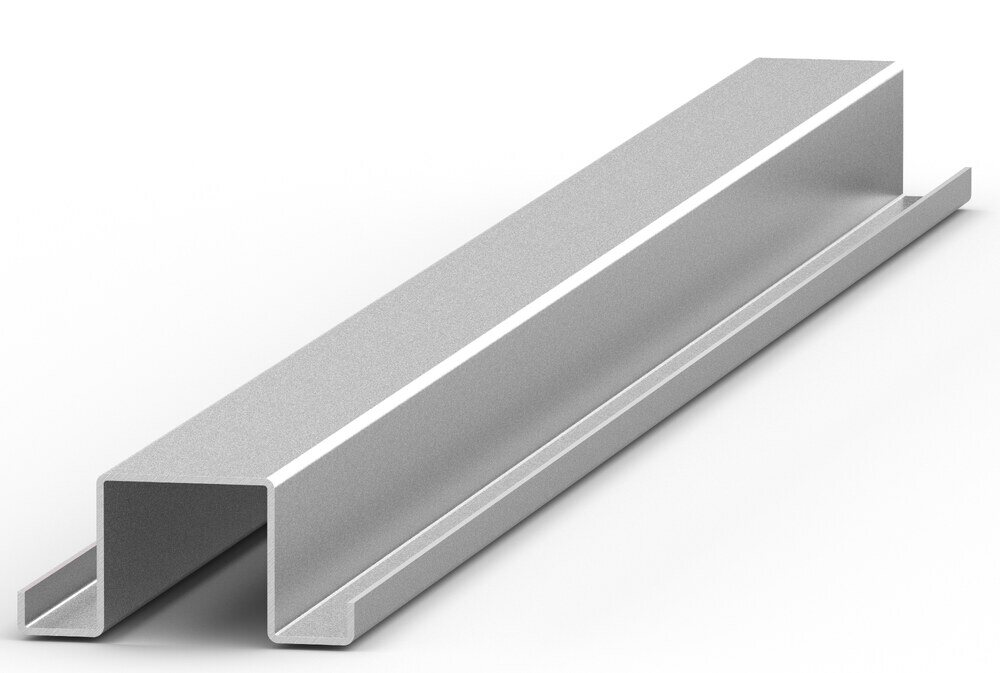

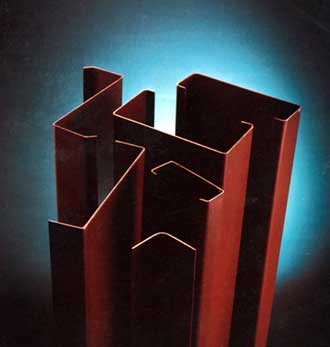

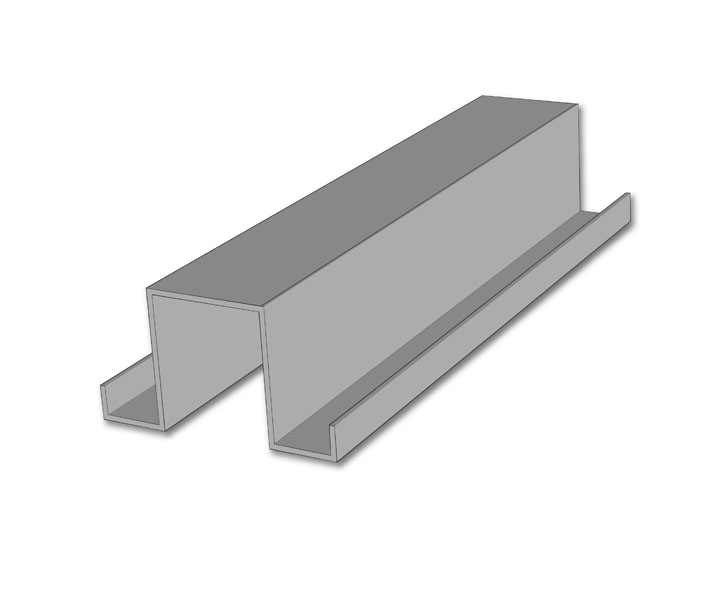

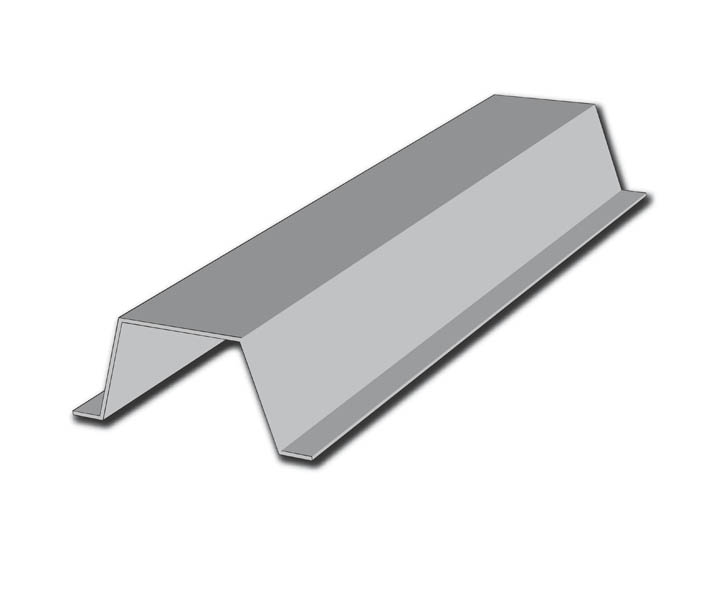

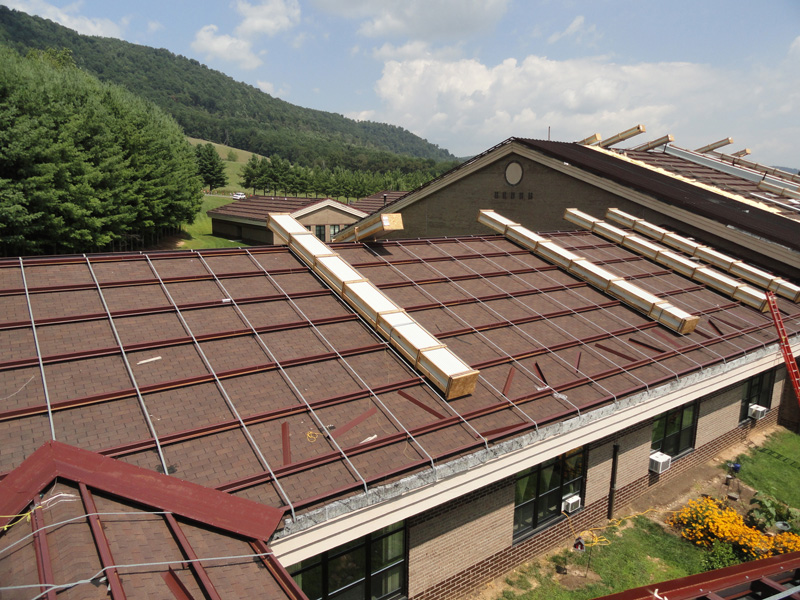

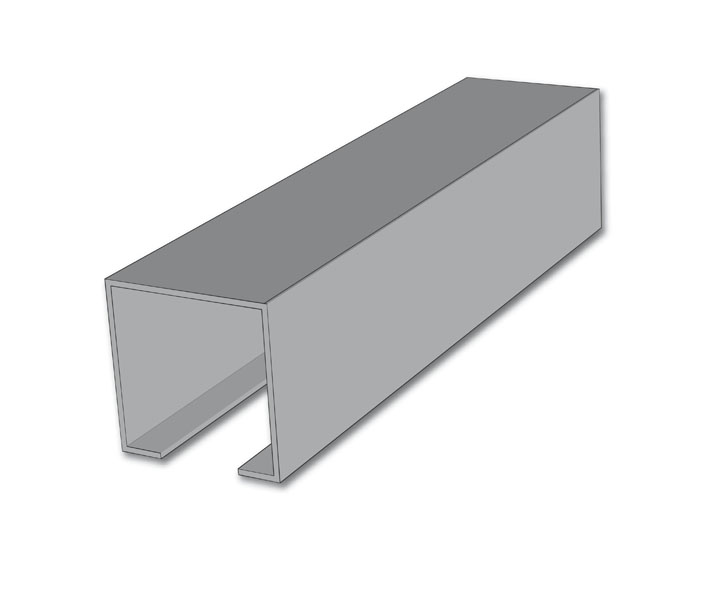

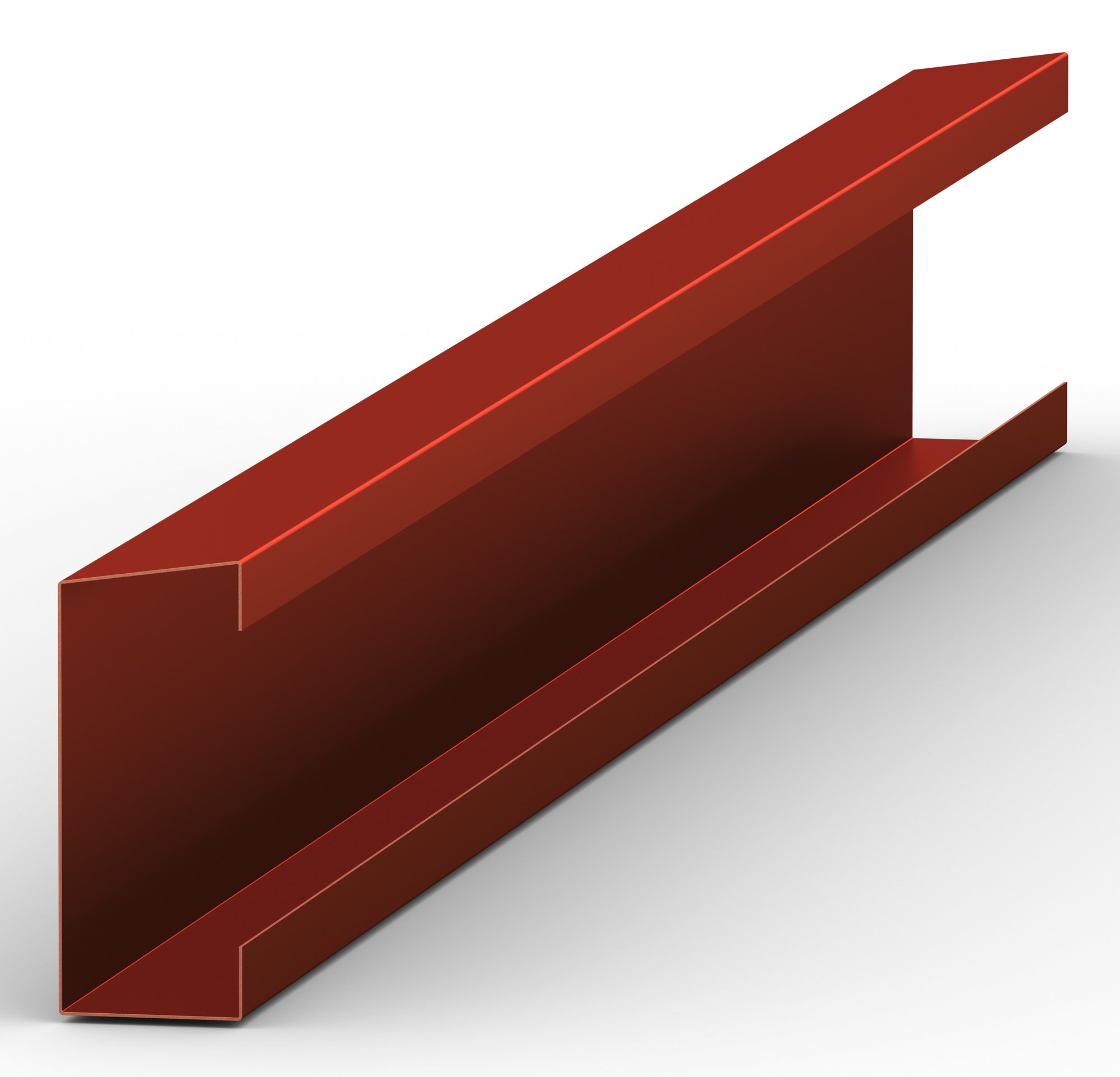

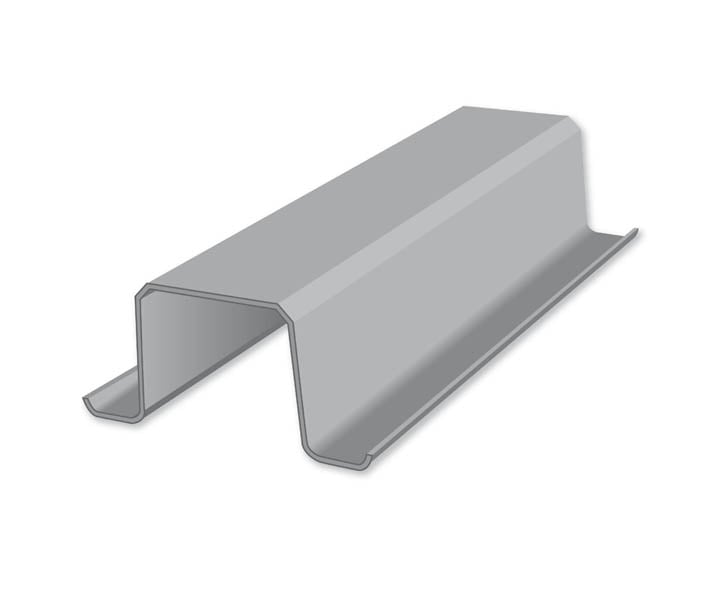

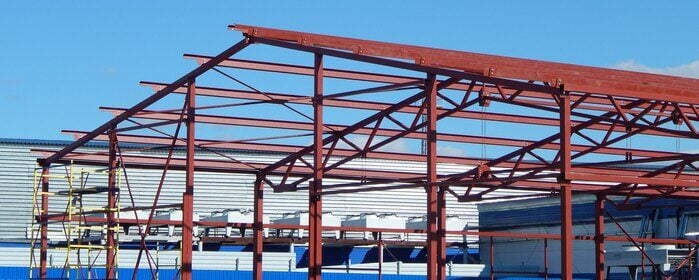

McElroy Metal manufactures an extensive line of cold-formed substructural components including Cees, Zees, Eave Struts, Sub-Girts, Angles, Hats, and Channels. McElroy substructural components are utilized in a wide variety of applications including pre-engineered metal buildings, retrofit roofing, mansard framing and ground-mount solar arrays.

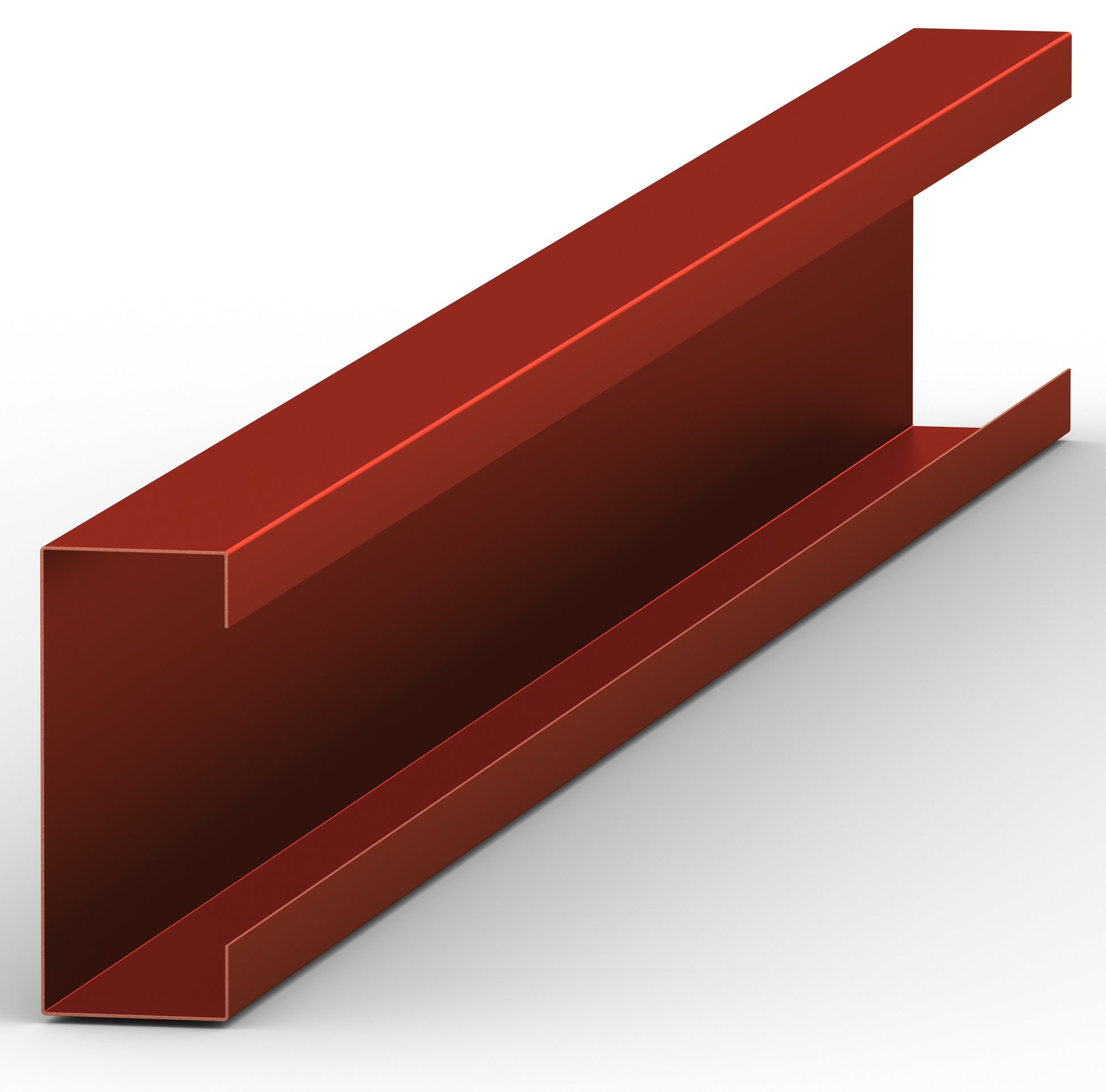

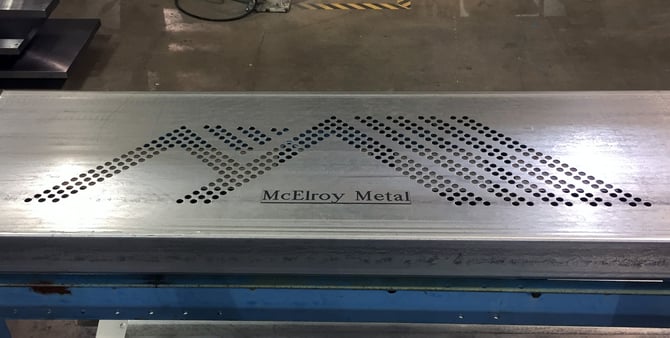

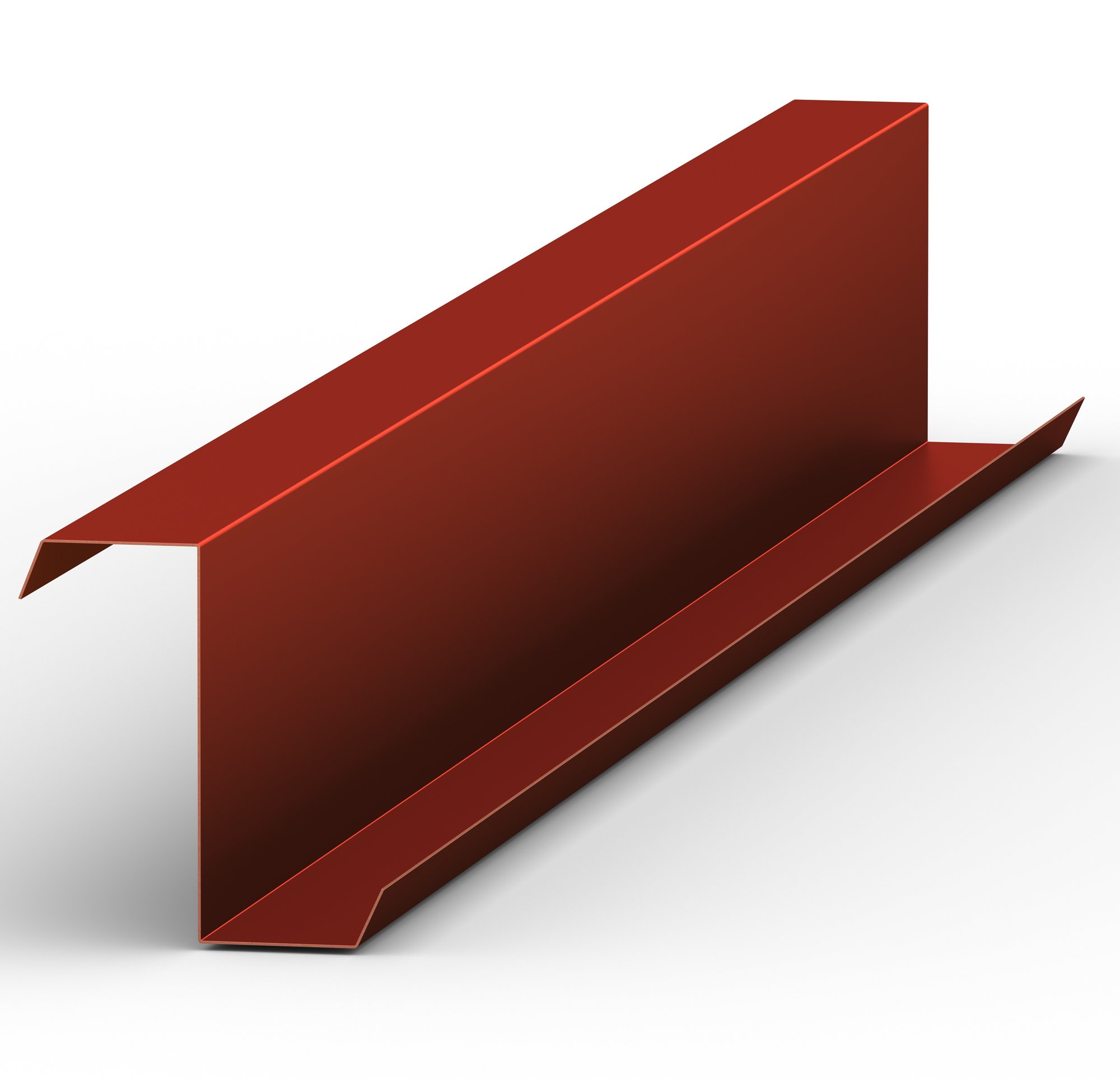

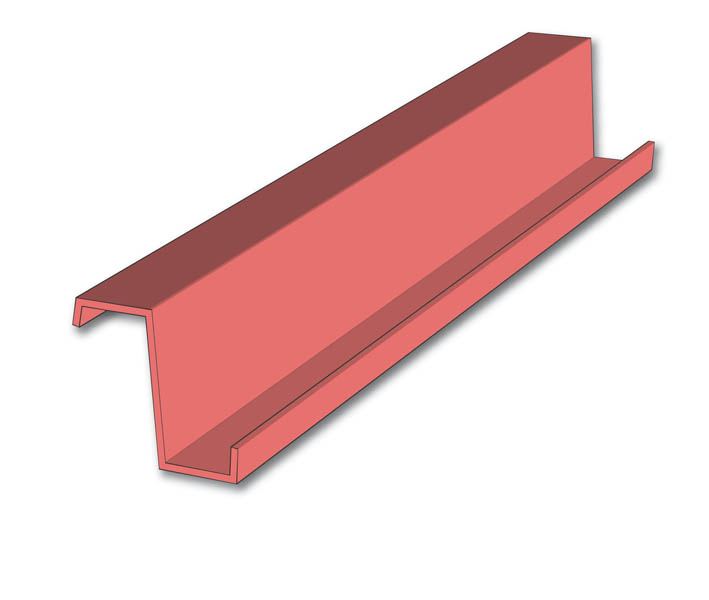

Cees, Zees and Eave Struts are available with a wide variety of industry-norm standard punching patterns. Custom punching is also available. McElroy Zees are manufactured in non-symmetrical flange sections, which makes lapping and installation easier.

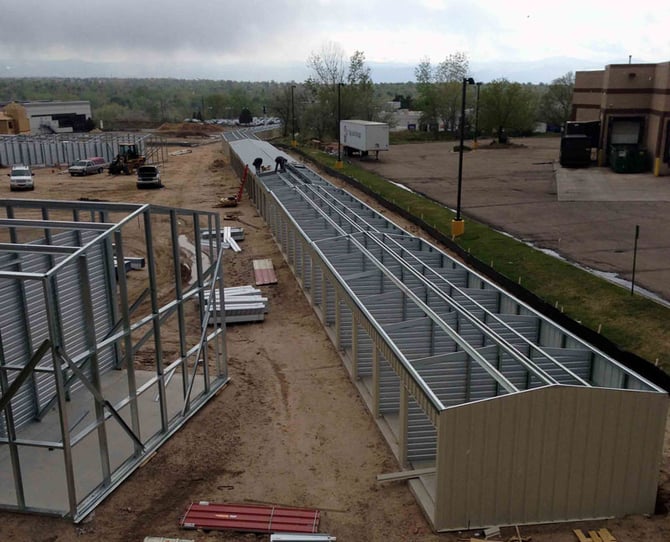

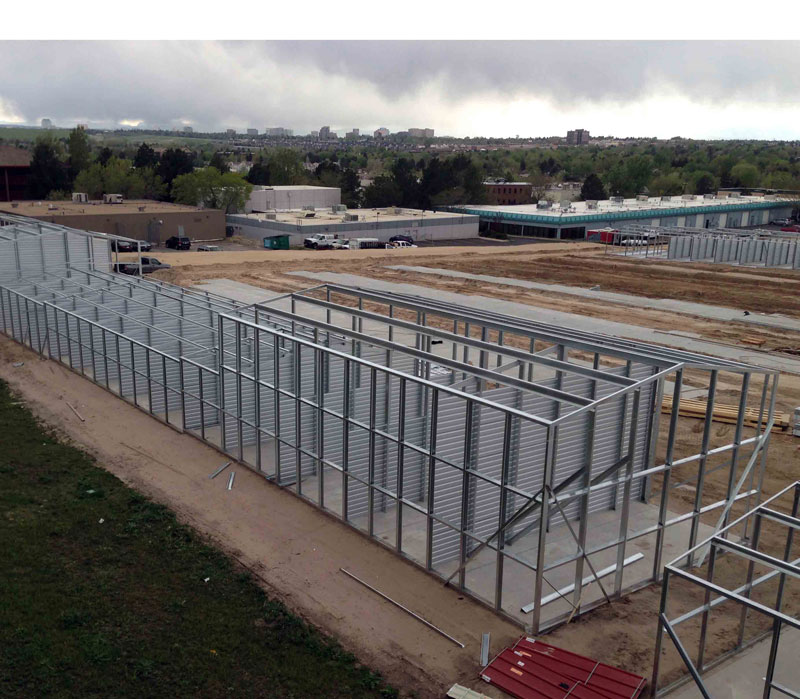

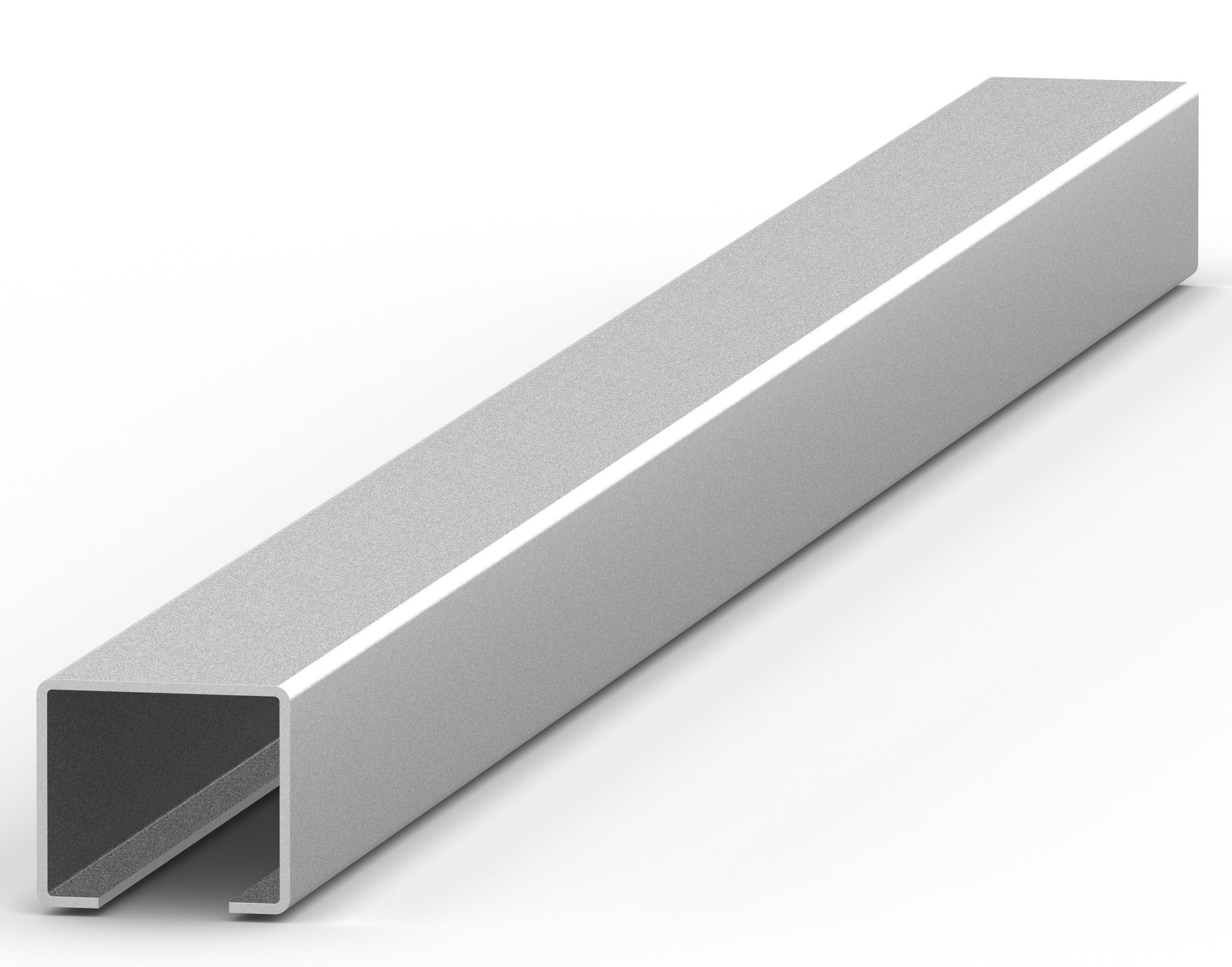

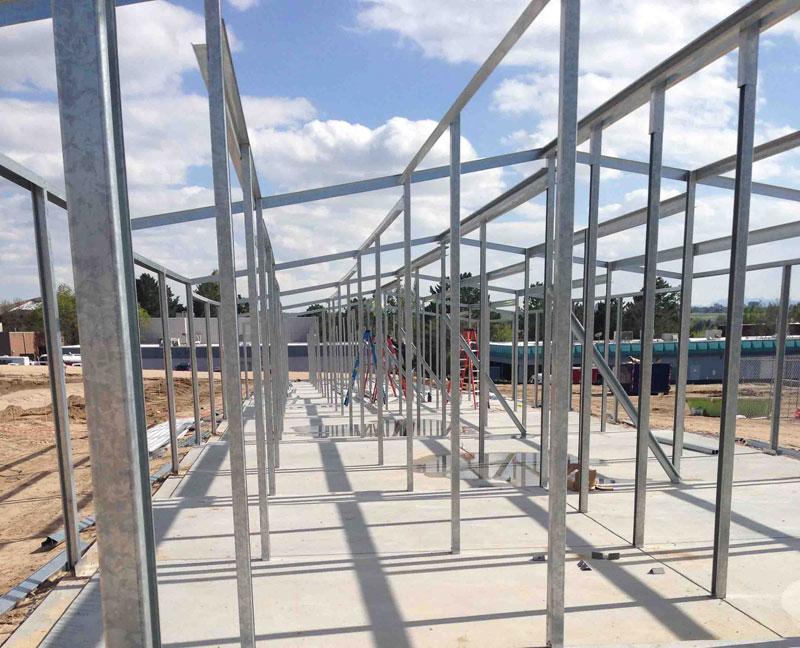

Red oxide is standard for most McElroy manufacturing facilities. Galvanized (G-90) is also available for popular sizes and is the standard finish in Adelanto, California. This wide range of availability offers unlimited design flexibility in a quality product.

View Related Files
Click image to enlarge

Great for

Walls

Walls

Roofs

Roofs

Residential

Residential

Commercial

Commercial

Substructural XL

Setting the new industry standard, McElroy Metal's Substructural XL components generate labor and material savings that boost sales revenue and enhance bottom-line performance.

  • 10, 12, 14 and 16 gauge members with webs up to 24" enable value engineering and optimization opportunities.

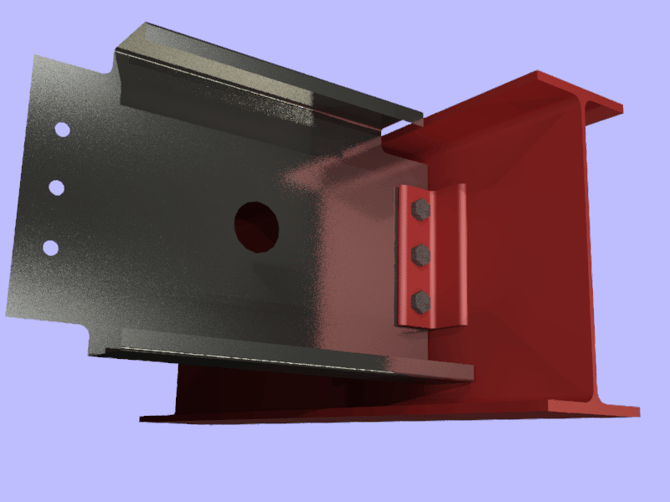

  • Factory flange notching reduces costly secondary fabrication and/or field torching and cutting. Supports top and/or bottom flange as well as leading and/or trailing end.
  • Flexible punching capabilities reduces costly field drilling.
    • Standard holes from 7/32" to 1 3/16".
    • Slot punching from 5/8" x 3/4" to 7/16" x 2".
    • 2" and 3" hole punch to accommodate sprinklers, conduit and other pass-through utilities.
