MasterLok-90 and MasterLok-FS Trapezoidal Panels
The Benefits of MasterLok-90 and MasterLok-FS Panels
Great for:
WALLS
ROOFS
RESIDENTIAL
COMMERCIAL

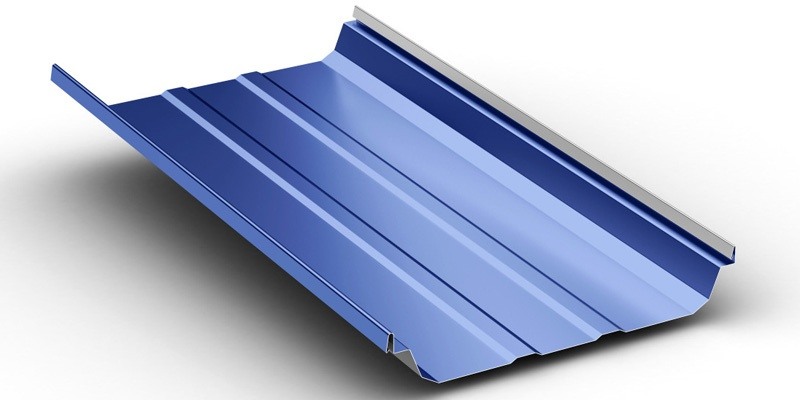

MasterLok-90 (also referred to as ML-90) is a snap together trapezoidal standing seam system designed for projects with slopes as low as 1/4:12.

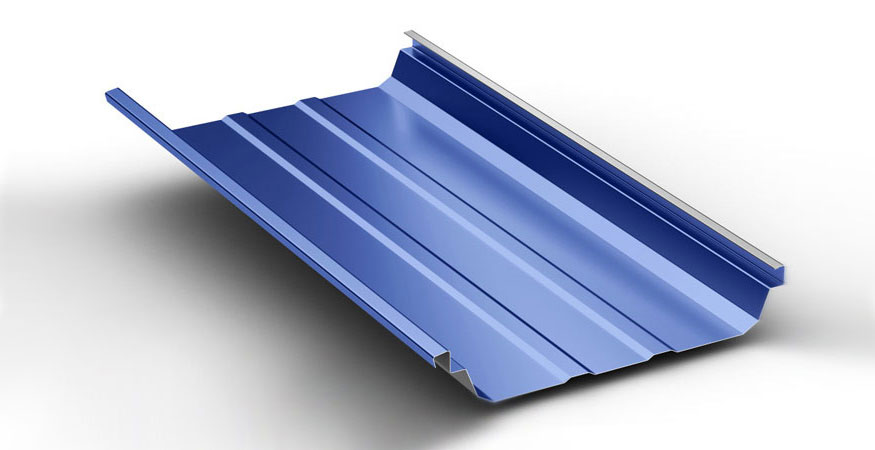

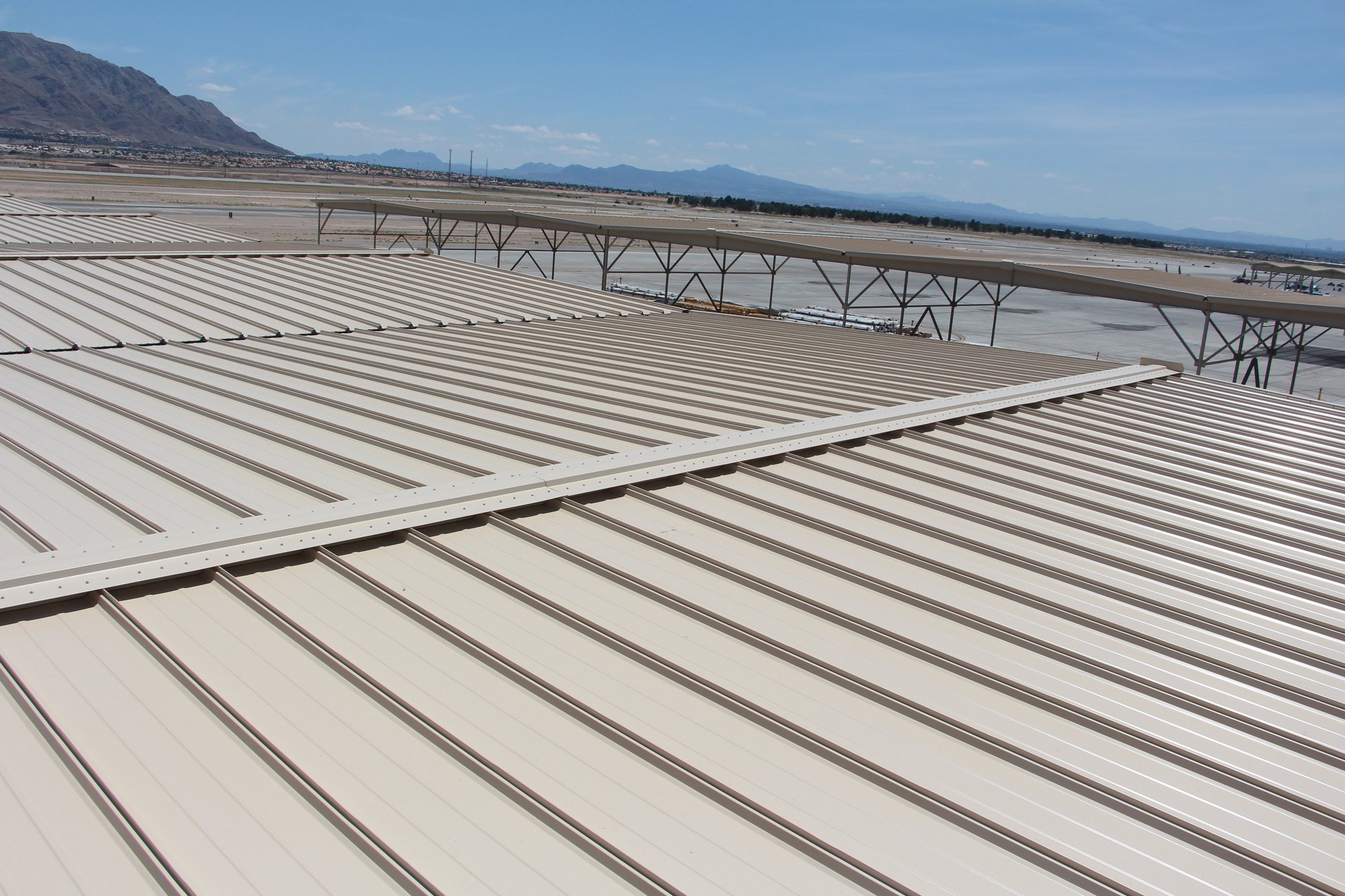

MasterLok-FS (also referred to as ML-FS) is a mechanically seamed trapezoidal standing seam system also designed for projects with slopes as low as 1/4:12. For seaming tool rental click here.

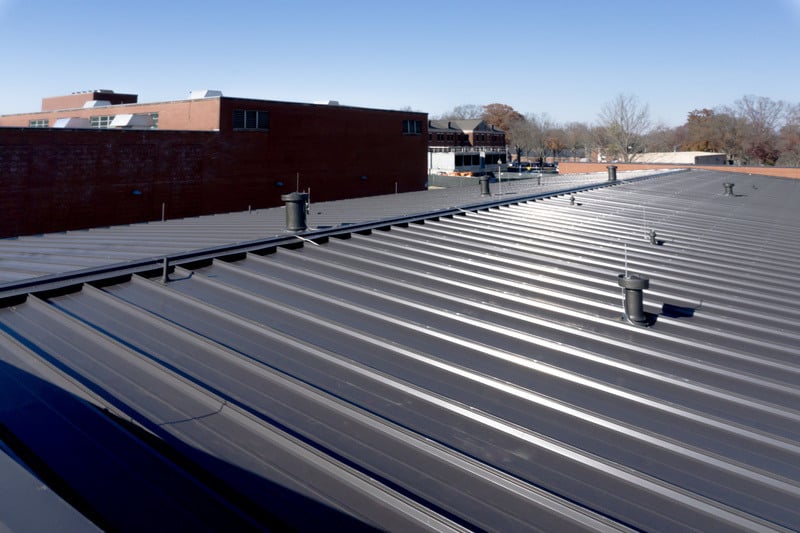

Both panels are best suited for simple sloped roofs without dormers, hips, valleys or other special conditions. ML-90 and ML-FS can be installed over solid decking or substructural members.

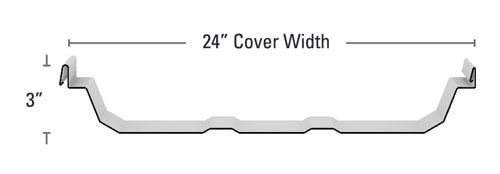

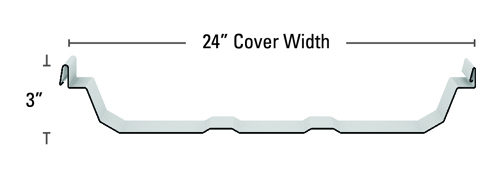

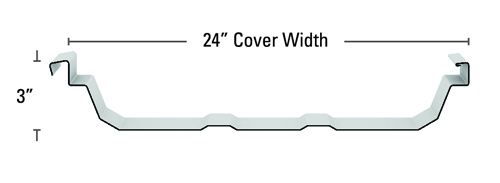

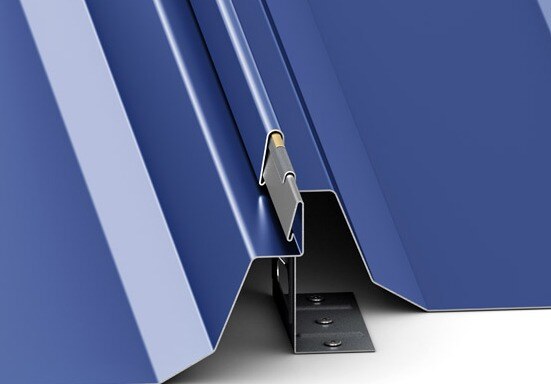

Renderings & Profiles
Factory Applied Anti-Condensation Membrane
MasterLok-90/MasterLok-FS roof panels with McElroy's MoistureLok, offer a great option to address condensation challenges. The design of our MoistureLok product traps moisture and then releases it back into the air as natural humidity once conditions go back below the dew point.
Specifications & Details
Details
Sealant
Factory applied to improve weather-tightness
Minimum slope
ML-90 1/4:12; ML-FS 1/4:12
Installation
Can be over solid deck or open framing
Manufacturing Facility
Bossier City, LA; Clinton, IL; Winchester, VA; Ashburn, GA
MasterLok-FS
Mechanically seamed system
MasterLok-90
Snap Together System
Note
MoistureLok available on MasterLok-90
Note
Oil Canning is a natural occurrence in metal panels and is not a cause for panel rejection
Testing
Fire Rating
Class A
Uplift Test
UL580 Class 90, ASTM E1592
Air Infiltration
ASTM E1680
Water Infiltration
ASTM E1646
Class 4 Impact Resistance
UL2218
MasterLok-90 Florida State Approval
1832.2, 1747.1
MasterLok-FS Florida State Approval
8051.1
Testing Data
For available Test Data, Section Properties or Load Tables, please visit our downloads section.
Panel Options
Panel Width
24"
Coating
Kynar 500® (PVDF)
Substrate
- Standard 24 GA Galvalume®
- Optional 22 GA Galvalume® (Inquire. Possible minimum order and longer lead time may apply.)
Details and Components Gallery

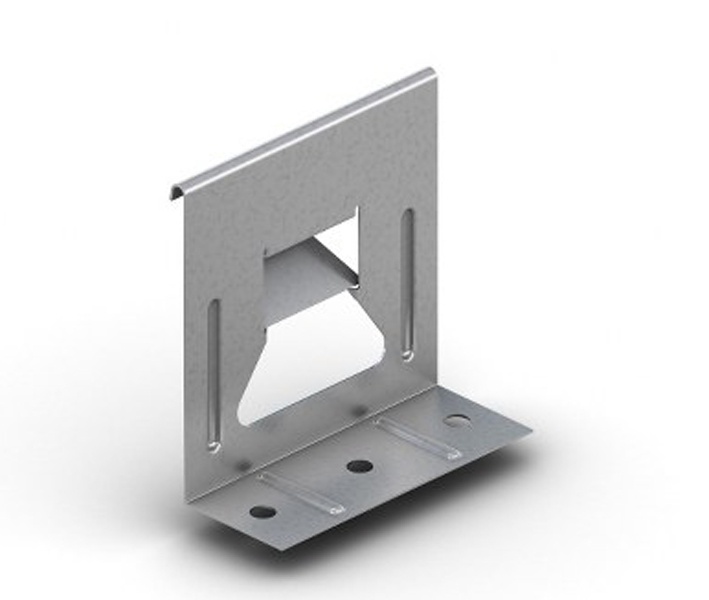

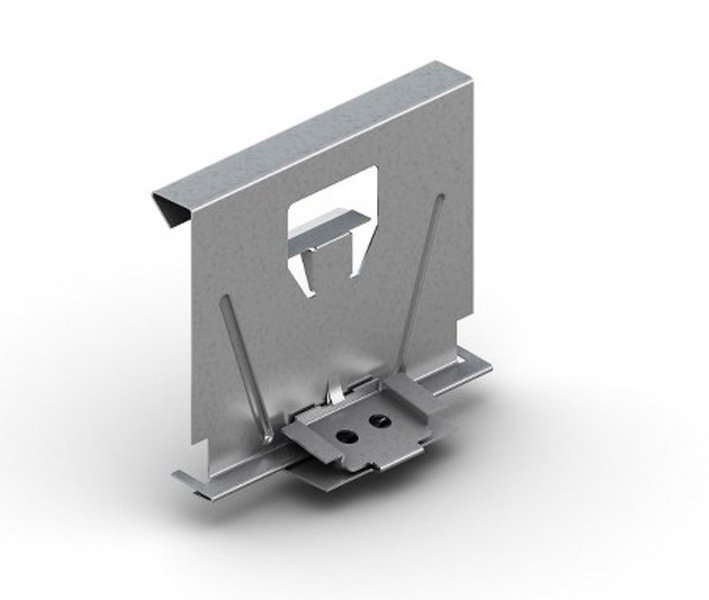

ML-90 Low Fixed Clip (Utility Fixed & High Fixed Clips also Available)

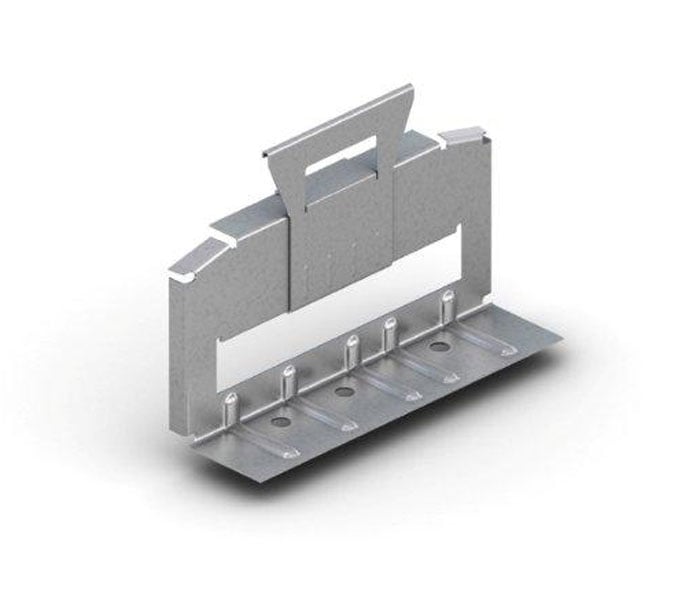

ML-90 Low Floating Clip (High Floating Clip also Available)
ML-FS Low Floating Clip (High Floating & Tall Floating Clips also Available)

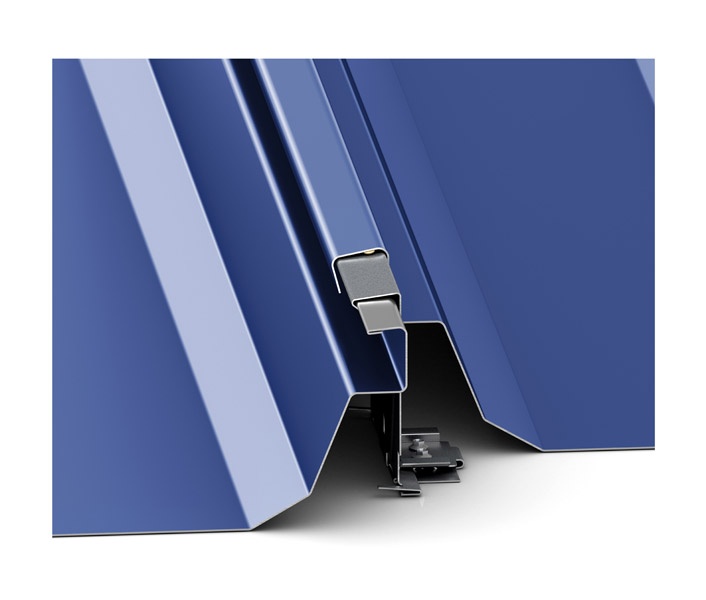

MasterLok-FS Before Seaming

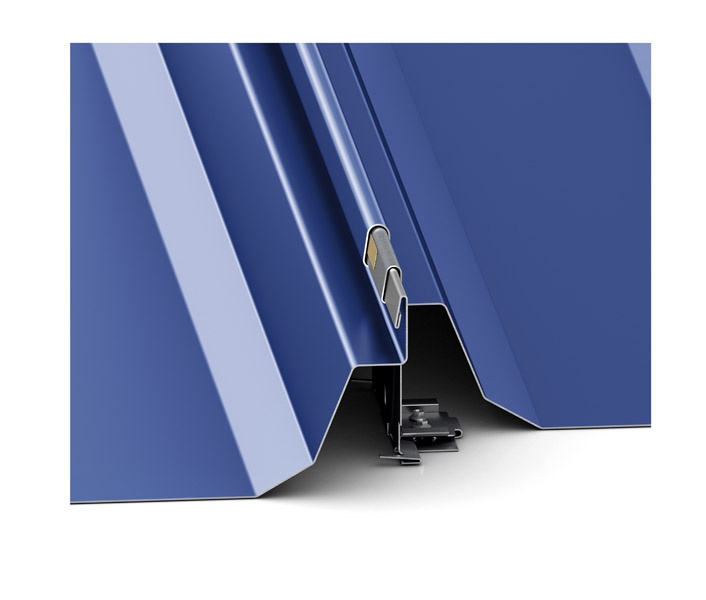

MasterLok-FS After Seaming

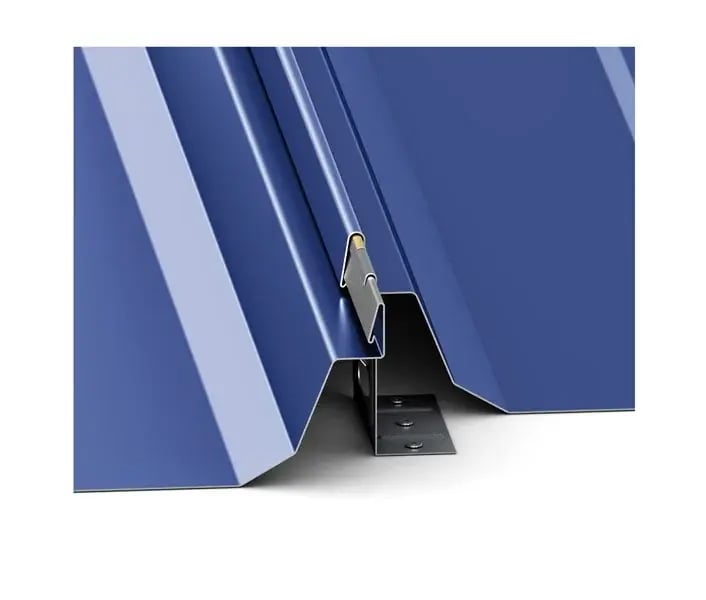

MasterLok-90 After Seaming
ML-90 Low Fixed Clip (Utility Fixed & High Fixed Clips also Available)
ML-90 Low Fixed Clip (Utility Fixed & High Fixed Clips also Available)
ML-90 Low Floating Clip (High Floating Clip also Available)
ML-FS Low Floating Clip (High Floating & Tall Floating Clips also Available)
MasterLok-FS Before Seaming
MasterLok-FS After Seaming
MasterLok-90 After Seaming
ML-90 Low Fixed Clip (Utility Fixed & High Fixed Clips also Available)
