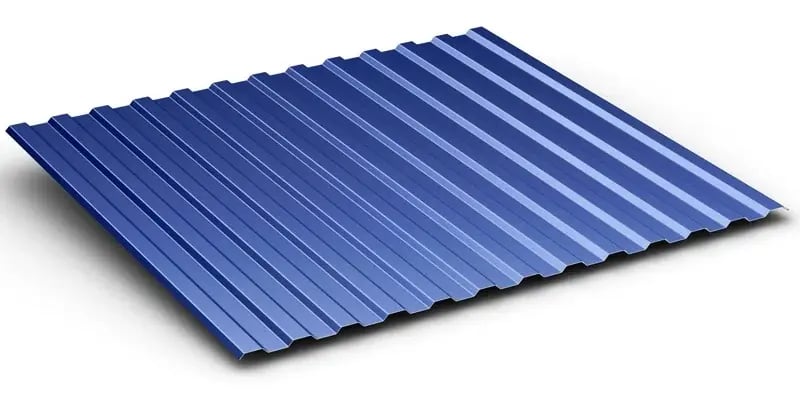

Mini-Rib Panel

Mini-Rib Panel

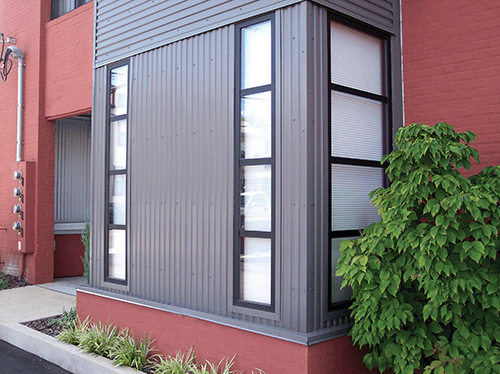

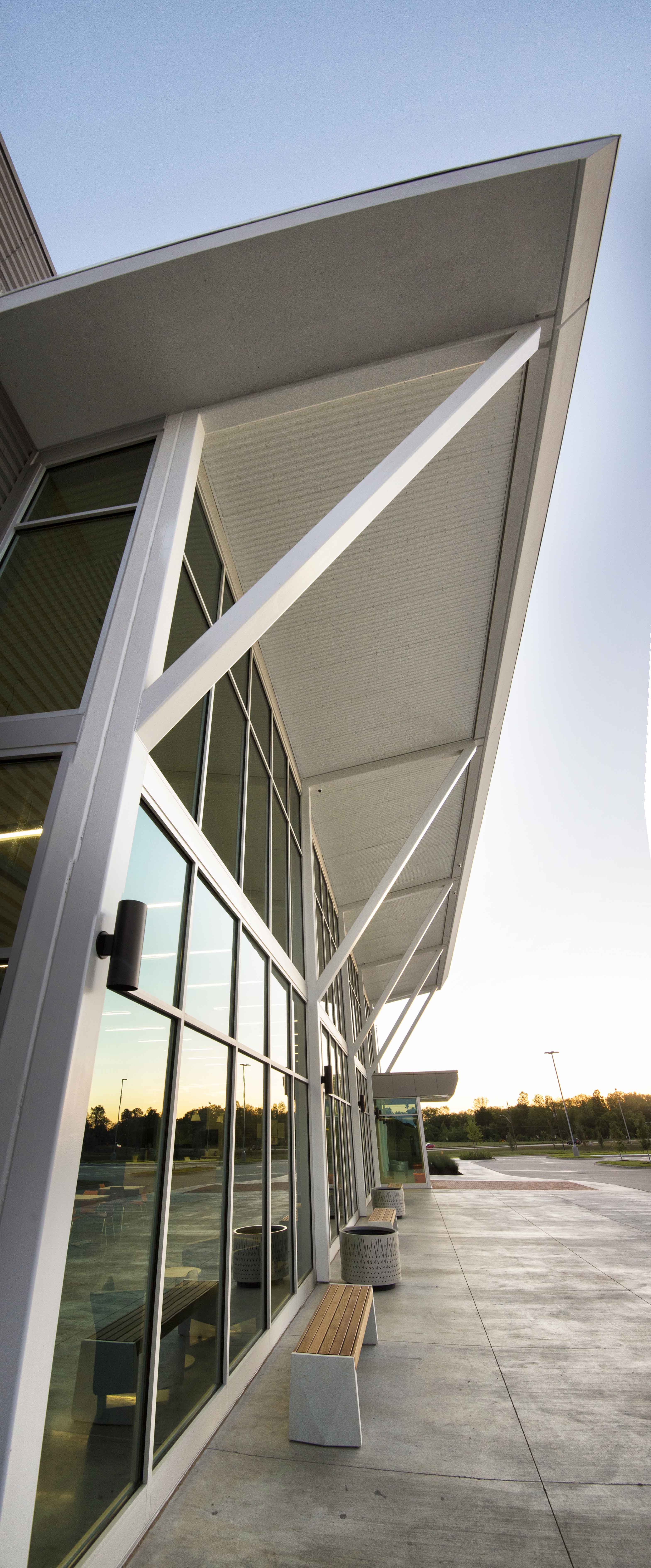

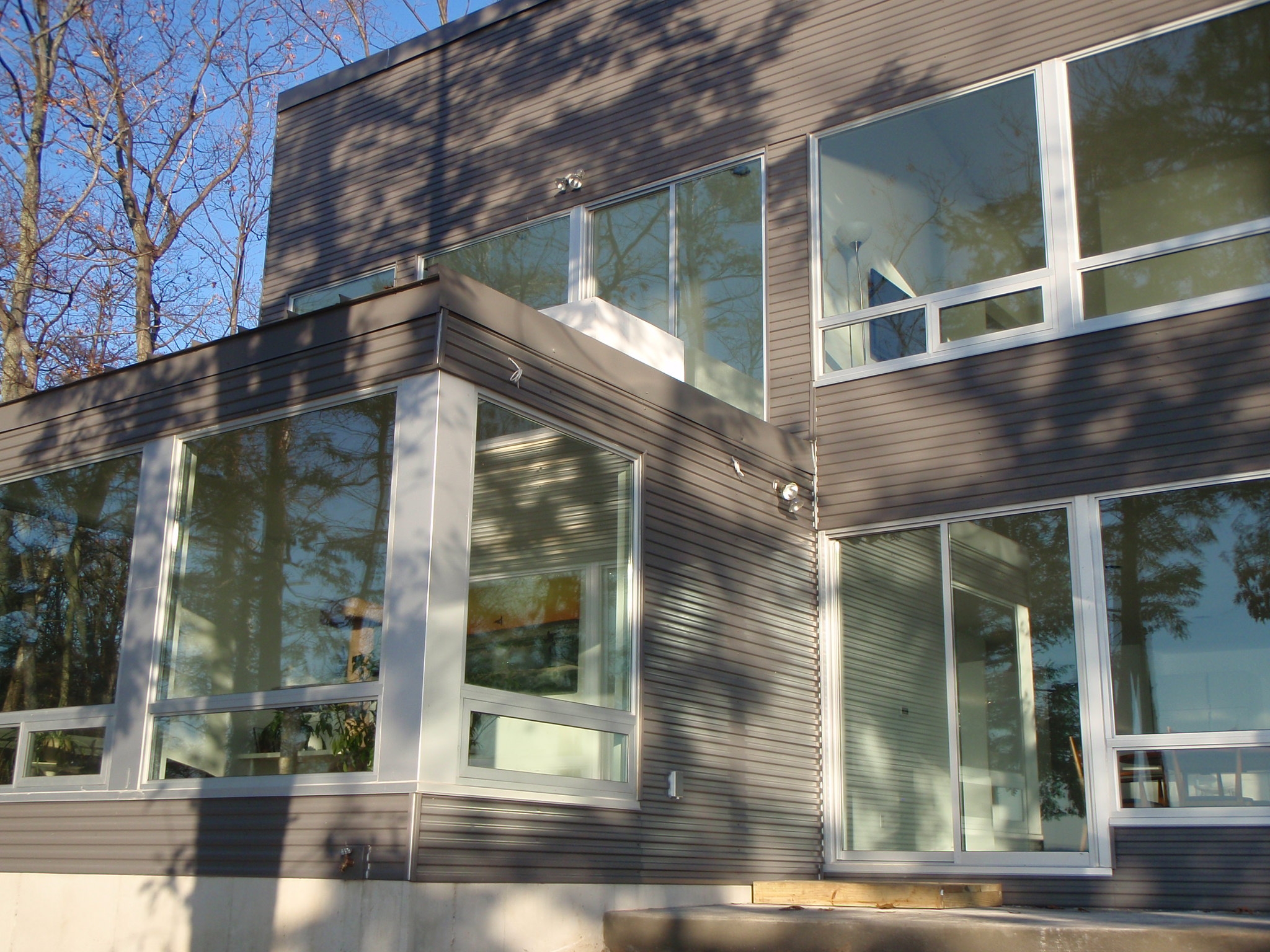

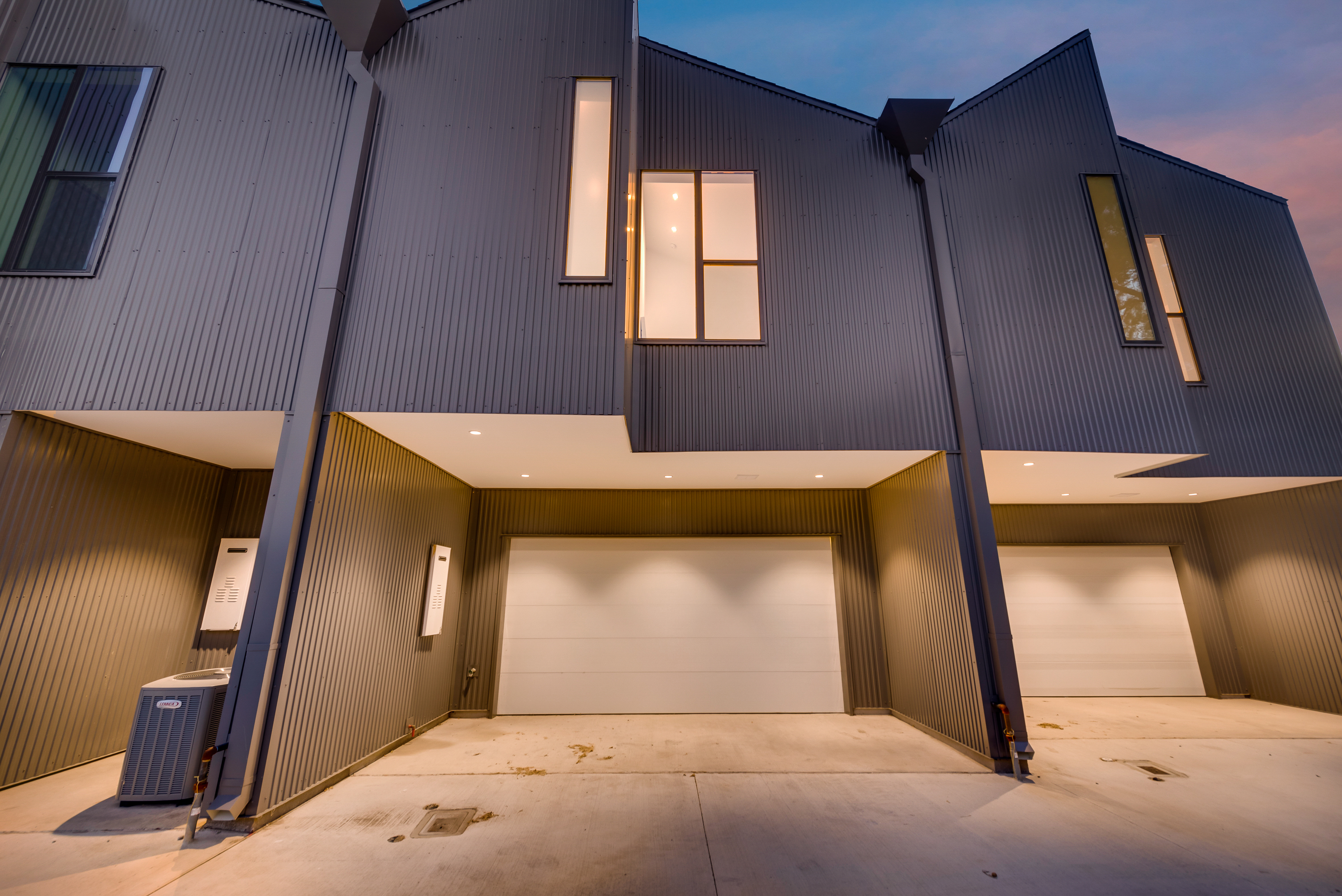

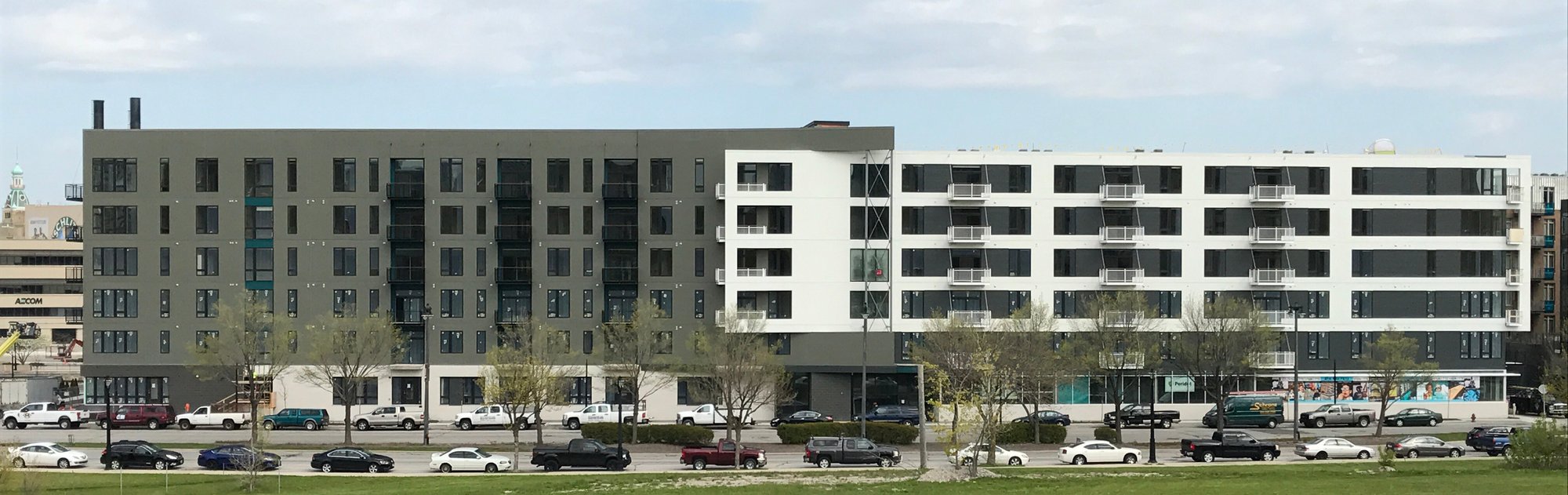

The symmetrical design of McElroy’s Mini-Rib exposed fastener panel make it an appealing profile for walls, soffit, liner and fascia applications.

Mini-Rib is a popular panel with architects and designers that want to make a impactful visual statement on projects incorporating metal siding.

View Related Files Build a Submittal Package

Click image to enlarge

Great for

Walls

Walls

Roofs

Roofs

Residential

Residential

Commercial

Commercial

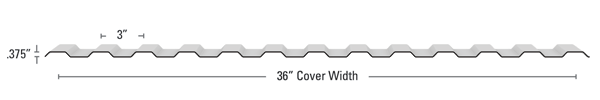

Specifications & Details

Details
Manufacturing Facilities Bossier City, LA
Note Mini-Rib is not applicable for exterior roof panels.
Note Oil Canning is a natural occurrence in metal panels and is not a cause for panel rejection
Testing
Testing Data For available Test Data, Section Properties or Load Tables, please visit our downloads section.
Panel Info
Coating - Kynar 500® (PVDF)
- Silicone Modified Polyester (SMP)
Substrate - Standard 26 GA Galvalume®
- Optional 24 GA Galvalume
- Optional 29 GA Galvalume (Liner Panels - Narrow Coverage)
