      Tilcor's™ CF Shingle has been specifically designed to resemble the look of traditional Asphalt Shingles but without the inherent ongoing issues that many home owners face, such as frequent replacement due to weathering or hail damage. Its innovative Concealed Fastening system is truly an industry first. Unlike other systems, which leave gaps and screws exposed to the elements, Tilcor's unique CF Shingle protects all fastening elements making roofs more reliable, watertight and durable than ever before.

      Extensive research and development in the design process makes Tilcor's CF Shingle not only the most water-proof stone-coated steel shingle on the market but the most realistic looking and fastest to install. Made from the highest quality raw materials ensures the durability and strength is second to none. The CF Shingle and accompanying  accessories are engineered to interlock and overlap to resist wind lifting and keep out  nature's elements.

      Click here to see all Tilcor colors

      View Related Files
      Click image to enlarge

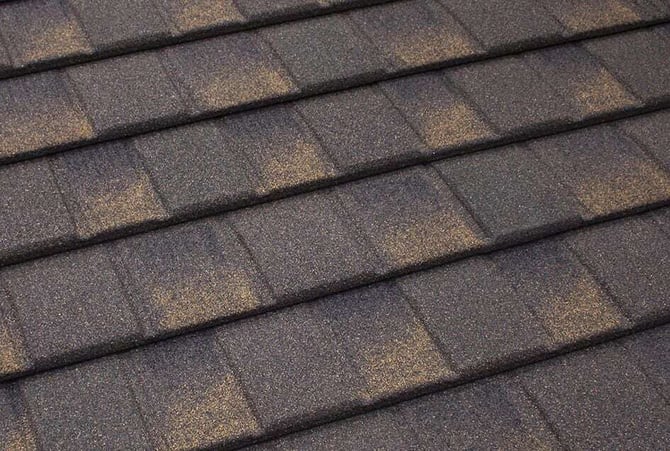

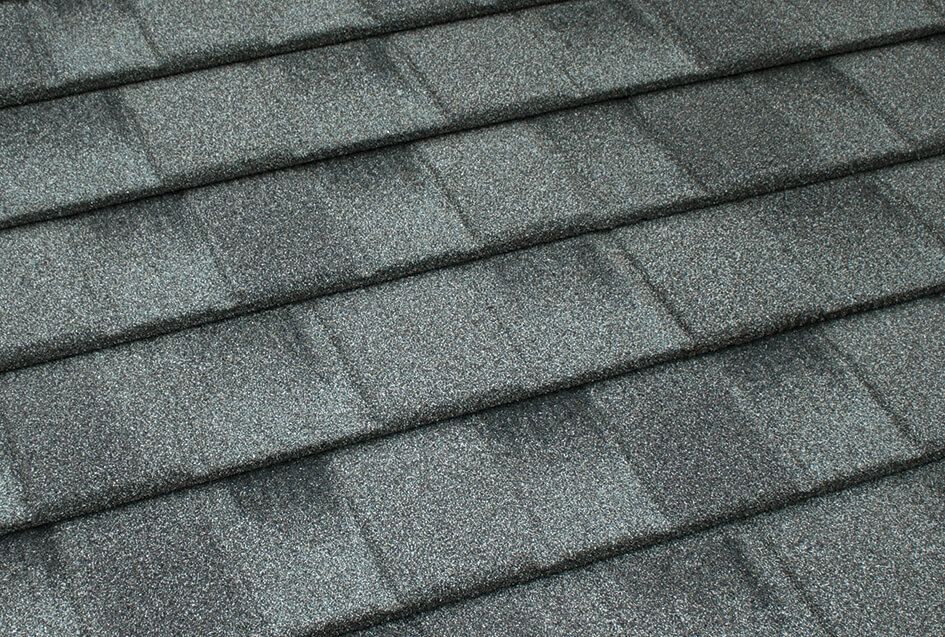

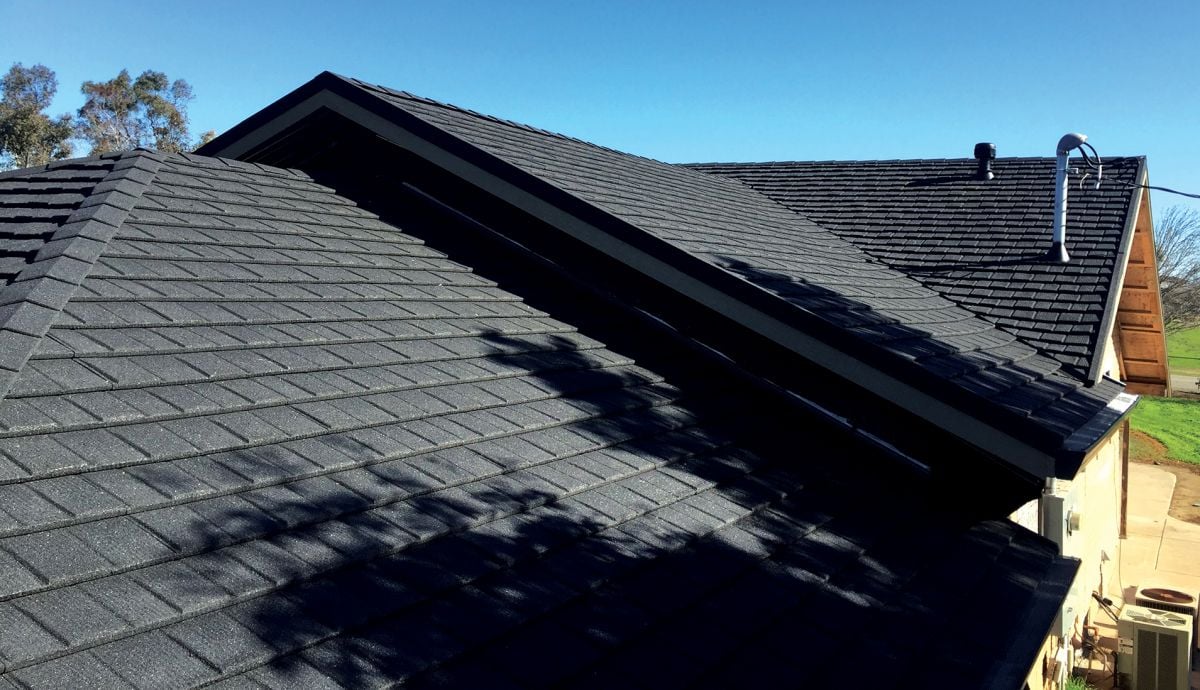

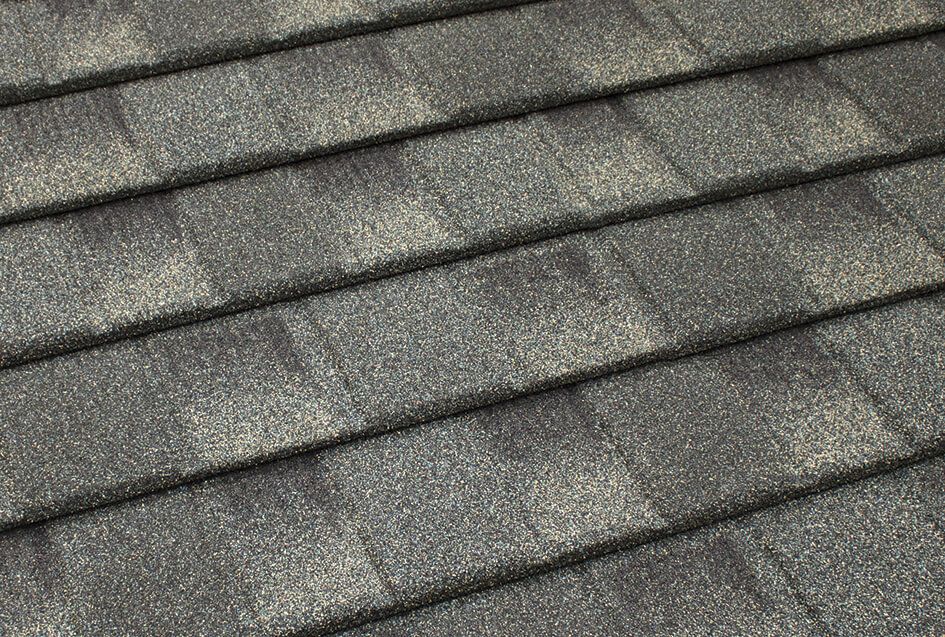

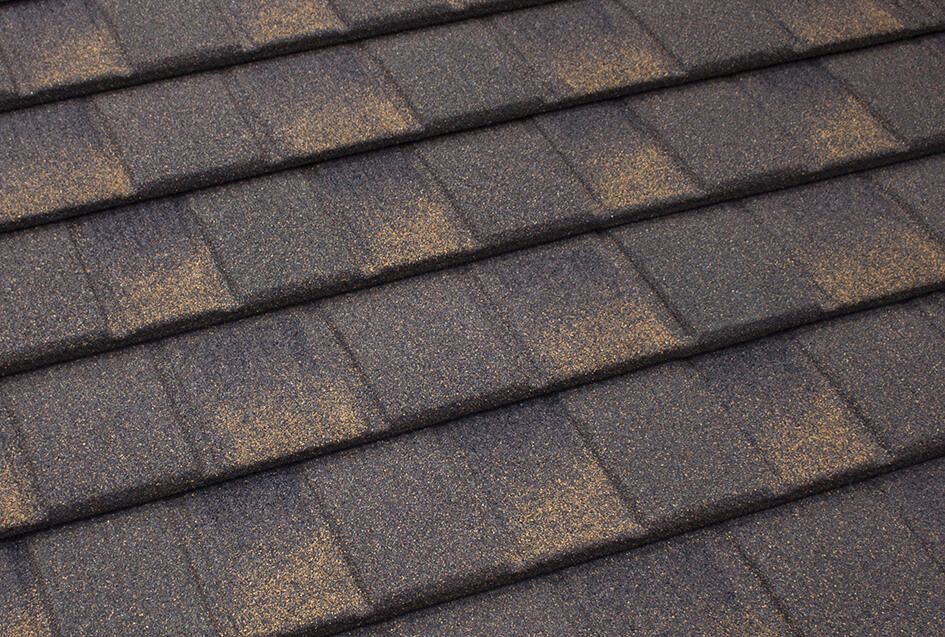

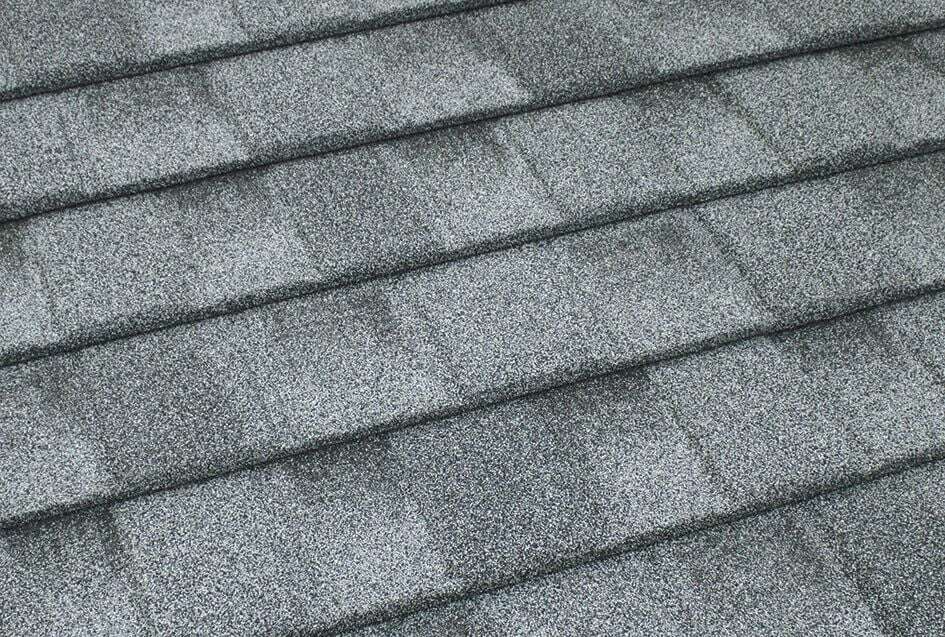

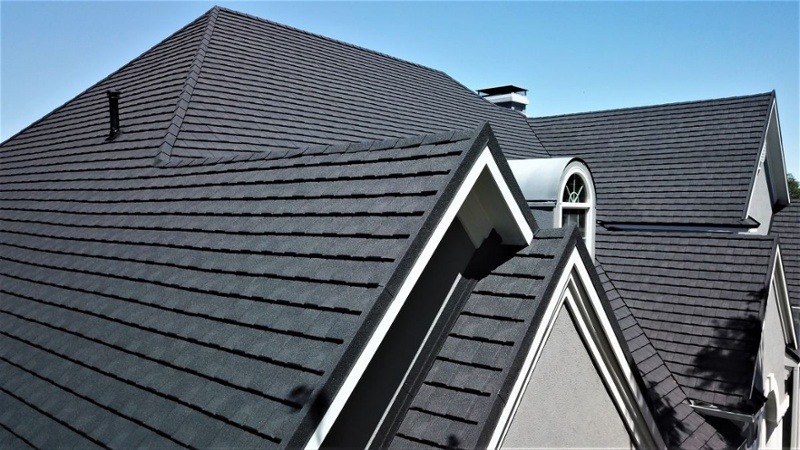

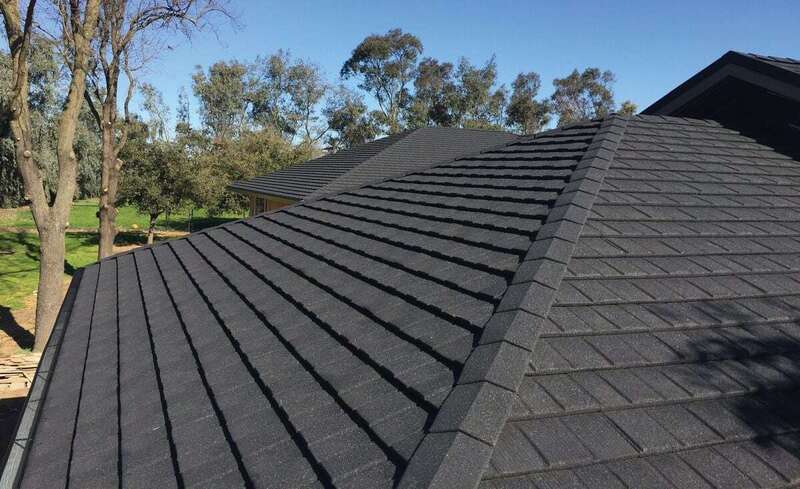

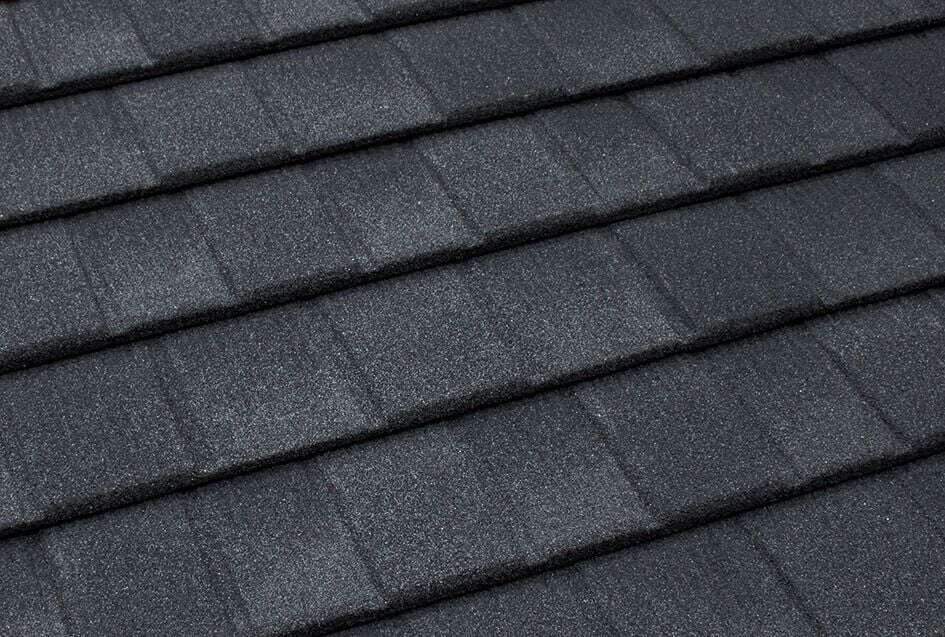

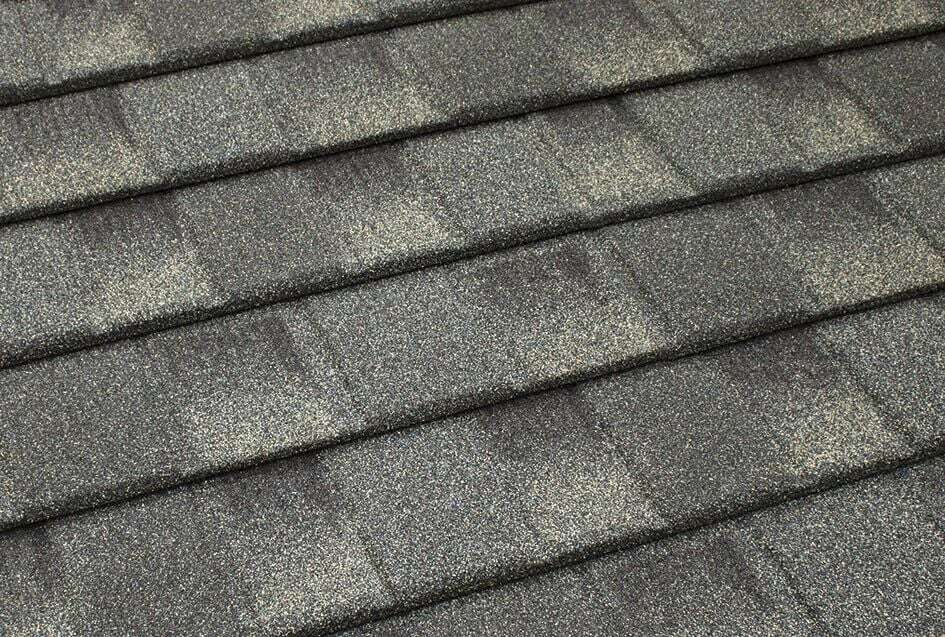

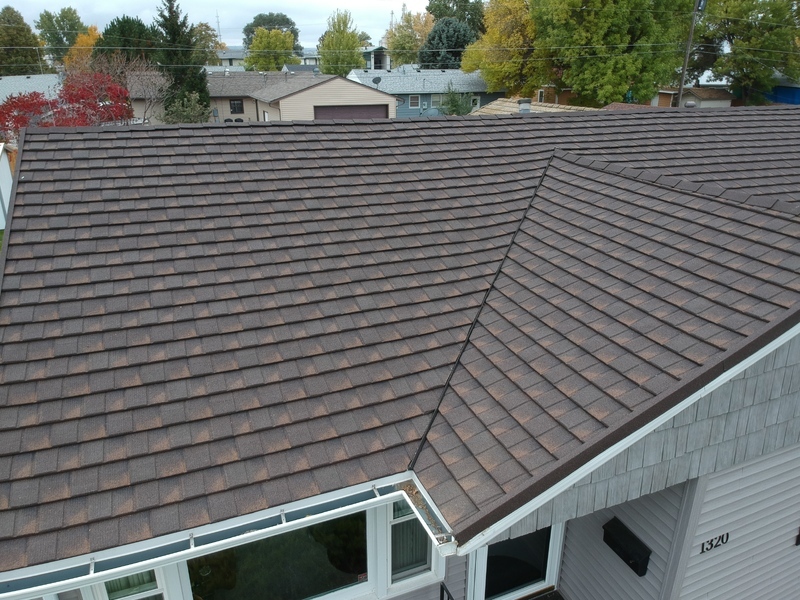

      CF Shingle Project 1 CF Shingle Project 2 CF Shingle Project 3 Tilcor Artic Gray Tilcor Barkwood Tilcor Charcoal Blend Tilcor Estate Gray Tilcor Oakwood

      Great for

      Walls

      Walls

      Roofs

      Roofs

      Residential

      Residential

      Commercial

      Commercial

      Renderings

      Click image to enlarge

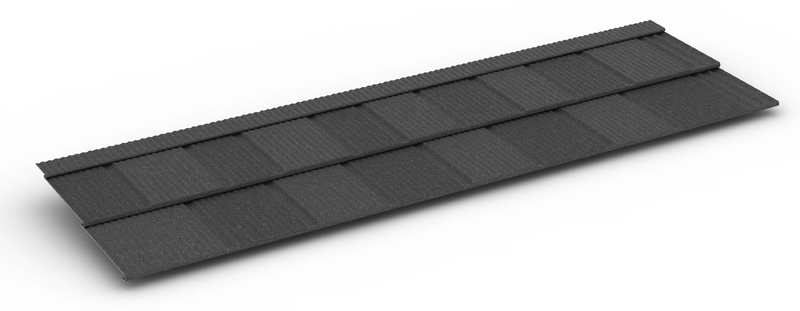

      Tilcor CF Shingle

      Specifications & Details

      Panel Details
      Minimum slope 3:12
      Overall panel dimensions 52 5/8" x 14 9/16"
      Panel Coverage 49 5/8"
      Panels per square 20 pc / sq.
      Installation Can be installed over most existing asphalt shingles or solid deck
      Panel Details (cont)
      Coating and Weight - Natural stone granules in an acrylic base-coat
      - Weight per tile: 7.05 lbs.
      - Weight per square: 141 lbs. / sq.
      Substrate 26 GA Zincalume
      Testing
      Fire Rating Class A Non-Combustible
      Impact Resistance Class 4 Impact Resistance: UL 2218

      Related Files

      Color Charts & General Brochure

      Brochures

      Finish and Substrate Warranties

      Product Data Sheets

      Installation Manuals

      Get A Submittal Package

      Customize (Recommended)

      Customize your submittal package

      Click on your desired documents below to select them for your package.

      General Product and Warranty Information

      Request

      Samples & Color Charts

      Request physical samples and color charts. All items will be sent out via UPS ground unless otherwise specified.

      Request now

      fanned-color-swatches

      FAQs

      While the upfront costs of installing a metal roof are often higher than shingles, a metal roof lasts longer and will be replaced or repaired far less frequently. A typical shingle roof lasts anywhere from 12 to 20 years, depending upon how well it’s maintained and weather elements it may encounter. Metal roofs, on the other hand, can last between 40 and 60 years while also requiring less maintenance, making them a more cost-effective choice over the lifespan of the roof.

      Learn More

      While it may be true that metal roofs on buildings like garages and pole barns intensify the sound of falling rain, this is primarily caused by the lack of a roof deck, insulation, and underlayment. On a residential home, layers of building materials between the metal roof and the living area reduce the noise significantly, making metal roofs as quiet as any other roofing material when it rains. Check out this video to see and hear for yourself.

      Metal roofing actually reflects much of the sun’s heat and energy. While conventional shingles absorb much of the sun’s heat, metal roofing can actually reduce cooling energy costs by as much as 20%. That’s because the coating used on modern metal roof panels incorporates special pigments that reflect the sun’s energy and release heat that is absorbed throughout the day.

      Residential metal roofing is available in a variety of aesthetically pleasing designs that can heighten the curb appeal of any home. In addition to conventional panels, there are several styles that are virtually indistinguishable from conventional tile and shingles. Metal roofing is available in a wide array of colors as well, making it easy to find an option that best suits any style of residential home.

      The odds of a lightning strike hitting a metal roof are the same as any other roof, regardless of material. In the event that there is a lightning strike, however, metal roofing will not ignite and catch fire since it is not combustible.

      Read More

      Far from it. Studies conducted by the Insurance Institute for Business & Home Safety (IBHS) have found that metal roofing is far less likely to be punctured by hail than conventional asphalt shingles, withstanding even golf ball-sized hailstones with only cosmetic damage.

      Metal roofing consistently outperforms shingles when it comes to resisting harsh elements. In addition to being fire and hail resistant, metal roofs are also effective against extreme winds. Many insurance companies recognize the durability of metal roofing, offering discounts for structures with metal roofs.

      Definitely not! Like most building materials, metal roofing is available in varying levels of quality. Homeowners should be sure to ask their contractor or supplier what substrate and paint coating they are recommending for their home. Galvalume steel substrates and Kynar 500® (PVDF) coatings provide the best long-term performance. Click here for facts about substrates and coatings.

      Metal rusts, but if the right metal substrate is chosen, the risk of rust is minimized.

      Learn More

      We know they are. Learn why.

      Learn More

      Wondering where to begin? We can help.

      Learn More

      Metal roofing is an energy efficient, environmentally friendly roofing material that offers cost savings and a long lifespan.

      Learn More

      There are a lot of metal roof colors to choose from! We'll help you navigate the options.

      Learn More

      Get the metal roofing pros and cons homeowners need to know to make an informed roofing decision.

      Learn More

      Snow does slide off of metal roofs. Snow retention systems can be used to help prevent the sudden release of built-up snow from a metal roof.

      Learn More

      The good news is that metal roofs with a roof assembly (decking, insulation, and underlayment) are no noisier than any other type of roof.

      Learn More

      Metal roof systems offer homeowners in hail prone areas a long lasting, durable roofing solution.

      Learn More

      Metal roofs that look like tile share many similarities with clay tiles but offer homeowners some distinct advantages over the most traditional tile construction material.

      Learn More

      While it is impossible to call any roof hurricane proof, a properly designed metal roofing system can be capable of handling wind speeds in excess of what is normally experienced in hurricane-prone regions.

      Learn More

      Homeowners across the country are replacing their shingle roofs with metal. Get help choosing the right roof for your home.

      Learn More

      Yes! Solar panels and metal roofing are a great match!

      Learn More

      Yes! Installing metal roofing over existing shingles is an excellent way for building owners to not only maximize the longevity of their new roof but also to save on roof tear off expenses.

      Learn More
      Read More
      Shop Drawing Service
      Shop Drawing Service

      Running short of time to complete your own shop drawings? McElroy Metal can help. Click the button below to provide us some basic information and we’ll be in touch soon to discuss your project specifics.

      Contact Us →

      Download Shop Drawings
      Download Shop Drawings

      If you’re creating your own shop drawings, click the button below to gain full access to our CAD and PDF Files.

      View Drawings →

      Find a Distributor/Contractor Near You

      Whether you’re building a new home or planning renovations, a metal roof can deliver long-term cost savings and comfort. To explore your options and find the product that meets your aesthetic and budgetary needs, contact a McElroy Metal distributor or contractor in your area today. We can’t wait to help make your dream home a reality.

      Find a Contractor

      Related Products

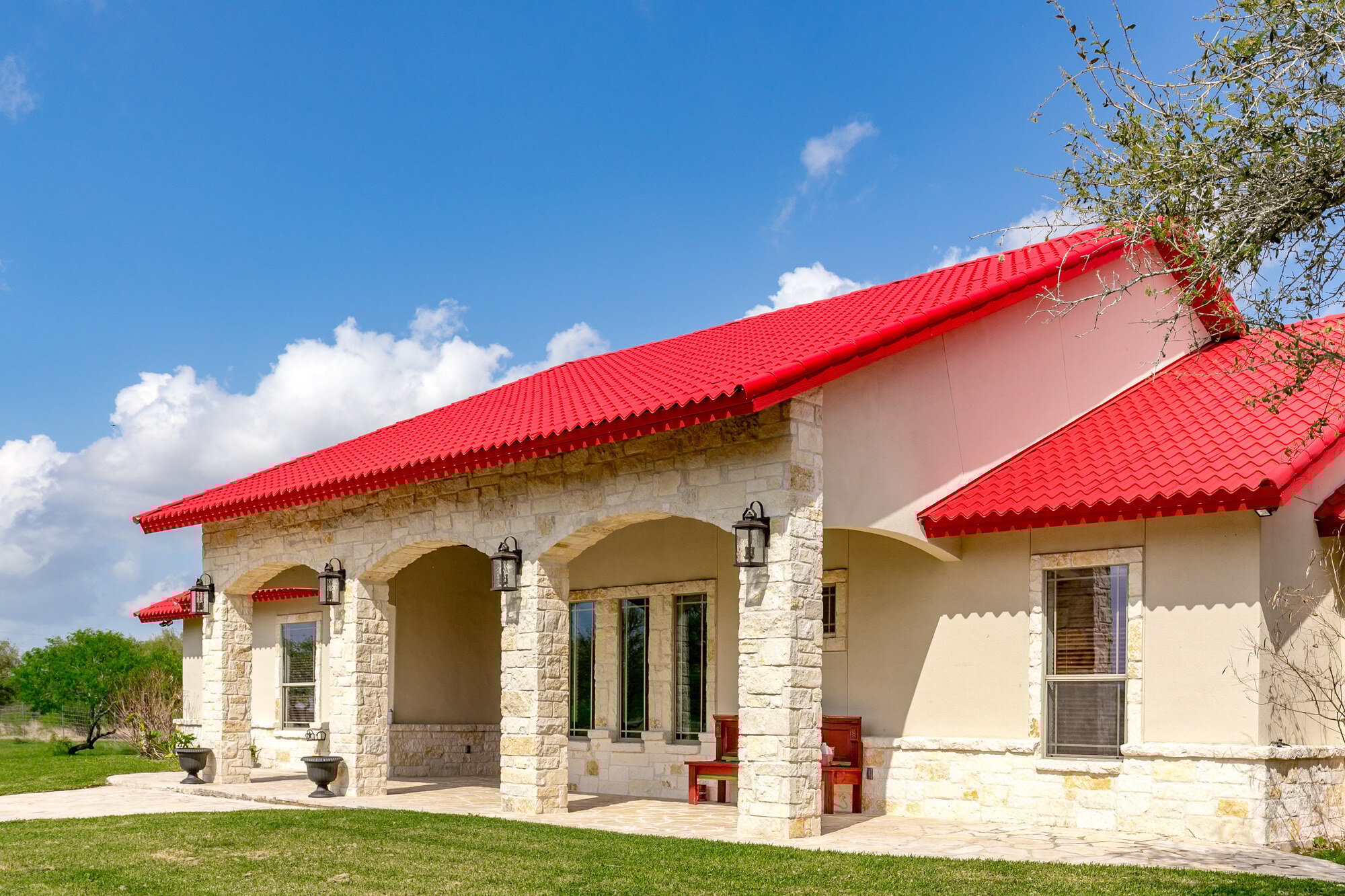

      Met-Tile

      Learn more

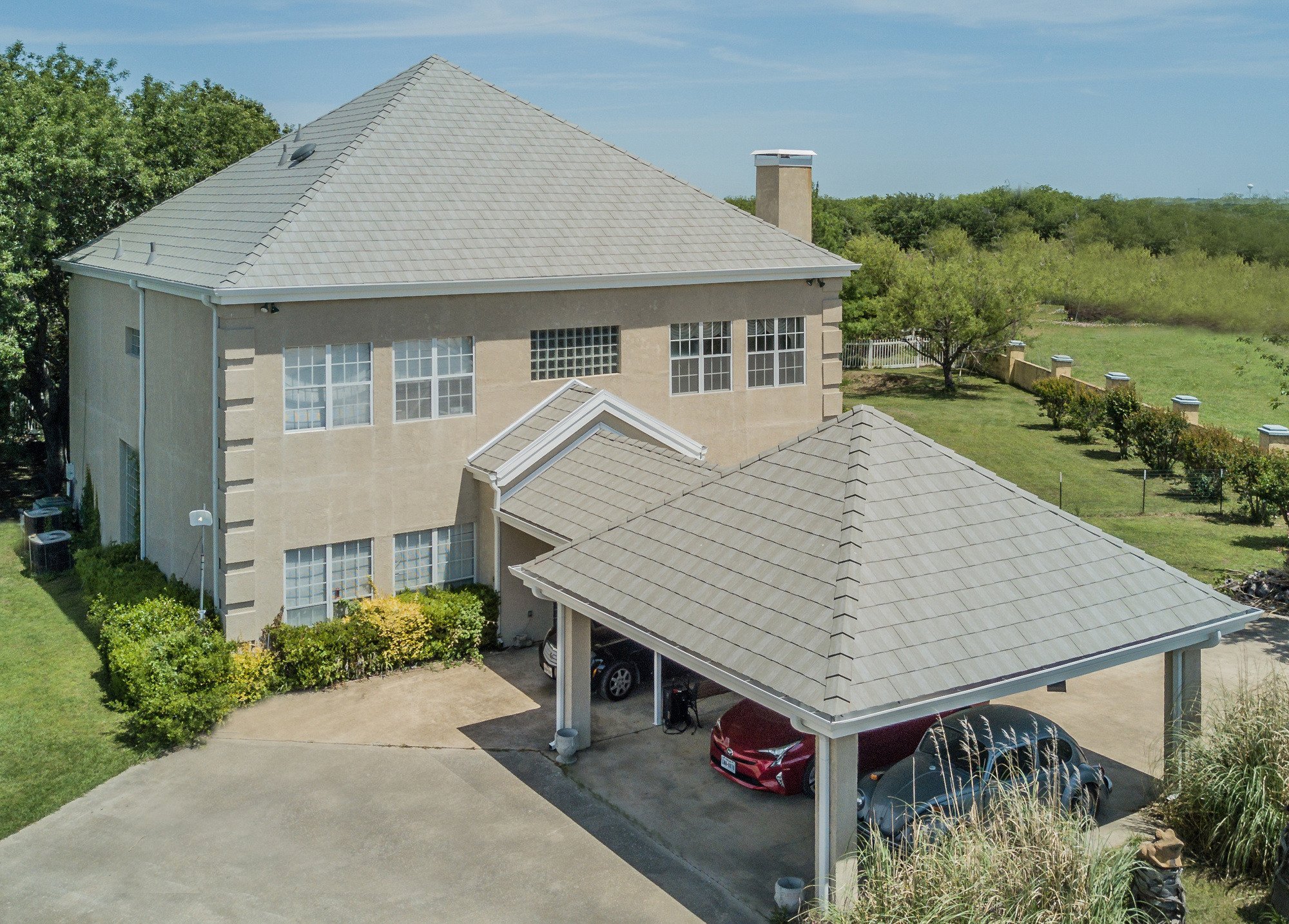

      Milan
