Insulated Metal PanelsGreen Span
Profiles

Insulated Metal Panels

Green Span Profiles is a McElroy Metal joint venture company that manufactures Insulated Metal Panels (IMP’s) for walls and roofs. Wall panels are available  in thicknesses from 2” to 6”. Green Span’s Ridgeline roof panel, featuring a 238T symmetrical seam, is available in thicknesses from 2 ½” to 5”.

Utilizing state-of-the-art equipment, Green Span Profile’s panels are formed by a continuously poured-in-place manufacturing process binding interior and exterior steel facings to a polyisocyanurate insulating foam core.

Click image to enlarge

Great for

Walls

Walls

Roofs

Roofs

Residential

Residential

Commercial

Commercial

Green Span Profiles Advantages

  • Exceptional insulating properties (approximate R value of 8” per inch)
  • Superior spanning capability
  • 5 distinct wall panel profiles
  • Rigid feel
  • Streamlined architectural appearance
  • Ridgeline roof panel offers industry’s quickest standing seam IMP installation

Insulated Metal Roof and Wall Panels

Insulated Metal Roof and Wall Panels

RidgeLine Roof Panel

Uses: Exterior Standing Seam Roof

RidgeLine is the IMP industry’s premier insulated standing-seam roof panel. The patented tee-seam allows for sliding the panels together rather than lifting and/or rolling the panels into place. The interior tongue-and-groove joint, coupled with a factory-caulked batten, helps provide a double layer of weather-tight protection.

MaxLine

Uses: Partition Wall, Liner Wall, Tee Supported Ceiling

MaxLine insulated metal panel was designed as our widest and most economical insulated metal panel offering. It is intended to maximize installation efficiency and cost-effectiveness. The unique Green-Lock side-joint facilitates accurate sealant placement and helps ensure a high-performance vapor seal.



MesaLine

Uses: Exterior Wall, Partition Wall, Liner Wall, Ceiling

MesaLine is our most widely accepted and used insulated metal panel. Utilized in commercial/industrial applications, the lined profile provides strength, facilitates foam adhesion and helps minimize natural imperfections in the steel faces. The shallow Mesa rib and the unique Green-Lock side-joint help ensure a high-performance vapor seal.



MesaLine HSE

Uses: Exterior Wall

HSE stands for Heavy Stucco Embossed. MesaLine HSE was designed to satisfy those who desire something different for their Commercial/Industrial structure. Having all the positive attributes of the tried-and-true MesaLine profile, MesaLine HSE adds a heavy stucco embossment for a more dramatic impact. As with all of our wall profiles, MesaLine HSE has the unique Green-Lock side-joint helping to ensure a high-performance vapor seal.

ShadowLine

Uses: Exterior Wall

The ShadowLine insulated metal panel is our most dramatic profiled offering. The panel has five, ¼” deep flutes along the exterior face. The 1¼” reveal disguises the side-joint and yields an aesthetic, monolithic look. The unique Green-Lock side-joint helps ensure a high-performance vapor seal.

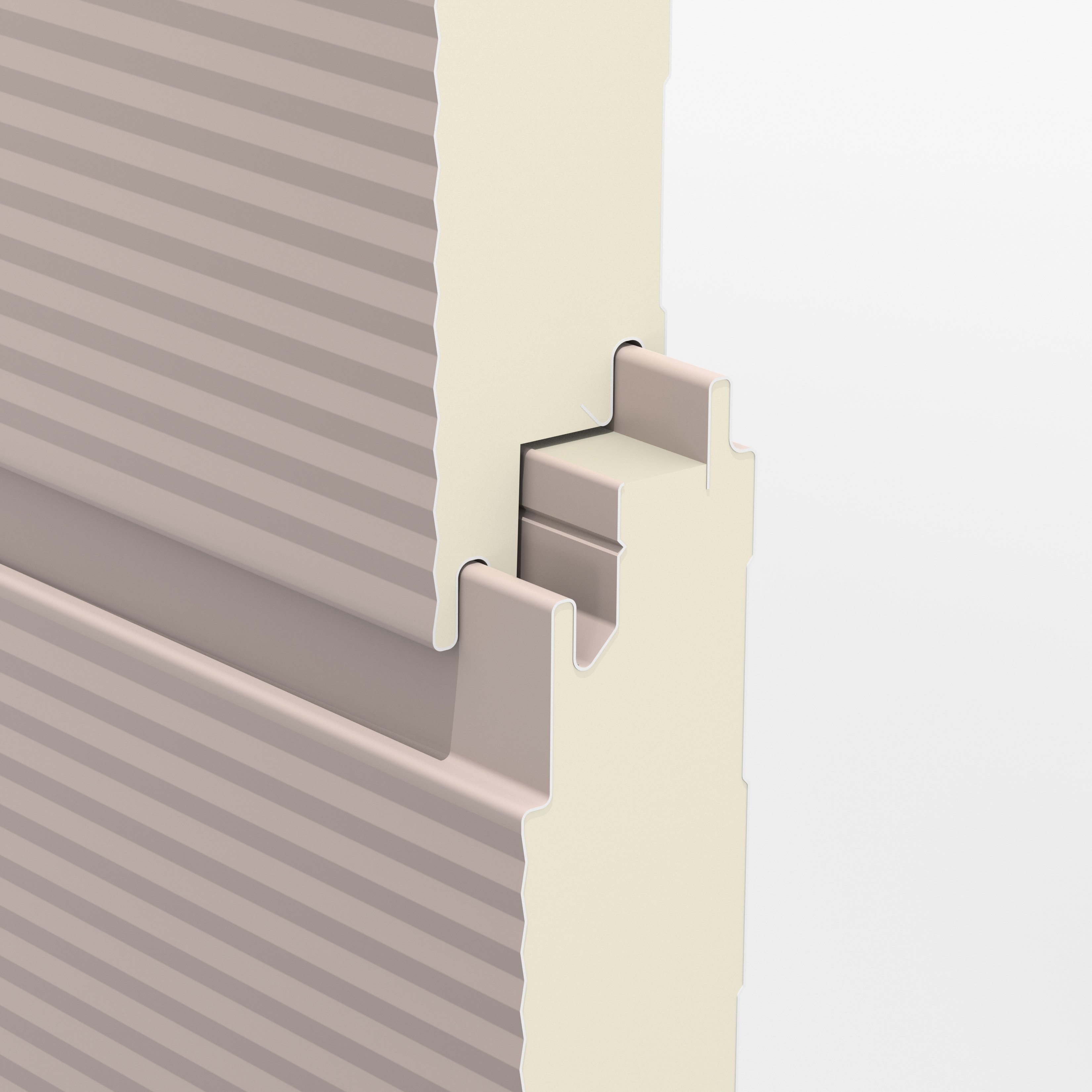

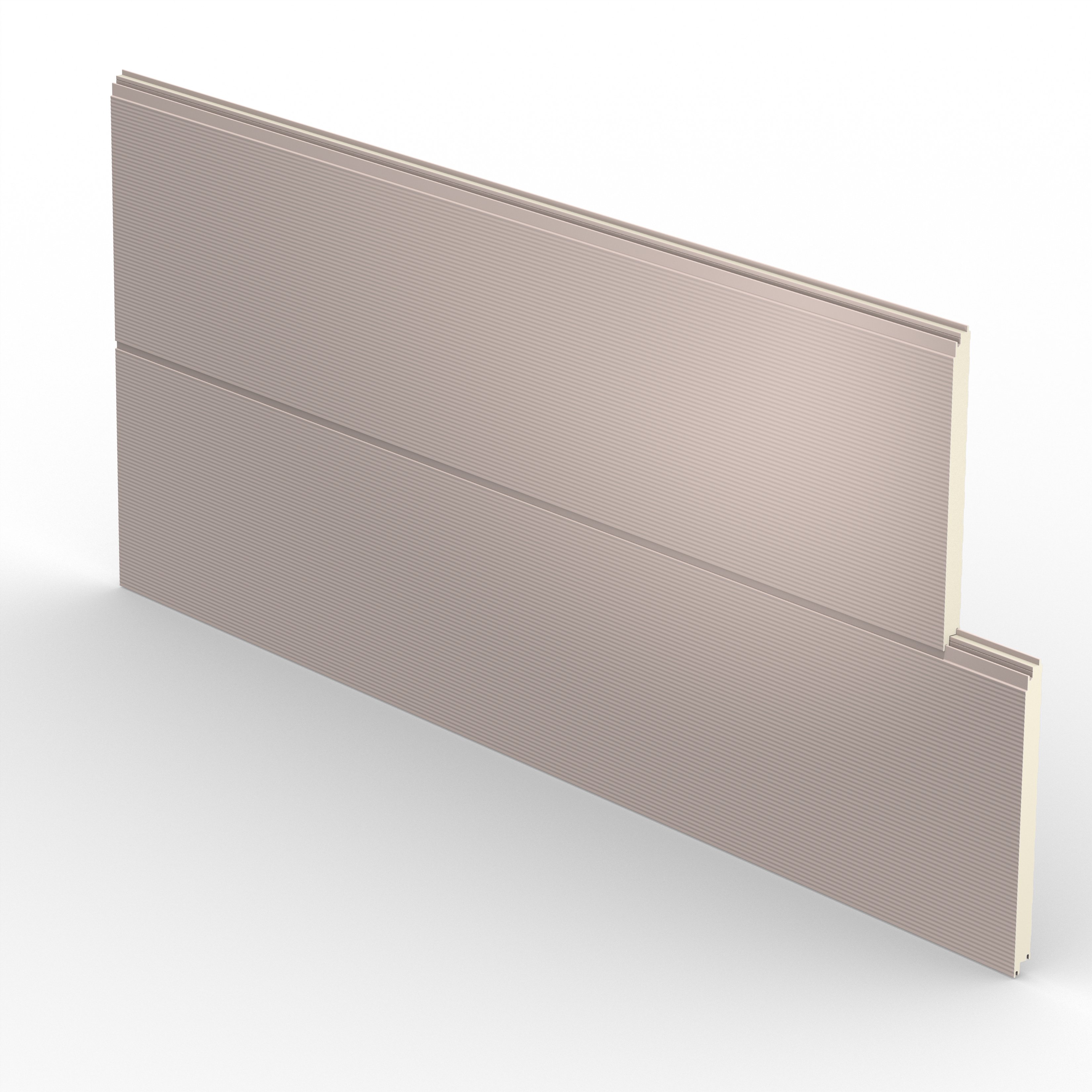

WaveLine

Uses: Exterior Wall

The face of the WaveLine profile is micro-corrugated. This insulated metal panel offers a more architectural profile for designers desiring a sleek and distinctive look. The unique Green-Lock side-joint helps ensure a high-performance vapor seal in vertical as well as horizontal applications.

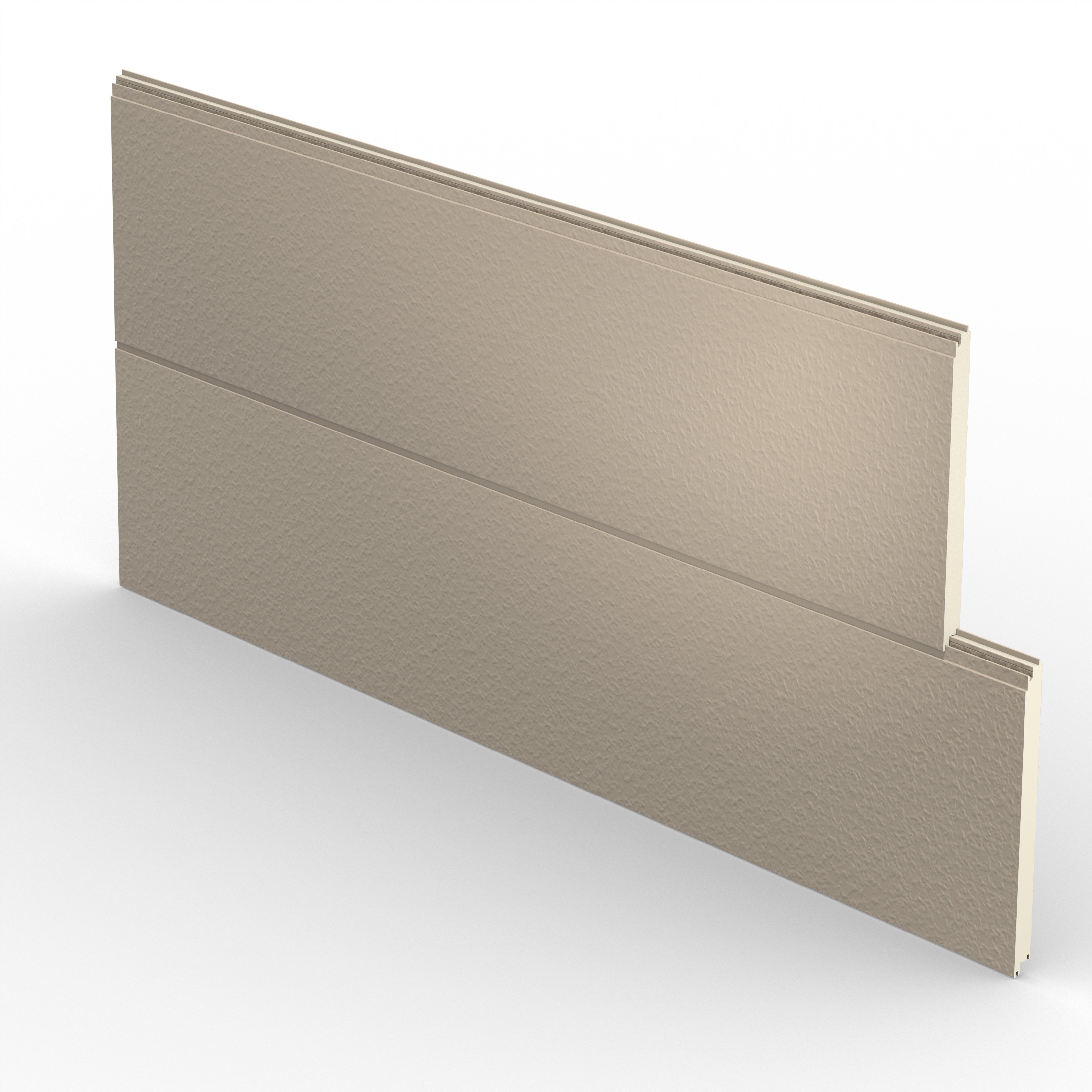

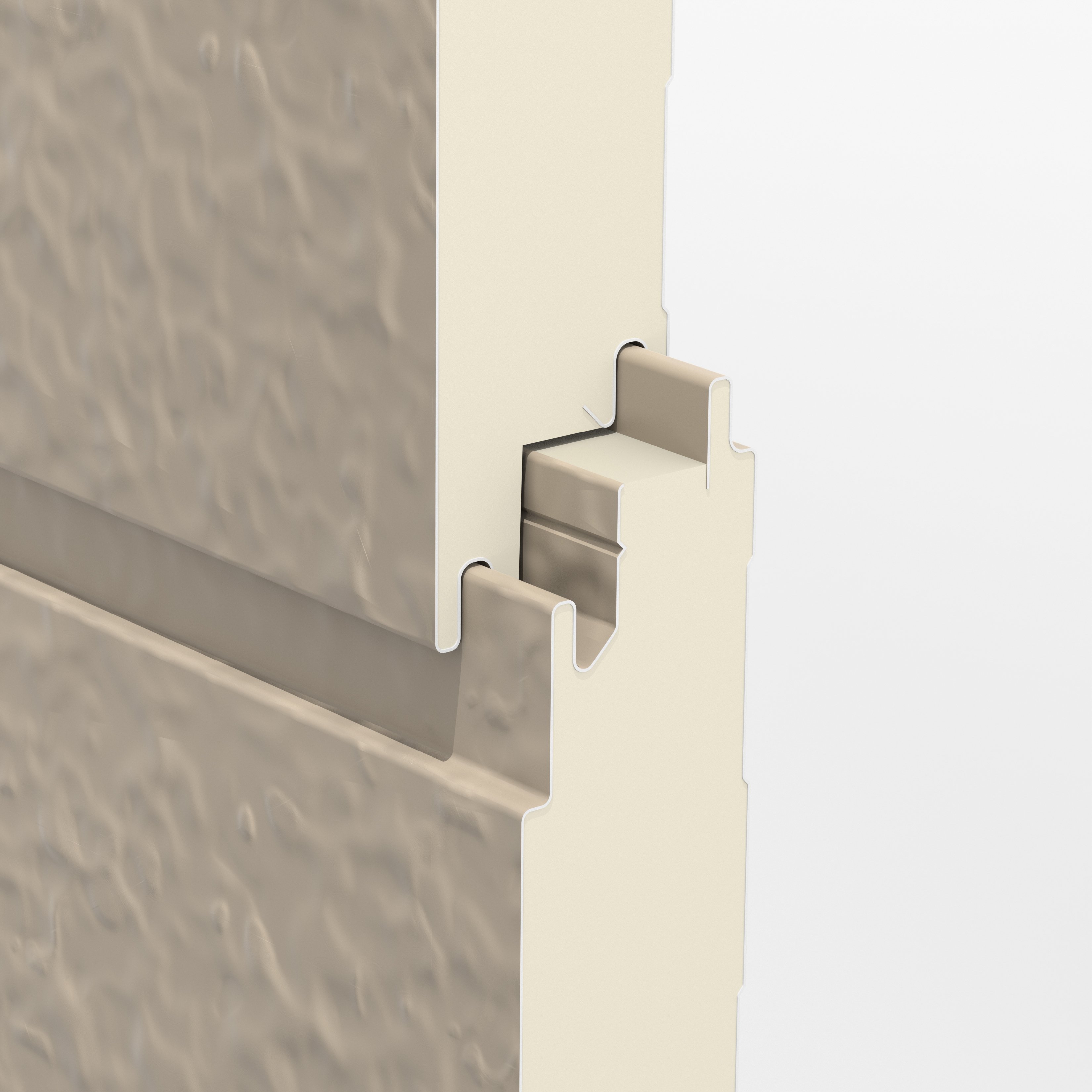

Impression

Uses: Exterior Wall

Impression is Green Span’s flat panel offering. This profile utilizes our Heavy Stucco Embossment (HSE). Impression gives the look of tilt-up concrete while offering unsurpassed thermal efficiency. In comparison to tilt-up, the Impression insulated metal panel is super lightweight and extremely cost-effective.



CleanLine

Uses: Partition Wall, Liner Wall, Ceiling

Designed specifically for dust-free environments, the CleanLine exterior face is free of all embossing and profiling. CleanLine insulated metal panels are manufactured specifically for interior use as partition-walls, liner-walls and ceilings. The unique Green-Lock side-joint facilitates accurate sealant placement and helps ensure a high-performance vapor seal.



INSULROCK

Uses: Hourly Fire Rated Exterior Wall,
Partition Wall, Liner Wall, Ceiling

INSULROCK features ROXUL ConRock L mineral wool insulation for applications requiring fire-walls.

Insulated Metal Roof and Wall Panels

RidgeLine Roof Panel

RidgeLine is the IMP industry’s premier insulated standing-seam roof panel. Ridgeline features a 238T Symmetrical Standing Seam which allows for sliding the panels together rather than lifting and/or rolling the panels into place. The interior tongue-and-groove joint, coupled with a factory-caulked batten, helps provide a double layer of weather-tight protection. Ridgeline comes in 42" wide panels in 2.5, 3, 4, 5 and 6 inch thicknesses.

Watch Video

Additional Information

For information regarding details, testing data and panel options, and to see an installation video for Ridgeline, please click the links below:

Green Span Profiles Brochure

Ridgeline Installation Video

Additional Green Span Profiles Downloads
