      5V Exposed Fastened Metal Roof Panel

      Traditional exposed-fastener metal roofing panel is recognized for its classic V-rib design and coastal appeal.

      McElroy Metal’s 5V delivers a clean, low-profile look with distinctive double “V” ribs. Lightweight yet durable, it installs quickly through the panel flats and provides dependable protection with timeless style.

      Renderings & Profiles

      Color Charts

      Great for:

      walls-icon
      WALLS
      roofs-icon
      ROOFS
      residential-icon
      RESIDENTIAL
      commercial-icon
      COMMERCIAL

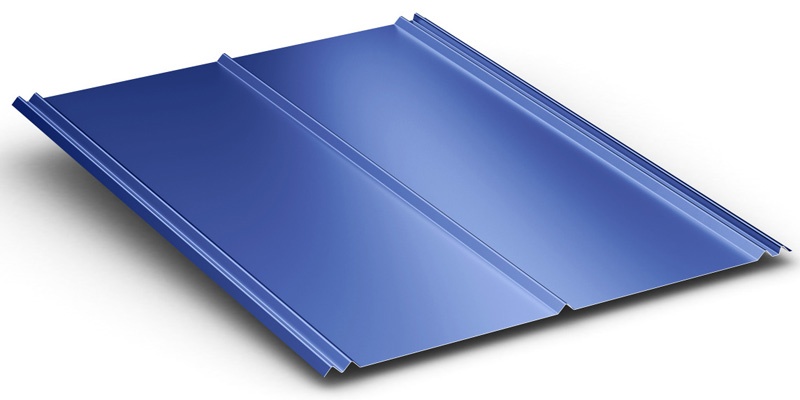

      5V Panel

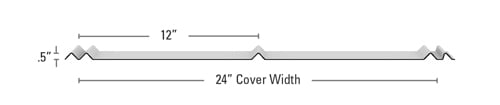

      5V Panel Profile
      5V Exposed Fastened Metal Roof & Wall Panel Specs at a Glance*
      Panel Type
      Rib Height
      Major Rib On Center
      Cover Width
      Factory Panel Length
      Onsite Forming Available
      Substrate/Gauges
      Installation
      Finishes
      Minimum Slope
      Exposed Fastener Metal Roof Panel
      1/2"
      12”
      24"
      Up to 50' (varies by manufacturing facility)
      No
      26 GA Galvalume®; 29 gauge Galvanized bare only
      Solid Deck
      Kynar 500® (PVDF); Galvalume® Plus (acrylic-coated)
      3:12

      *Specifications and details are subject to change. Always verify project requirements with current McElroy Metal technical documentation

      5V Ideal Applications

      • Residential and light commercial roofing projects where traditional aesthetics are desired.

      • Agricultural and utility buildings requiring economical weather protection.

      • Coastal environments where the classic “5V” look fits regional architecture.

      • Retrofit and new construction with moderate-slope roofs.

      See 3D Textures Here
      MasterLok-90 Ideal Application
      MasterLok-90 Ideal Application
      masterlok-90-ideal-application-3

      5V Top 3 Benefits

      1. Timeless, Recognizable Appearance: The distinctive double “V” rib pattern delivers a classic coastal or farm-style aesthetic that remains popular across residential and agricultural markets.

      2. Long-Lasting Finish Options: Panels attach directly through the flats with exposed fasteners, simplifying installation and keeping project costs low.

      3. Lower First Cost Investment: Available in Galvalume® and painted finishes featuring Kynar 500® (PVDF) for exceptional fade, chalk, and corrosion resistance.

      Color Charts

      5V Color Chart Standard Color Chart Standard Color Chart – West Coast

      CAD Drawings

      5V Eave Detail 5V Eave with Gutter Detail 5V End Lap Detail 5V High Eave Detail 5V Hip Detail 5V Hip (Vented) Detail 5V Hi-Side Tie-In Detail 5V Rake (Off Module) Detail 5V Rake Detail 5V Rake Tie-In Detail 5V Ridge Detail 5V Ridge (Vented) Detail 5V Valley Detail

      PDF Drawings

      5V Eave Detail 5V Eave with Gutter Detail 5V End Lap Detail 5V High Eave Detail 5V Hip Detail 5V Hip (Vented) Detail 5V Hi-Side Tie-In Detail 5V Rake (Off Module) Detail 5V Rake Detail 5V Rake Tie-In Detail 5V Ridge Detail 5V Ridge (Vented) Detail 5V Valley Detail

      English Installation Manuals

      Thru-Fastened Panel 5-V Installation Manual

      Brochures/Flyers

      2026 Product Catalog

      Metal Panel Care & Maintenance

      Operation and Maintenance Manual (Roofs)

      Product Data Sheets

      5-V Product Data SikaLastomer® 511 Product Data

      Product & Trim Information Books

      5 V Product Information Book

      SDS - Substrate & Paint

      Galvalume® Substrate Paint - Ash Gray  Paint - Autumn Red  Paint - Brandywine  Paint - Charcoal  Paint - Clay  Paint - Evergreen  Paint - Hartford Green  Paint - Ivory Paint - Light Stone  Paint - Matte Black Paint - Patrician Bronze Paint - Regal White Paint - Roman Blue Paint - Surrey Beige Paint - Terratone Paint - Tudor Brown Paint - White Backer  Paint Pens - Kynar® Paint Pens- Kynar® ADS Data

      Specifications

      Panel 5V

      UL 580 Construction Numbers

      5-V #453 (plywood)

      Approvals

      Fire Resistance (UL263) Ratings Fire Resistance (UL790) Ratings Florida Product Approvals Non-Structural Impact Resistance (UL 2218) Class 4 Miami Dade Approvals Texas Department of Insurance Windstorm Approvals

      Miami-Dade Notice of Acceptance (NOA)

      5V Crimp NOA #22-1219.02

      Panel Load Tables w/Section Properties

      5-V Load Tables 26 Ga. 80 KSI 5-V Load Tables 29 Ga. 80 KSI

      Miscellaneous Information

      5V 26 Ga. Wind Fastening Table

      Finish and Substrate Warranties

      Standard Galvalume® Standard Fluropon® Kynar 500® PVDF without Substrate Standard Fluropon® Kynar 500® PVDF with Galvalume® Substrate Project Specific Galvalume® Project Specific Fluropon® Kynar 500® PVDF with Galvalume® Substrate Project Specific Fluropon® Kynar 500® PVDF without Substrate

      Compare our Metal Panels Using the Tool Below

      • Compare Exposed Fastened Wall Panels
      • Compare Exposed Fastened Roof Panels

      For information on all McElroy Metal products, visit our full product library .

      Panel
      Seam Type
      Rib Height
      Panel Widths
      Minimum Slope
      Install Substrate
      Clips
      Substrate / Gauges
      Coating
      Notable Approvals / Tests
      5V Exposed Fastened Metal Roof & Wall Panel
      N/A
      1/2"
      24"
      3:12
      Solid Deck
      N/A
      26 GA Galvalume®; 29 gauge Galvanized bare only
      Kynar 500® (PVDF); Galvalume® Plus (acrylic-coated)
      UL 263 Class A; UL 2218 Class 4; TDI (over Plywood Deck); Florida Product Approval; Miami Dade

      For information on all McElroy Metal products, visit our full product library .

      Panel
      Seam Type
      Rib Height
      Panel Widths
      Minimum Slope
      Install Substrate
      Clips
      Substrate / Gauges
      Coating
      Notable Approvals / Tests
      5V Exposed Fastened Metal Roof & Wall Panel
      N/A
      1/2"
      24"
      3:12
      Solid Deck
      N/A
      26 GA Galvalume®; 29 gauge Galvanized bare only
      Kynar 500® (PVDF); Galvalume® Plus (acrylic-coated)
      UL 263 Class A; UL 2218 Class 4; TDI (over Plywood Deck); Florida Product Approval; Miami Dade
      Peachtree Solar-501-1

      Notes & Manufacturing Locations

      • Manufactured in Ashburn, GA; Lockhart, TX

      • Oil canning is a natural occurrence in metal panels and not a cause for rejection.

      McElroy Logo Emp Ownd Opt1_BLK-RED

      Why Choose McElroy Metal

      McElroy Metal is an employee-owned manufacturer with more than six decades of experience producing high-quality metal roofing, wall systems, and substructural components. Our nationwide manufacturing and service center network ensures consistent availability, responsive support, and dependable delivery. Built on a culture of craftsmanship and partnership, our products are engineered for long-term durability and trusted performance on projects of every size.

      map-red

      Find a Distributor / Contractor Near You

      Whether you’re building a new home or planning renovations, a metal roof can deliver long-term cost savings and comfort. To explore your options and find the product that meets your aesthetic and budgetary needs, contact a McElroy Metal distributor or contractor in your area today. We can’t wait to help make your dream home a reality.

      Find a Contractor

      Frequently Asked Questions

      The questions below address common considerations and help guide product selection for your project.

      What does “5V” mean?
      The name “5V” refers to the panel’s distinctive five “V”-shaped ribs, which create a traditional appearance and help channel water efficiently.
      What slope is required for 5V Crimp roofs?
      A minimum slope of 3:12 is recommended for proper drainage and long-term performance.
      Can 5V Crimp be used on walls?
      While primarily designed for roofing, 5V Crimp could be used on walls or accent areas where the traditional “V” pattern is desired; however, at this time, we don’t offer standard trim details for wall applications.
