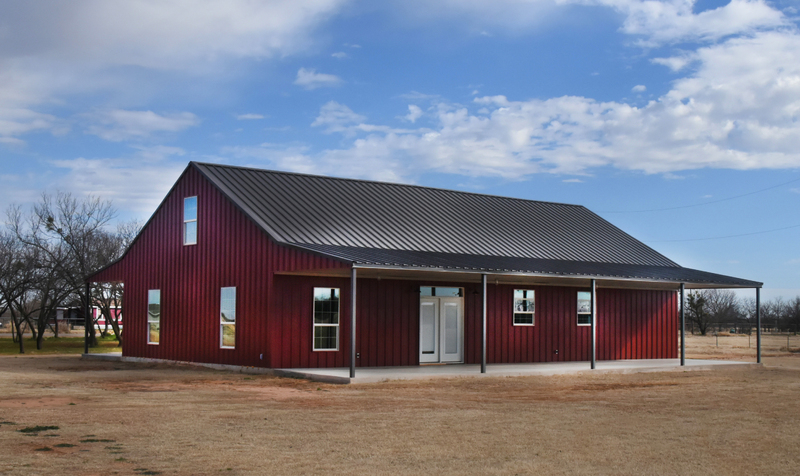

      R-Panel Exposed Fastened Metal Roof & Wall Panel

      High-Strength, Multi-Use Exposed Fastener Metal Panel

      R-Panel is one of the industry’s most widely used exposed fastener metal panels, known for its strength, versatility, and long-term performance. With a 1¼" rib height and 36” wide coverage, R-Panel delivers outstanding spanning capability for both roof and wall applications

      Renderings & Profiles

      Color Charts

      Great for:

      walls-icon
      WALLS
      roofs-icon
      ROOFS
      residential-icon
      RESIDENTIAL
      commercial-icon
      COMMERCIAL

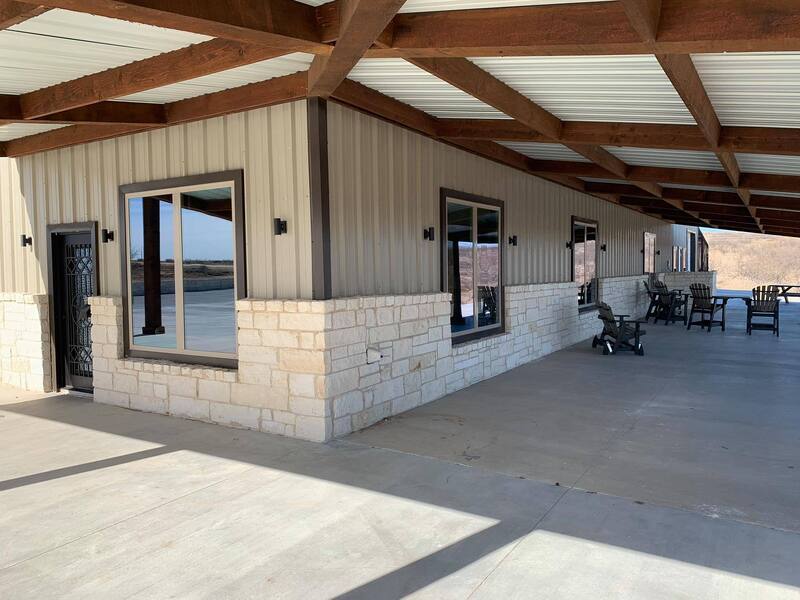

      R-Panel Panel

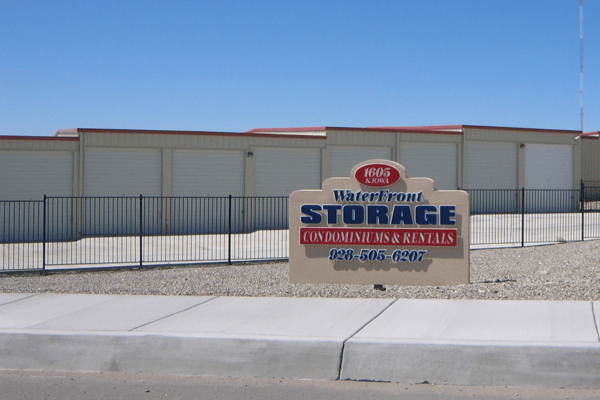

      R-Panel Panel

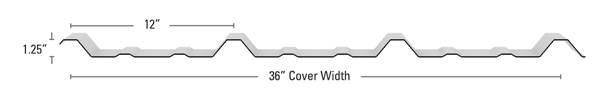

      R-Panel Purlin Bearing Leg Profile

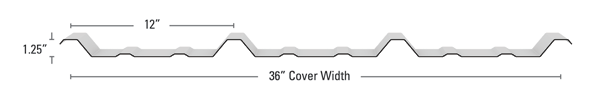

      R-Panel Non Purlin Bearing Leg Profile
      R-Panel Exposed Fastened Metal Roof & Wall Panel Specs at a Glance
      Panel Type
      Rib Height
      Major Rib On Center
      Cover Width
      Factory Panel Length
      Onsite Forming Available
      Substrate/Gauges
      Installation
      Finishes
      Minimum Slope
      Exposed Fastener Metal Roof & Wall Panel
      1 1/2"
      12”
      36"
      Up to 50' (varies by manufacturing facility)
      No
      26 GA Galvalume®
      Solid Deck or Open Framing
      Kynar 500® (PVDF) & Silicone Modified Polyester (SMP); Galvalume® Plus (acrylic-coated)
      1:12 with sealant; 3:12 without sealan

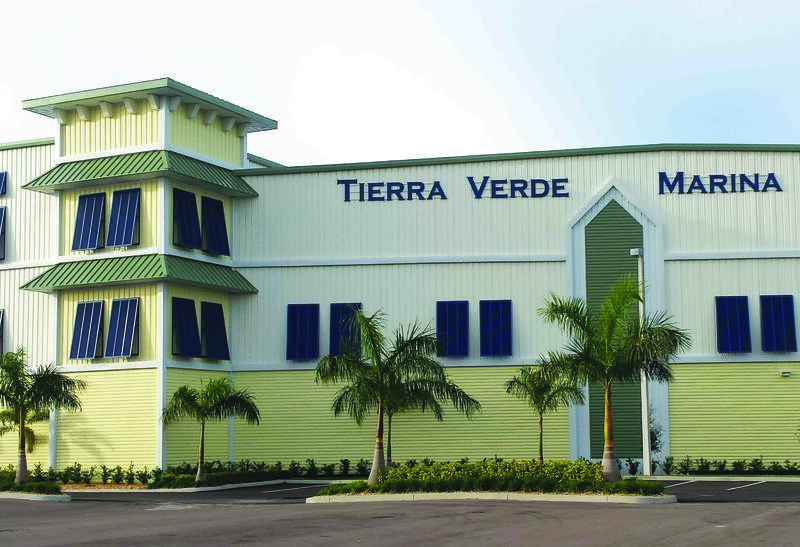

      R-Panel Ideal Applications

      • Commercial, industrial, and post-frame buildings which require durable, long-lasting roof & wall panels.

      • Pre-engineered metal building systems designed for R-Panel profiles.

      • Retrofit and new construction where speed, strength, and cost efficiency are key.

      • Large-scale wall and roof assemblies where high rib depth enhances performance and visual definition.
