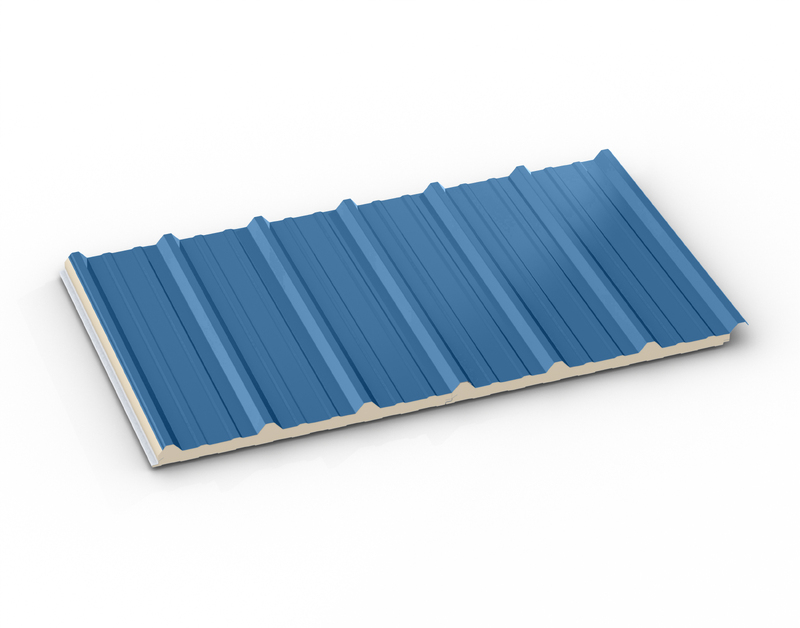

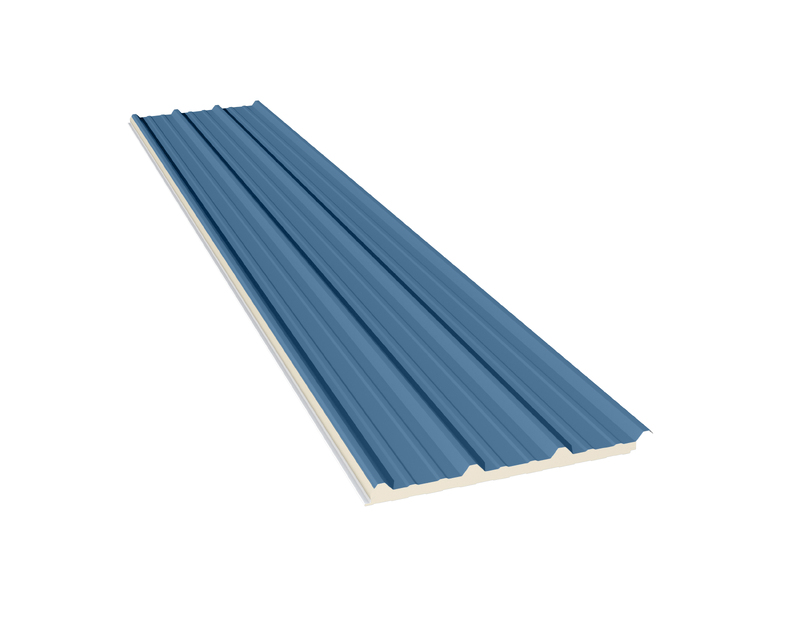

HighLine Insulated Metal Roof Panel (IMP)

Insulated Performance. R-Panel Simplicity.

HighLine™ insulated metal panels combine the thermal performance of IMP construction with the familiar through-fastened R-panel profile used on many pre-engineered metal buildings. Ideal for commercial and industrial projects, HighLine delivers dependable Green Span quality in an economical insulated panel system designed for long-term performance.

{"@context":"https://schema.org","@id":"https://www.mcelroymetal.com/insulated-metal-panels/green-span-profiles/highline-roof#product","@type":"Product","additionalProperty":[{"@type":"PropertyValue","name":"Panel type","value":"Concealed fastener, mechanically seamed"},{"@type":"PropertyValue","name":"Rib height","value":"2 3/8” (2 1/2\"-6\" insulation)"},{"@type":"PropertyValue","name":"Major rib on center","value":"42”"},{"@type":"PropertyValue","name":"Panel widths","value":"42”"},{"@type":"PropertyValue","name":"Factory panel length","value":"Up to 53’"},{"@type":"PropertyValue","name":"Minimum slope","value":"½:12"},{"@type":"PropertyValue","name":"Install substrate","value":"Solid Deck or Open Framing"},{"@type":"PropertyValue","name":"Substrate / gauges","value":"Exterior: 26, 24 & 22 GA; Interior: 26 GA"},{"@type":"PropertyValue","name":"Coating","value":"Exterior: Kynar 500® (PVDF); SMP Interior: Polyester, Silicone Polyester"},{"@type":"PropertyValue","name":"Approvals / test standards","value":"ASTM E1592 (See Greenspan)"},{"@type":"PropertyValue","name":"On-site forming","value":"No"}],"brand":{"@type":"Brand","name":"McElroy Metal"},"category":"Concealed fastener, mechanically seamed","description":"Discover HighLine insulated metal roof panels, offering superior thermal performance and cost-effective installation for commercial and industrial projects. Experience long-lasting quality and efficiency.","image":["https://www.mcelroymetal.com/hubfs/Product%20modal%20images/RidgeLine.jpg"],"manufacturer":{"@type":"Organization","name":"McElroy Metal","url":"https://www.mcelroymetal.com/"},"name":"Ridgeline IMP","url":"https://www.mcelroymetal.com/insulated-metal-panels/green-span-profiles/highline-roof"}

Renderings & Profiles

Color Charts

Great for:

WALLS

ROOFS

RESIDENTIAL

COMMERCIAL

HighLine IMP Specs at a Glance

Panel Type

Rib Height

Major Rib On Center

Cover Width

Factory Panel Length

Onsite Forming Available

Substrate/Gauges

Installation

Finishes

Minimum Slope

Exposed fastener

1 1/4” + 1 1/2” - 4” insulation

12"

36”

Up to 75’

Exterior: 26, 24 & 22 GA; Interior: 26 GA

Solid Deck or Open Framing

Exterior: Kynar 500® (PVDF); SMP Interior: Polyester, Silicone Polyester

1:12 with sealant; 3:12 without sealant

HighLine Ideal Applications

Pre-engineered metal buildings (PEMBs).
Warehouses and distribution facilities.
Manufacturing and industrial buildings.
Equipment storage and service buildings.
Agricultural and utility structures.
Commercial buildings seeking economical insulated wall systems

See 3D Textures Here

HighLine Top 3 Benefits

Cost-Effective Insulated Roof System: HighLine delivers the thermal efficiency of insulated metal panel construction in a more economical configuration, making it an excellent option for large commercial and industrial buildings where budget matters.
Familiar Through-Fastened Installation: The ribbed R-panel style profile installs using a straightforward through-fastened method familiar to crews who regularly work with metal building wall panels, helping simplify installation.
Reliable Thermal Performance: Factory-insulated panels provide continuous insulation and help improve energy efficiency compared to traditional multi-component wall assemblies.

Literature
Warranties

Brochures/Flyers

2025 Product Catalog

Finish and Substrate Warranties

Standard Galvalume^® Standard Fluropon^® Kynar 500^® PVDF with Galvalume^® Substrate Project Specific Galvalume^® Project Specific Fluropon^® Kynar 500^® PVDF with Galvalume^® Substrate

Compare our IMP panels using the tool below.

For information on all McElroy Metal products, visit our full product library.

Panel

Seam Type

Rib Height

Panel Widths

Minimum Slope

Install Substrate

Clips

Substrate / Gauges

Coating

Notable Approvals / Tests

HighLine IMP

N/A

1 1/4” + 1 1/2” - 4” insulation

36”

1:12 with sealant; 3:12 without sealant

Solid Deck or Open Framing

N/A

Exterior: 26, 24 & 22 GA; Interior: 26 GA

Exterior: Kynar 500® (PVDF); SMP Interior: Polyester, Silicone Polyester

ASTM E1592 (See Greenspan)

Notes & Manufacturing Locations

HighLine panels are manufactured by Green Span Profiles, a McElroy Metal joint venture company, at its Waller, Texas facility.
Oil canning is a natural appearance characteristic of metal panels and not cause for rejection.

Why Choose McElroy Metal

McElroy Metal is an employee-owned manufacturer with more than six decades of experience producing high-quality metal roofing, wall systems, and substructural components. Our nationwide manufacturing and service center network ensures consistent availability, responsive support, and dependable delivery. Built on a culture of craftsmanship and partnership, our products are engineered for long-term durability and trusted performance on projects of every size.

Find a Distributor / Contractor Near You

Whether you’re building a new home or planning renovations, a metal roof can deliver long-term cost savings and comfort. To explore your options and find the product that meets your aesthetic and budgetary needs, contact a McElroy Metal distributor or contractor in your area today. We can’t wait to help make your dream home a reality.

Frequently Asked Questions

The questions below address common considerations and help guide product selection for your project.

What does the HighLine insulated wall panel profile look like?

The HighLine insulated metal panel features a ribbed exterior profile with pronounced major ribs and smaller intermediate stiffening ribs across a 36-inch coverage. This profile adds visual depth to the wall while maintaining the thermal efficiency and installation speed typical of insulated metal panel systems.

Where are HighLine insulated panels commonly used?

HighLine insulated panels are commonly used on commercial and industrial buildings where both thermal performance and a durable ribbed architectural appearance are desired. Typical applications include manufacturing facilities, warehouses, distribution centers, and commercial buildings.

Do I have to start installation at one edge?

Yes. Based on the lap pattern, you will need to install HighLine panels in a consistent left to right/right to left manner.

What R-value can I achieve with HighLine panels?

HighLine insulated metal roof panels provide a nominal R-value of approximately R-8 per inch of thickness. Panels are available in thicknesses from 1 1/2" to 4", allowing total thermal performance from roughly R-12 to R-32, depending on project requirements.

What type and thickness of insulation does HighLine include?

HighLine panels feature 1 1/2" to 4" of factory-foamed polyisocyanurate insulation. The foam is continuously poured in place during manufacturing, bonding the interior and exterior steel facings to create a rigid, durable panel with consistent thermal performance across its entire surface.

How does the insulation perform over time?

The polyisocyanurate insulation in HighLine panels is factory-foamed in place, producing a consistent, closed-cell structure that maintains stable R-values throughout the panel’s service life when properly installed.

Is HighLine compatible with other McElroy panel systems?

Yes. HighLine integrates easily with McElroy’s other panels, trim, flashing, and accessory components for complete roof envelope solutions.
