Curving Information

Great for:

Icon
WALLS
Icon
WALLS
  • 138T panels can be curved (16”, 18” width only)
  • 238T panels can be curved (16”, 18” widths only)
  • 138T, 238T and Multi-Span Clips are curved onsite by McElroy curving technicians
  • Minimum Radius:
    • 138T Steel - 10’ radius
    • 238T Steel - 24’ radius
    • 138T Alum - 10’ radius
    • 238T Alum - 14’ radius
  • Multi-Span Clips - 35’ radius
  • Maximum length on Multi-Span clips is 30’
  • 138T flat panels will curve naturally on a radius of 150’ or greater
  • 238T flat panels will curve naturally on a radius of 225’ or greater
  • 138T/238T panels can be curved for either Convex or Candy Cane radius applications
  • Equipment for Curving & Candy Cane style panels is based in Houston, TX but is mobile for jobsite production
IN ELSE

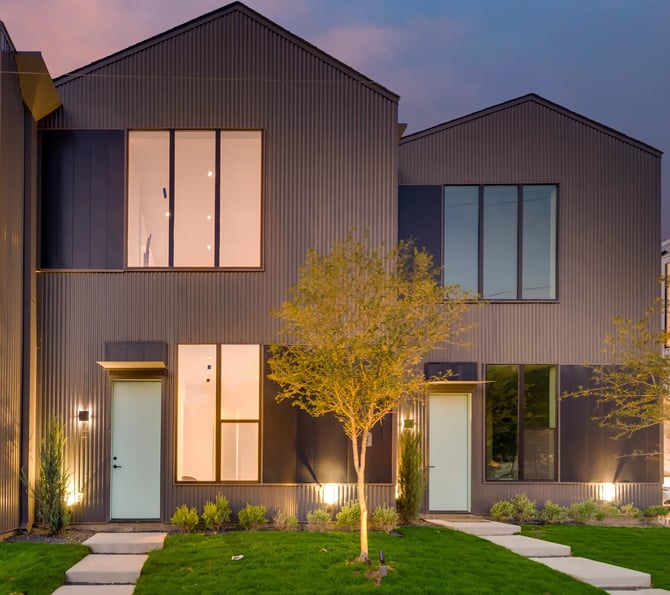

Mini-Rib East Dallas Townhouse 4
