Metal Canopy Panel

MCP (McElroy Canopy Panel)

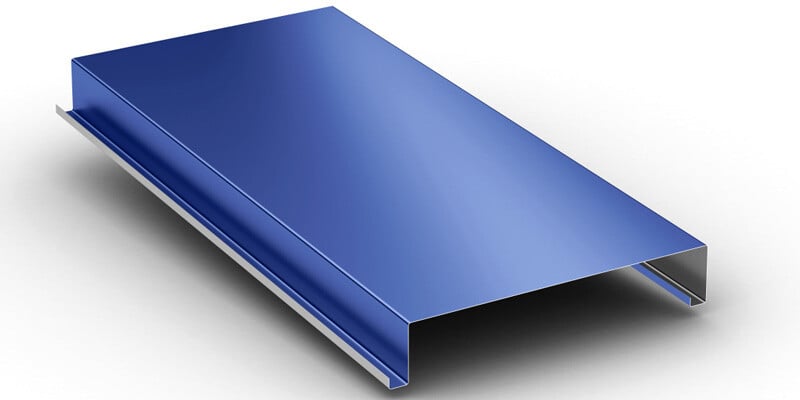

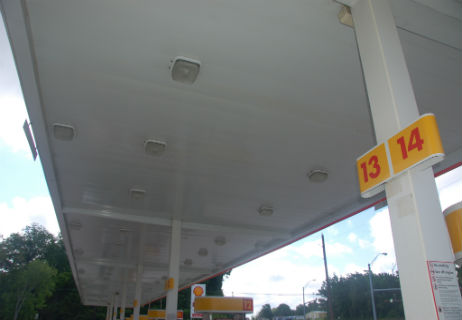

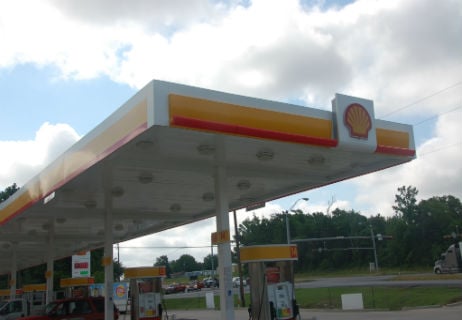

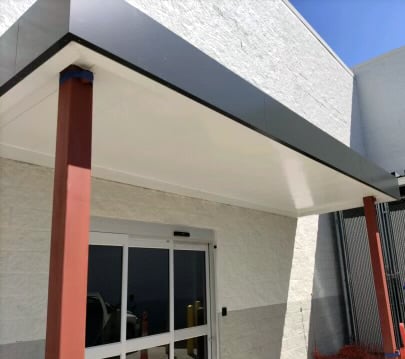

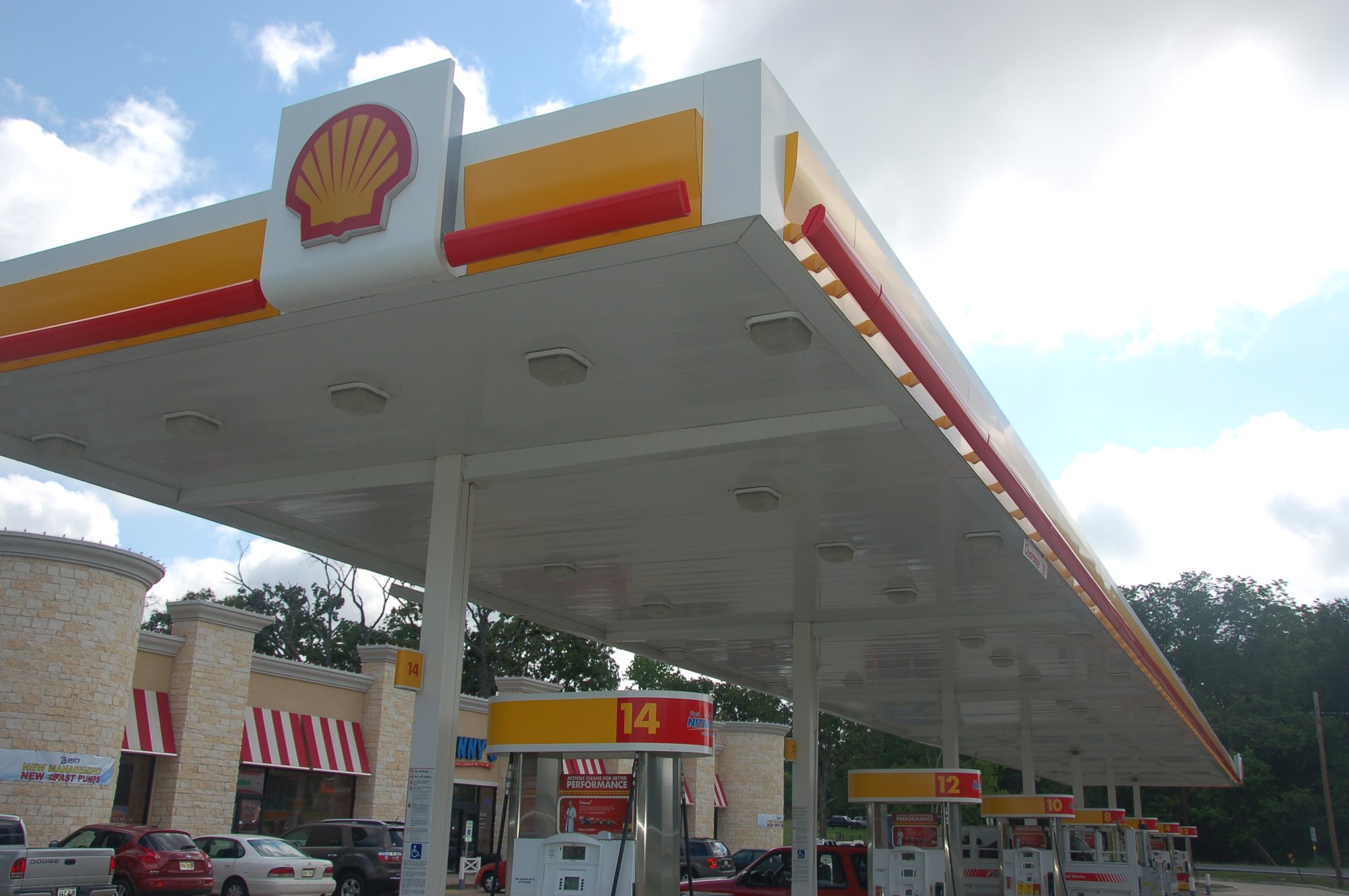

MCP (McElroy Canopy Panel) is a concealed fastener panel designed to meet the demands of canopy installations. MCP is an excellent and desirable application for banks, drive-thru restaurants, convenience stores or any other building type requiring attractive and functional canopy systems.

View Related Files Build a Submittal Package

Click image to enlarge

Great for

Walls

Walls

Roofs

Roofs

Residential

Residential

Commercial

Commercial

Specifications & Details

Details
Type Concealed fastener canopy panel
Manufacturing Facilities Sunnyvale, TX
Note Oil Canning is a natural occurrence in metal panels and is not a cause for panel rejection
Testing
Testing Data For available Test Data, Section Properties or Load Tables, please visit our downloads section.
Panel Options

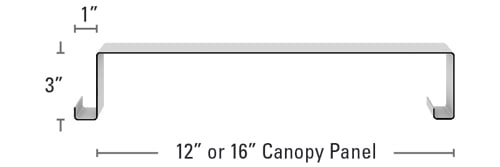

Panel Width 12" and 16"
Panel Height 3"
Coating Kynar 500® (PVDF)
Substrate - Standard 24 GA Galvalume®
- Optional 22 GA Galvalume
