Trap-Tee

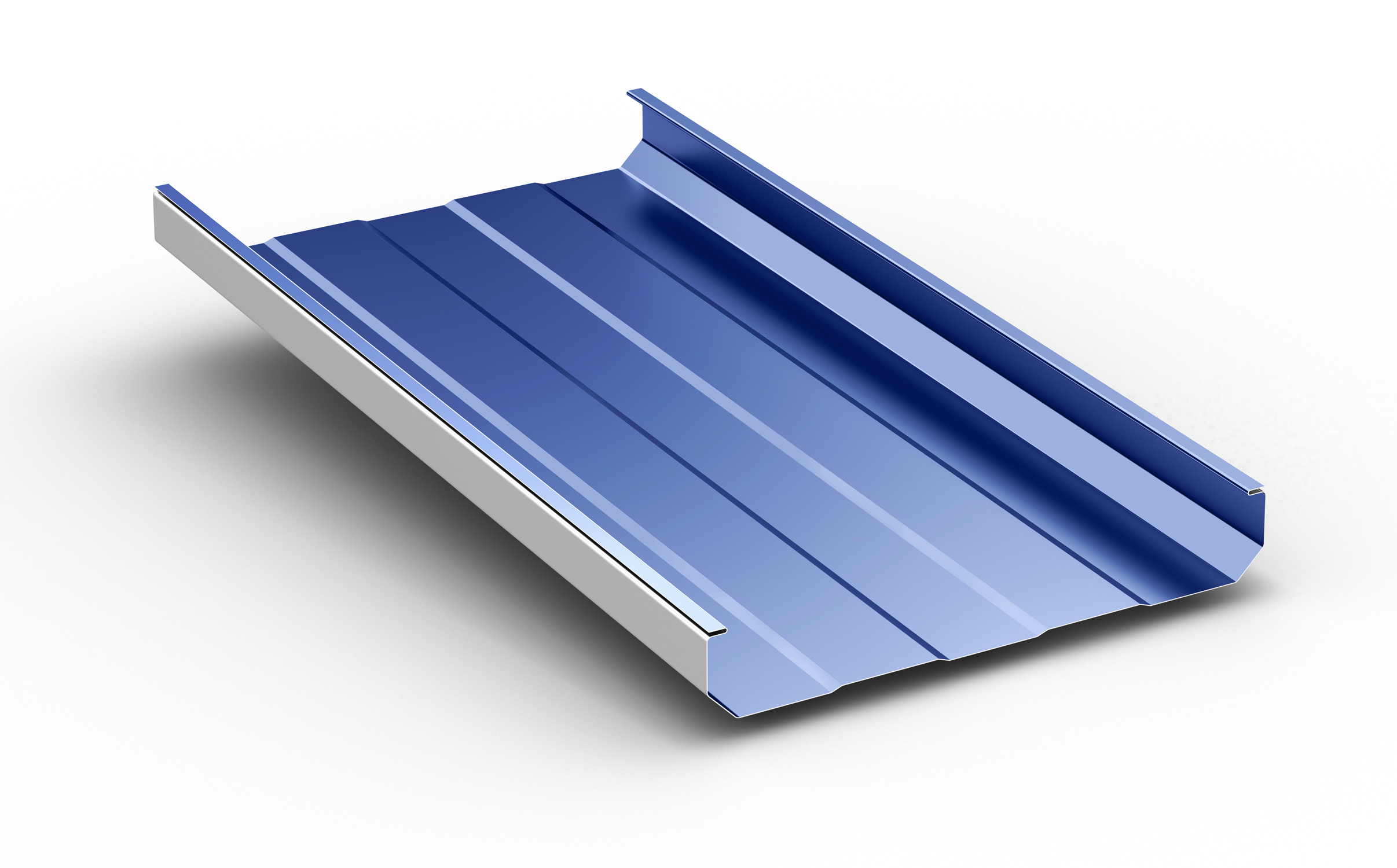

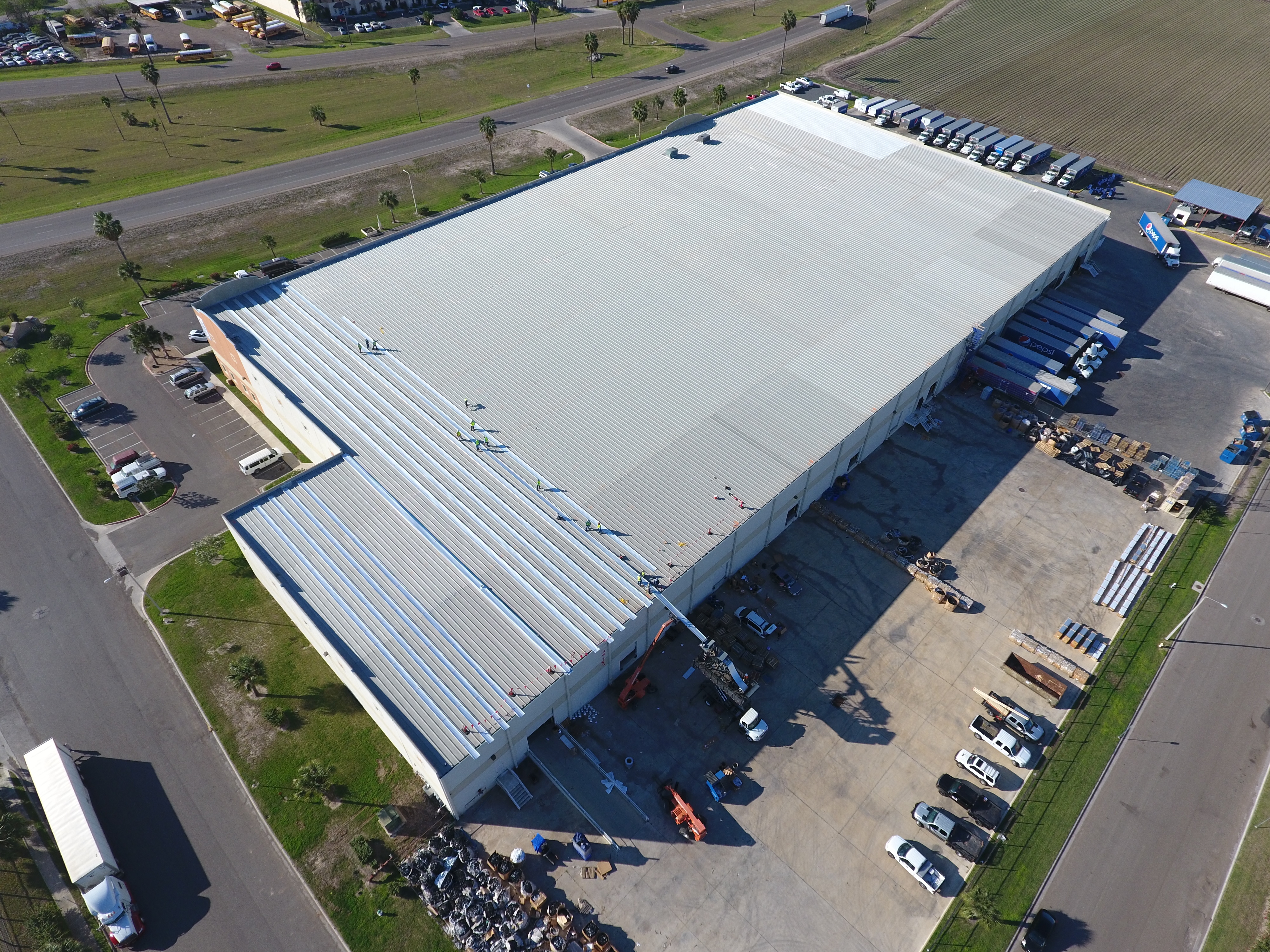

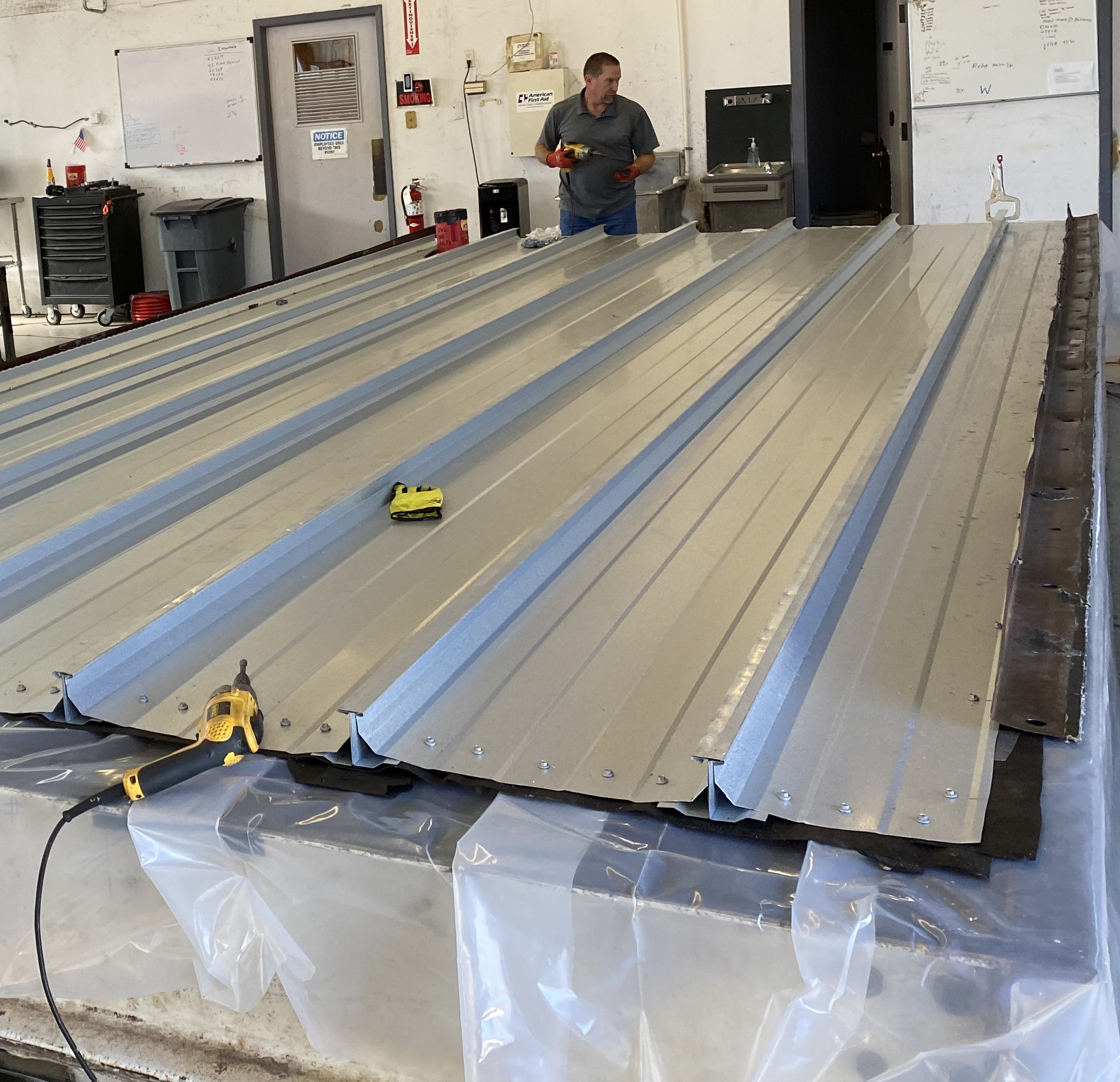

McElroy's 2 3/4" tall symmetrical Trap-Tee system is a site-formed, mechanically seamed system designed to resolve the three major shortcomings of trapezoidal standing seam roof systems: leaking endlaps, low wind uplift capacity, and difficult to repair.

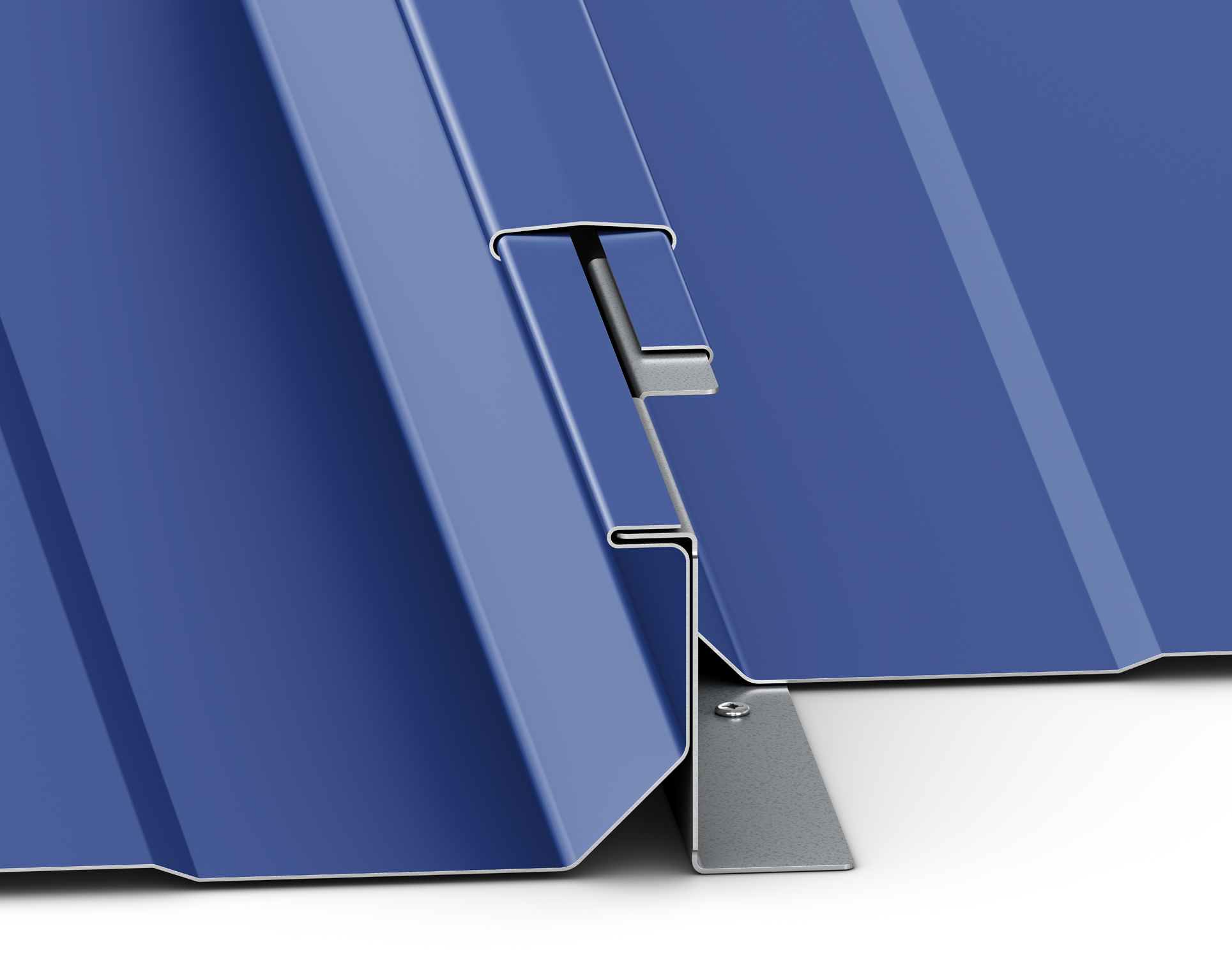

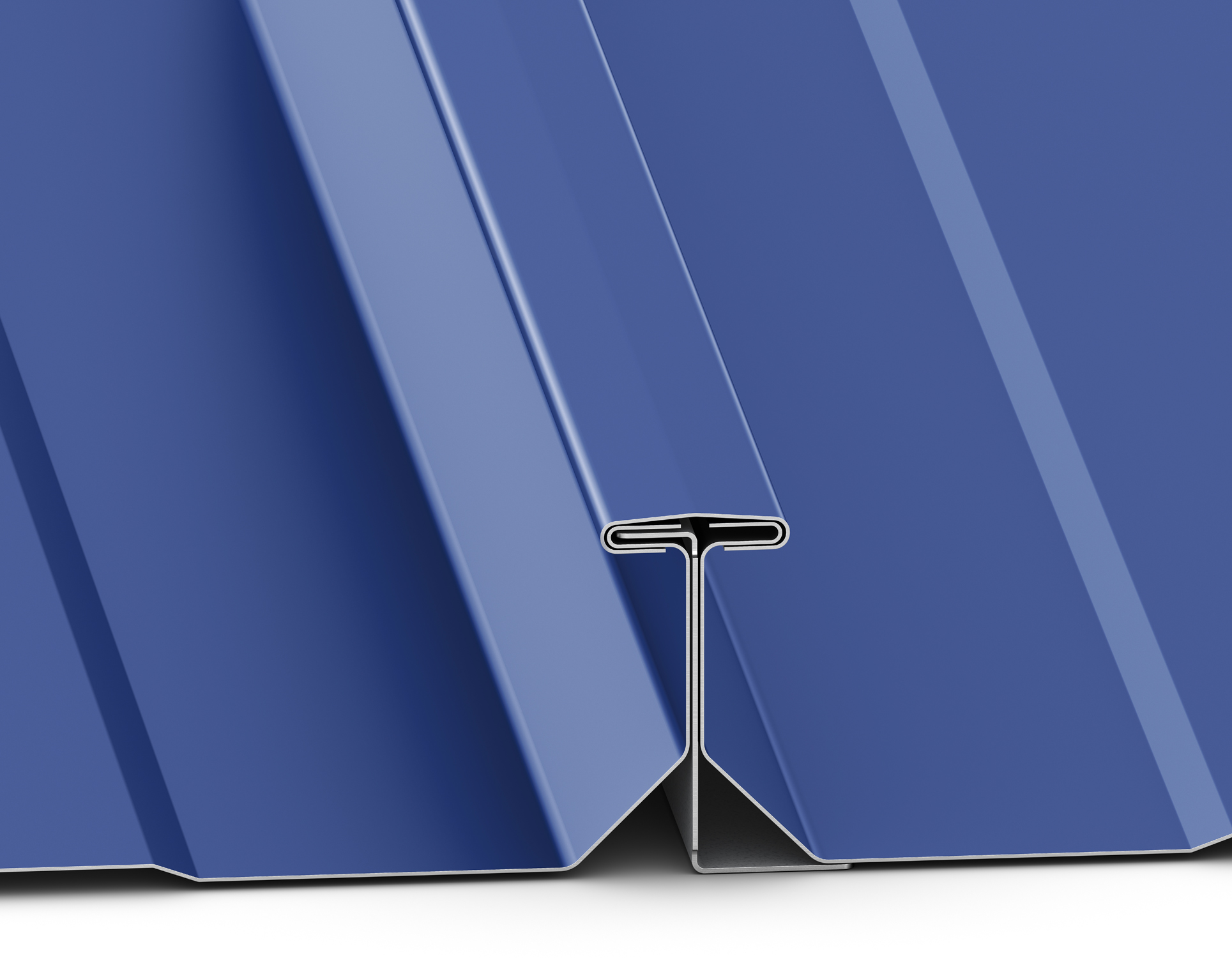

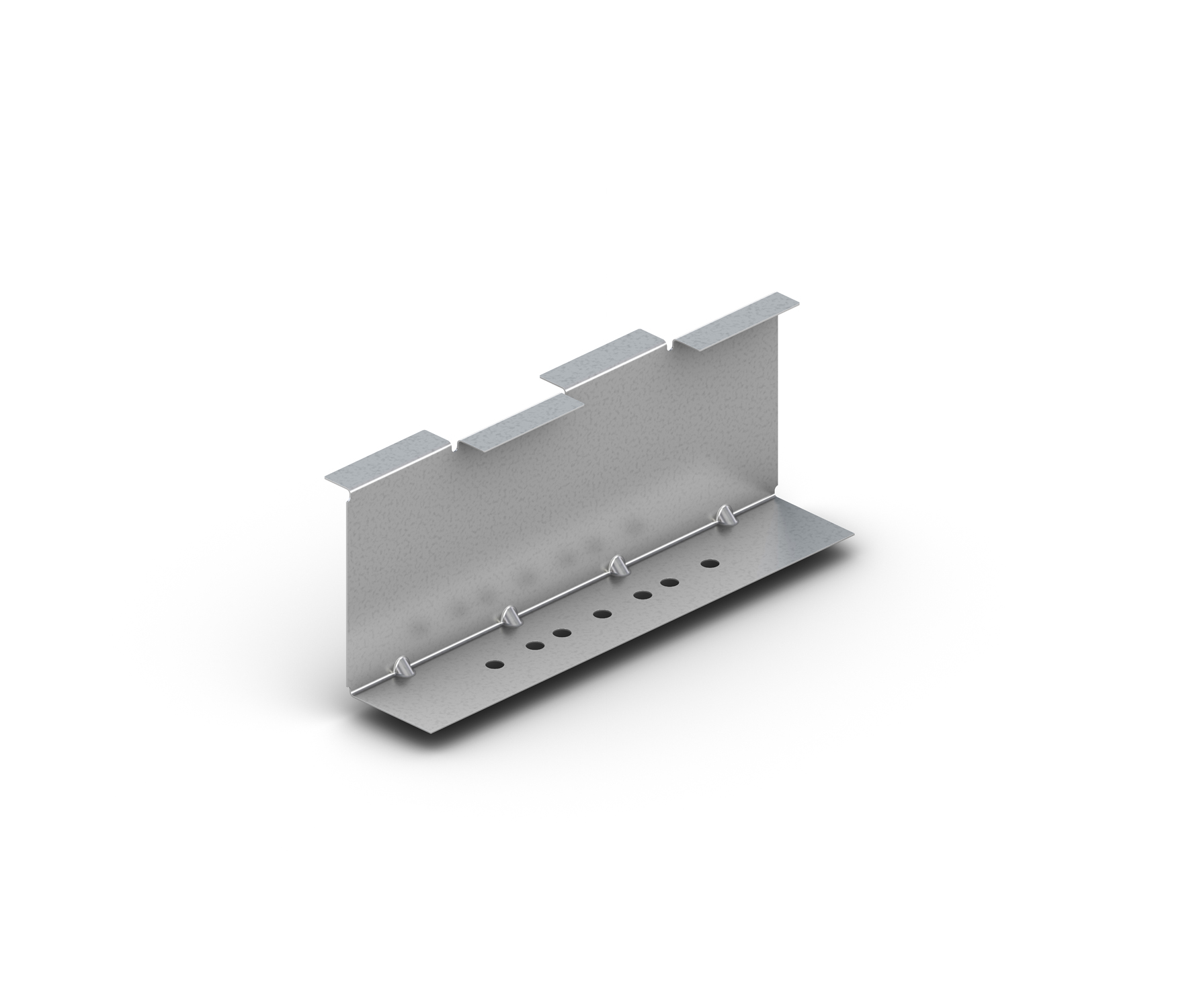

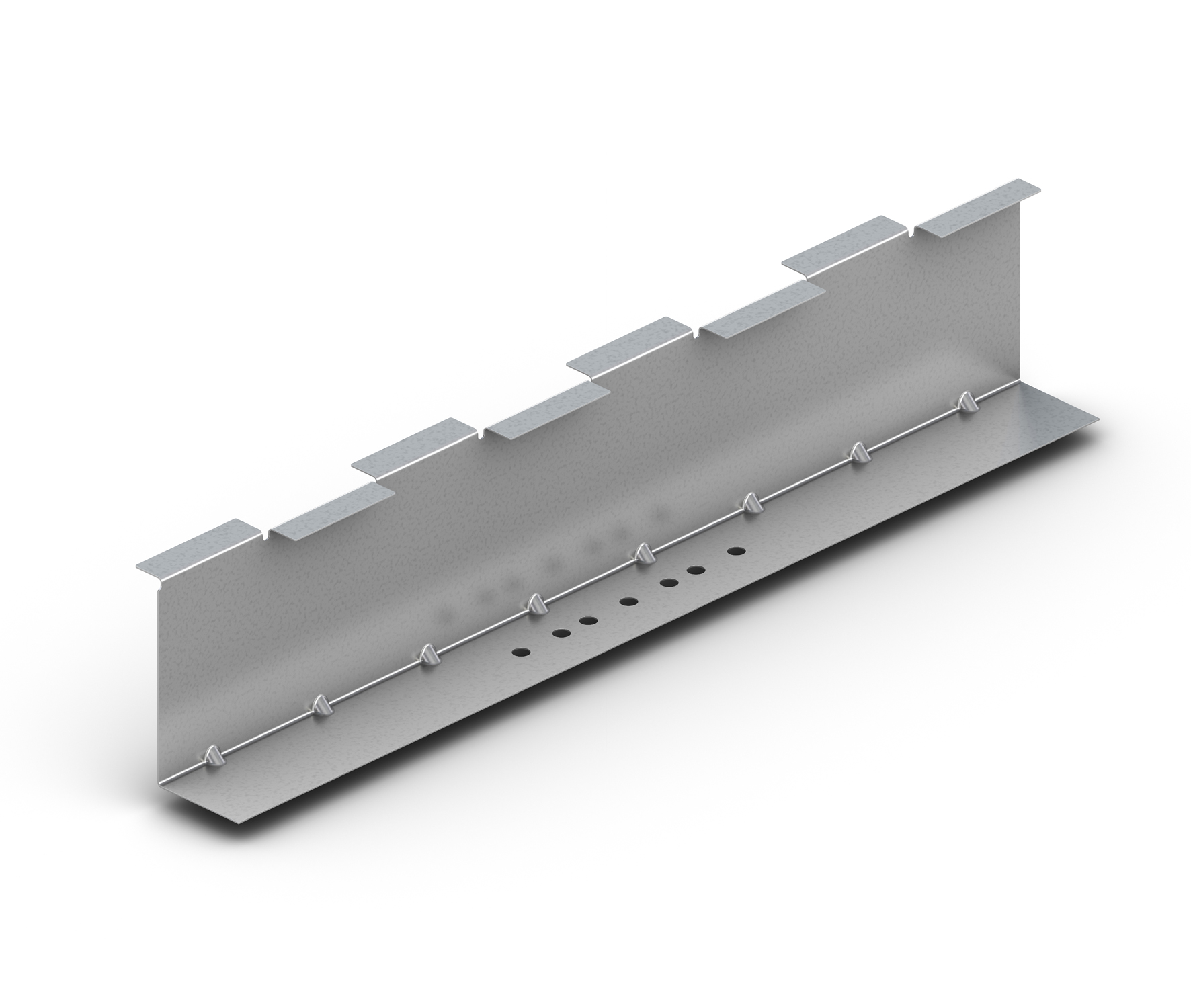

Site forming eliminates end laps that tend to leak over time, oversized seam and special clips dramatically increase wind uplift capacity and the symmetrical design allows for easy repair or alteration after the roof is installed. With a life expectancy approaching 60 years, the ability to add curbs, vents, single panel replacement, and even building additions represents a critical component.

McElroy's standard paint system for Trap-Tee is Kynar 500® (PVDF), the industry's best coating for long-term protection against panel chalk and fade. For budget-conscious or low-sloped applications, this panel is also available in acrylic-coated Galvalume®

View Related Files Build a Submittal Package

Click image to enlarge

Great for

Walls

Walls

Roofs

Roofs

Residential

Residential

Commercial

Commercial

Trap-Tee Advantages Include:

  • Ease of installation
  • Individual panel replaceability
  • Watertight seam design
  • Outstanding wind uplift
  • 1/4:12 minimum roof slope
  • Single-piece panels up to 250' long
  • No lap conditions = improved weathertightness
  • Bi-directional seamer
  • Ideal for: new construction; remove and replace; and recover for open frame buildings

Specifications & Details

Details
Profile 2 3/4" Mechanically Seamed
Manufacturing Facililties Houston, TX
Seam Cap Seam cap includes 2 beads of continuous factory-applied sealant
Minimum slope 1/4:12
Installation Can be installed over a solid deck or open framing
Suitability Best suited for simple sloped roofs without dormers, hips, valleys or other special conditions.
Note Oil Canning is a natural occurrence in metal panels and is not a cause for panel rejection
Testing
Uplift Test ASTM E1592
Air Infiltration ASTM E1680
Water Infiltration ASTM E1646
Testing Data For any available Test Data, Section Properties, or Load Tables, please visit our downloads section
Panel Info
Panel Width 18" & 24" Site Formed only
Panel configurations Minor Ribs
Coating Acrylic Coated Galvalume®
Kynar 500® (PVDF)
Substrate Standard 24 GA Galvalume®
Optional 22 GA & 20 GA Galvalume®

Related Products

238T

Maxima

ML90

R-Seal

r-seal-logo

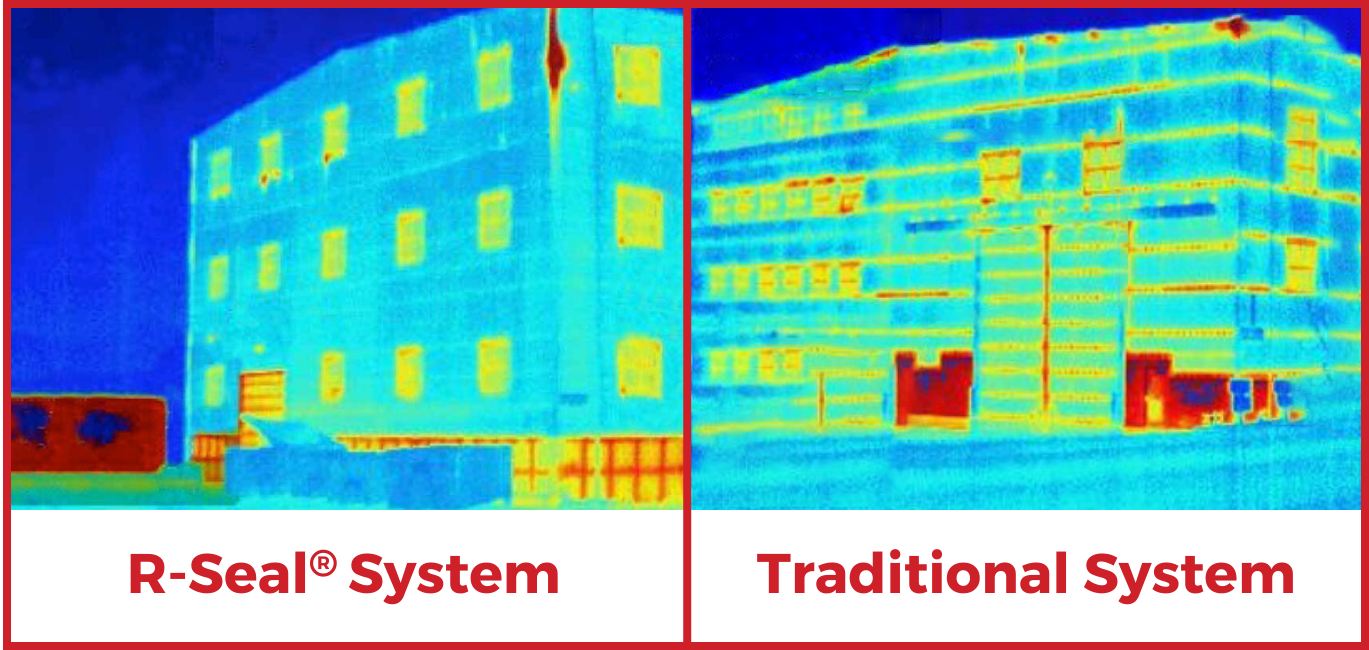

R-Seal’s continuous insulation system reduces heat transfer through the building's framing. Traditional insulation systems allow more heat to be conducted through the building's framing.

r-seal-system-vs-traditional-system

Continuous Insulation System R-Seal Advantages

  • R-Seal is designed to be installed on top of open frame metal buildings with purlins spaced 5’ O.C.
  • Rigid urethane board with shiplap side joints and waterproof facer
  • Tape seal flap makes a watertight joint between boards
  • Continuous R-Value of 7.5 per inch (no break over purlins)
  • 42” wide board x up to 53’ long for super fast installation
  • With R-30 (4”) YOU CAN WALK ON IT!
  • Air-tight and water-tight after installation
  • Trades go right to work after installation in the building compressing the construction schedule
  • Ideal for new construction or removing and replacing a standing seam
  • Paintable
